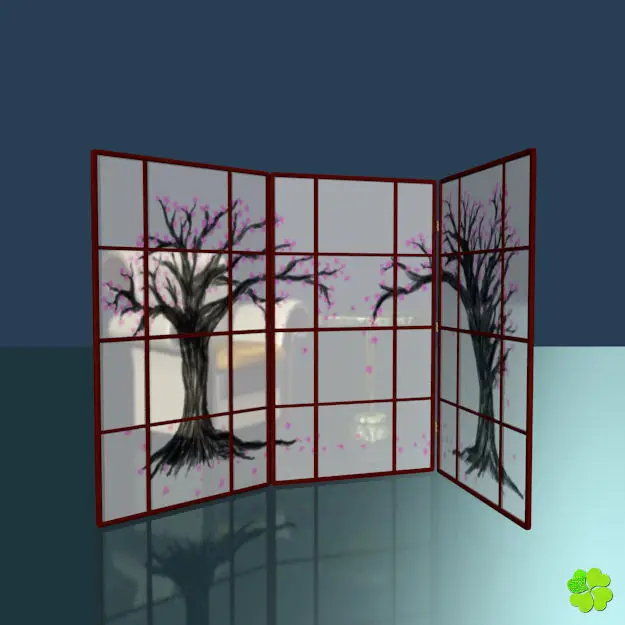

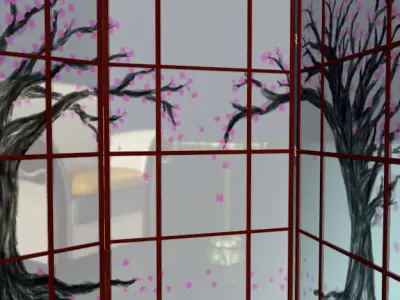

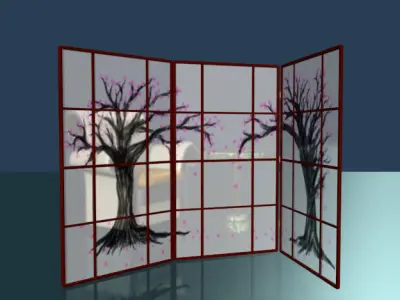

- Model of Japanese-style folding screen 3-panel, decorated with hand-painted cherry.
- With rig and animation included.
Armchair and table available as separate products
Units of file: centimeters.
Size in centimeters (folded): 85.52 (X axis), 6.74 (Y axis), 145 (Z axis).
Real world scale. (1,1,1).
Focused on the origin.
TOPOLOGY
- An object with 9 manifold meshes: 3 for panels including hinges, and 6 for the axes of the hinges.
- 100% quads (13,528 quads).
- 13,366 vertices and 27,056 edges.
- Subdividible topology.
- Clean edge flow.
- No isolated vertices.
- No coincident vertices.
- No coincident/coplanar faces.
- No faces intersected.
- No faces distorted more than 45 degrees.
- No loss geometry.
- No poles with more than 5 edges.
RIG
- Armature with 3 bones.
- All moves are made locally.
- The bones are replaced by shapes, with forms and color guidance.
- The form indicates the action arrow to move, rotate and circle, and to square to scale. They can be combined in the same bone.
- The color indicates the local axis on which the action is performed: red for the X axis, green for the Y axis, and blue for the Z axis can also be combined in the same bone.
- The actions and its range of allowable values are controlled by constraint on each bone.
- Auxiliary objects for shapes are hidden in another layer.
- With rig and animation included.
UVMAP AND TEXTURES
- Normal outward.
- UV without overlapping.
- Optional texture available in additional file (for fbx file).
- Three textures of 4096x4096 pixels.
Image textures included:
- folding_screen_diffuse.png
- folding_screen_bump.png
- folding_screen_normal.png (OPTIONAL)
PREVIEWS
- Render with the Blender internal engine without post production.

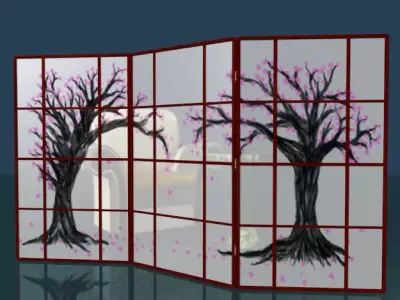

- The images of the mesh in orthographic view.
The FBX file is exported from Blender and may need some adjustment (textures, constraints).
