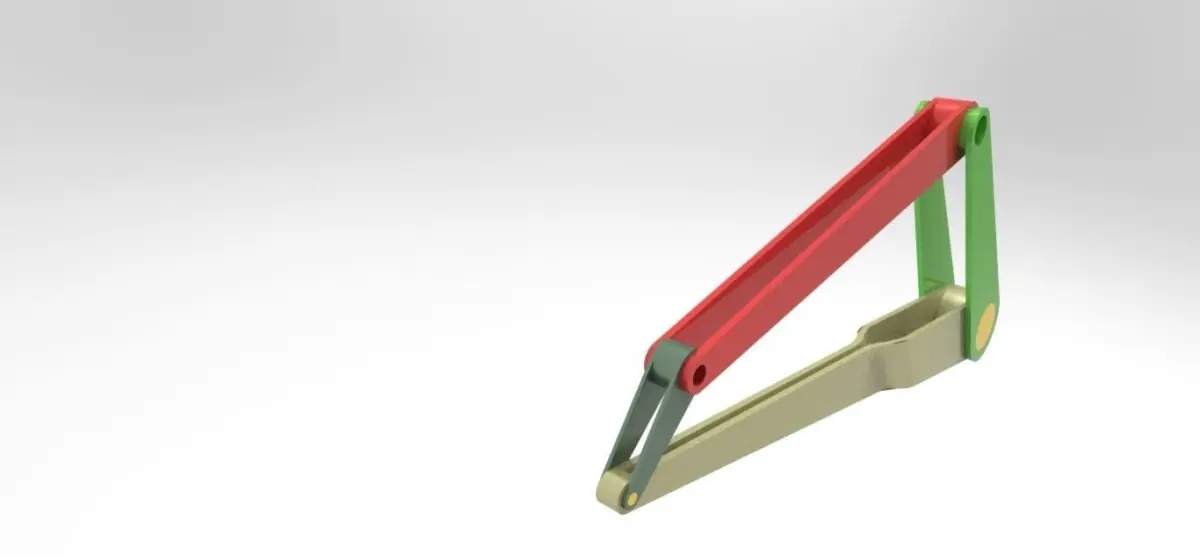

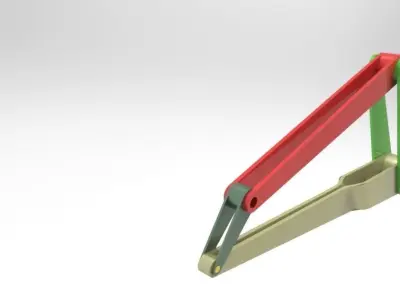

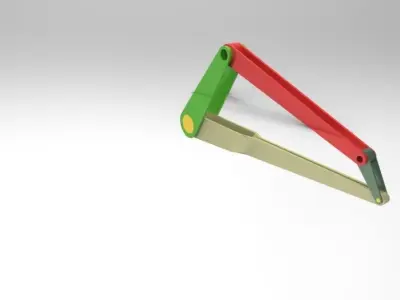

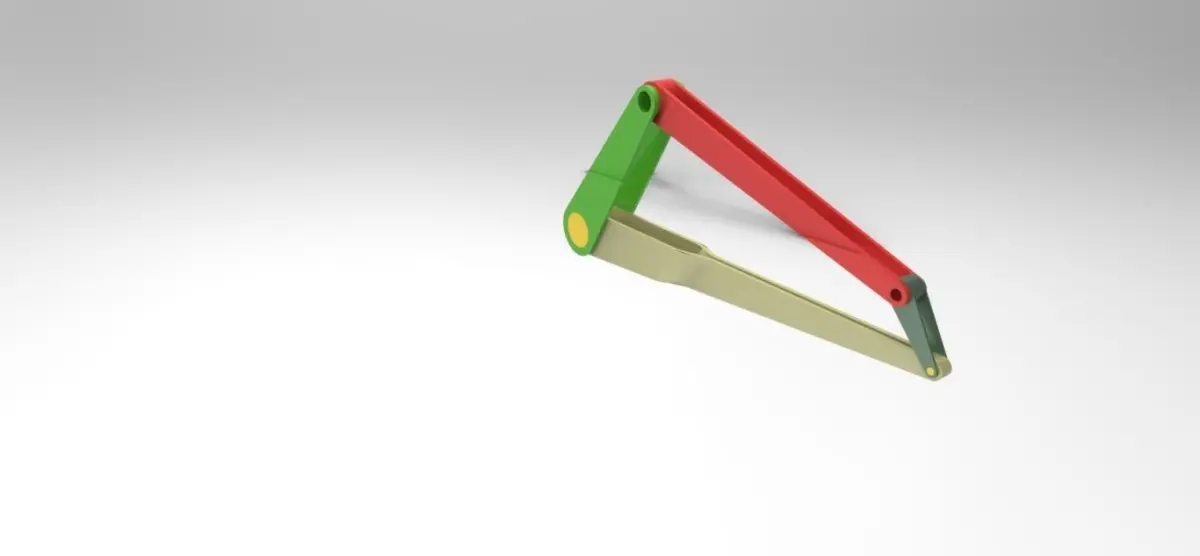

Buy Four bar chain mechanism 3D model

Name: Four bar chain mechanism 3D model
Brand: rupesh-8989
SKU: 879587
Price: 7.00 USD
Availability: InStock

License: Royalty Free

author:

rupesh-8989

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rupesh-8989». CGhub does not claim copyright ownership over the content used.

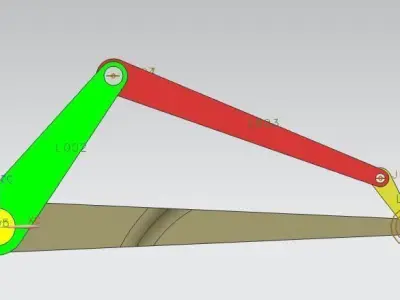

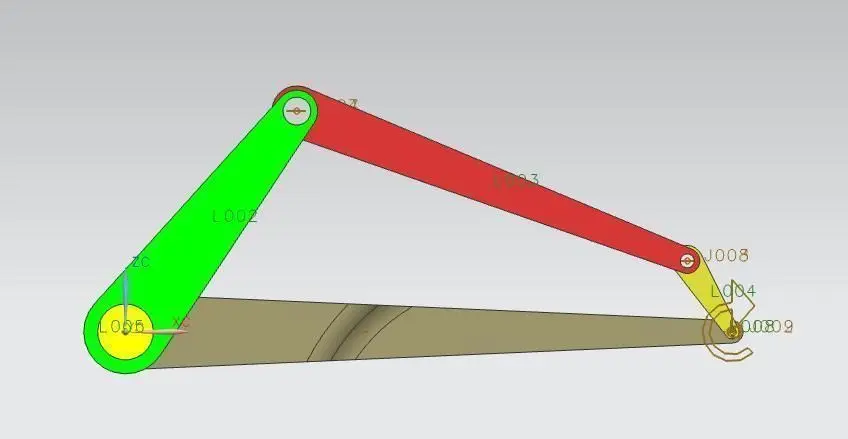

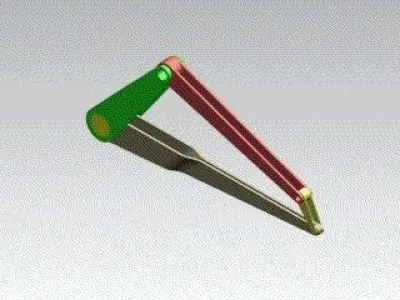

The four-bar mechanism, in its simplest form, has four bar-shaped links and four turning pairs, as shown in the animation. The fixed link (the black bar) may actually be bar-shaped, but more frequently it represents the frame of a machine and in that case is usually a massive casting of irregular shape.

Many mechanism can be broken down into equivalent four-bar linkages. These mechanism has many aplication in mecanical operations. They can be considered to be one of the fundemental mechanisms.you can see this link also i have changed some design:-Four-bar mechanism by Catia v5 DMU Kinametics
