Four-Motion Joint With Oval Guides 3D model
Home Catalog Four-Motion Joint With Oval Guides 3D model
Four-Motion Joint With Oval Guides 3D model

Publication date: 2019-02-09

Buy Four-Motion Joint With Oval Guides 3D model

$2

License: Editorial No Ai

author:

m-furkanyildiz0

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «m-furkanyildiz0». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats

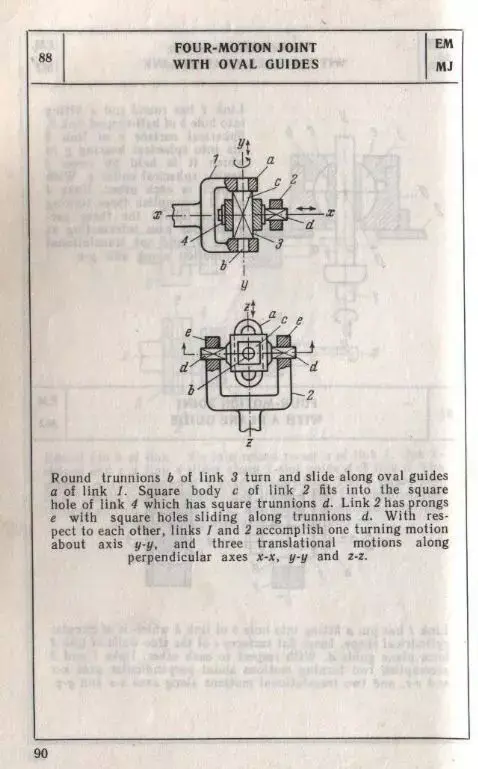

Round turnnions b of link 3 turn and slide along oval guides a of link1. Square body c of link 2 fits into the square hole of link 4 which has square turnnions d. Link 2 has prongs e with square holes sliding along trunnions d. With respect to each other, links 1 and 2 accomplish one turning motion about axis y-y, and three translational motions along perpendicular axes x-x, y-y and z-z.

SLDPRT (SolidWorks, filesize: 341 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Mechanism Mechanical Part Engineering Processing Solidworks Parts Engineering parts Solutions
