Four Wheeler Connecting Rod 3D model
Four Wheeler Connecting Rod 3D model
Four Wheeler Connecting Rod 3D model
Four Wheeler Connecting Rod 3D model
Four Wheeler Connecting Rod 3D model

Publication date: 2021-12-19

Four Wheeler Connecting Rod 3D model

$19

License: Royalty Free License

author:

Askutty

Buy at www.cgtrader.com - $19 Add to Wishlist
  • Description
  • Formats
Description

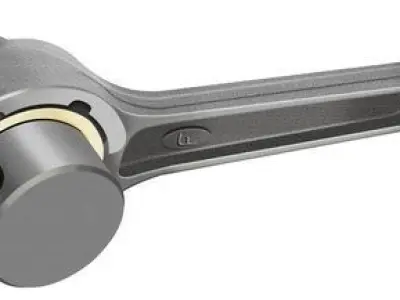

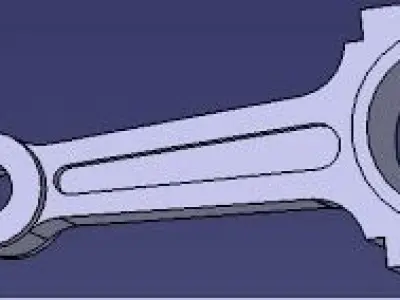

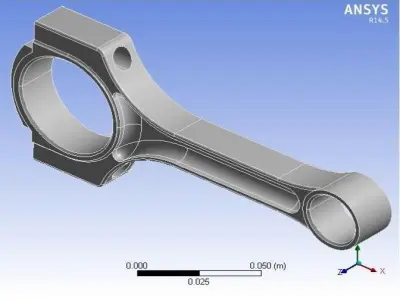

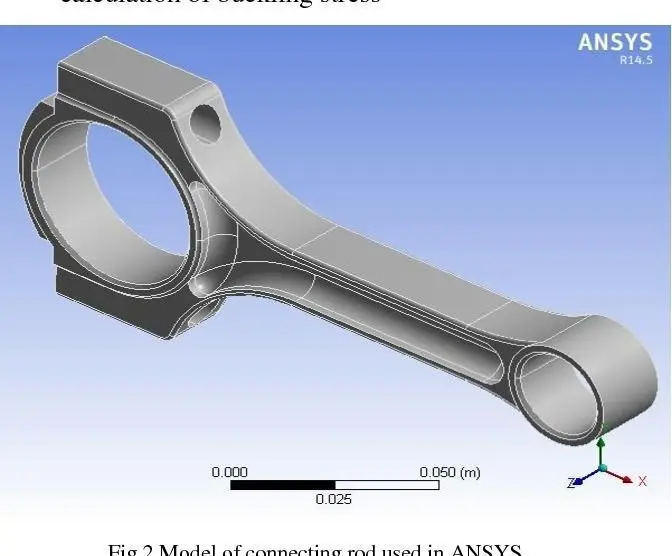

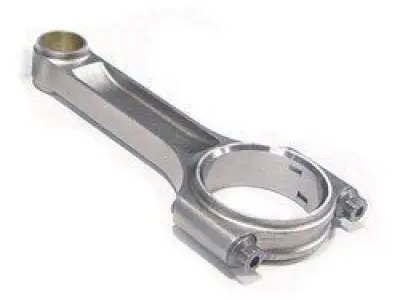

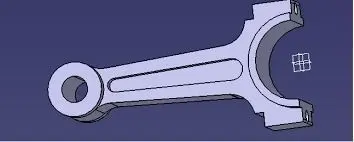

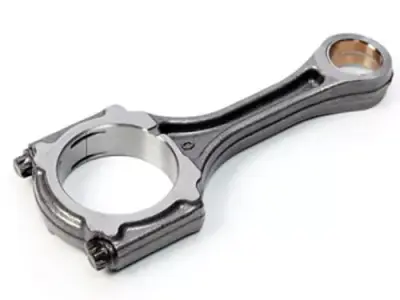

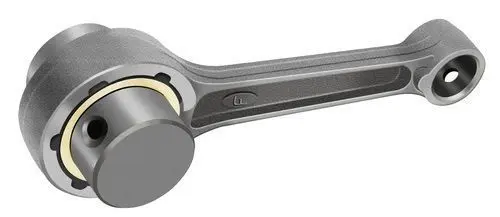

A connecting rod is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft. The connecting rod is required to transmit the compressive and tensile forces from the piston.n its most common form, in an internal combustion engine, it allows pivoting on the piston end and rotation on the shaft end.The predecessor to the connecting rod is a mechanic linkage used by water mills to convert rotating motion of the water wheel into reciprocating motion.FILE FORMAT:

  1. .CATPart
  2. .igs
  3. .stl
  4. .stp
  5. .obj

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: -
  • Polygons: 0
  • Vertices: 0

Tags

Engine Equipment Vehical Power Transmission Truck Bus Glazed Energy Mech Mechanical Engineer Car Vehicle Part Vehicle part Car engine Car part Truck engine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Askutty». CGhub does not claim copyright ownership over the content used.
  • CATIA () (5 files)829 KB
  • IGES () (5 files)665 KB
  • OBJ ()936 KB
  • STEP () (5 files)336 KB
  • Stereolithography () (4 files)286 KB
