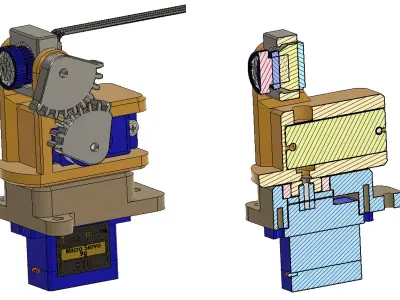

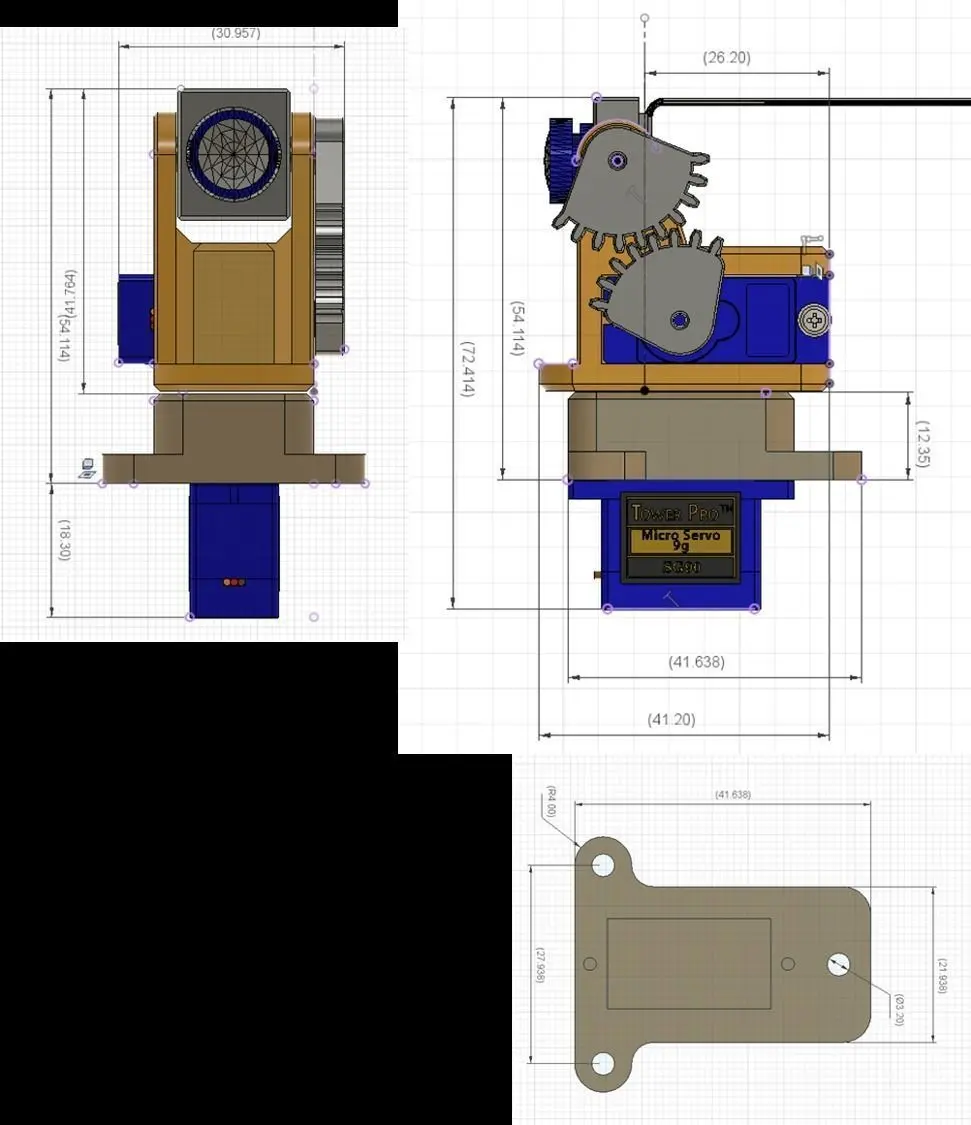

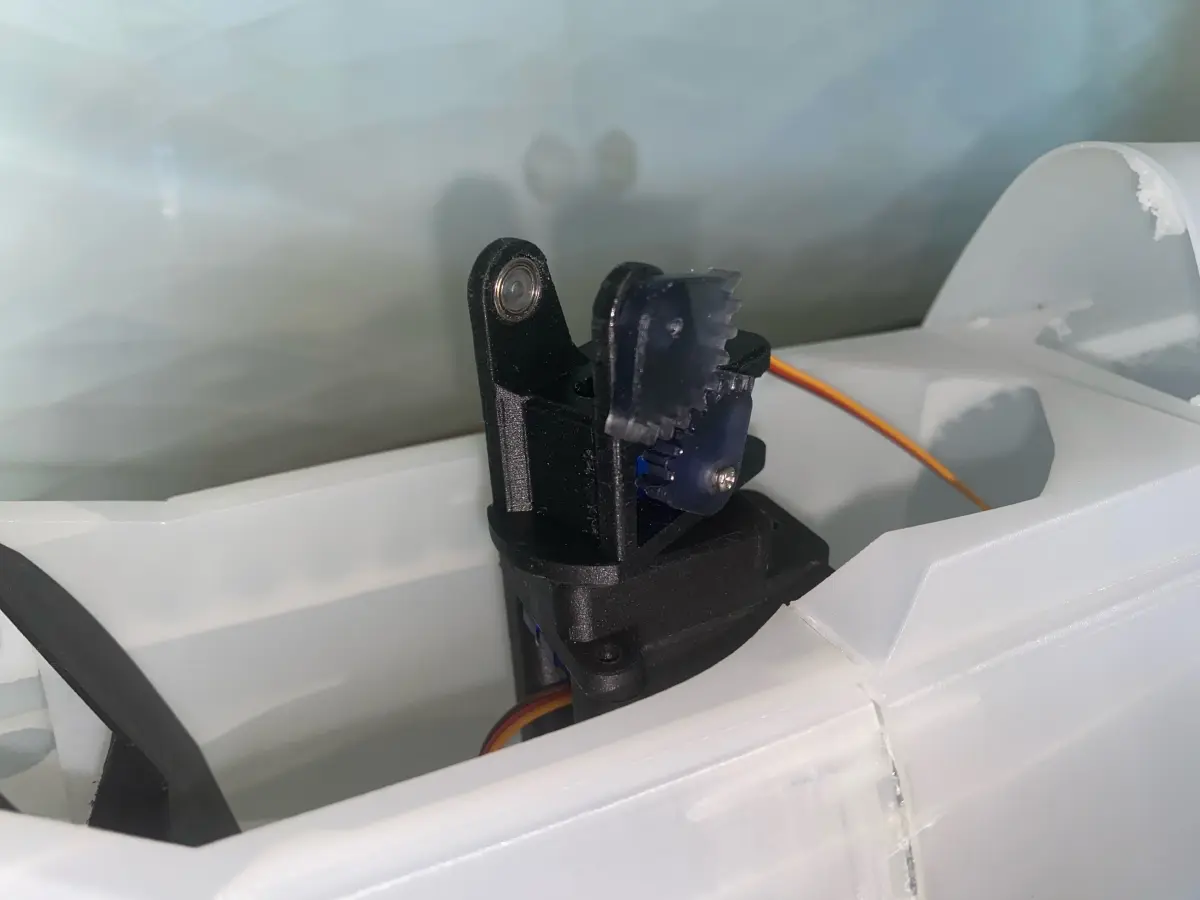

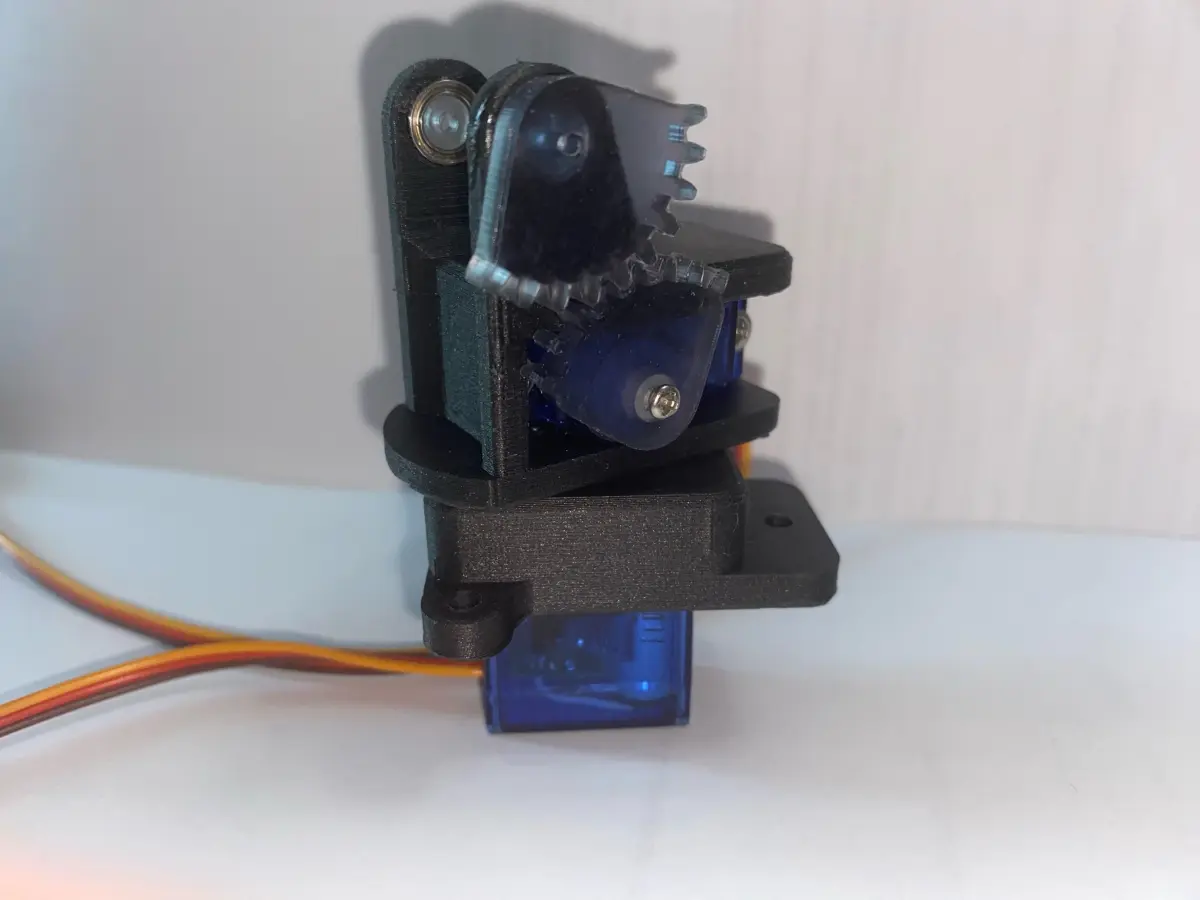

This is a 2 Axis FPV Headtracking Gimbal using 2 x 9g servos. All Axis have bearing joints for smooth mothion. The design allows for +/- 60° up to +/- 135° (120° up to 270° ) Pan and up to +/-60° (120°) Tilt. This unit is designed for a Caddx Turbo EOS2 camera (can provide alternative custom camera mounts upon request). The price includes STL Files for printing or for an additional $10 + shipping, printed diles can be supplied.
STL Files
- Tilt Gears - Recommend SLA printing for high precision and strength (with Engineering Grade resin)
- Camera Mount - Recommend SLA printed
- Pan + Tilt Servo mounts - Recommend FDM printed (PETG)
Hardware BOM
- 1x M2x6mm cap screw to secure camera
- 1x M2x10mm cap screw to secure camera
- 2x 6642 Bearings for camera tilt (3x6x2mm)
- 1x 6700ZZ Bearing for Pan motion (10x15x4mm)
- 2x 9G Servos + screws
Canera Hardware
- Caddx Turbo EOS2 Camera
- 1x M2x6mm cap screw to secure camera
- 1x M2x10mm cap screw to secure camera
