Frame house structure from parametric revit families 3D model

$22

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

jcarchwiz

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jcarchwiz». CGhub does not claim copyright ownership over the content used.

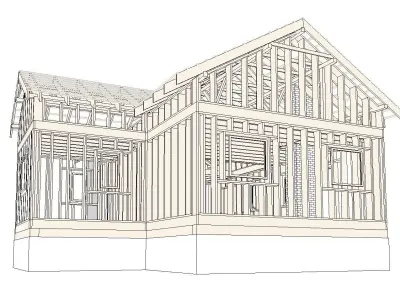

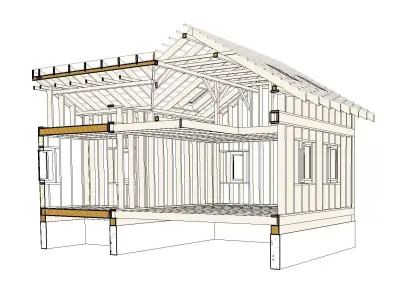

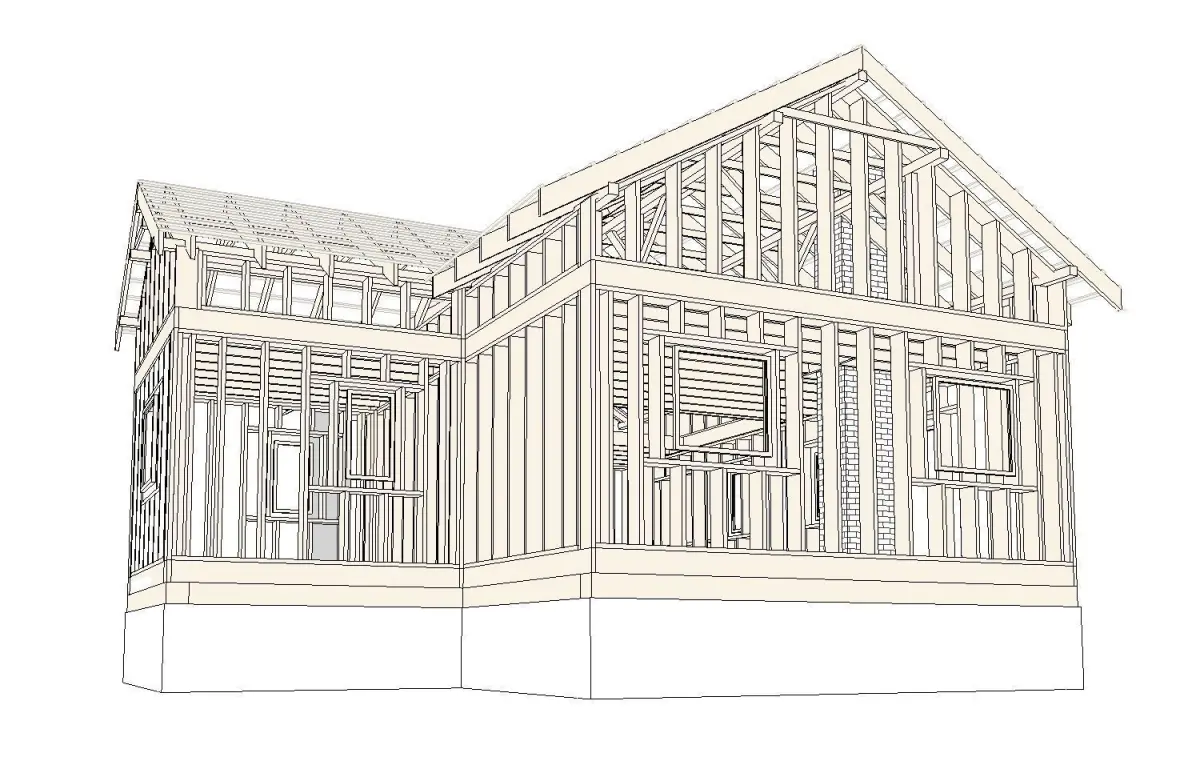

This is a fully parametric Revit model of Frame House with Rafter Roof. All aspects of the building are parametric including the height, length, offsets, angles, beams count, spacing and visibility. The structure consists of parametric roof, walls, floors, see screenshots for details.

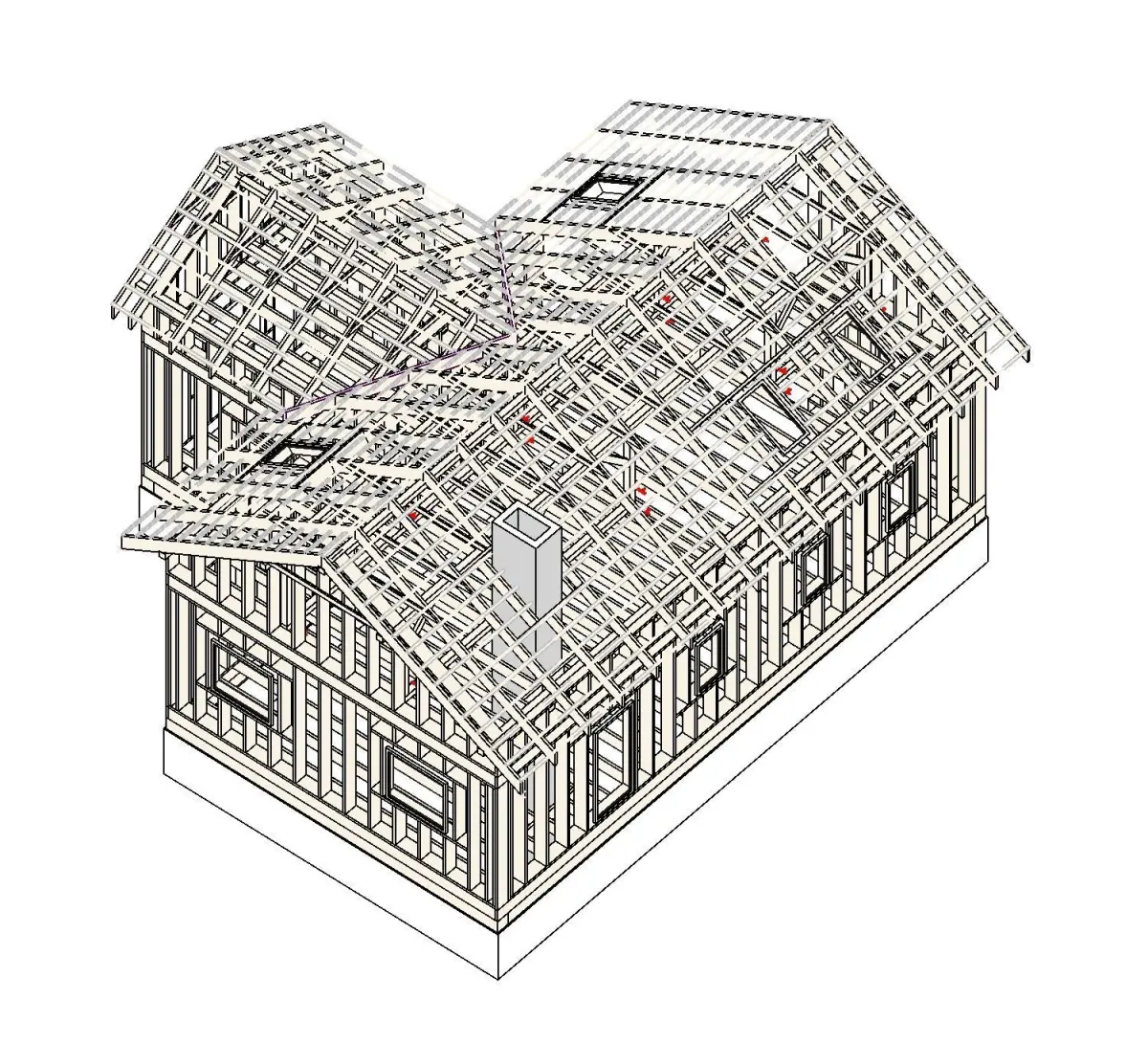

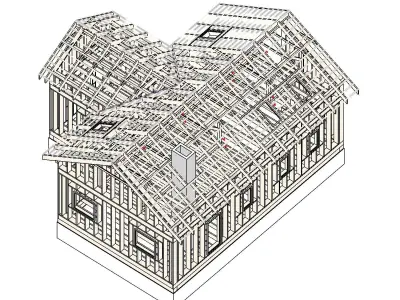

RoofMain wooden timber rafters lying on beams, horizontal beams that provide additional support to the rafters mid-span. Family includes battens for support roof tiles. You have possibility to create dormer window on the roof- use Cut Geometry tool to create void in main roof. You can create eave of the roof to provide an overhang. Family is using shared parameter for volume schedule. With few clicks you can create rafter roof construction with 2d visibility on a plan and volume schedule.

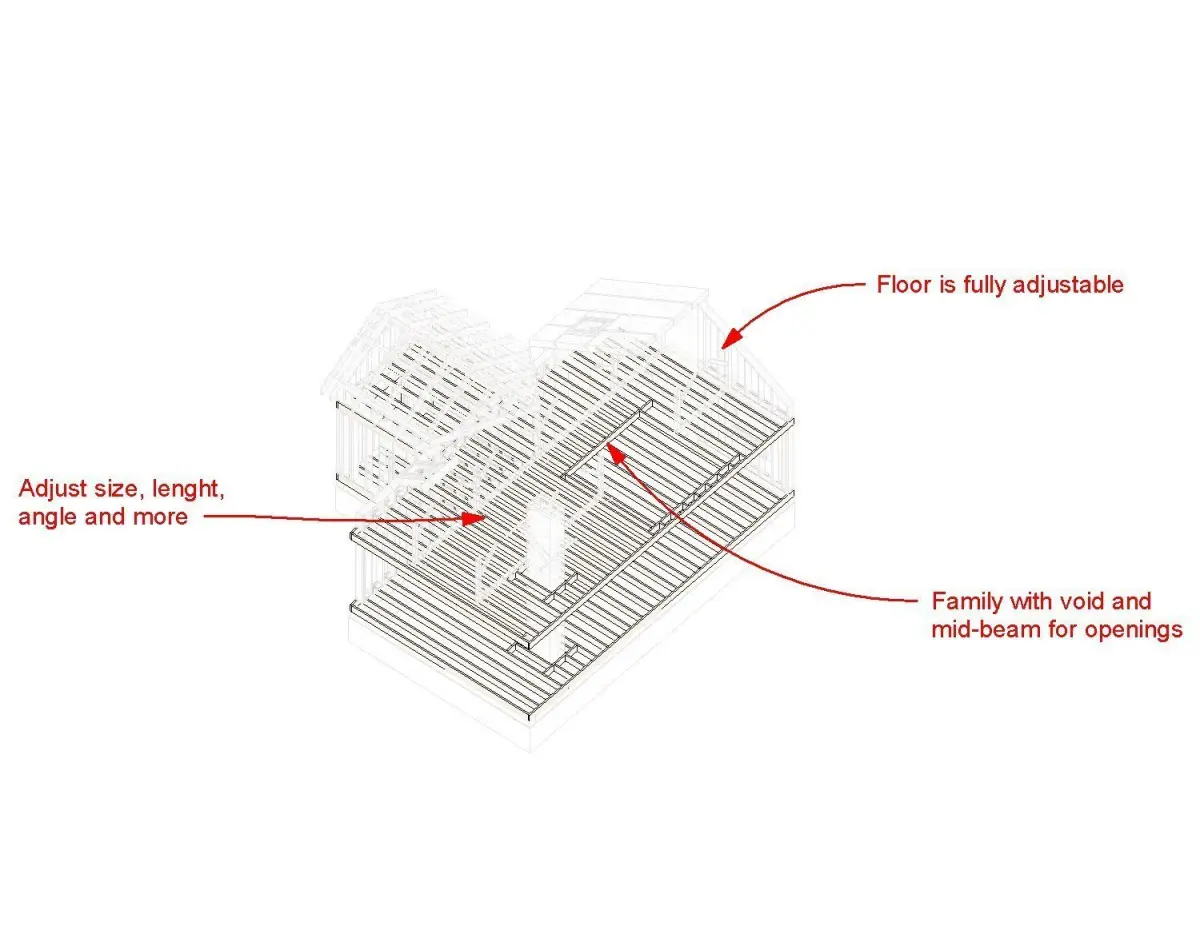

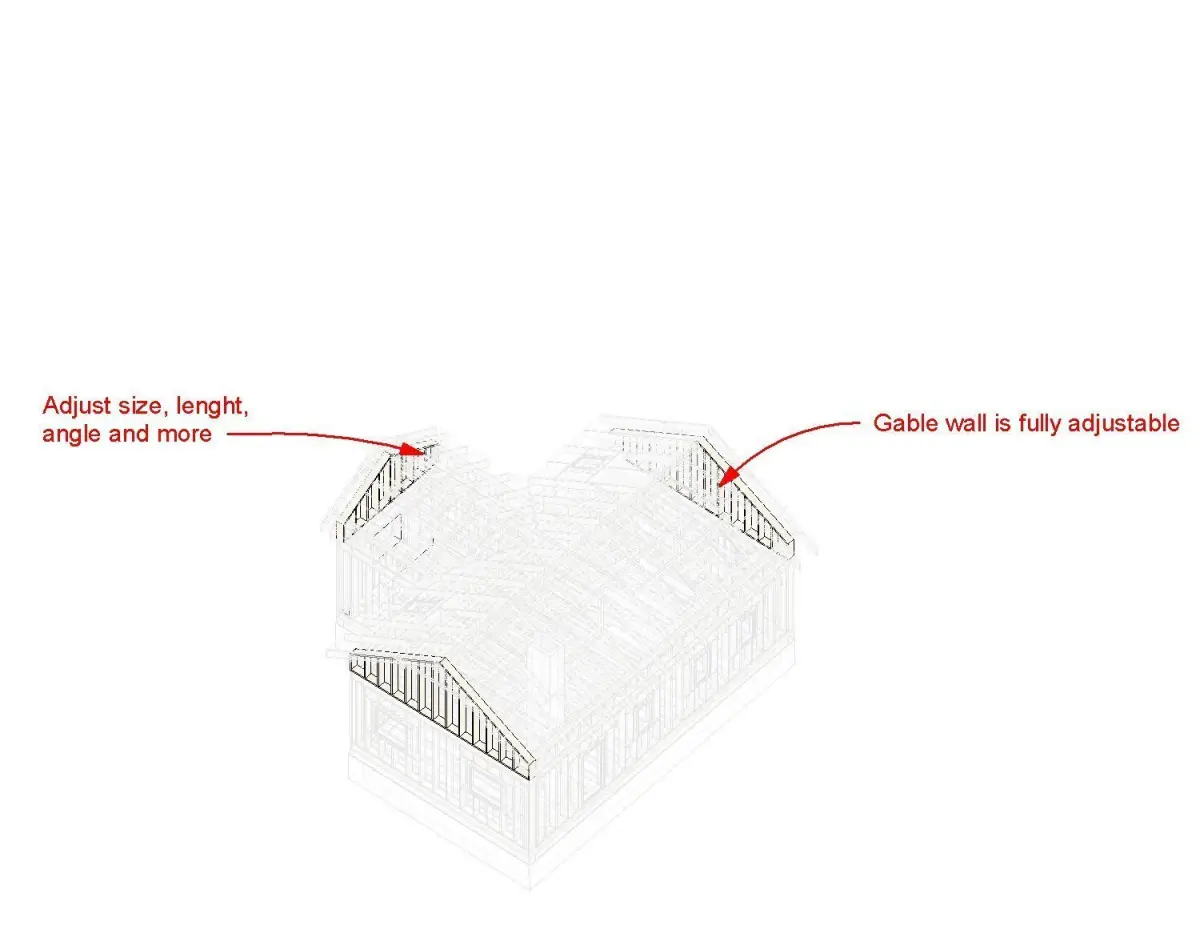

Walls, FloorsWall is parametric family, all dimensions are fully customizable. You can use special void family to cut out any size openings.

You can adapt this model to your project. You can create unlimited number of variations to match any project. All element have parameters they can be changed by the user separately.

Feel free to contact me if you have any questions. I hope u like it.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0
Plugins used

Tags

Framing Wooden Timber House Home Other Roof Rafter Building Architecture Structure Construction Array Revit Parametric Family Build Canadian Beam Engineering Architectural
