Frameless Curtain Wall Panel Glass Door 3D model

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

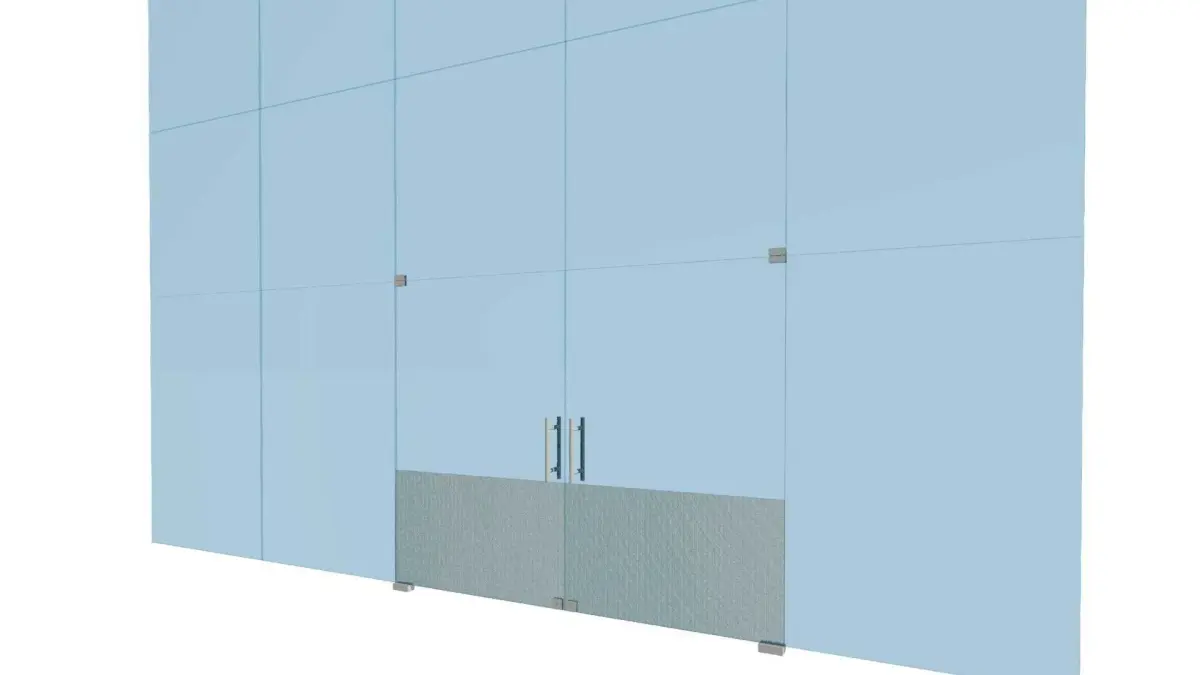

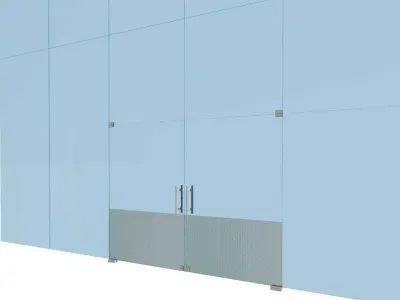

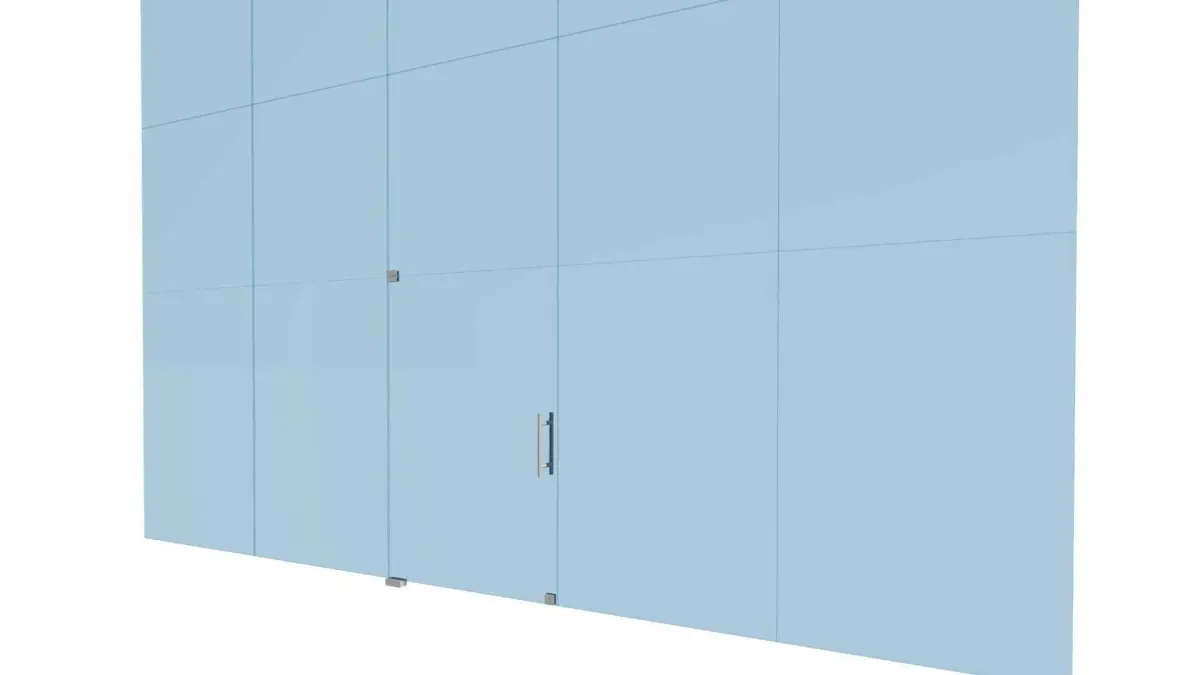

This is a fully parametric curtain wall panel frameless glass door revit family. Door can be placed on any curtain wall panel and use it either as an internal or an external frameless glass door. Can be used both for single door and double leaf door simply by adding two doors next to each other.

By using the flip buttons, user can change the door orientation ( left/right ) or interior/ exterior wall side. Width and height are adjustable, together with options to have frosted glass, key lock. Other parameters for this family are written below.

ATTRIBUTES:

Revit Version 2022
Family Type : Curtain Wall Panel
File Extension : .rfa

PARAMETERS:

Door Width and Height
Handle Elevation from floor
Handle height
Glass Thickness

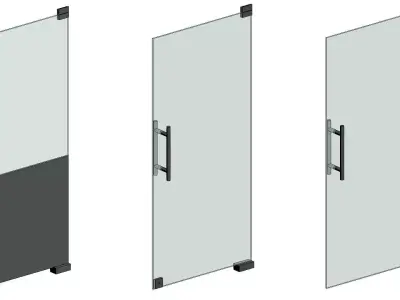

Frosted Glass ON/OFF
Frosted Glass Height
Key Lock ON/OFF
Materials ( glass, frosted glass, door handle, floor spring, key lock, ceiling hinge )

User can create unlimited number of family types by changing the family parameters.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Plugins used
Geometry: Unknown

Tags

Revit Family Parametric Glass door Frameless Curtain wall Panel Curtain Exterior Building Design Bim Door Double door Single door Glass Architecture Architectural Interior
