French Gnome 9N Monosoupape rotary engine 3D model

$15

License: royalty_free

author:

wadimwall

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «wadimwall». CGhub does not claim copyright ownership over the content used.

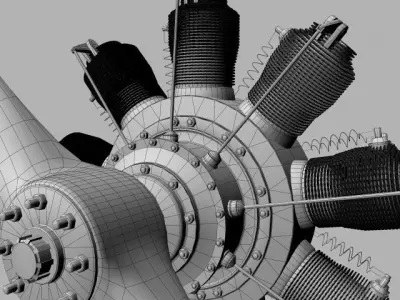

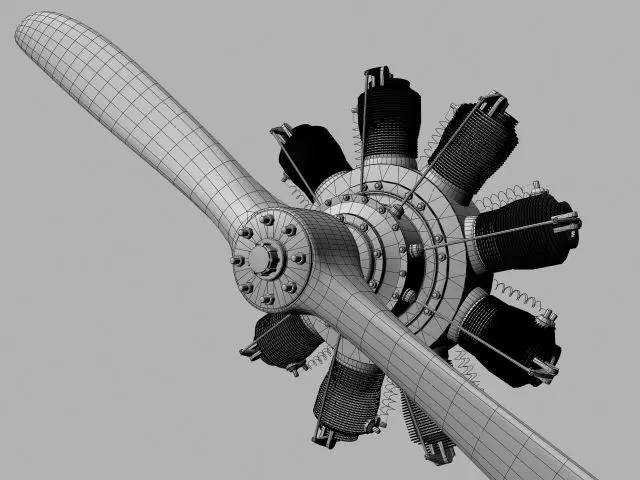

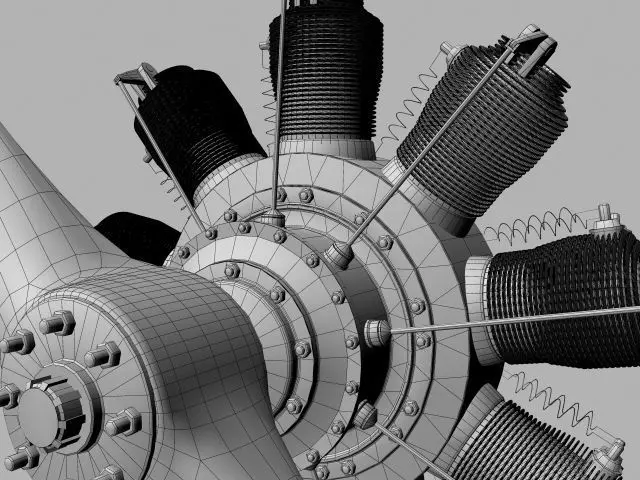

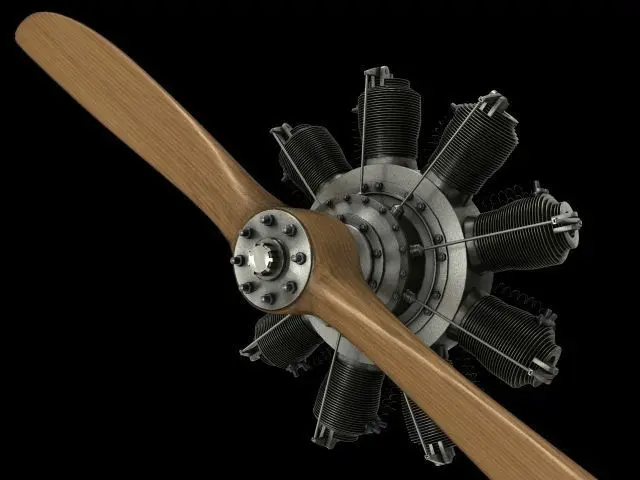

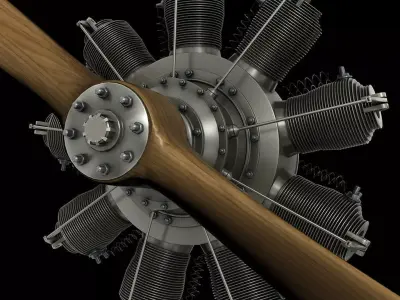

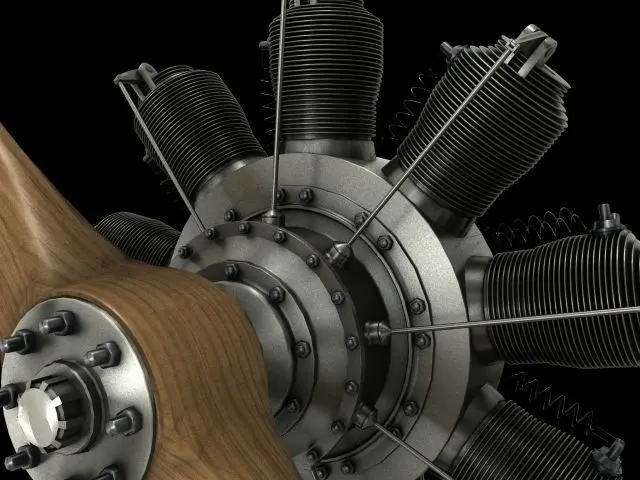

High poly model of French Gnome 9N rotary engine.Engine was installed on Nieuport 28, Sopwith Camel, Morane-Saulnier AI, Orenco B. Originally modeled in Inventor, finished in 3ds Max.3ds Max mental ray materials and textures are included.No inside mechanics is modeled.

The Monosoupape (French for single-valve), was a rotary engine design first introduced in 1913 by Gnome Engine Company (renamed Gnome et Rhône in 1915). It used a clever arrangement of internal transfer ports and a single pushrod-operated exhaust valve to replace a large number of moving parts found on more conventional rotary engines, and made the Monosoupape engines some of the most reliable of the era. British aircraft designer Thomas Sopwith described the Monosoupape as "one of the greatest single advances in aviation

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 230000
Vertices: 247000

Tags

Gnome Rhone Ww1 Nieuport Umlauf Radial Motor Vehicles Propeller Biplane Engine Piston Sternmonor Stearling Cylinder Military Nieuport28 Airplane Aircraft Monosoupape Military aircraft Aircraft engine Airplane engine
