Friction stir welding Tool 3D model
Home Catalog Friction stir welding Tool 3D model
Friction stir welding Tool 3D model
Friction stir welding Tool 3D model
Friction stir welding Tool 3D model
Friction stir welding Tool 3D model
Friction stir welding Tool 3D model

Publication date: 2025-02-28

Buy Friction stir welding Tool 3D model

$15

License: Royalty Free

author:

dharmeshwar2002

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «dharmeshwar2002». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $15 Add to Wishlist
  • Description
  • Formats

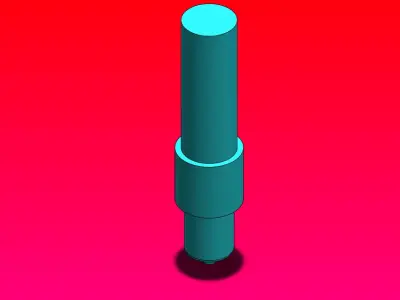

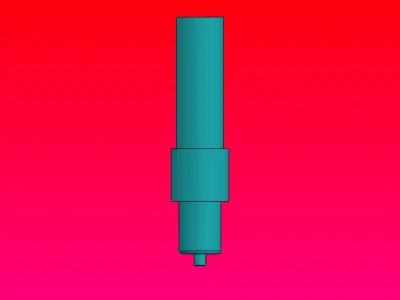

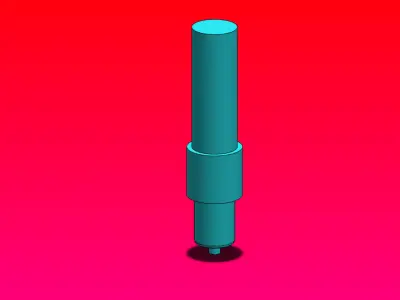

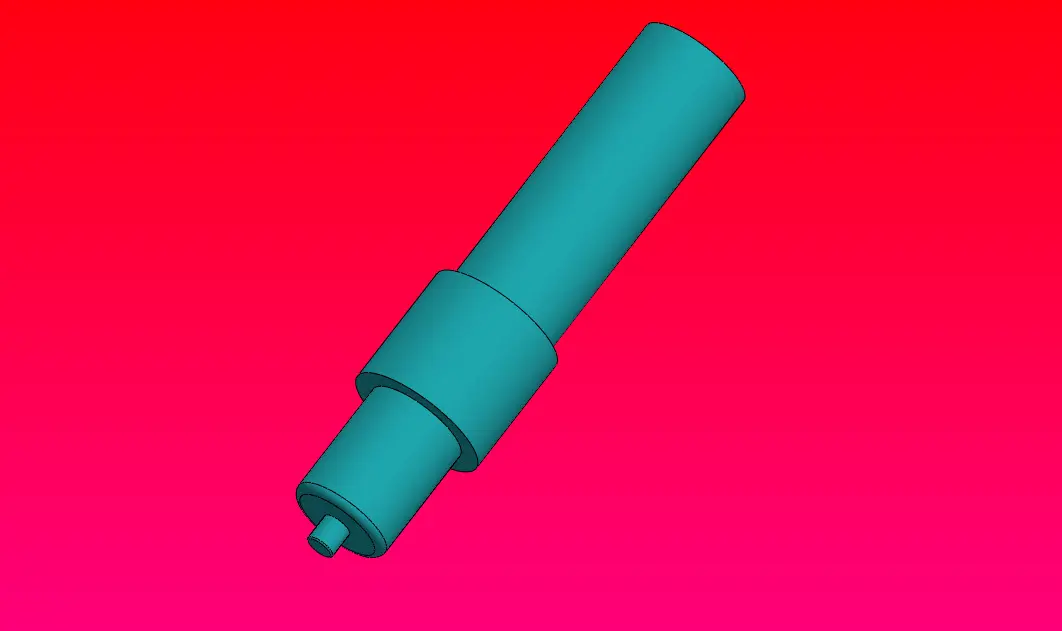

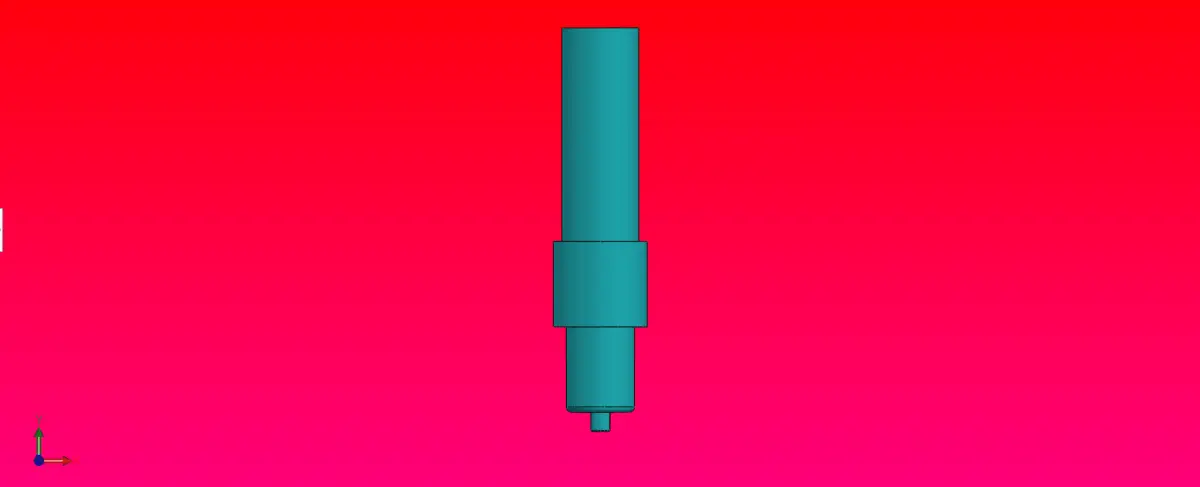

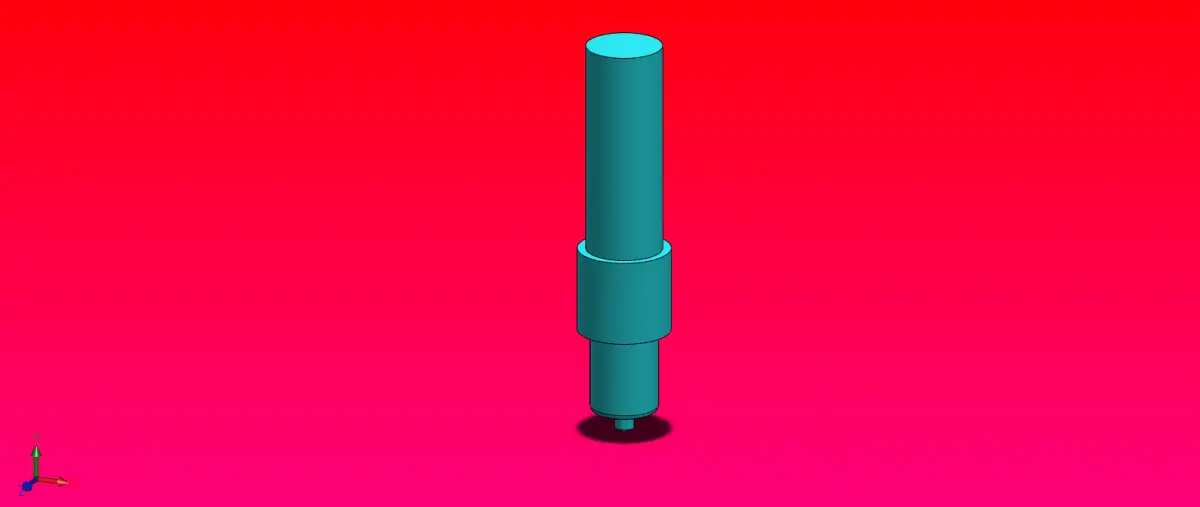

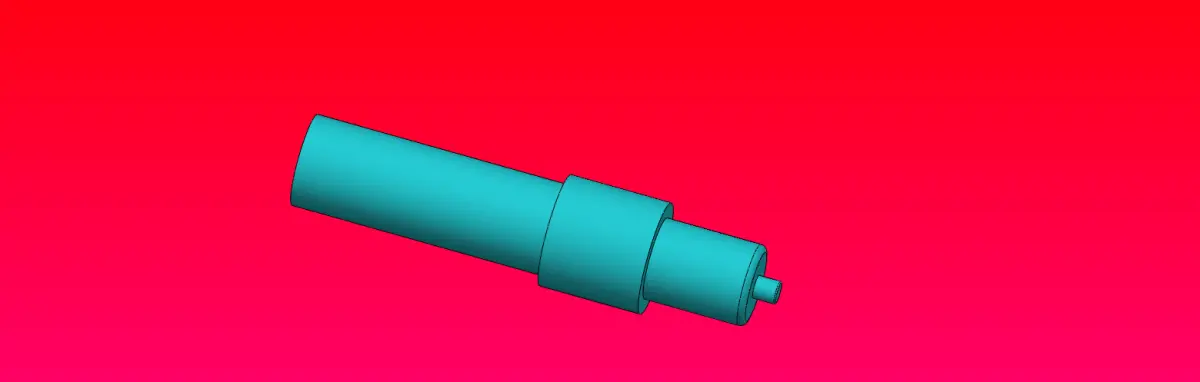

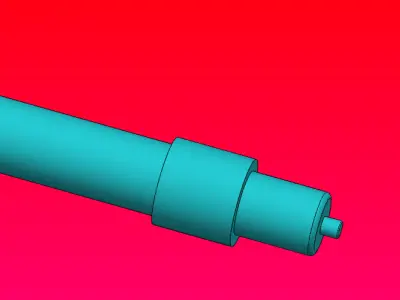

This custom-designed Friction Stir Welding (FSW) tool, created using SolidWorks, represents an innovative solution for joining materials with minimal thermal distortion. The FSW tool is designed to be used in the friction stir welding process, a solid-state welding technique that relies on heat generated by friction to soften materials, allowing them to be joined without melting.

  • pin length - 4.5
  • pin diameter-4.5
  • shoulder length -20
  • shoulder diameter - 20
  • fillet radius - 0.5 & 1.5

all dimensions are in mm.The formats available are .prt, .stl, .amf, .3mf etc.,

SLDPRT (SolidWorks, filesize: 85.5 KB), OBJ (OBJ, filesize: 108 KB), FBX (Autodesk FBX, filesize: 55.4 KB), STL (Stereolithography, filesize: 113 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Plugins used
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Industrial Tool Welding Heat Illustration
