Download FST1349 Whitworth Slider-Crank Quick-Return Mechanism Free 3D model

Name: FST1349 Whitworth Slider-Crank Quick-Return Mechanism Free 3D model
Brand: amin-khorasanchi
SKU: 863905
Availability: InStock

free

License: Royalty Free No Ai

author:

amin-khorasanchi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «amin-khorasanchi». CGhub does not claim copyright ownership over the content used.

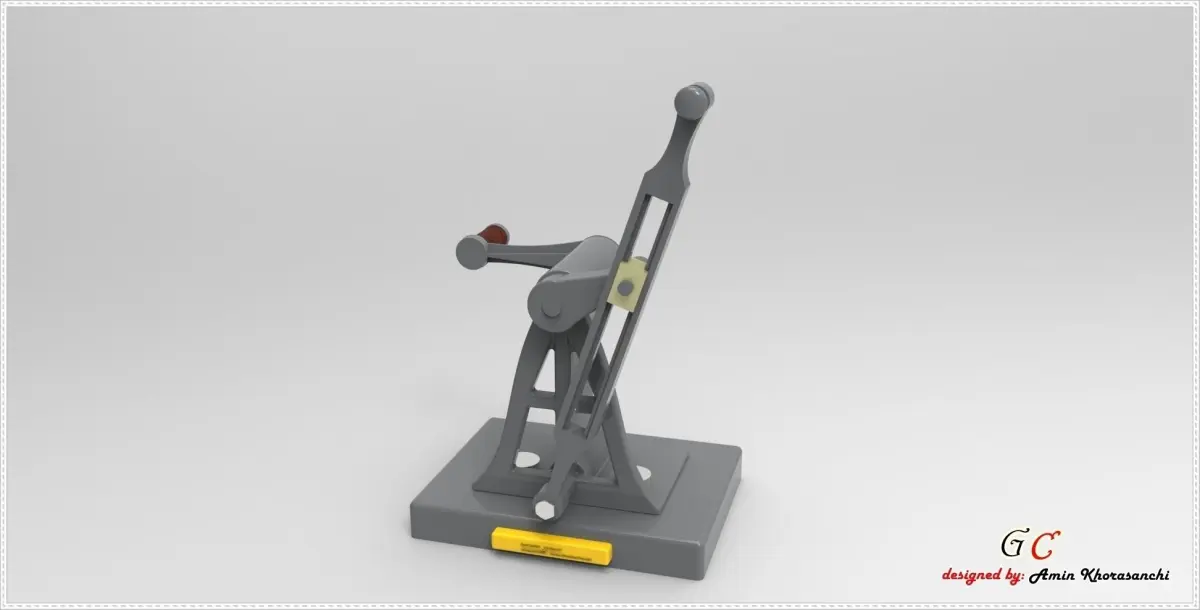

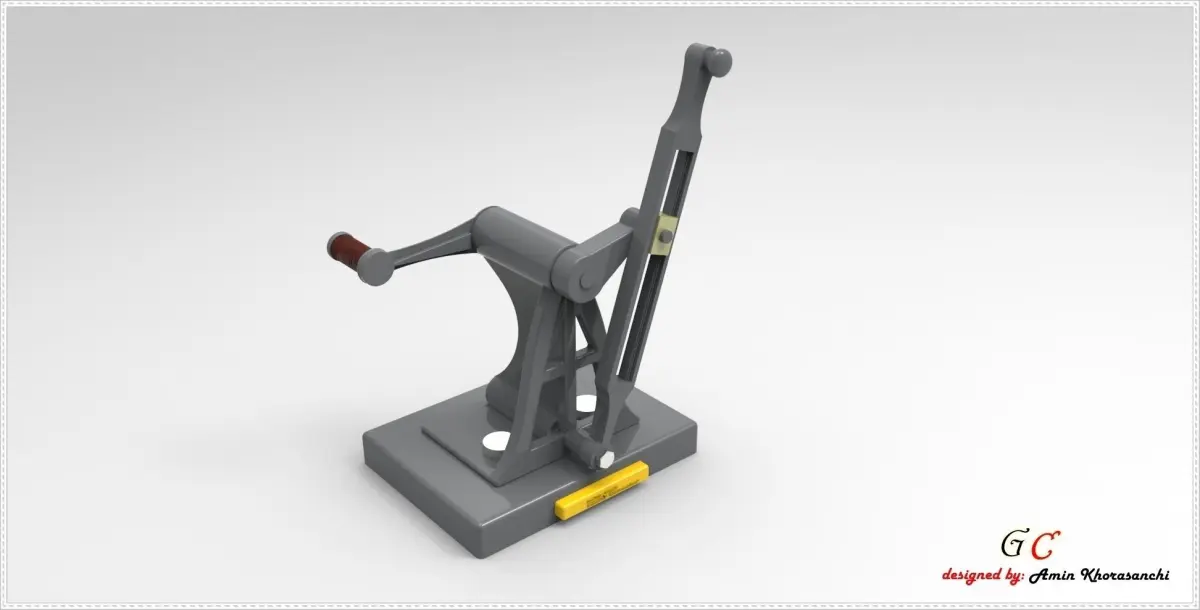

Taxonomy: SchröderGroup: LinkagesID: FST1349Title (English): Whitworth Slider-Crank, Quick-Return MechanismTitle (German): Manovellismo di Whitworth a ritorno rapidoCreator: J. SchröderDate Created: 1890-00-00Manufacturer: Polytechnischnes Arbeitsinstitut DarmstadtSize:Medium:cast iron and brass on wood pedestalRights: For educational use only. All rights reserved by the contributor(s) and publisher(s).Audience: General publicKeywords: slider-crank, quick return, WhitworthDescription: In this inversion of the slider-crank the slider guide link is made to rotate. This is called a quick-return mechanism. This linkage also converts rotary motion of the crank into oscillatory angular motion of the slider guide link. This mechanism is sometimes used in shaper machine tools for cutting metals. Joseph Whitworth was a 19th century British engineer and inventor.Descr Author: Francis MoonDescr Date: 2007-03-05
