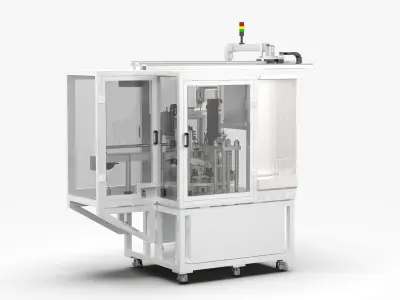

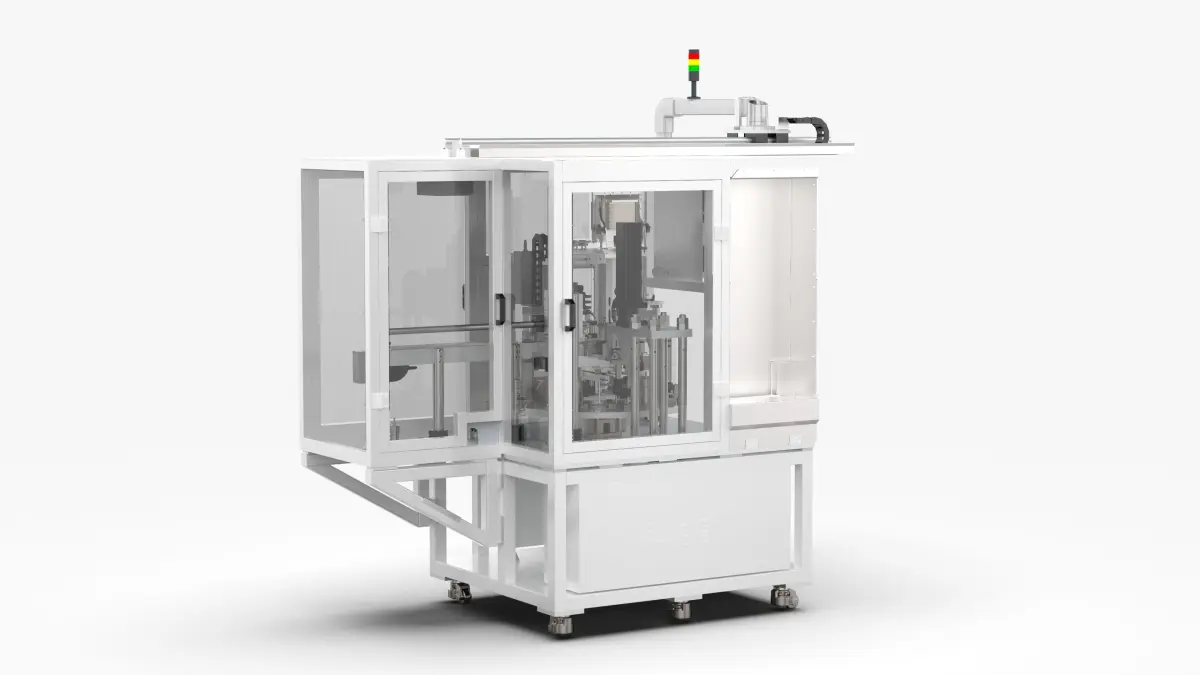

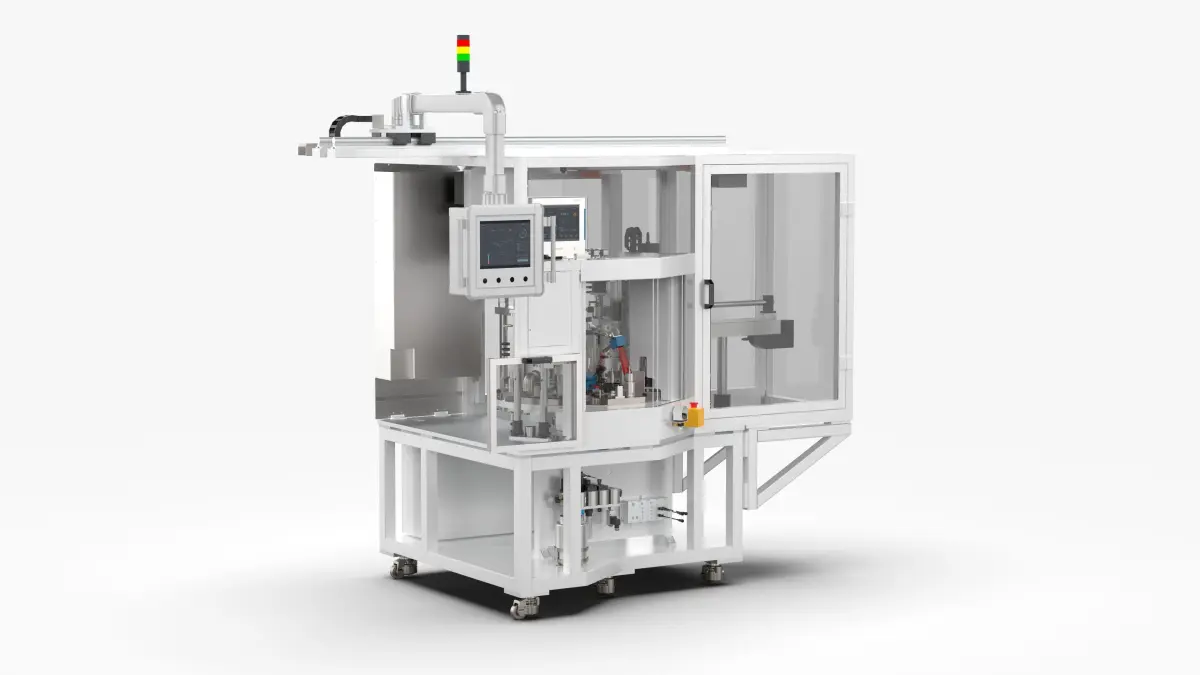

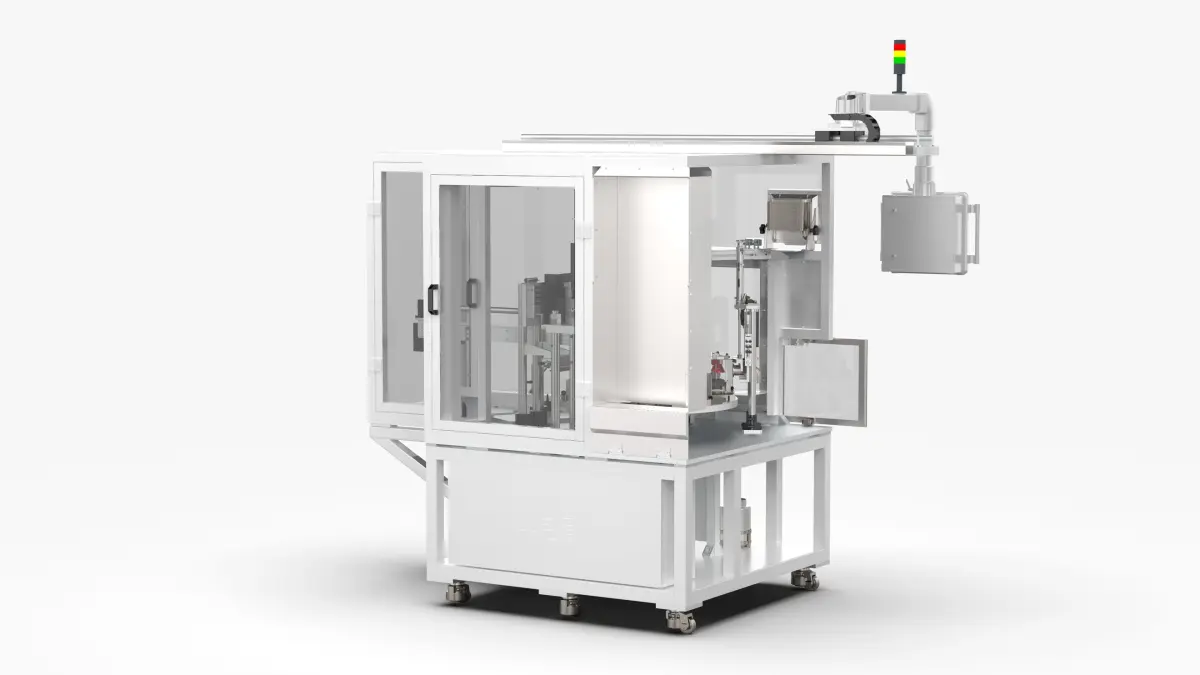

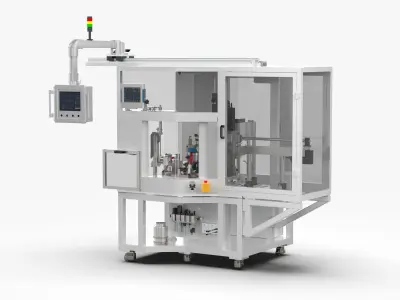

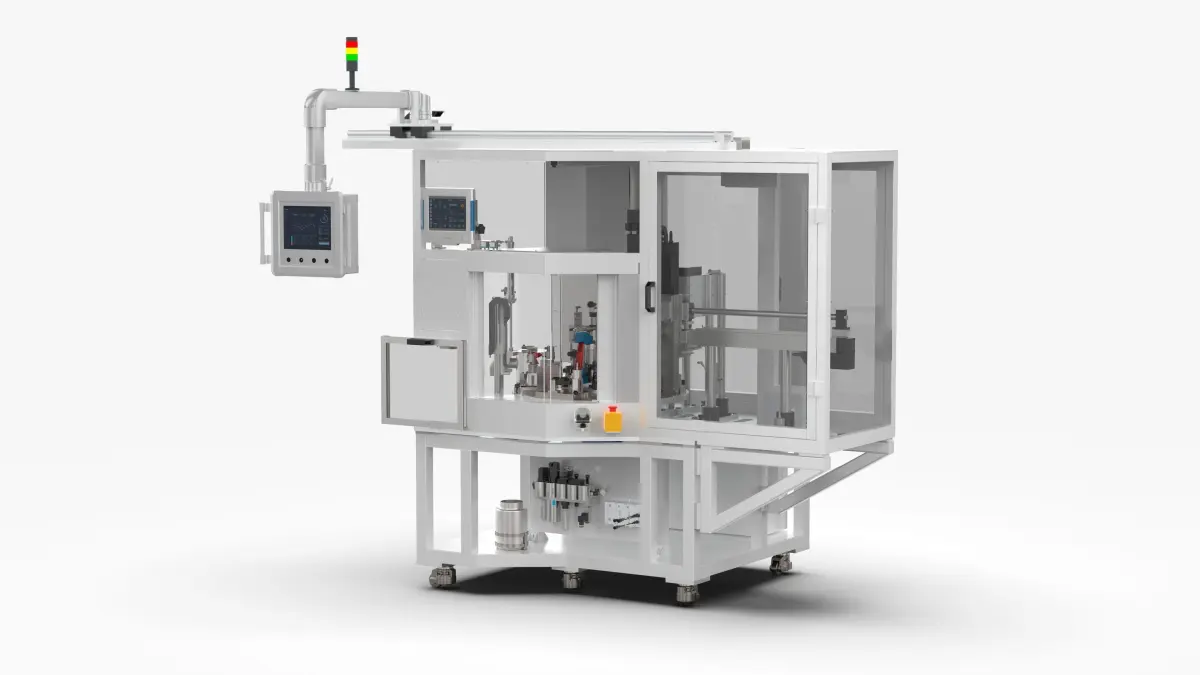

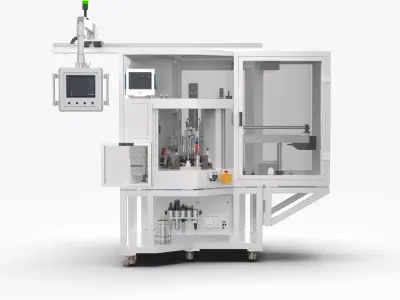

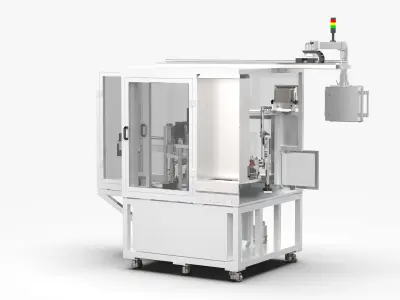

Full Automatic Motor Rotor Magnetization and Synthesis Machine 3D model

$289

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

Full Automatic Motor Rotor Magnetization and Synthesis Machine

Introduction

The motor rotor magnetization and synthesis equipment is fully automatic equipment, and the equipment uses a 6-station turntable to complete the following processes: automatic loading and scanning of rotors and end caps, rotor magnetization, magnetization detection, rotor pressing into end caps, and semi-finished products off the assembly line , Fixture cleaning, etc. The equipment is compact in structure and stable in operation.

Full Automatic Motor Rotor Magnetization and Synthesis Machine

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 5,179,340
Vertice: 15,538,020

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 5179340
Vertices: 15,538,020
Plugins used

Tags

Full Automatic Motor Rotor Synthesis Machine Industrial Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Industrial machine
