Fully Automatic Plug In Machine 3D model

$259

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

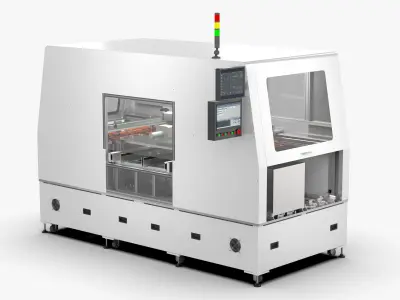

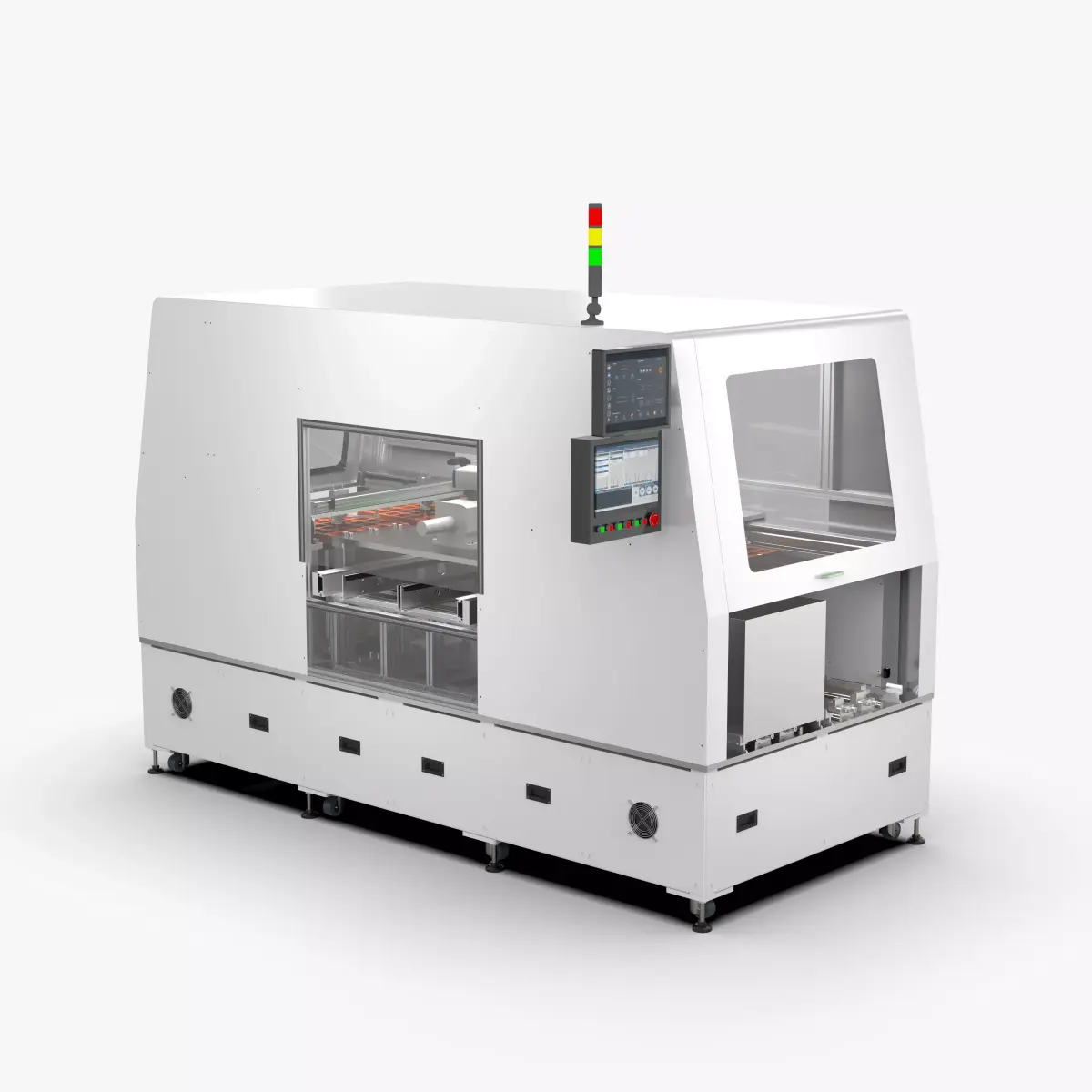

Fully Automatic Plug In Machine

Introduction

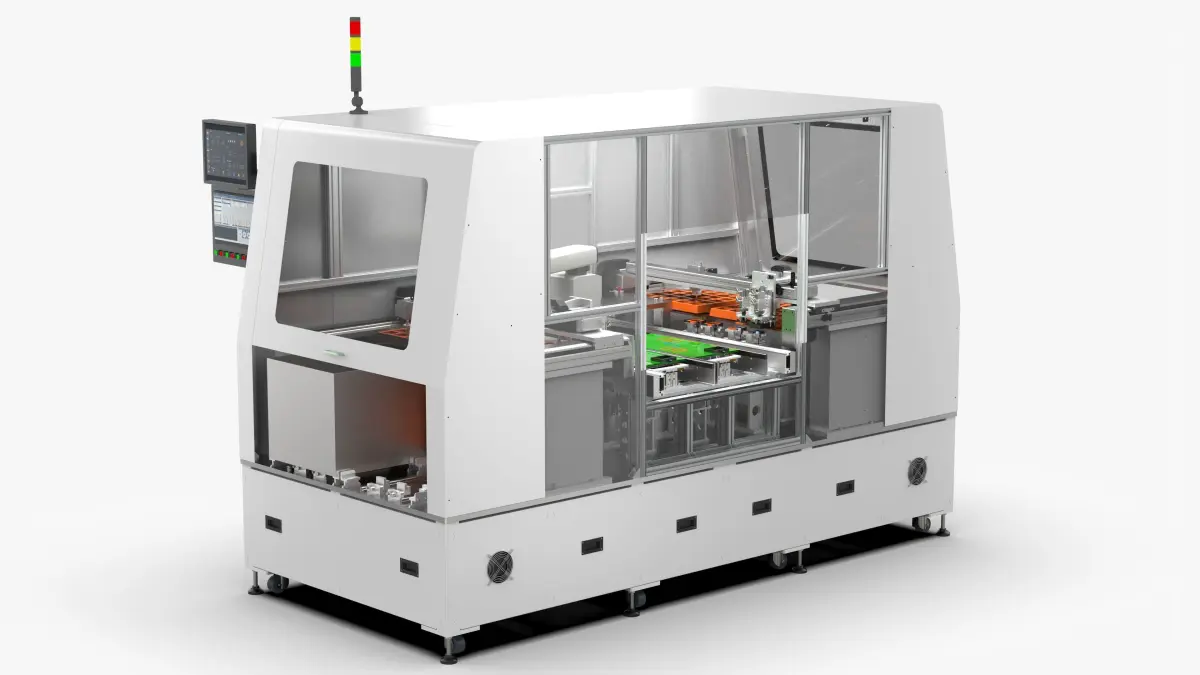

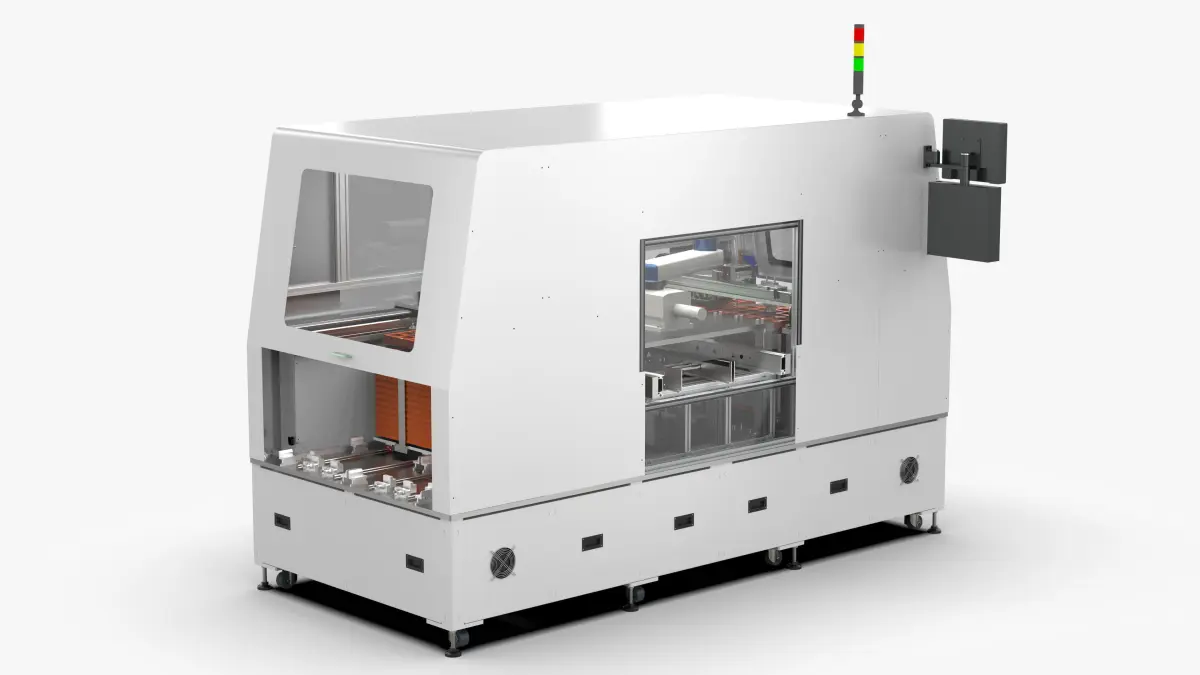

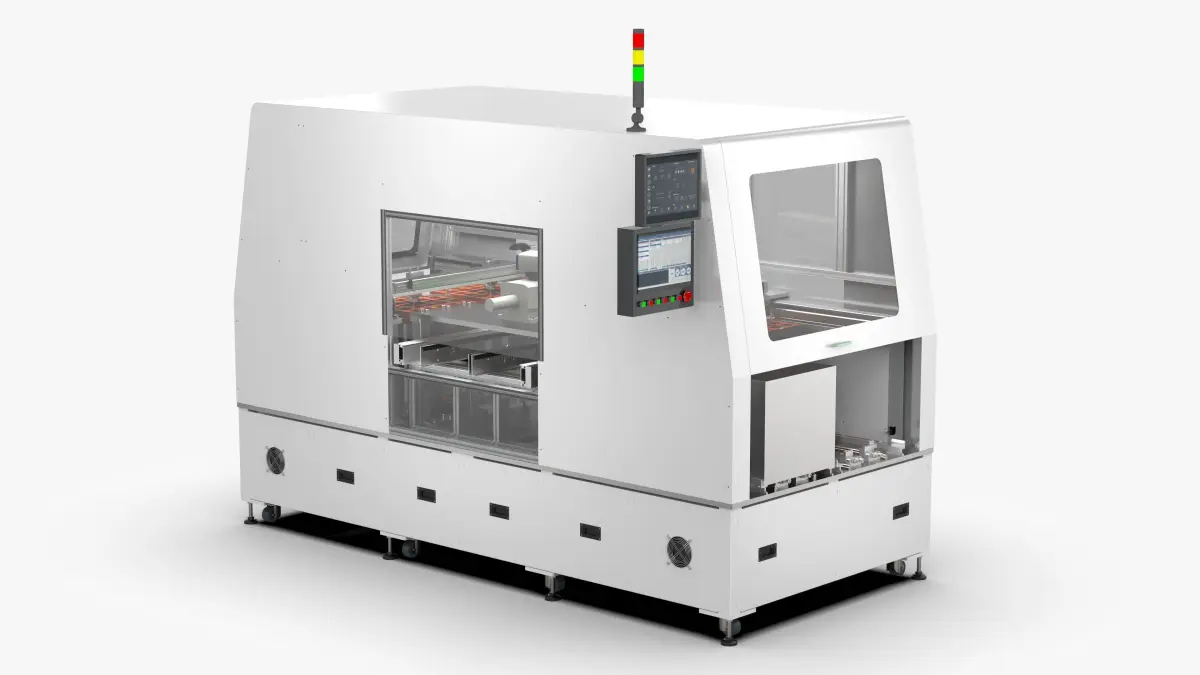

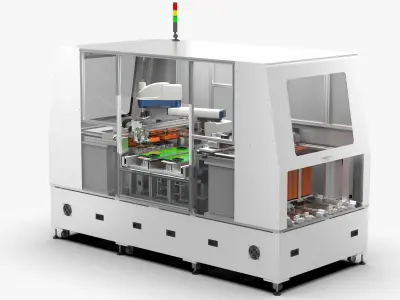

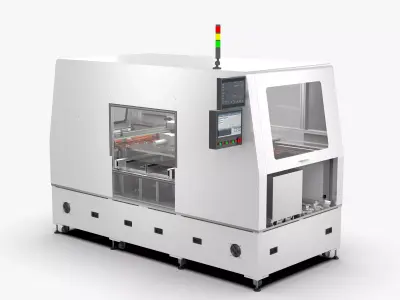

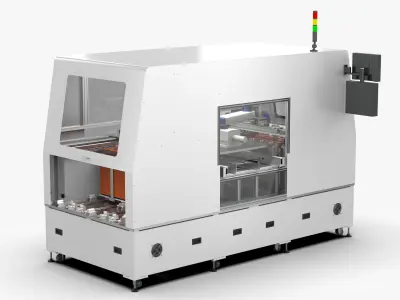

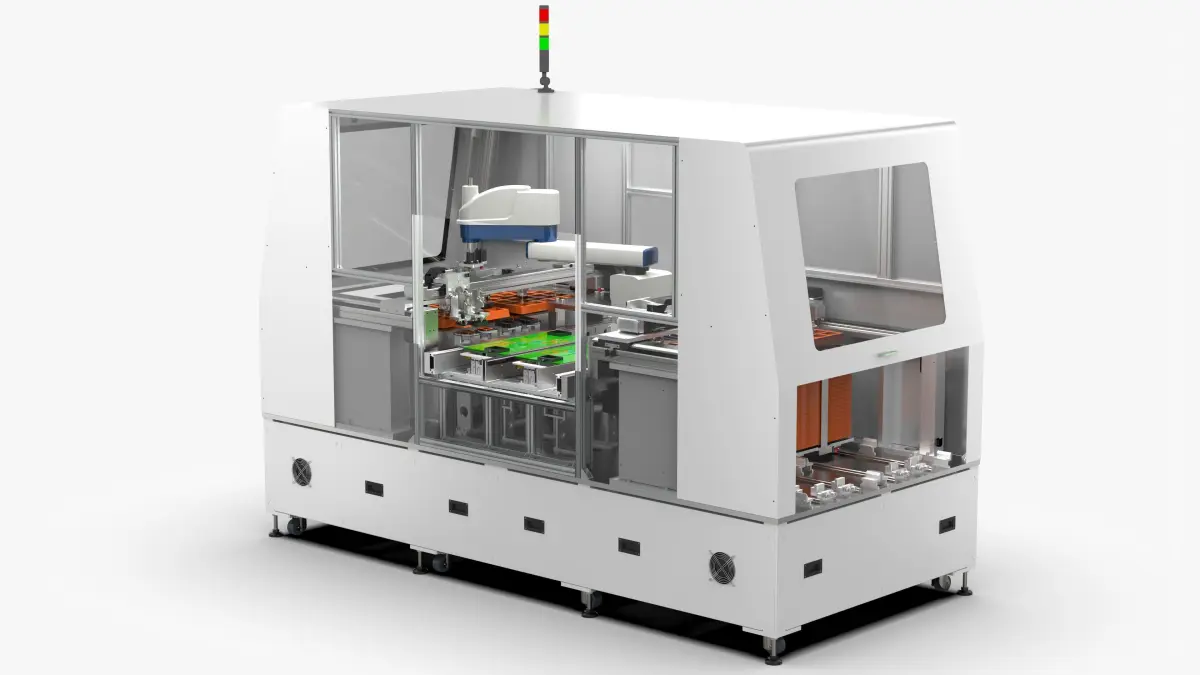

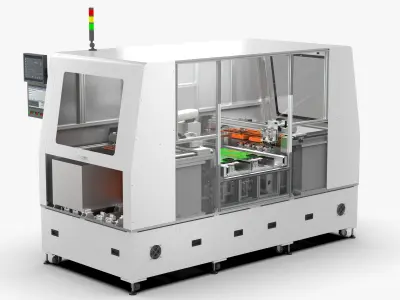

The fully automatic plug-in machine equipment adopts the left and right double-station Tray feeding method to ensure that the equipment does not stop and increase production capacity. The servo screw XYZ module completes automatic adsorption (magnetic), alignment and assembly. The secondary positioning and rotation positioning of the product can be based on the product. Fine-tuning, assembly is completed by suction with a four-axis manipulator, and the PCB line body is transported and lifted for positioning. This equipment has been mass-produced and operates stably.
