Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Home Catalog Aircraft part Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Fully automatic USB TYPE-C Welding Inspection Machine 3D model
Fully automatic USB TYPE-C Welding Inspection Machine 3D model

Publication date: 2023-03-10

Fully automatic USB TYPE-C Welding Inspection Machine 3D model

$259

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $259 Add to Wishlist
  • Description
  • Formats
Description

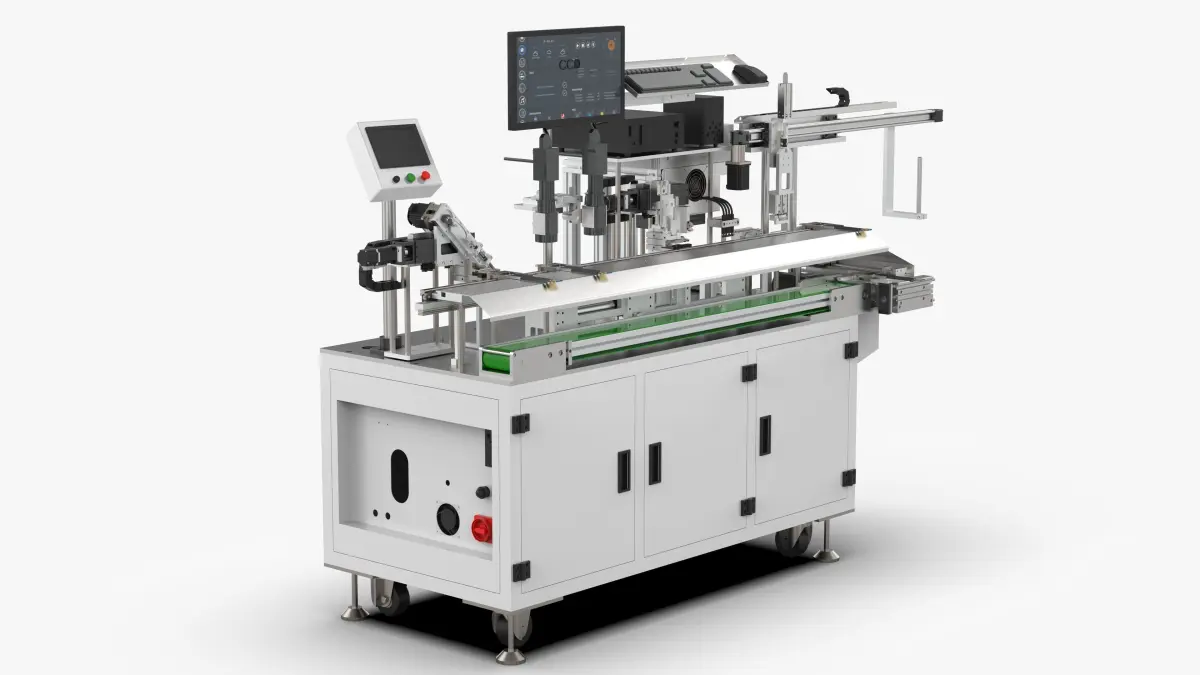

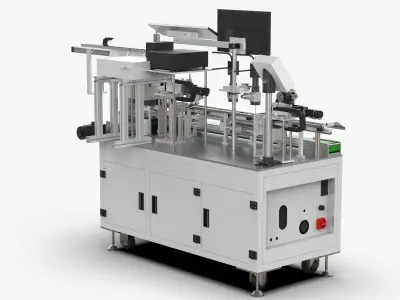

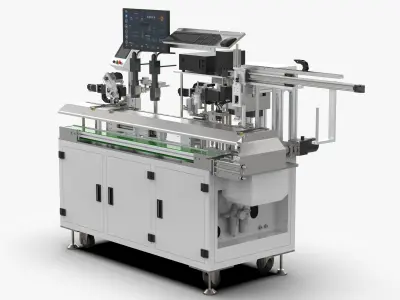

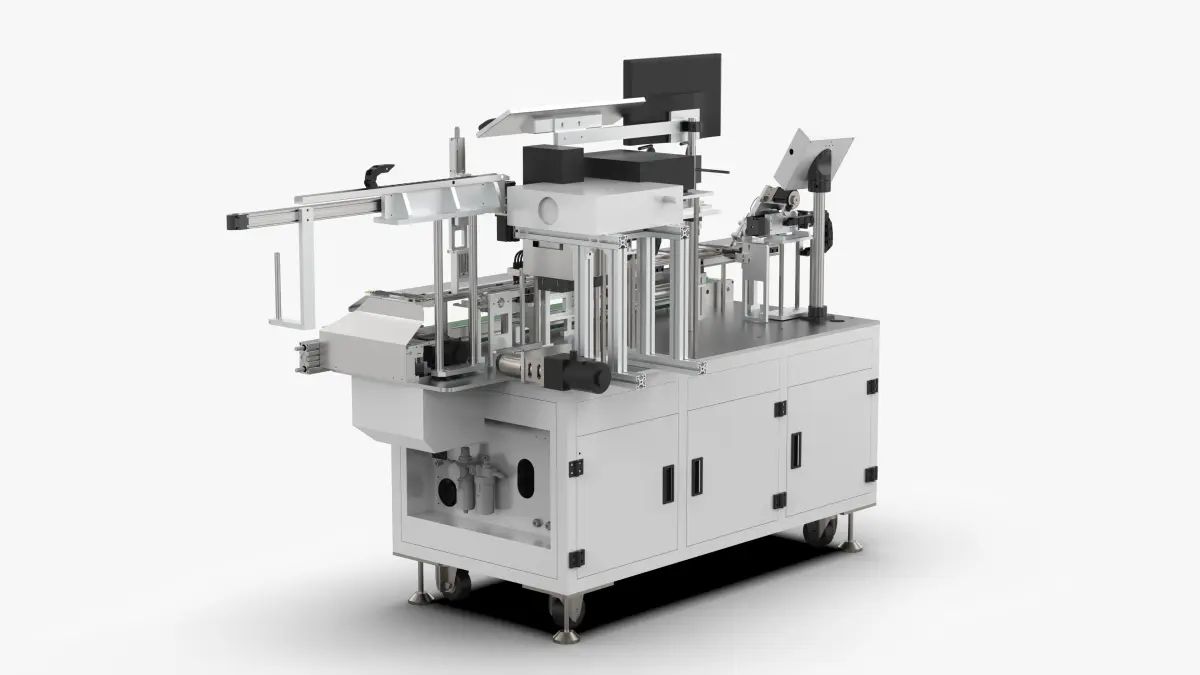

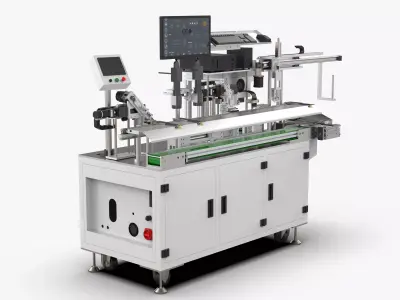

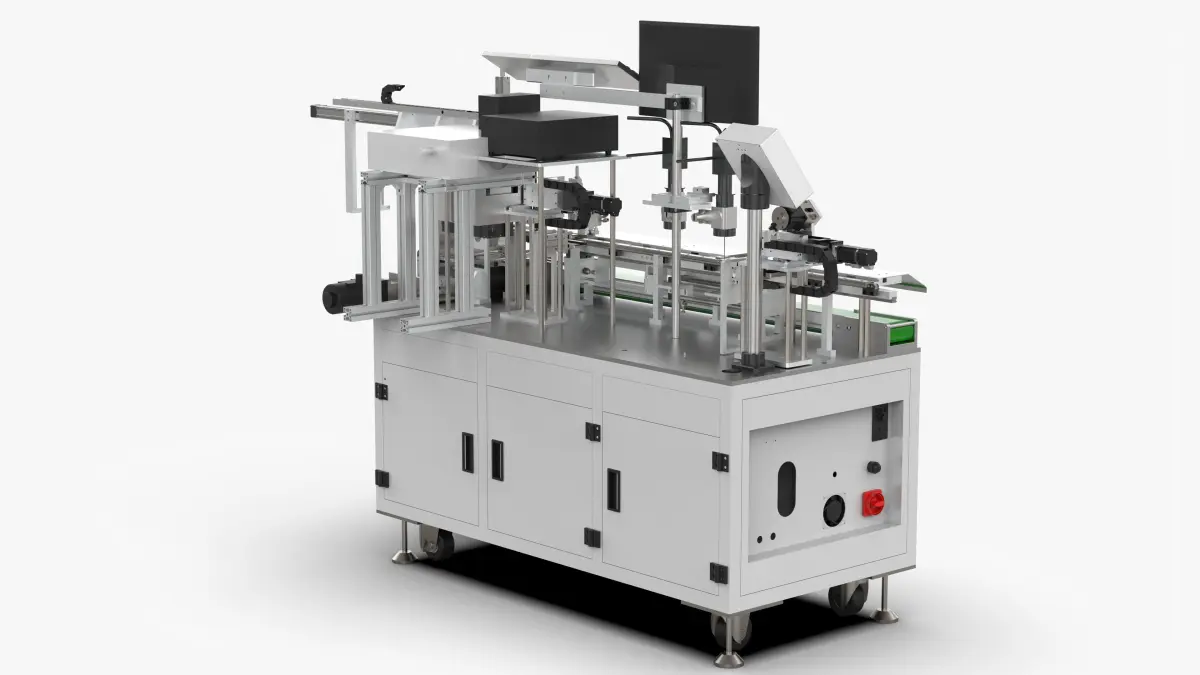

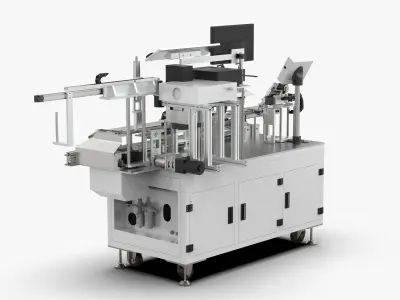

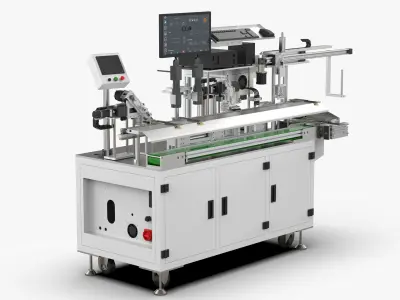

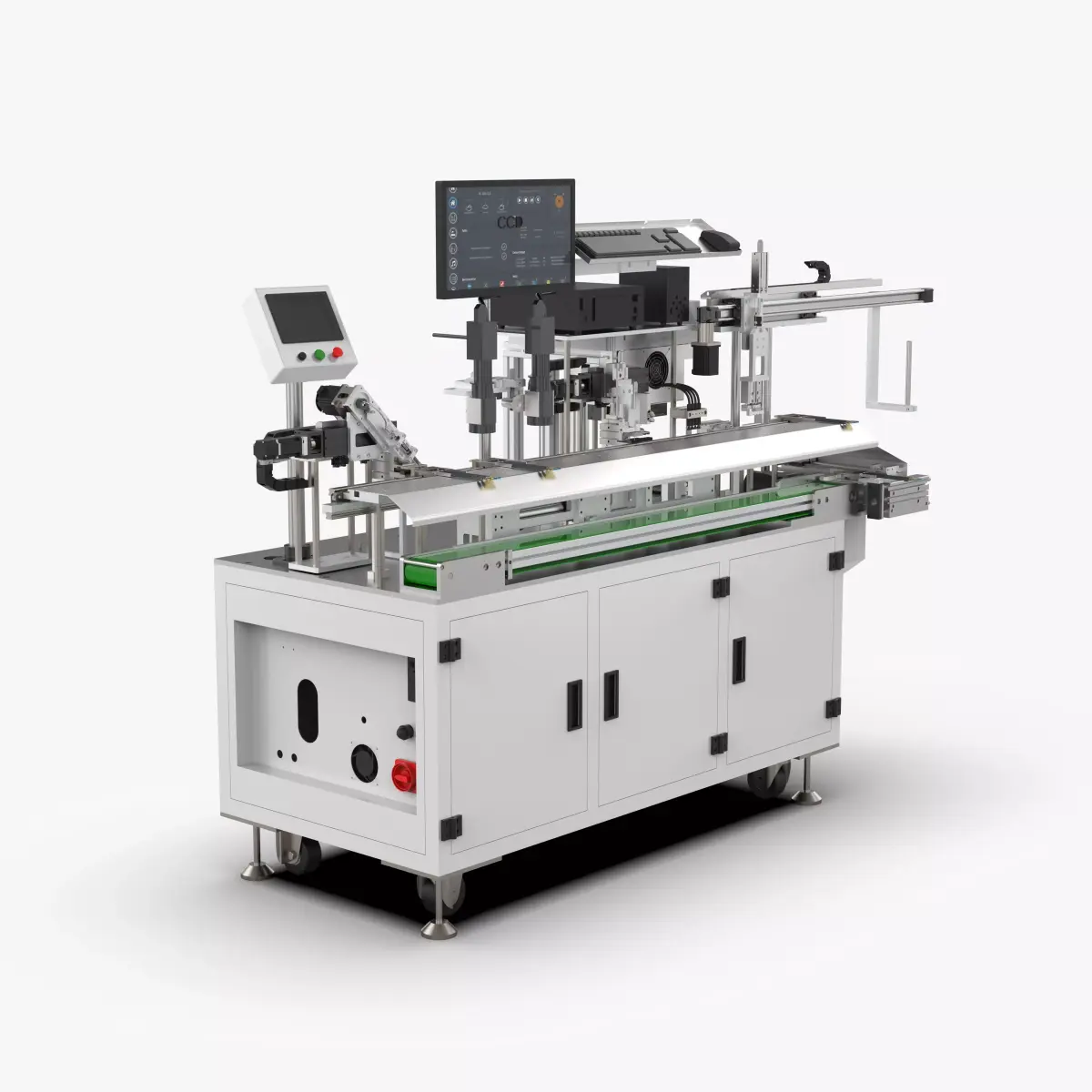

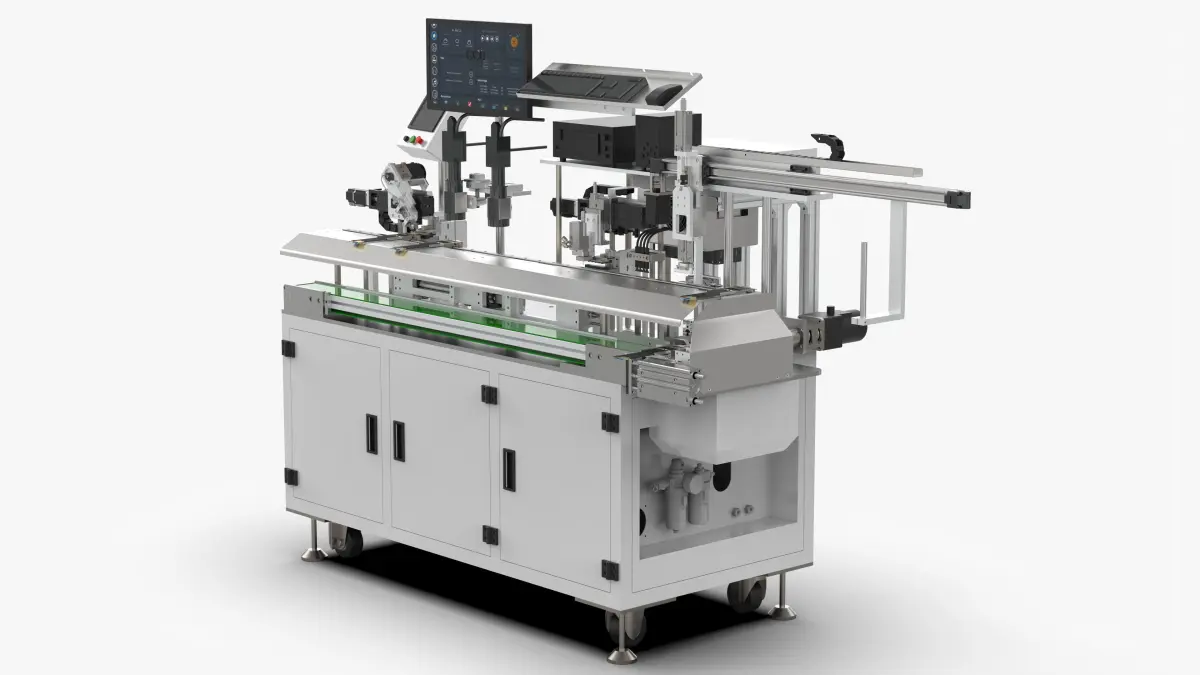

Fully automatic USB TYPE-C Welding Inspection Machine

Introduction

USB+TYPE-C wire solder joint firmness inspection, UV glue spraying, light curing, fixture automatic reflow 100% original, each mechanism diagram in this design drawing is a very mature mechanism, as follows:

  • Stop pushing material ,
  • Glue spraying device
  • Pick up material Modules

Fixture automatic reflow mechanism The above are classic and practical mechanisms, not just models or conceptual drawingsAll standard parts are the actual size of the actual object, which is very detailed and clear.

File Formats

  • SolidWorks 2020 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 3,341,659
  • Vertice: 10,024,977

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 3,341,659
  • Vertices: 10,024,977
  • Plugins used

Tags

Fully Automatic Usb Type c Welding Inspection Machine Industrial Industrial machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2020 ()117 MBVersion: 2020Renderer: Mental Ray 3.0
Exchange
  • IGES ()209 MB
  • Stereolithography ()159 MB
  • OBJ ()252 MB
