Buy Gate Valve Gearbox - Continuous Rotation Bevel Type 3D model

Name: Gate Valve Gearbox - Continuous Rotation Bevel Type 3D model
Brand: mrsameero
SKU: 883574
Price: 10.00 USD
Availability: InStock

$10

License: Royalty Free

author:

mrsameero

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mrsameero». CGhub does not claim copyright ownership over the content used.

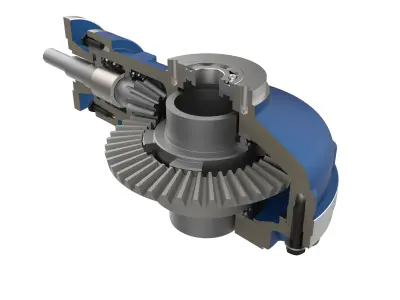

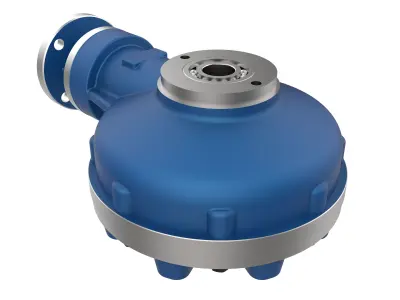

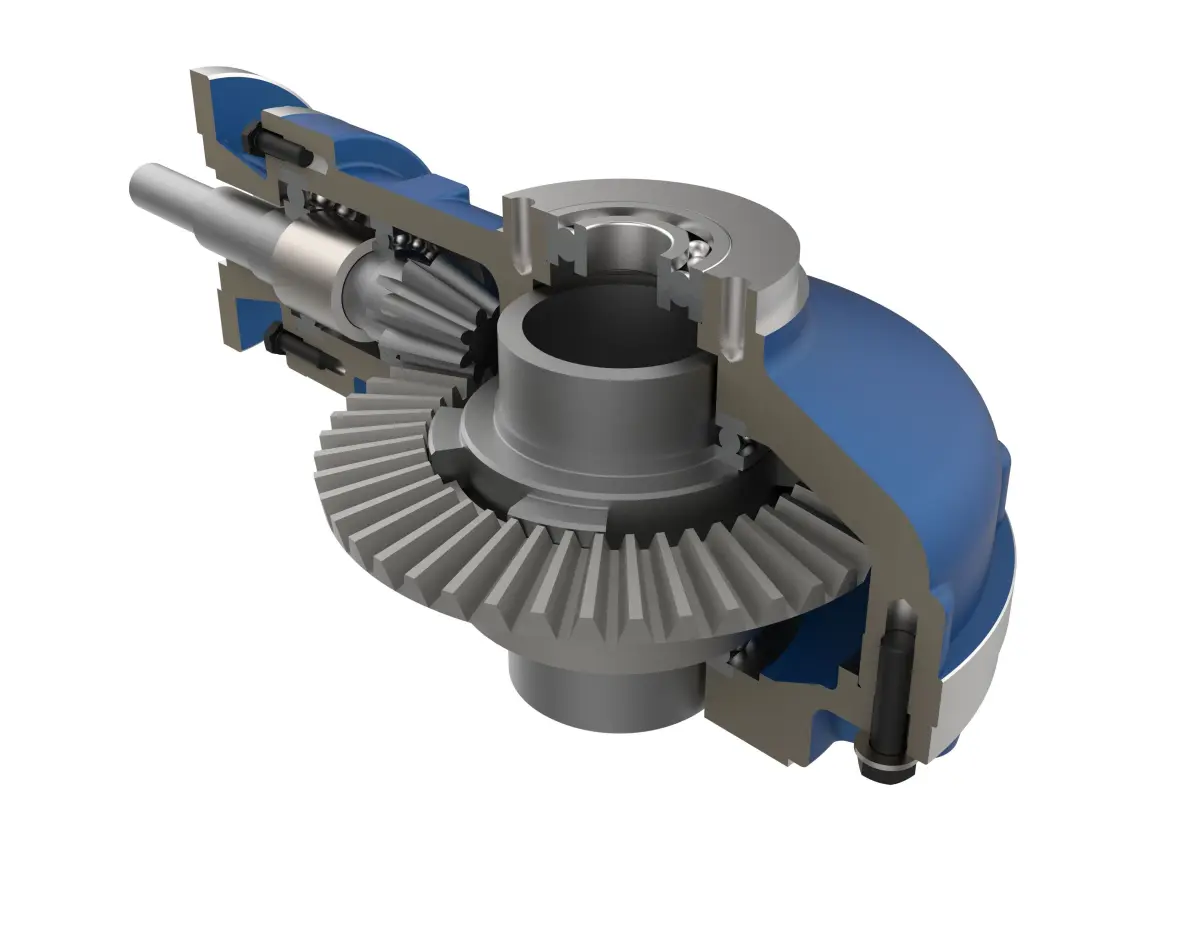

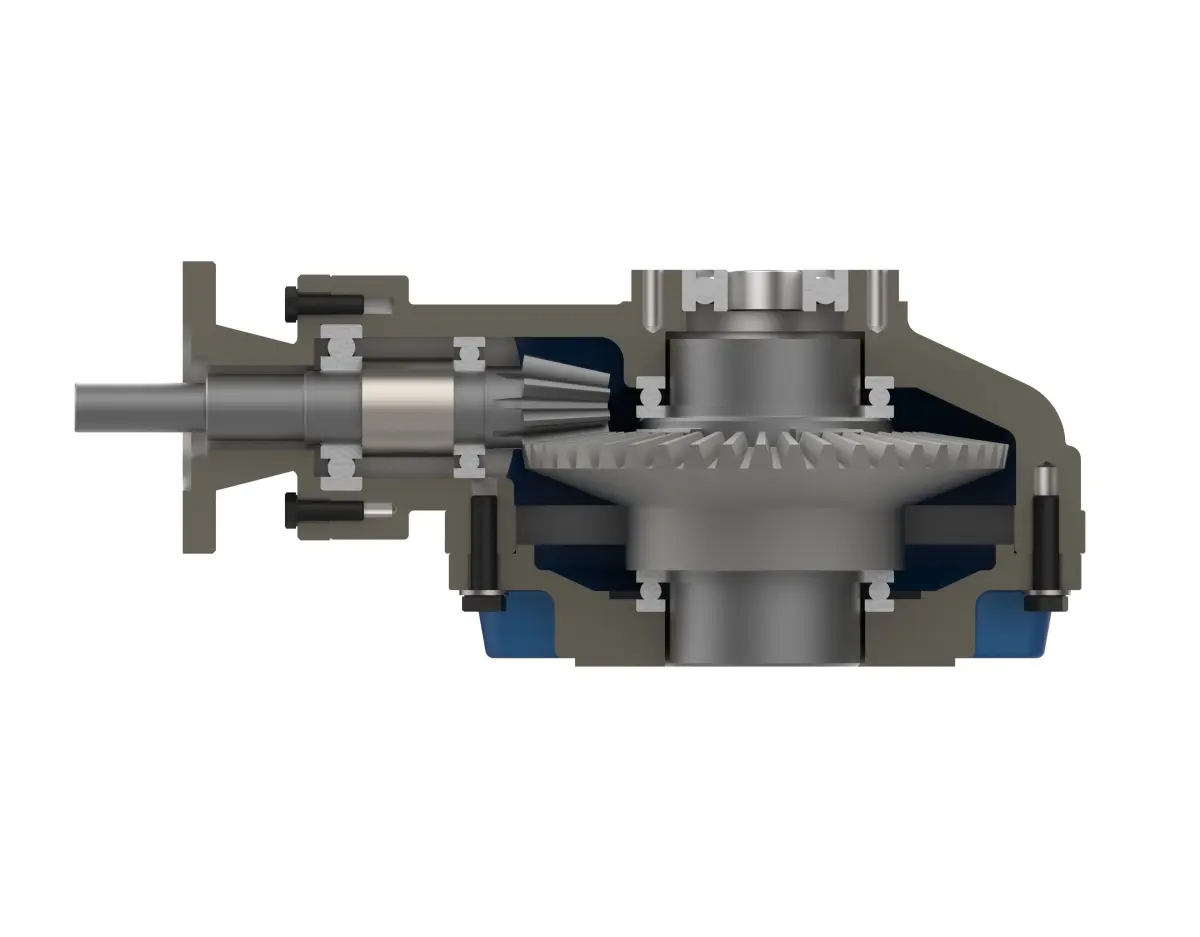

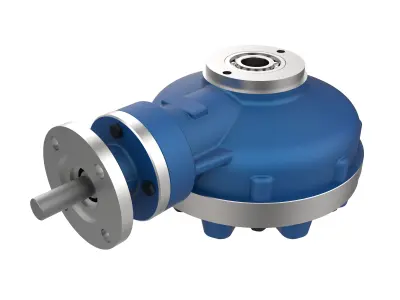

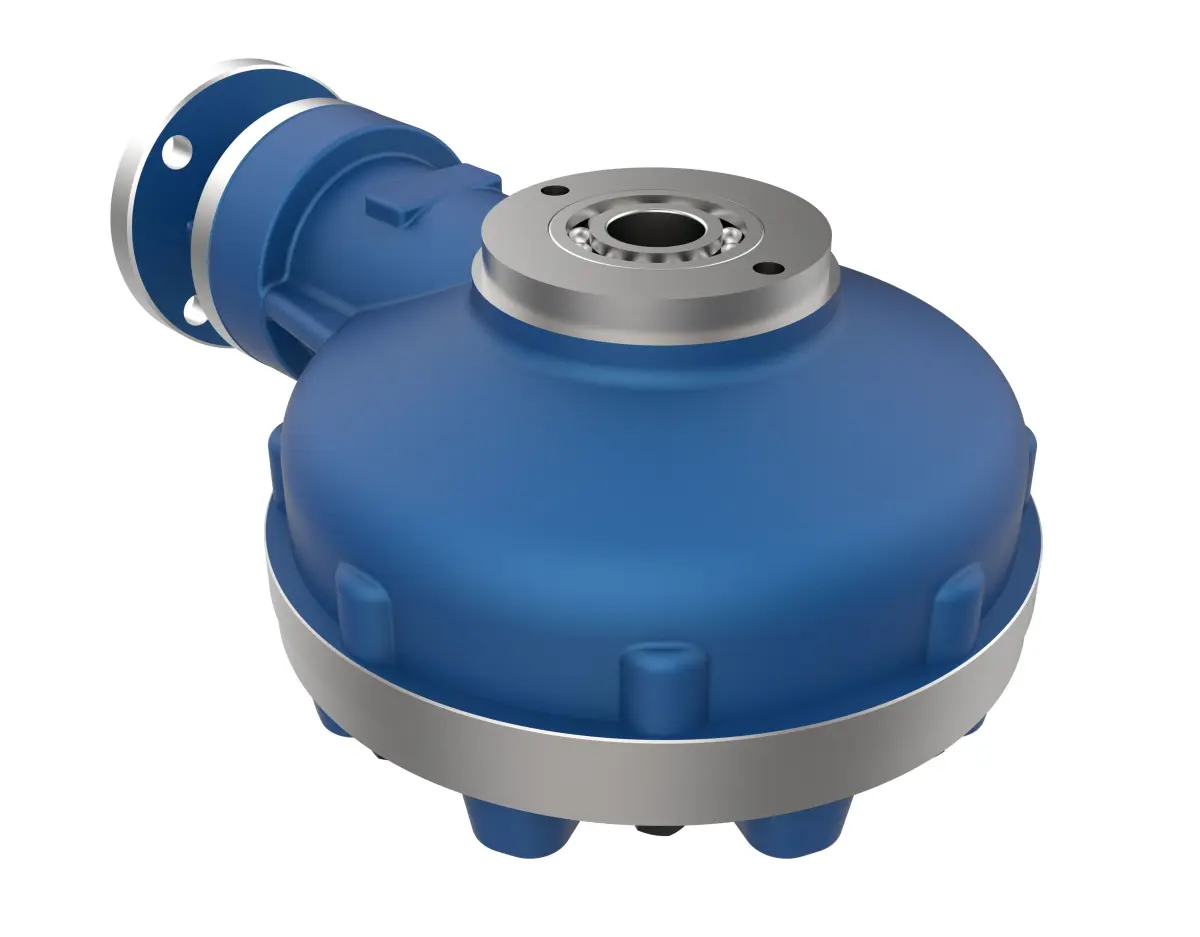

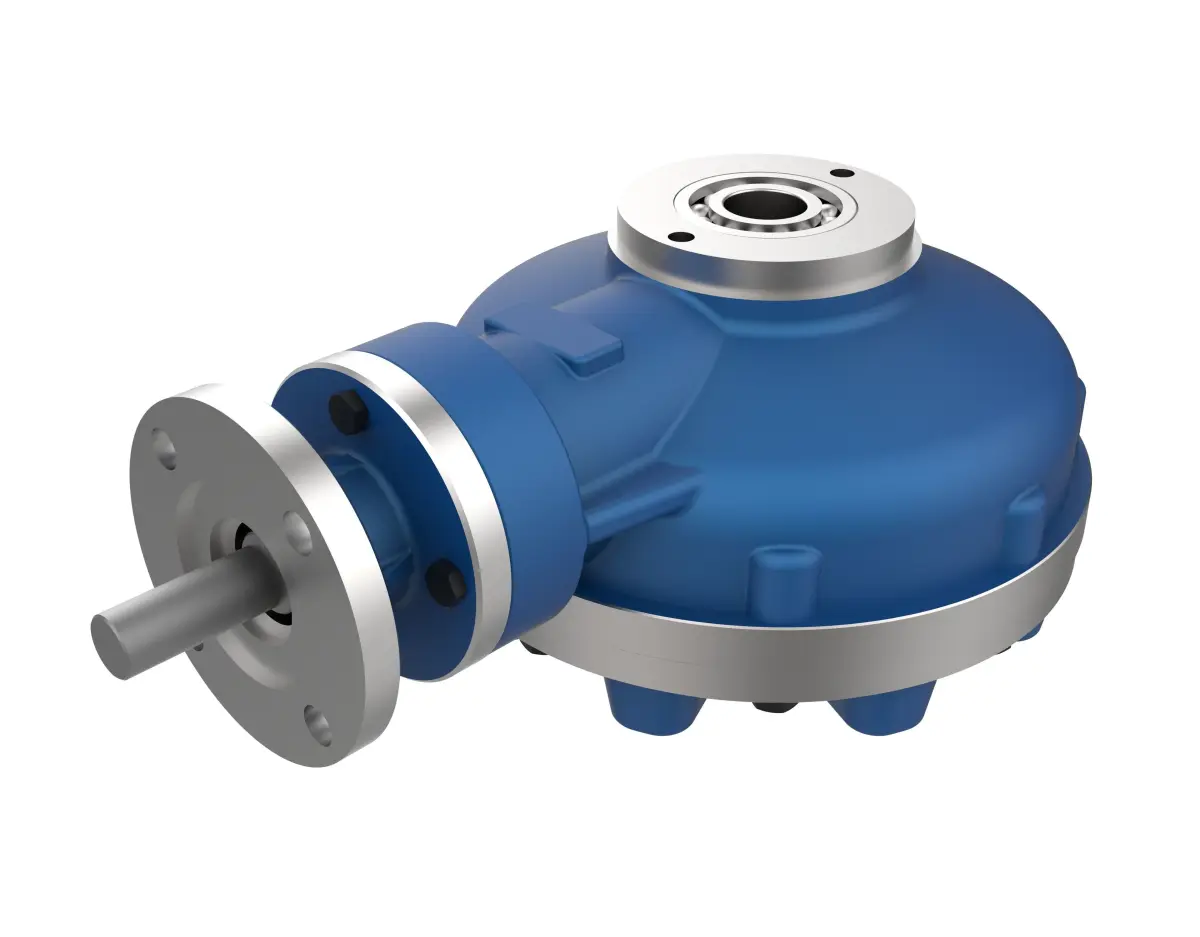

This design is reverse engineered from an actual gearbox that controls the opening of a size 700mm gate valve. Dimensions are accurate and can be used to manufacture a working gearbox.Solidworks 2020 is the native file format, with all parts editable and properly defined in terms of sketches, features and mechanical mates in the assembly.Animation for the gear motion is included in the assembly file, which is used to generate the video included in the youtube preview.As for the specifications for this particular gearbox:

Reduction ratio: 5.625
Input shaft diameter: 30 mm
Input flange PCD: 140 mm
Total length: 608.1 mm
Total width: 385.4 mm
Total height: 238.8 mm
Aproximate weight (drained): 115.5 kg

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Gearbox Gears Bevel Valve Industrial Mechanical Transmission Motor Reduction Rotation Shaft Ball Bearing Gate Pump Water Flow Fluid Pressure Machine Industrial machine
