Description
GE CP 0
Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )
Modeled with SolidWorks 2014
Rendered & Animated with KeyShot 5
File Types : .SLDPRT, .SLDASM, .SLDDRW, .IGS, .OBJ, .STL.

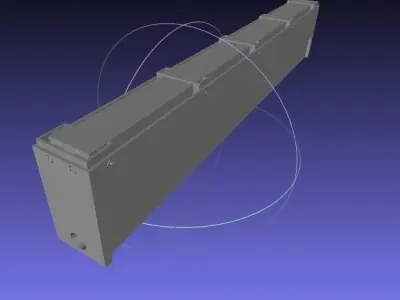

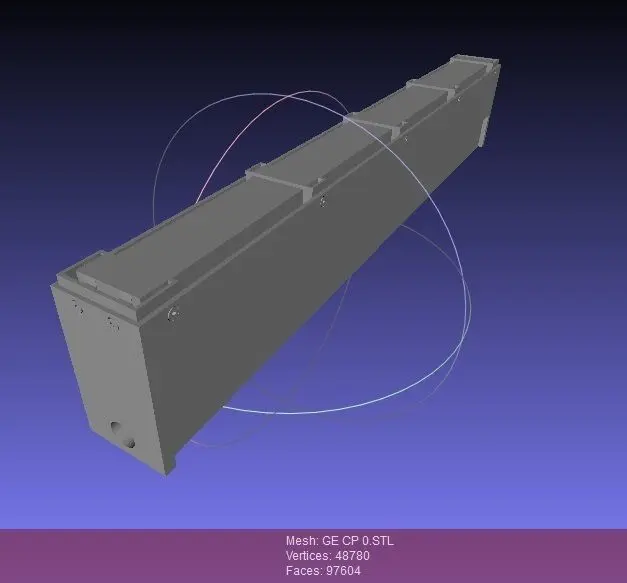

Vertices : 48780
Polygons : 97604
In my experience that is now working in public street lighting company, I've made a sealing for our company and it's products successfully in a test dive in the sea reaches a depth of about 36 meters (but ultimately plastic ABS which we use as the main material of body cracks) that are not could be deeper at that time.
I use a seal with a simple profile with screw locking method (because our products are round), so that the method inspired me in making this current design.
To produce a good sealing, the seal needs to be pressed with a precise and powerful, and I think snapfit method less suitable, so I decided to use the M3 countersink screws for locking.
Description:

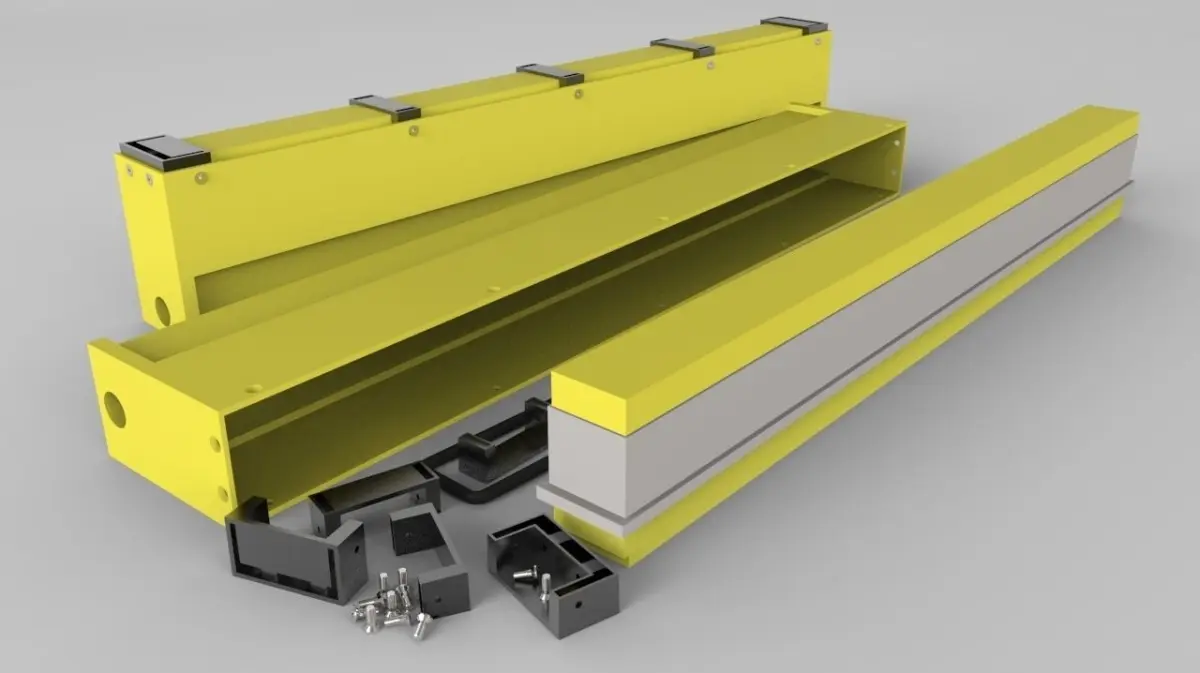

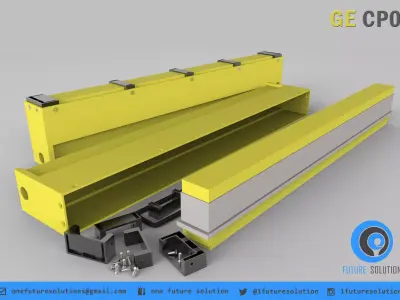

QUICK CONNECTOR & QUICK CONNECTOR CORNER
Using the method Die Casting (Aluminum) for the mass production process.
Formation of simple geometry and is very easy to do with the process of Die Casting.
Processed tapping M3 for locking.
Lightweight but strong.
To finish coated with anti-rust sort of fluid that is not easy to rust.

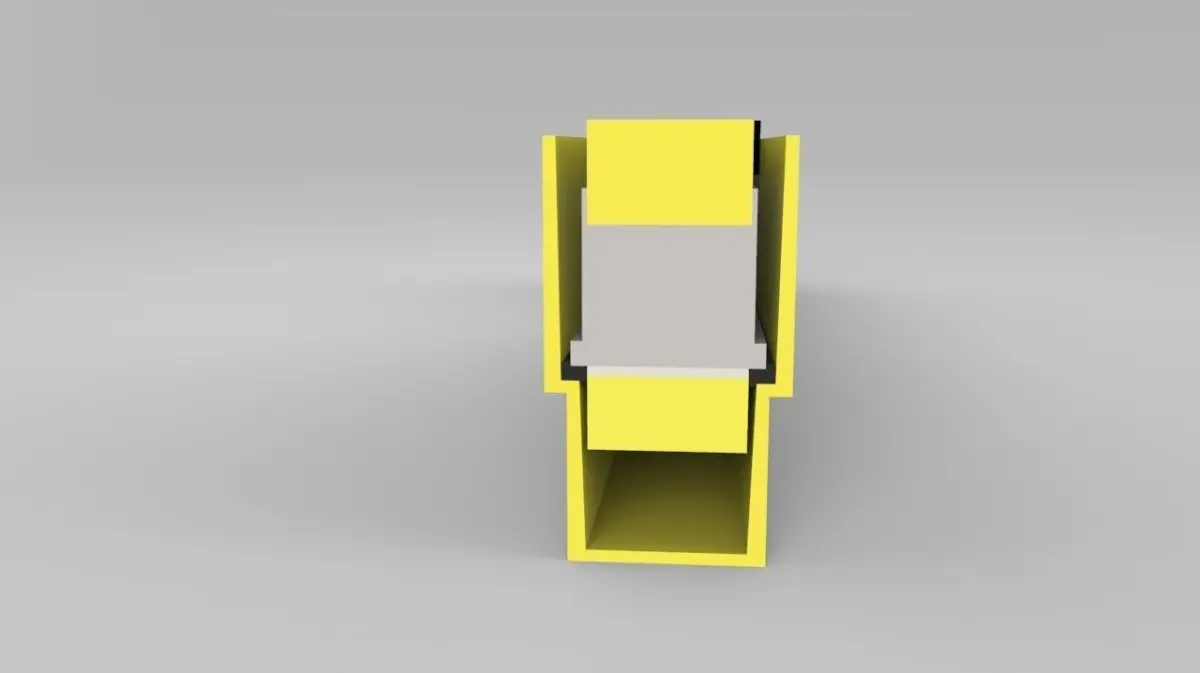

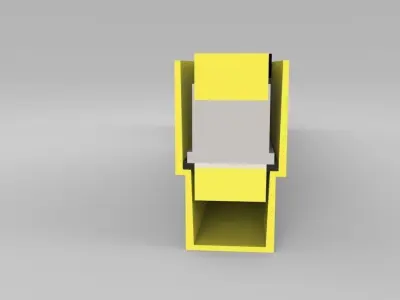

This component serves to suppress and position the Brick. Brick will hit the seal underneath.
I positioned this component not only on cut but also amid to generate pressure on the SEAL balanced. Reduce the possibility of leaks in the middle of construction.
BRICK
No changes to these components (as default)
SEAL
Using the method RUBBER INJECTION MOLD the material NBR.
Formation of simple geometry, only 5mm diameter circular profile.
Easily mounted to the component Brick.
I do not loose the BRICK so it can be terrifying BRICK to produce a better sealing.
CAVITY
Created by injection mold process.
Just as the default specification.
Just added profile to cradle the head bolt M3 Counter Sink, so the existing molding live repaired to add this profile

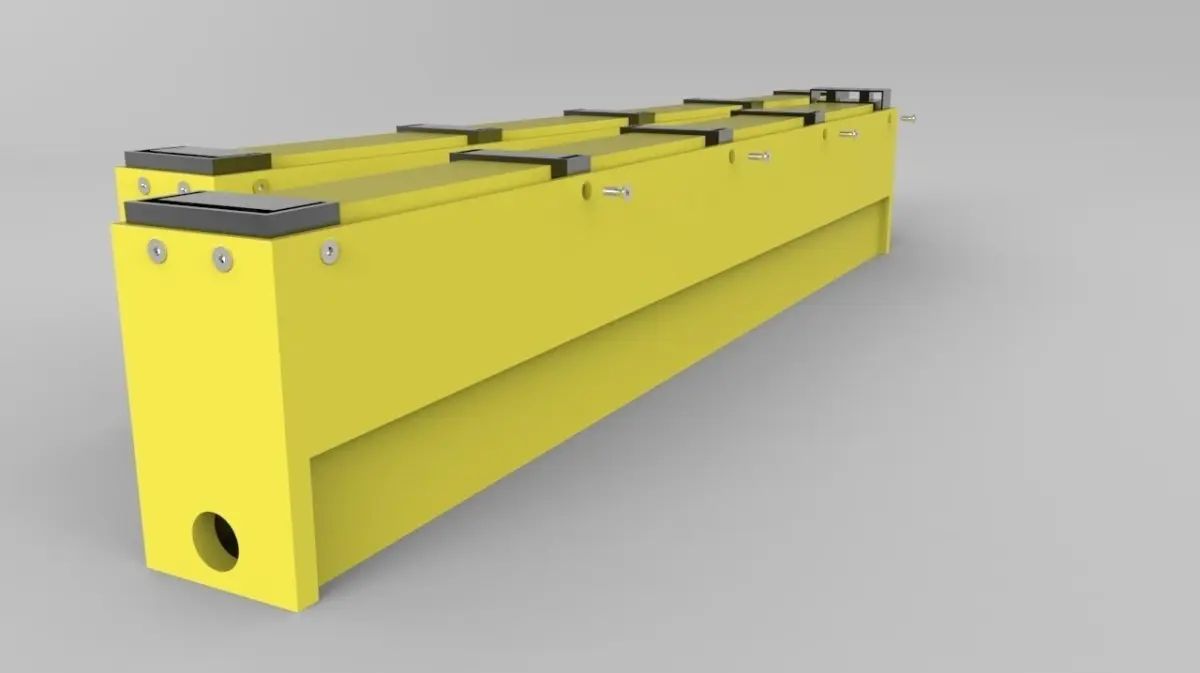

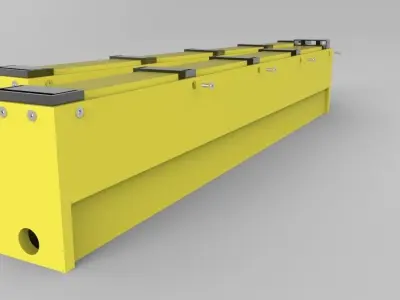

GE CP 0
Easily installed and removed , and a width of not more than 49 + 1 mm .
Construction of components installed neatly , no component is annoying when used to lower the risk of Quick Connector nudged when used .
You can download this model for Free, but you should to hit ♥ button as the payment :).
