GE TF34 Nose Cone and Fan with threaded hole in Nose Cone 3D print model

$25

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

vimalgeorge

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «vimalgeorge». CGhub does not claim copyright ownership over the content used.

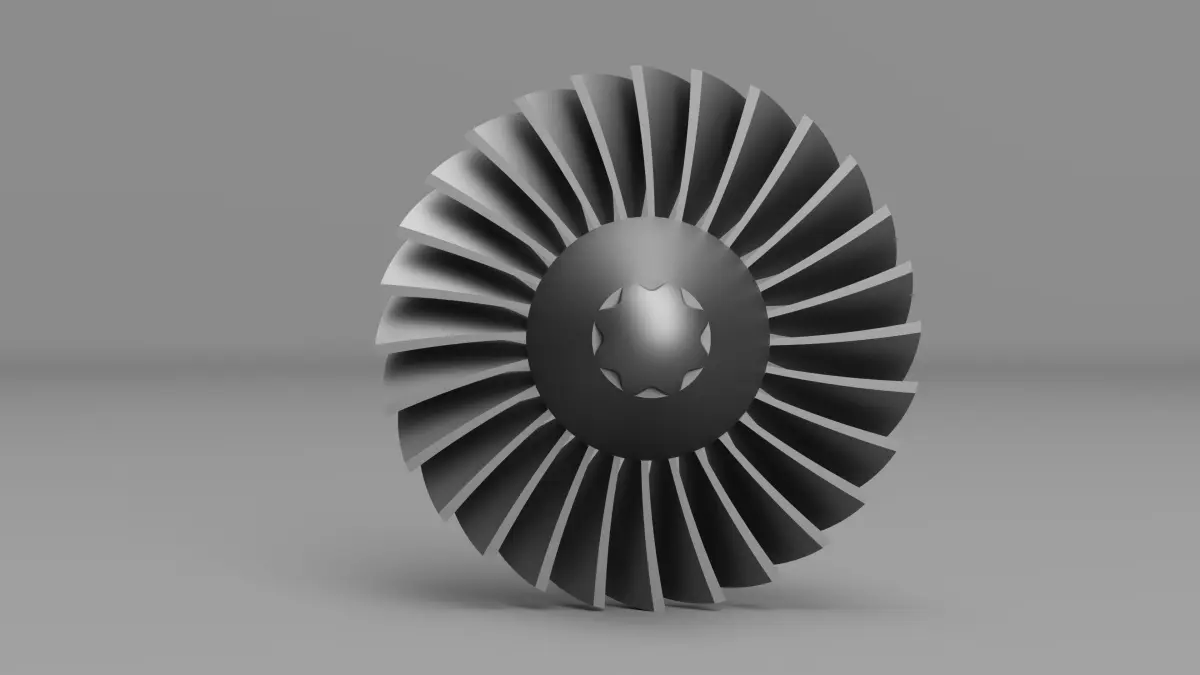

This is a 1/6th scaled CAD model of the Front Fan and Nose Cone assembly of General Electric's TF34 turbine motor.This assembly model is designed in such a way that it can be easily 3D printed. For this part to be easily 3d printed the Thickness of the Fan blade is increased and appropriately sized fillet features are provided.Also, a threaded extrusion profile is provided on the fan blade component and a threaded hole profile is provided on the nose cone component. Therefore both the components can be easily assembled together.Outer Diameter of fan blade = 5"

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Fan blade Engine fan blade Nose cone Getf34 Turbine inlet Printing Product design Cad model Cad Prototyping Printable General electric Aircraft Aircraft engine Engine Prototype Airplane Mechanical Mechanical parts Parts Hobby Diy Hobby diy
