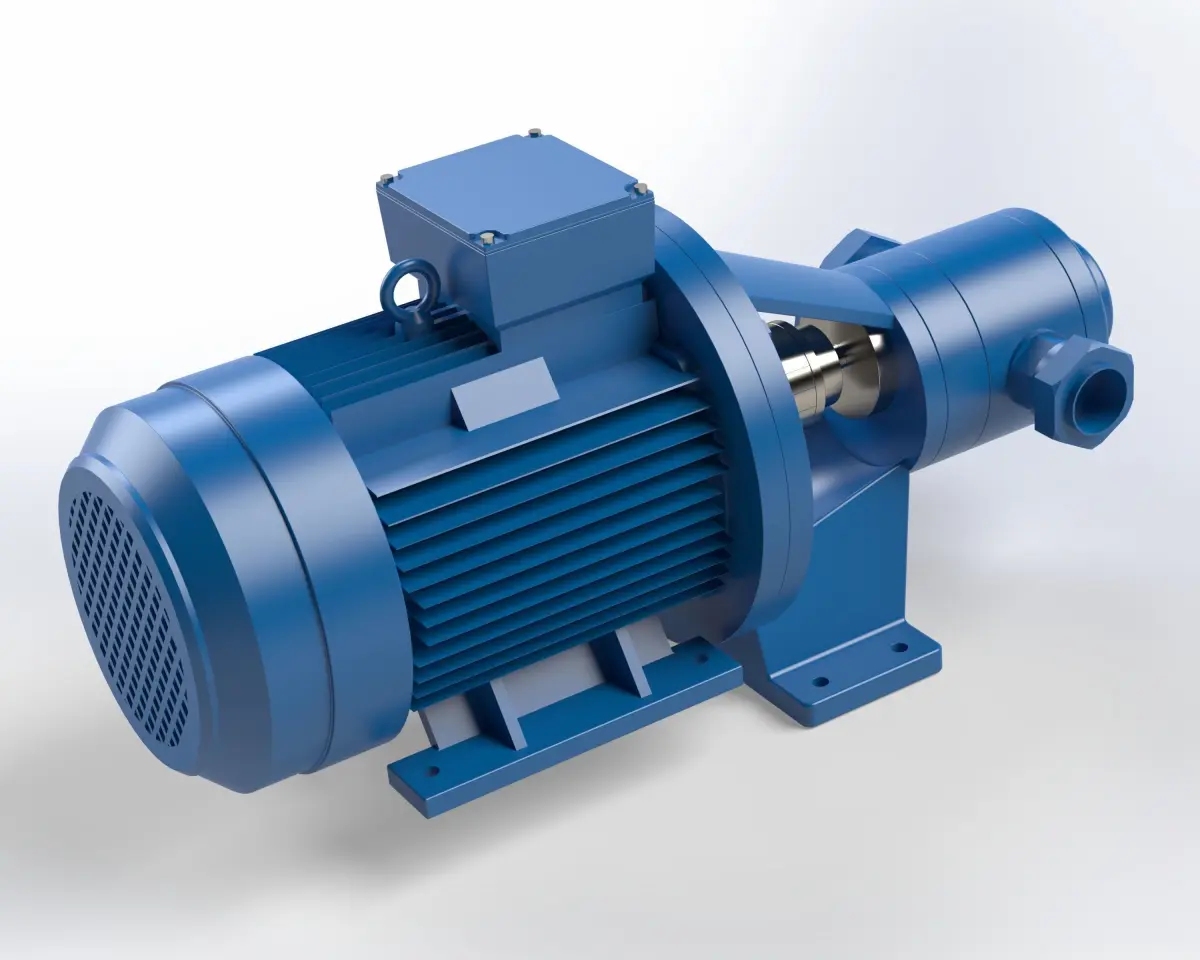

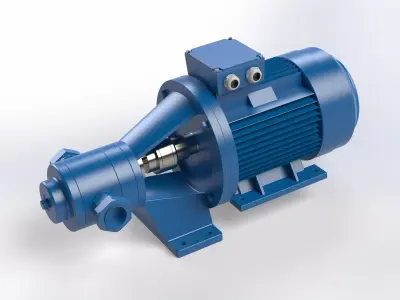

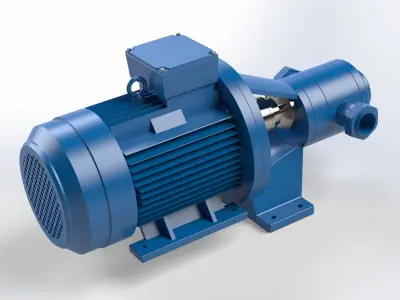

Gear pump NMSHF 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

vldesign

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «vldesign». CGhub does not claim copyright ownership over the content used.

NMSHF pumps 0,8-25-0,63/25 - gear oil. Gear pump NMSHF0,8-25-0,63-25 is a rotary type volumetric pump, the working body of which has two or more gears forming clutches.

The design of the gear pump NSHM is very simple – there are usually two gears. A pair of gear rotors making oncoming motion, creating a vacuum at the pump inlet. Then the pumped medium is transferred by the teeth of the gears to the pump outlet and the cycle is continuously repeated. The larger the gear and the tooth module, the more productive the pump pumps a liter of working fluid.
