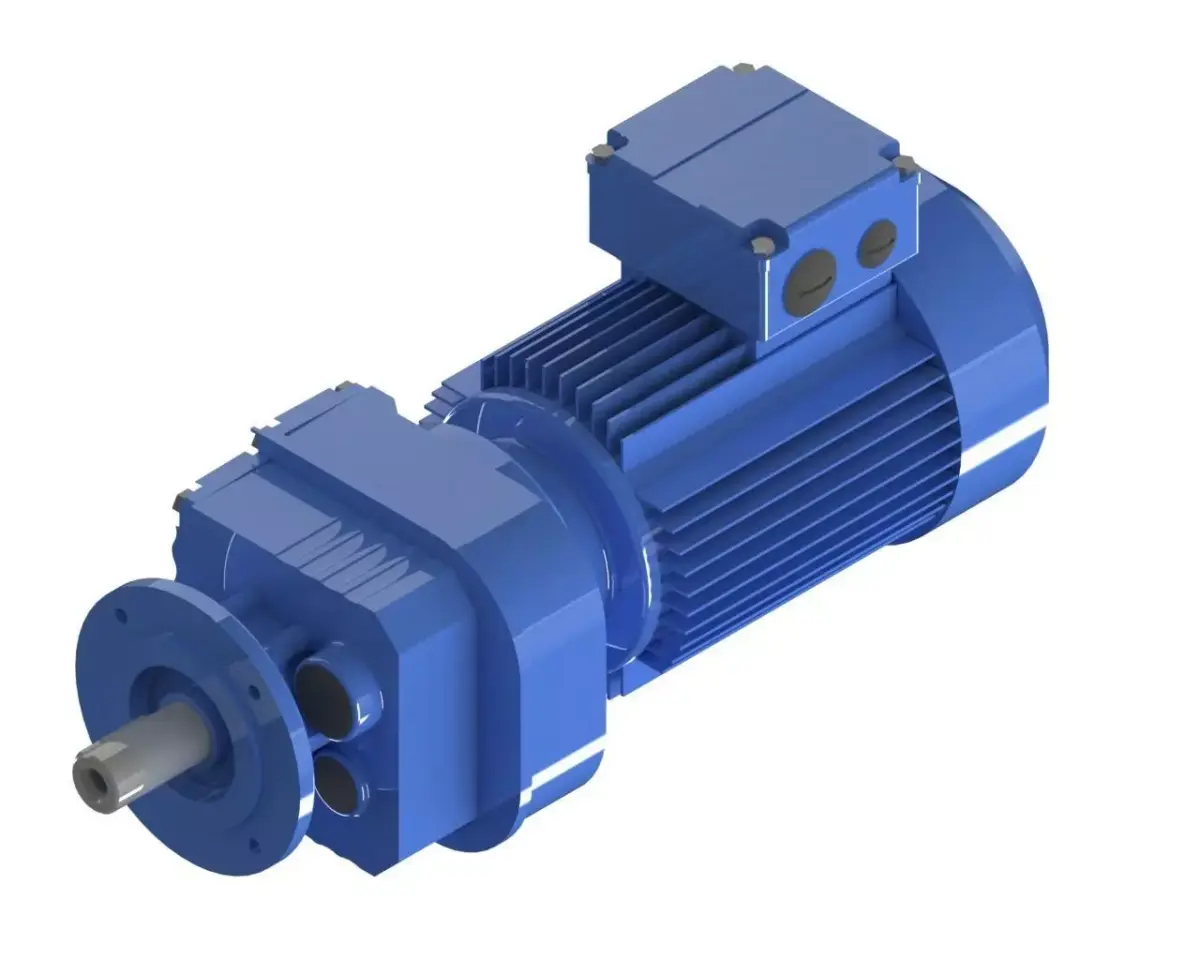

Cylindrical coaxial gear motor. It usually has two or three stages and a range of gear ratios from 3 to 200. To transmit movement, it uses cylindrical helical wheels. They are usually mounted on feet or on a flange. Such a geared motor received its name “coaxial” due to the fact that the output shaft is on the same axis with the electric motor. The layout of a cylindrical coaxial gearmotor is similar to a planetary, wave and cycloid gearbox.an independent product made in the form of a unit consisting of a gearbox and an electric motor, connected by an intermediate coupling or without it. As an electric drive element, it is widely used in all areas of industry; Its advantages are high efficiency, ease of maintenance, compactness, and simplified installation. Depending on the type of transmission used, planetary, worm, cylindrical, wave, etc. are distinguished.
SLDPRT (SolidWorks, filesize: 908 KB), BLEND (Blender, filesize: 277 KB), OBJ (OBJ, filesize: 115 KB), FBX (Autodesk FBX, filesize: 162 KB), C3D (Coordinate 3D, filesize: 282 KB), SAT (3D ACIS, filesize: 355 KB), DWG (AutoCAD, filesize: 702 KB), IGE (IGES, filesize: 844 KB), STL (Stereolithography, filesize: 182 KB), STP (STEP, filesize: 291 KB), X_T (Parasolid, filesize: 628 KB), DXF (DXF, filesize: 734 KB)
