General Purpose NPN Transistor Low-poly 3D model
Home Catalog Aircraft part General Purpose NPN Transistor Low-poly 3D model
General Purpose NPN Transistor Low-poly 3D model
General Purpose NPN Transistor Low-poly 3D model
General Purpose NPN Transistor Low-poly 3D model
General Purpose NPN Transistor Low-poly 3D model
General Purpose NPN Transistor Low-poly 3D model

Publication date: 2020-04-25

General Purpose NPN Transistor Low-poly 3D model

$2

License: Royalty Free License

author:

simmer65

Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats
Description

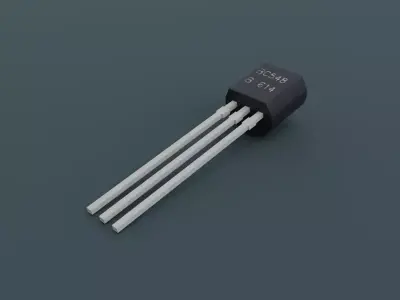

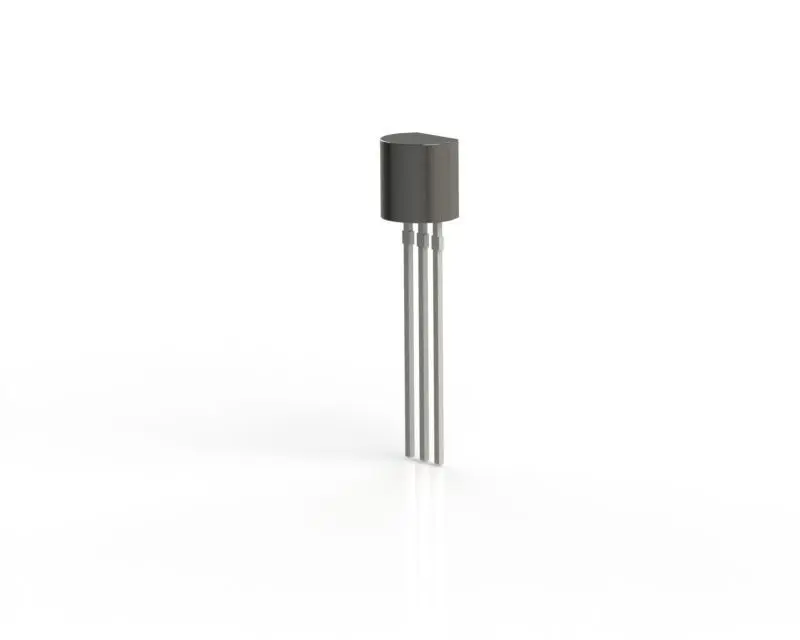

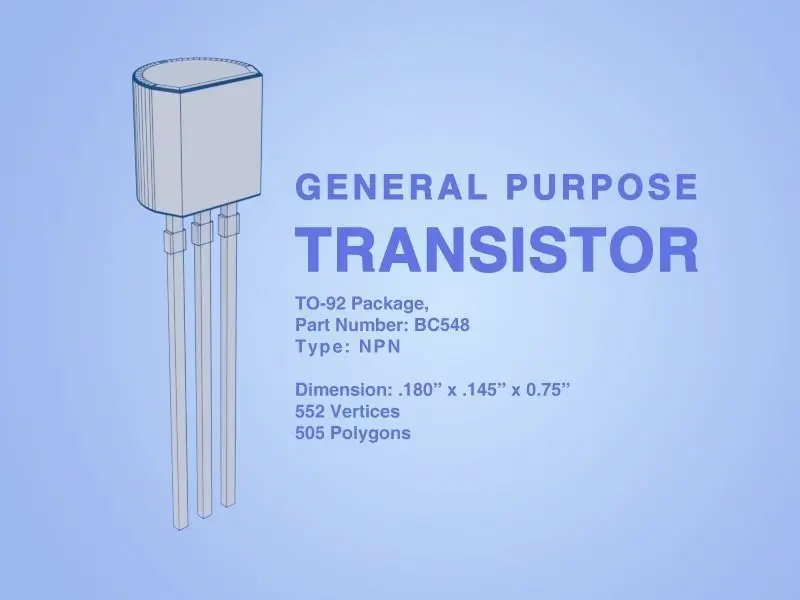

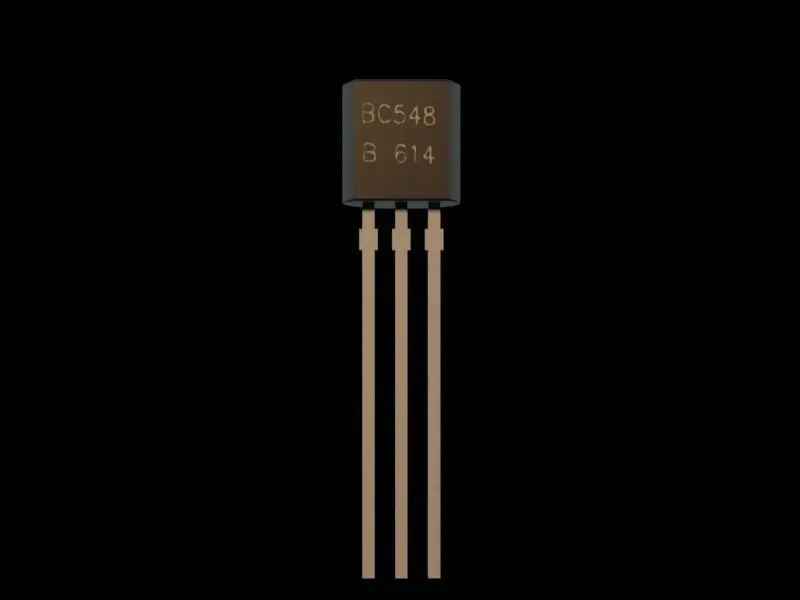

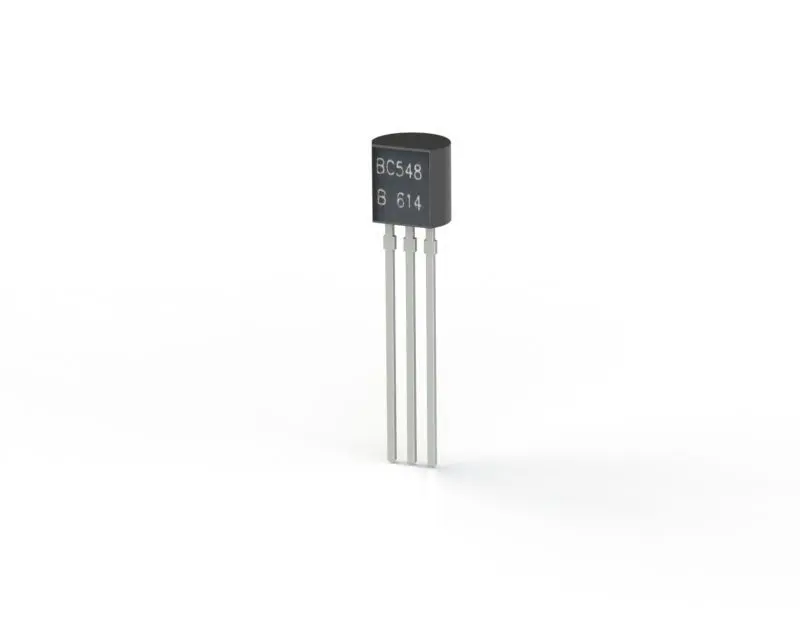

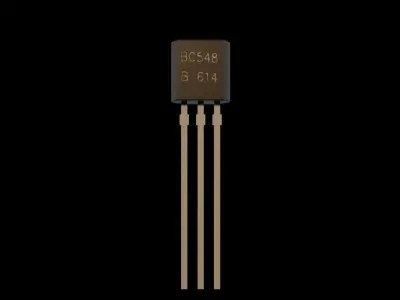

This is a transistor is modeled in the standard TO-92 Package. The texturing has the BC548 label which indicates that it is a general purpose NPN transistor.

Modeling and rendering was done originally in Solidworks and Blender. Other formats available: MAX, FBX, DWG, DAE, STL, OBJ, IPT, GLB and USDC

The transistor is real world dimensions taken from the manufacturers specification sheet. It is drawn in Imperial units.

The Blender model has of 542 vertices and 505 polygons (2 N-Gons)The STL Model has 7763 vertices and 15510 facesThe Solidworks model has two configurations, one with the fillets enabled and a simple version with no fillets.

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 542
  • Vertices: 505

Tags

Electrical Transistor Industry Electronics Equipment Energy Switch Components Computer equipment Circuit Board Hobby Part Other Circuit board
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «simmer65». CGhub does not claim copyright ownership over the content used.
Native
  • Blender 2.82A ()28.2 MB
Exchange
  • SolidWorks ()510 KB
  • Stereolithography () (2 files)768 KB
  • Autodesk FBX ()46.7 KB
  • Autodesk 3ds Max ()840 KB
  • Collada ()173 KB
  • AutoCAD 2 ()539 KB
  • Autodesk Inventor 2021 ()346 KB
  • OBJ () (2 files)70.4 KB
  • glTF ()861 KB
