Buy Geneva Cam 12 Point 3D model

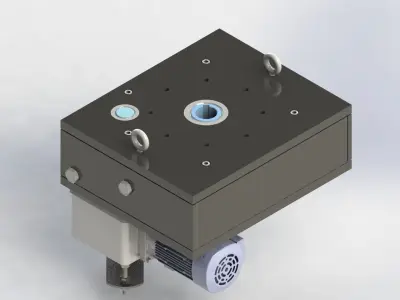

Name: Geneva Cam 12 Point 3D model
Brand: hero2020
SKU: 893965
Price: 20.00 USD
Availability: InStock

$20

License: Royalty Free

author:

hero2020

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «hero2020». CGhub does not claim copyright ownership over the content used.

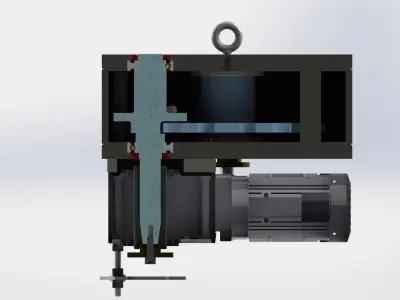

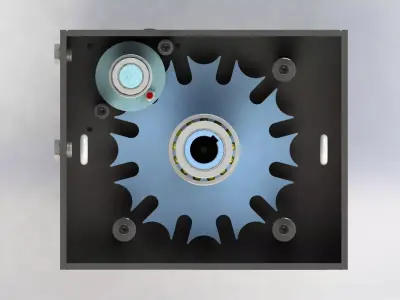

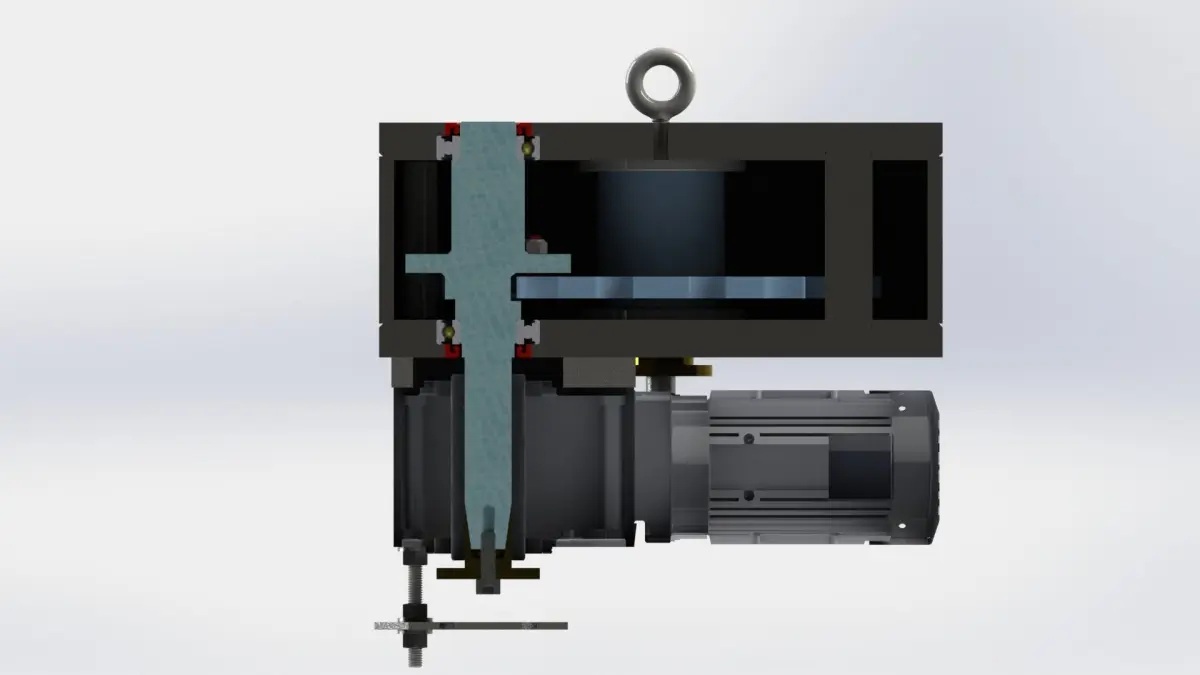

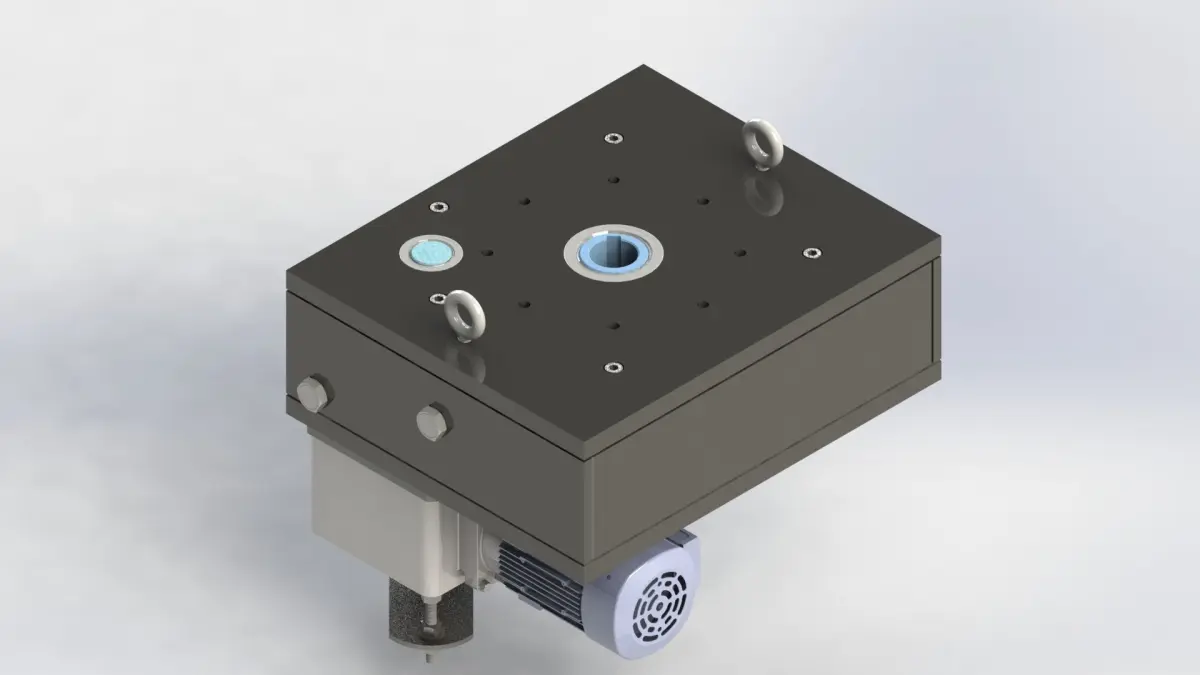

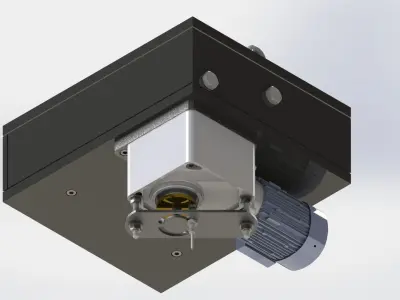

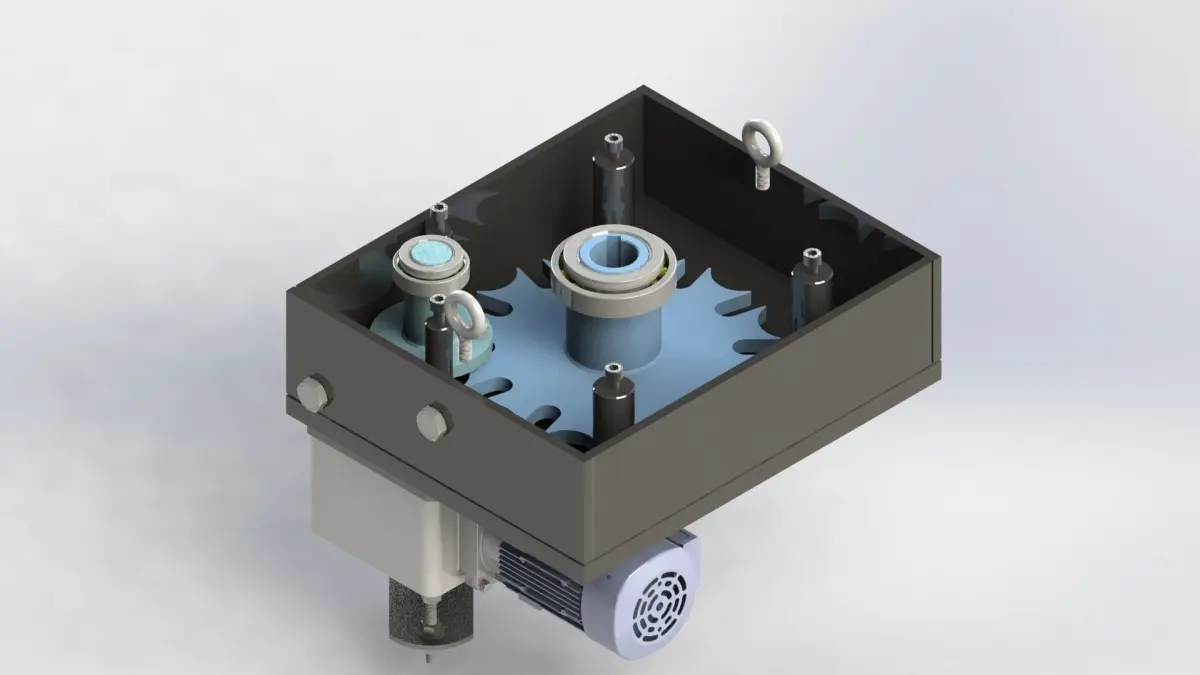

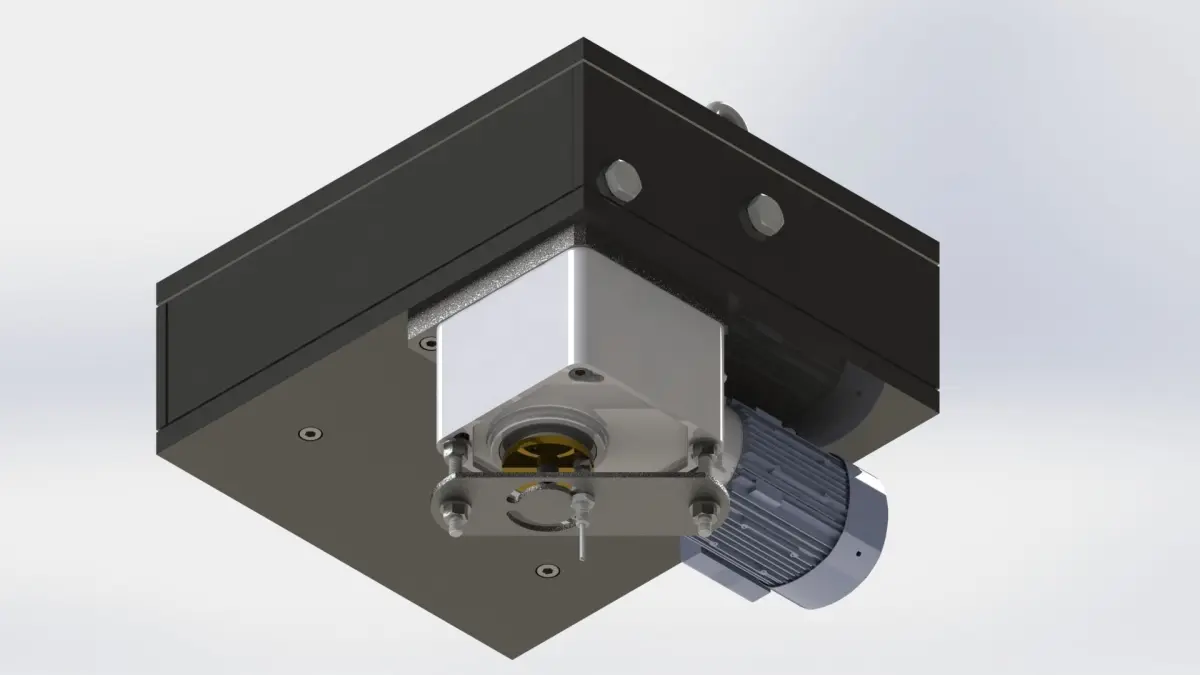

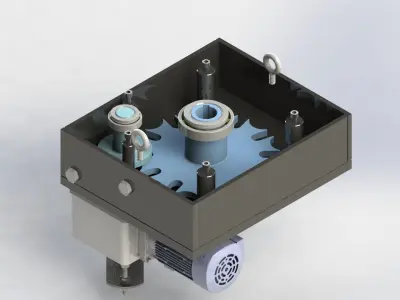

Geneva Cam 12 Point .

The Geneva mechanism converts smooth rotation into an intermittent step motion.

The Geneva drive or Maltese cross is a gear mechanism that translates a continuous rotation movement into intermittent rotary motion.

The rotating drive wheel is usually equipped with a pin that reaches into a slot located in the other wheel (driven wheel) that advances it by one step at a time. The drive wheel also has an elevated circular blocking disc that locks the rotating driven wheel in position between steps.
