Buy Glass Balustrade Line Based Revit Family 3D model

Name: Glass Balustrade Line Based Revit Family 3D model
Brand: droumbas
SKU: 767292
Price: 8.00 USD
Availability: InStock

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

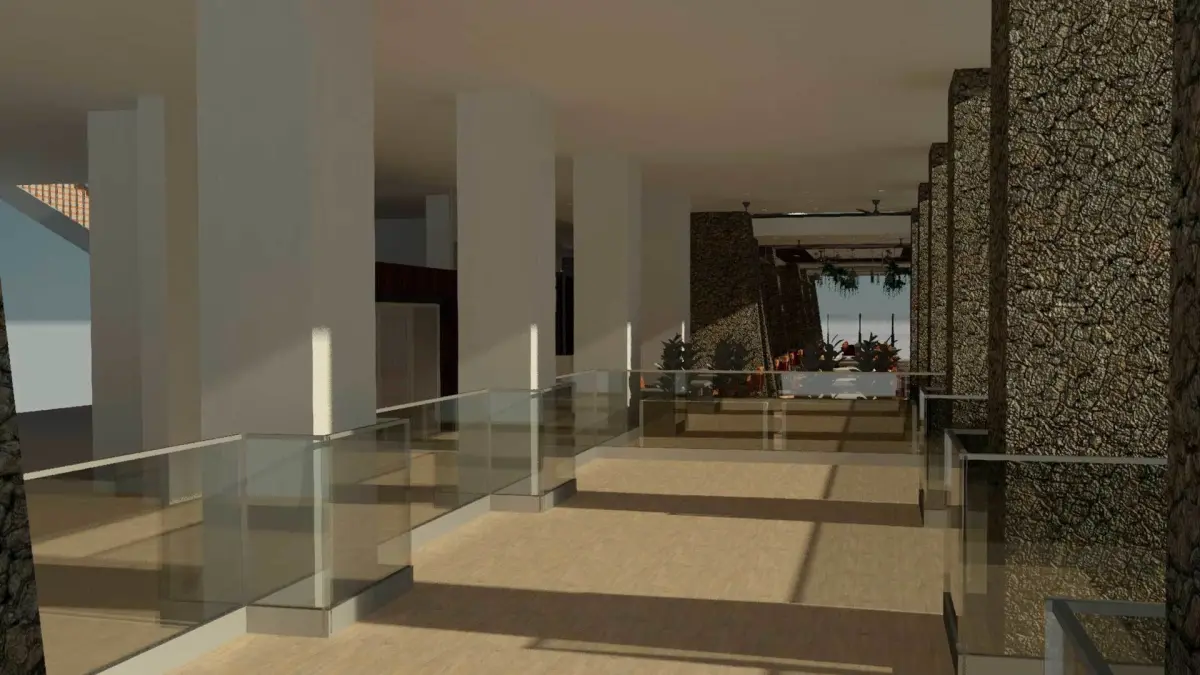

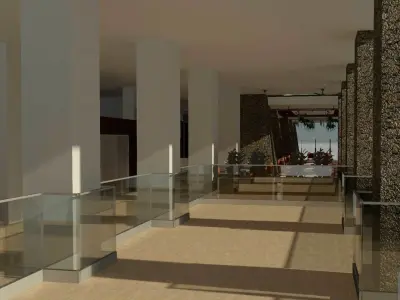

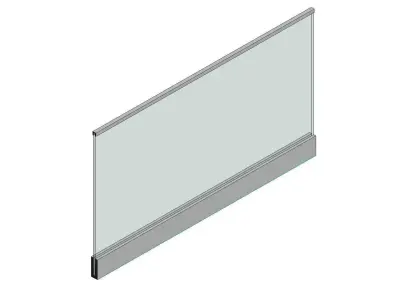

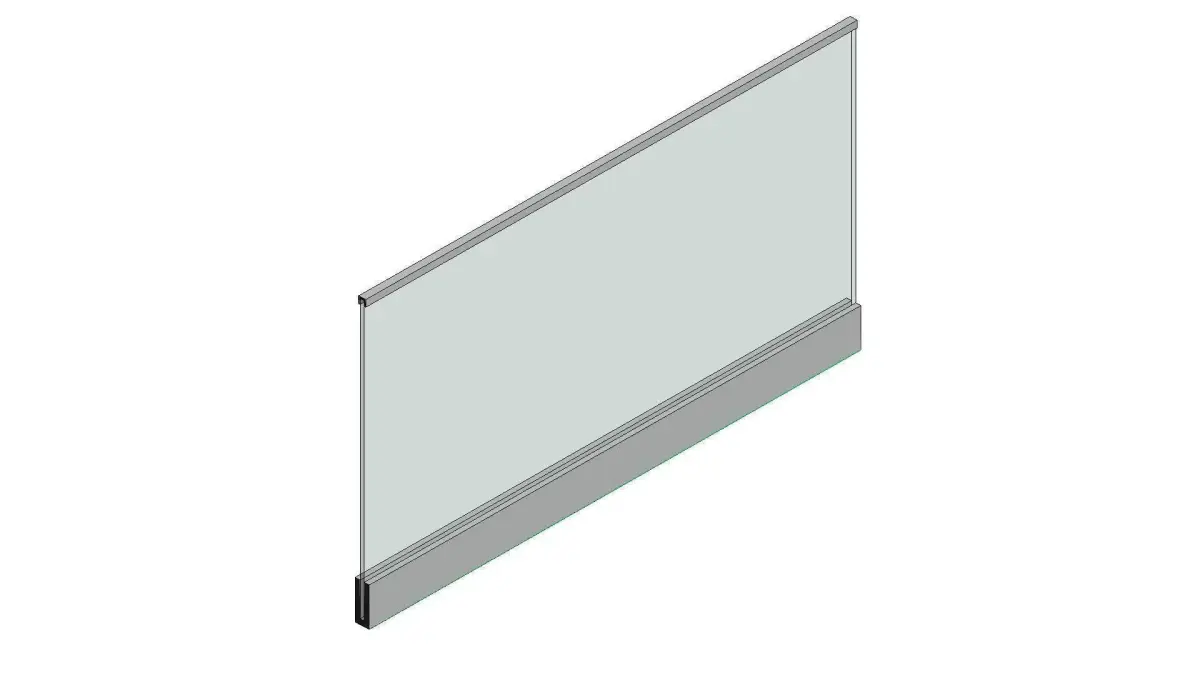

This is a revit line based family 3D model of a glass balustrade with exposed aluminium base supprot.

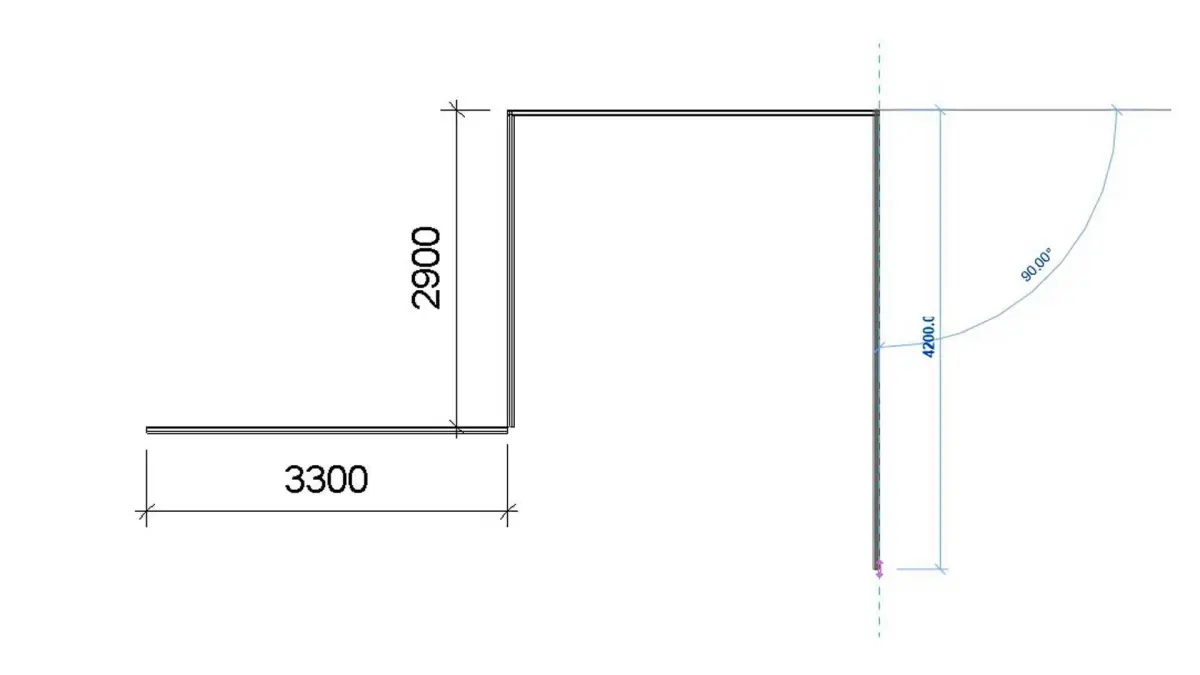

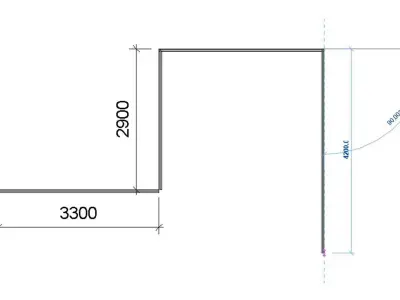

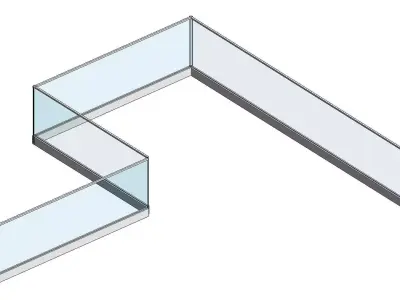

Line based models can be loaded into any project and entered as 3D family components just be drawing simple lines, rectangular shapes, polygons or by selecting existing lines ( i.e. balcony edges ).

This is a fully parametric family, meaning user can change its propertis and create various variations of a glass balustrade based on each project needs. Parameters available are shown below.

ATTRIBUTES:

Revit Version : 2022
Family Type : Line Based Generic Model
File Extension : .rfa

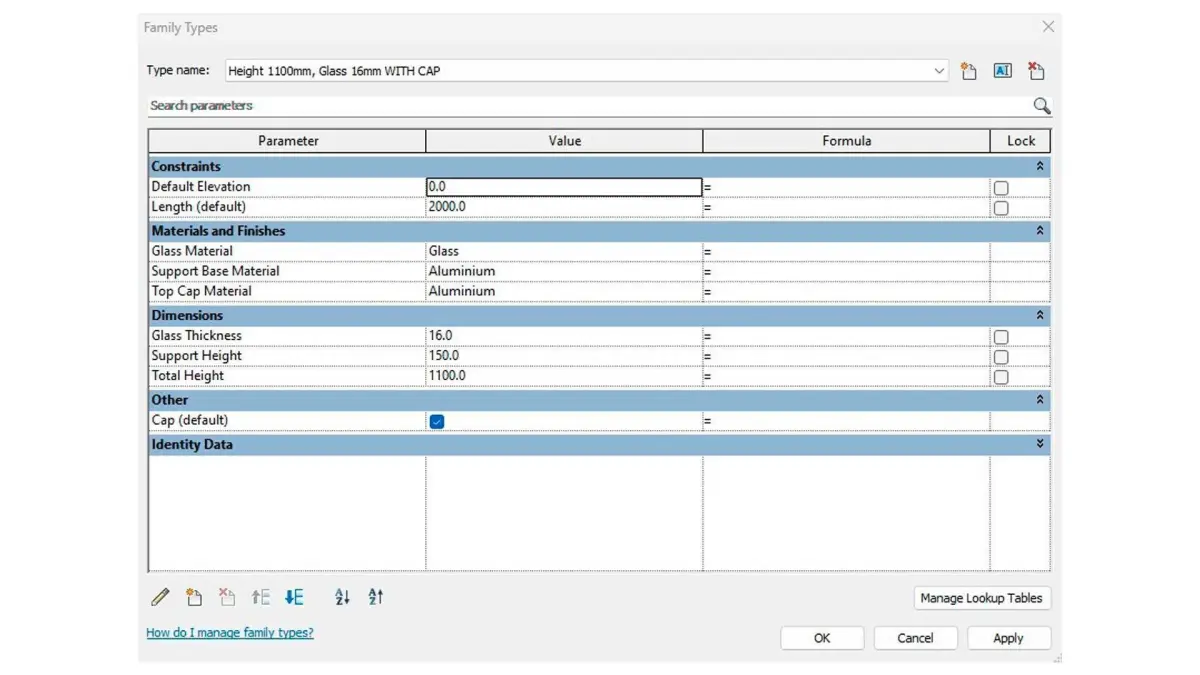

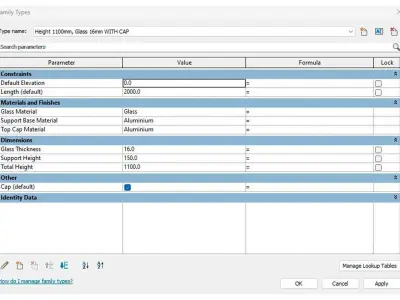

PARAMETERS:

Total Height
Glass Thickness
Base support height
Top CAP ON/OFF graphical illustration
Material parameters for base support, glass and top cap

Length is controlled by the line drawn ( no need to enter specific length )Full parametric family, line based generic model that can be cut through sections.
