Globoid Worm Gear Drive 3D print model
Globoid Worm Gear Drive 3D print model
Globoid Worm Gear Drive 3D print model
Globoid Worm Gear Drive 3D print model

Publication date: 2018-05-20

Buy Globoid Worm Gear Drive 3D print model

$14

License: Royalty Free

author:

Oyye

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Oyye». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $14 Add to Wishlist
  • Description
  • Formats

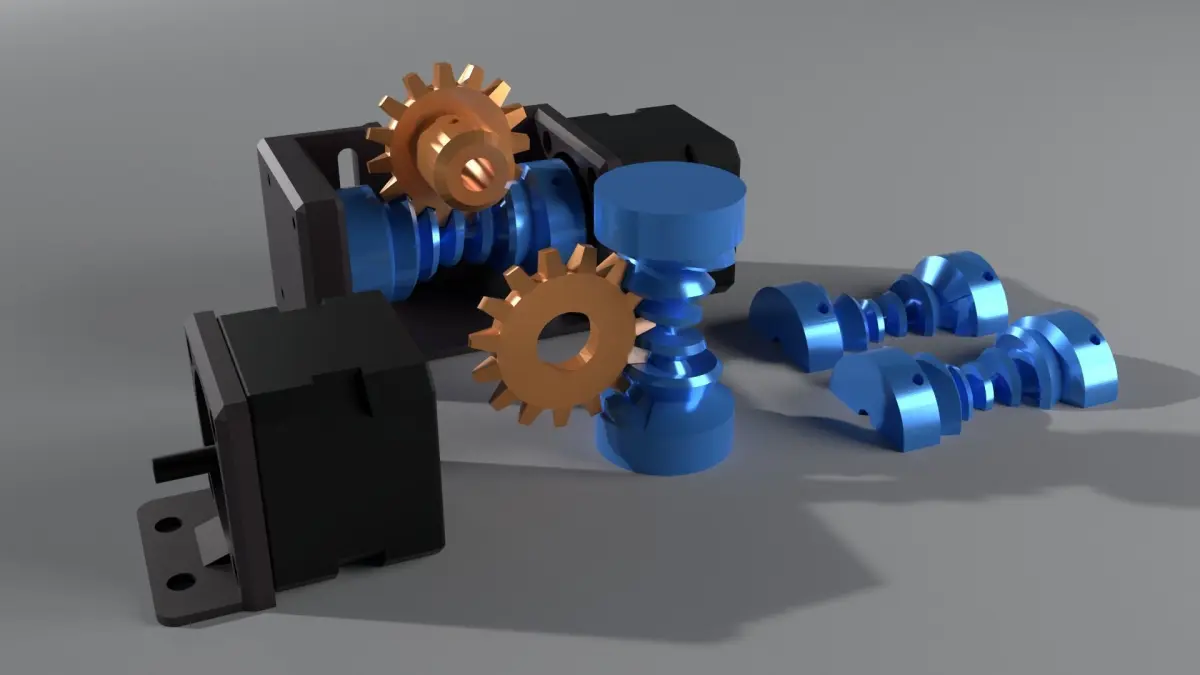

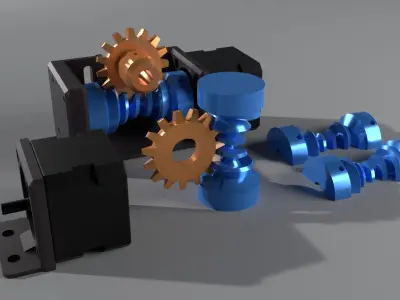

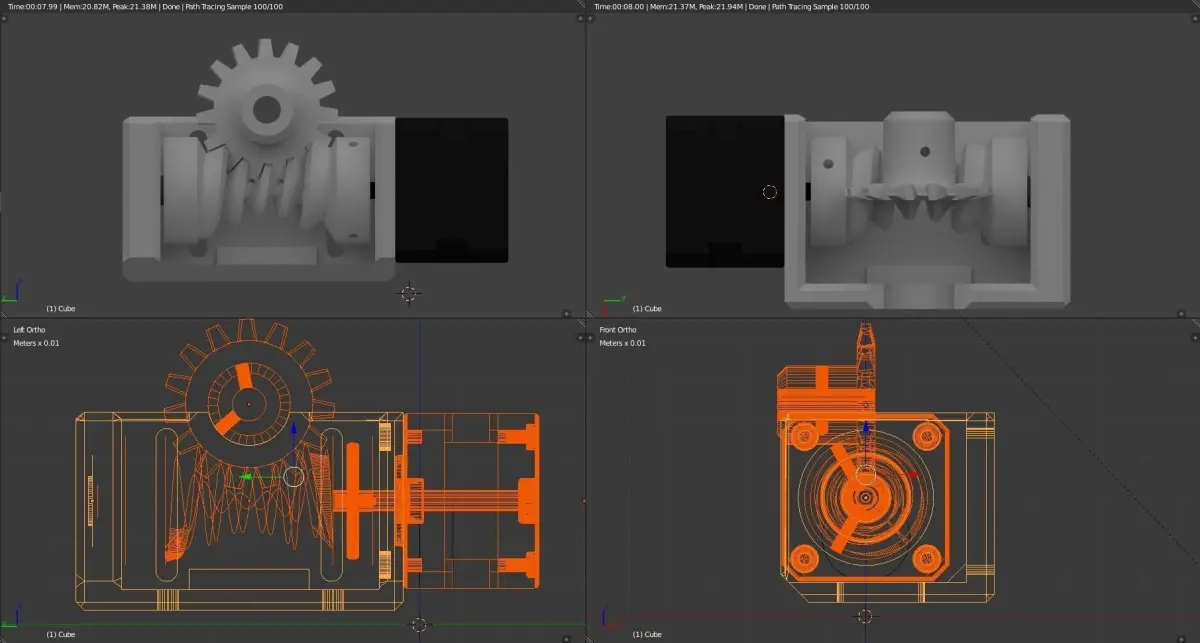

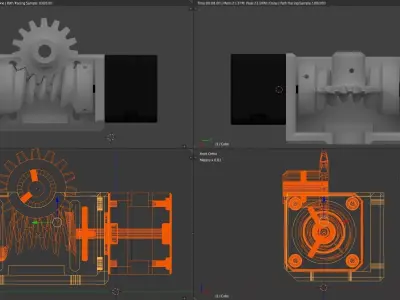

Globoid worm gear drive modeled in Blender 2.79 and provided in multiple file formats (.OBJ, .STL, .3DS)

No textures or materials included. Model is not animated.

Exported as STL files, making them ready for 3D printing.Also exported to 3DS and OBJ files, for use in 3D graphics packages.

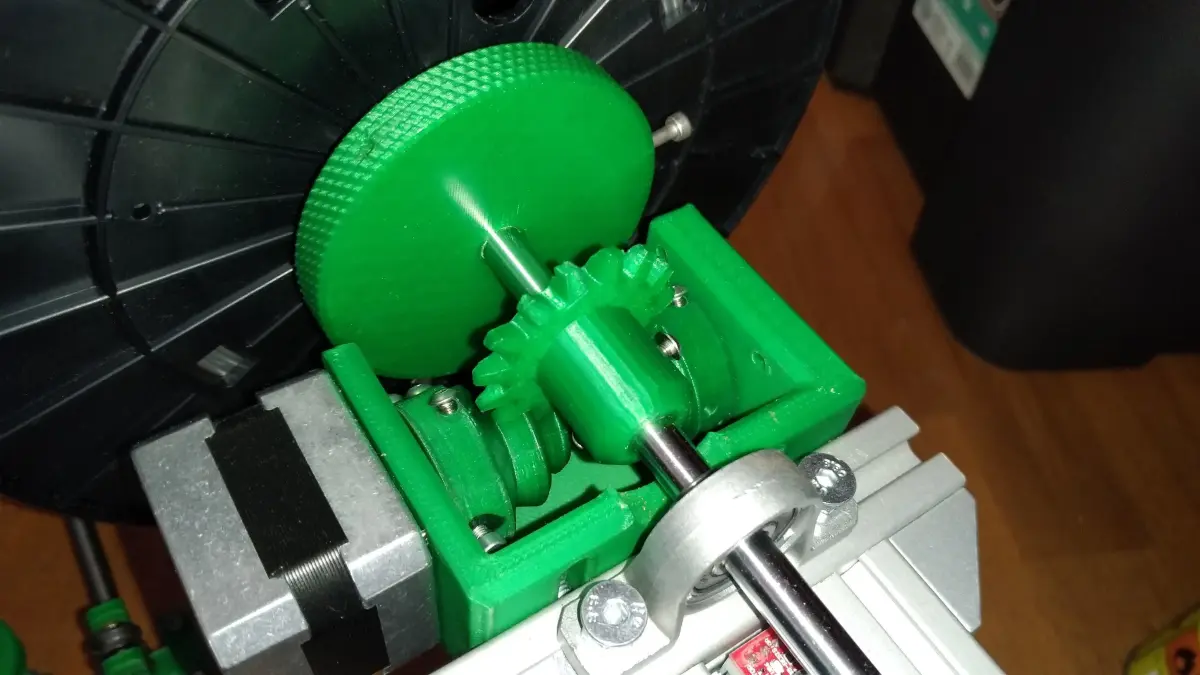

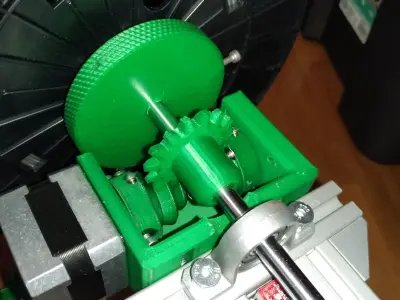

Tested with NEMA 17 stepper, 8mm Steel rod, 8mm(inner diameter) x 22mm (outer diameter) x 7mm(height) bearing and a few 3mm screws for filament winding machine.

Product includes:

  • Worm gear drive STL files (for 3D printing)
  • Worm gear drive 3DS files (for 3D graphics packages)
  • Worm gear drive OBJ files (for 3D graphics packages)
STL (Stereolithography, filesize: 5.72 MB), OBJ (OBJ, filesize: 7.01 MB), FBX (Autodesk FBX, filesize: 2.35 MB), 3DS (3D Studio, filesize: 1.79 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Manifold geometry | No N-gons |

Tags

Worm Gears Cog Wheel Transmission Rotate Rotation Rotary Motion Machine Part Sprocket Components Teeth Mesh Mechanical Engineering Print Science
