GPZERO CLIPON ALIGNEMENT TOOL FOR 3D PRINT 3D print model

License: Royalty Free No Ai

author:

tomassinidesign

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «tomassinidesign». CGhub does not claim copyright ownership over the content used.

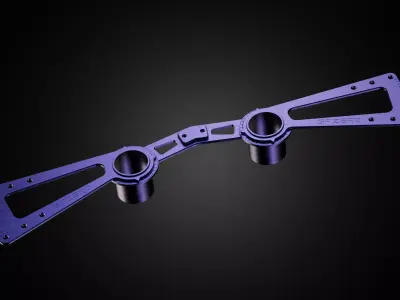

Clip-On Handlebar Alignment Tool for Sportbikes – by GPZERO

Achieve precise and repeatable clip-on handlebar alignment with this purpose-built tool, designed for sportbike enthusiasts and track-day riders who demand optimal ergonomics and control.

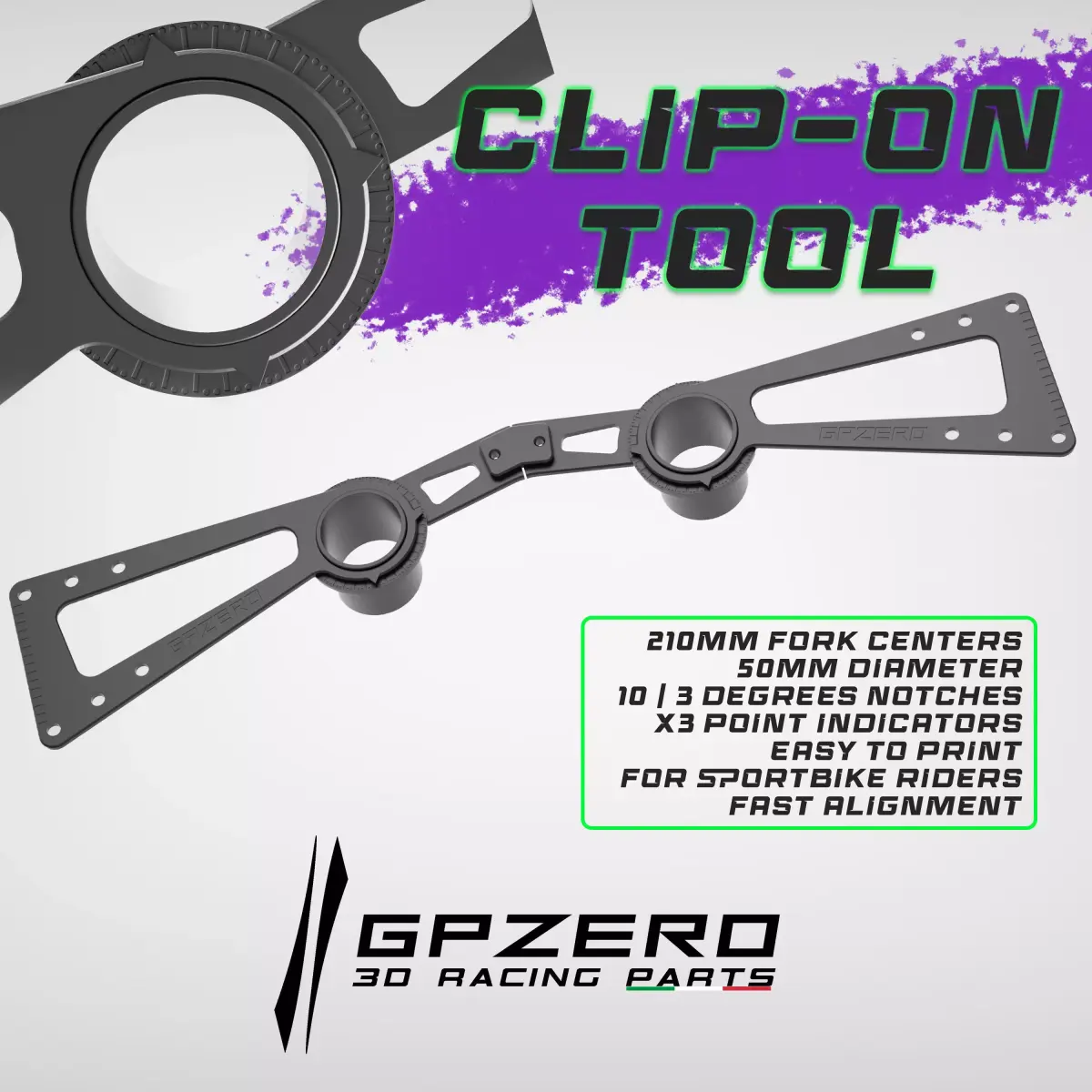

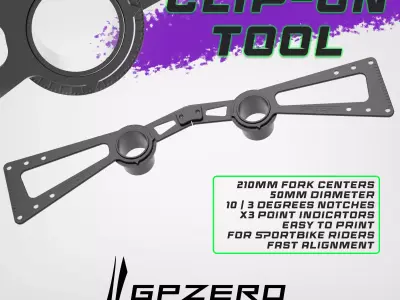

Engineered to mount directly onto sportbike fork caps with a center-to-center spacing of 210mm and 50mm fork diameter, this alignment tool ensures quick, accurate positioning every time. Whether you're dialing in comfort for the road or seeking maximum consistency on the track, this tool is your go-to setup companion.

Key Features:

Fast, Precise Alignment – Eliminate guesswork when setting up your clip-ons for perfect symmetry and rider comfort.

Fits 210mm Center-to-Center, 50mm Diameter Forks – Easily adaptable with printable rings for other fork sizes (rings not included).

Built-in 10° and 3° Angle Reference Notches – Offers quick reference points for common ergonomic settings.

Easily Adaptable – Can be adjusted to other fork diameters by printing additional rings (not included).

Simple Setup – Assemble with a standard bolts and self-locking nuts, place over fork caps, and align your bars with ease.

Reccomended for PETG or Better Filament – Designed for durability, dimensional accuracy, and resistance to workshop handling.

Designed in Italy with performance in mind, this alignment tool is a must-have for DIY builders, race teams, and weekend tuners alike.

For private, non-commercial use only.Designed by GPZERO.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Semimanubri Misano Clip ons Handlebar Yamaha Gsxr Suzuki Cbr Panigale Laguna Seca Buttonwillow Tuning Trackday Hobby Diy Hobby diy Automotive Car Parts
