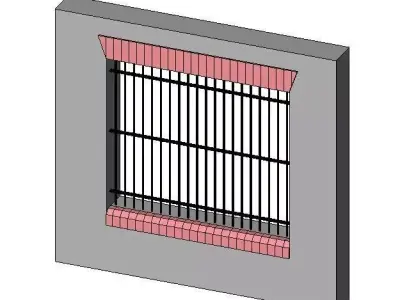

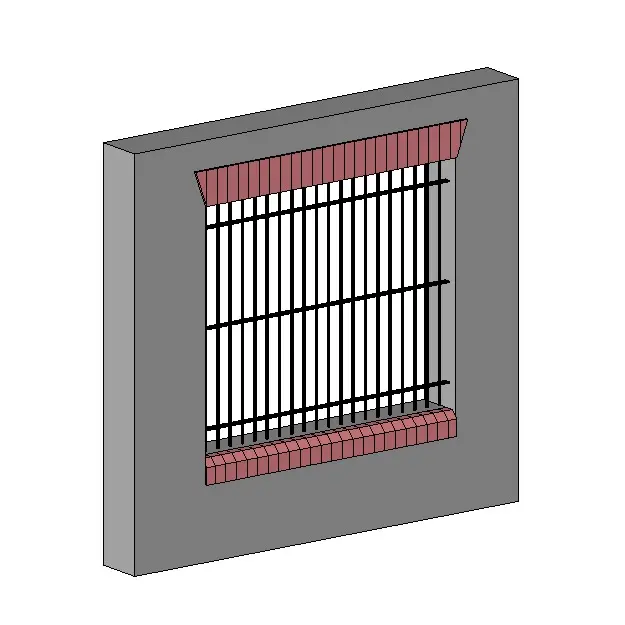

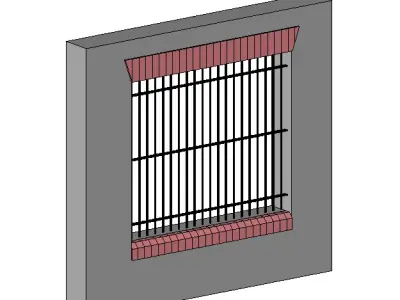

Grill Assembly 3D model

$10

License: Royalty Free

author:

renata

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «renata». CGhub does not claim copyright ownership over the content used.

Type Grill Assembly Always vertical True Assembly Code Baluster Diameter 15.0 Baluster Height 1450.0 Baluster Offset Bttm 25.0 Baluster Offset Sides 50.0 Baluster Offset Top 25.0 Cill and Lintol Offset 15.0 Cill Depth 150.0 Construction Type Cost Cut with Voids When Loaded False Default Head Height 2110.0 Description Grill Offset - External 75.0 Height 1500.0 Host 1 Keynote L10 Lintol Bearing Overhang 0.0 Lintol Depth 215.0 Manufacturer Revit Material - Grill Bars Metal - Cast Iron Material Cill/Lintol Masonry - Brick Soldier Course Model No of Balusters 20 No of Rails 3 OmniClass Number OmniClass Title Operation Rail Depth 40.0 Rail Offset - Bttm 150.0 Rail Offset - Top 150.0 Rail Thickness 8.0 Rough Height 1500.0 Rough Width 1770.0 Shared False Type Comments URL Wall Closure 0 Width 1770.0 Wrapping Layers from Ext 102.5
