Publication date: 2021-10-13

Gusset Plates 3D model

$2

License: royalty_free

author:

unyxium

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «unyxium». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description

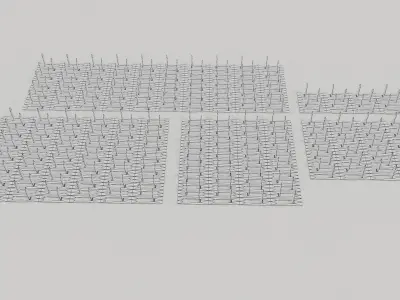

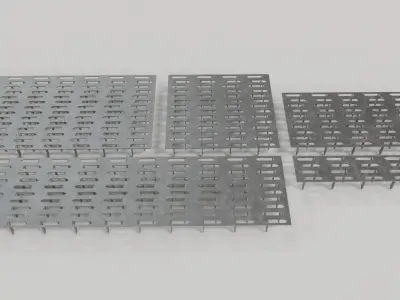

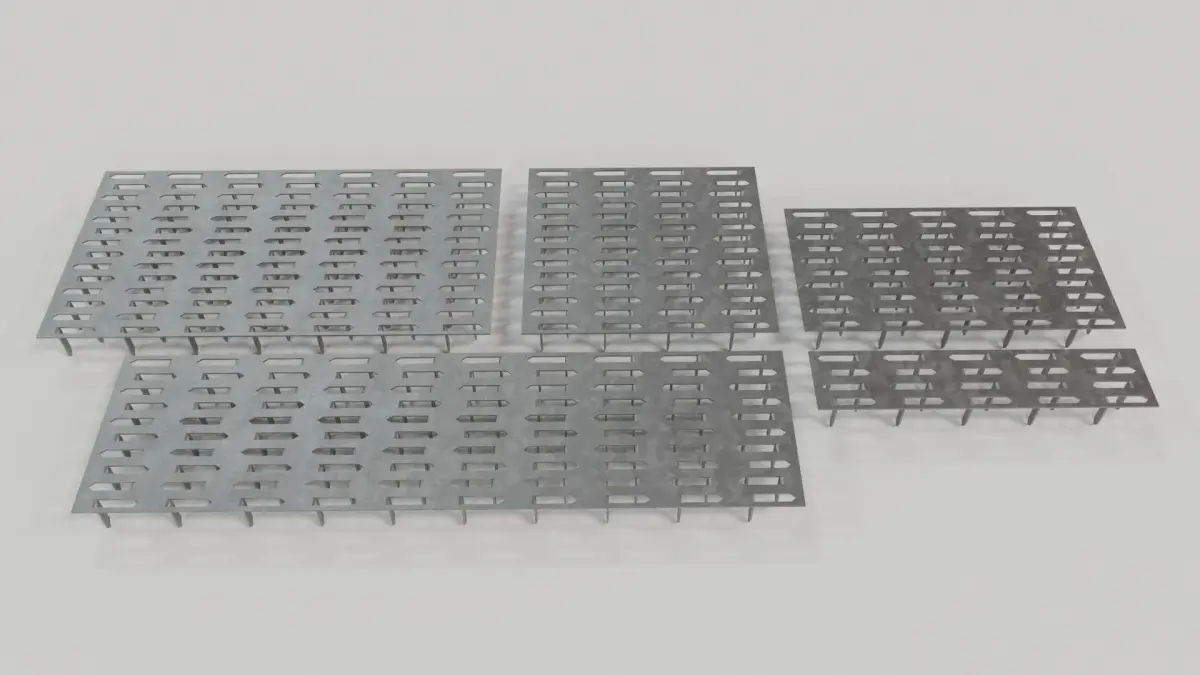

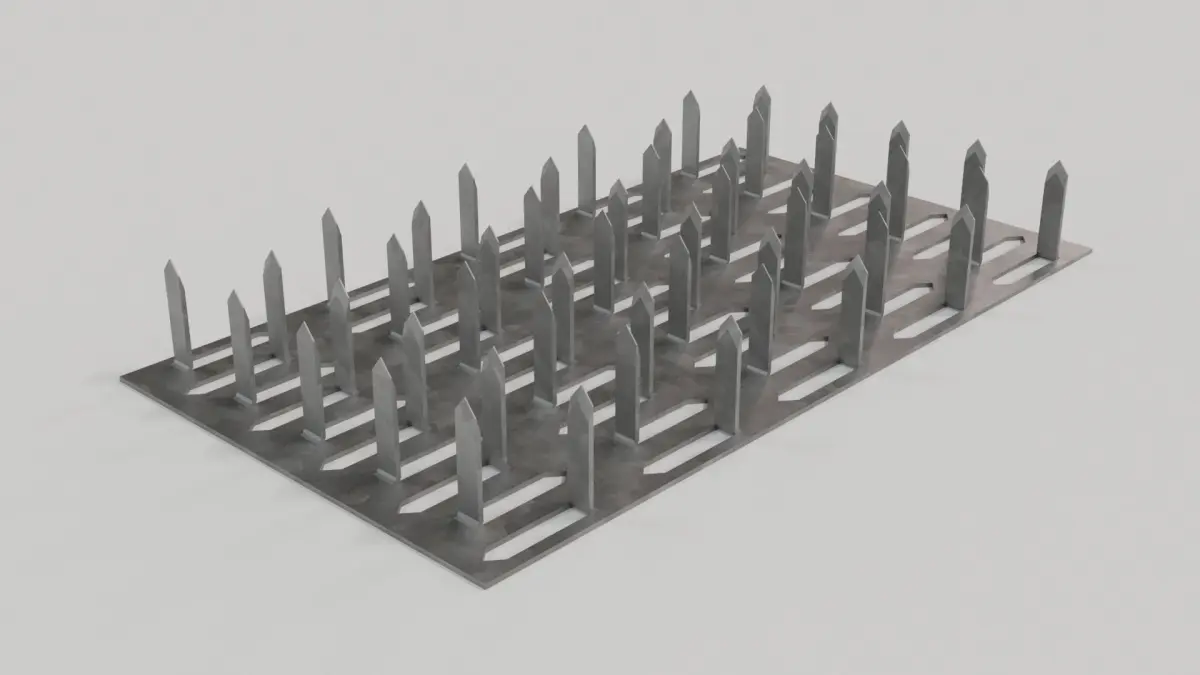

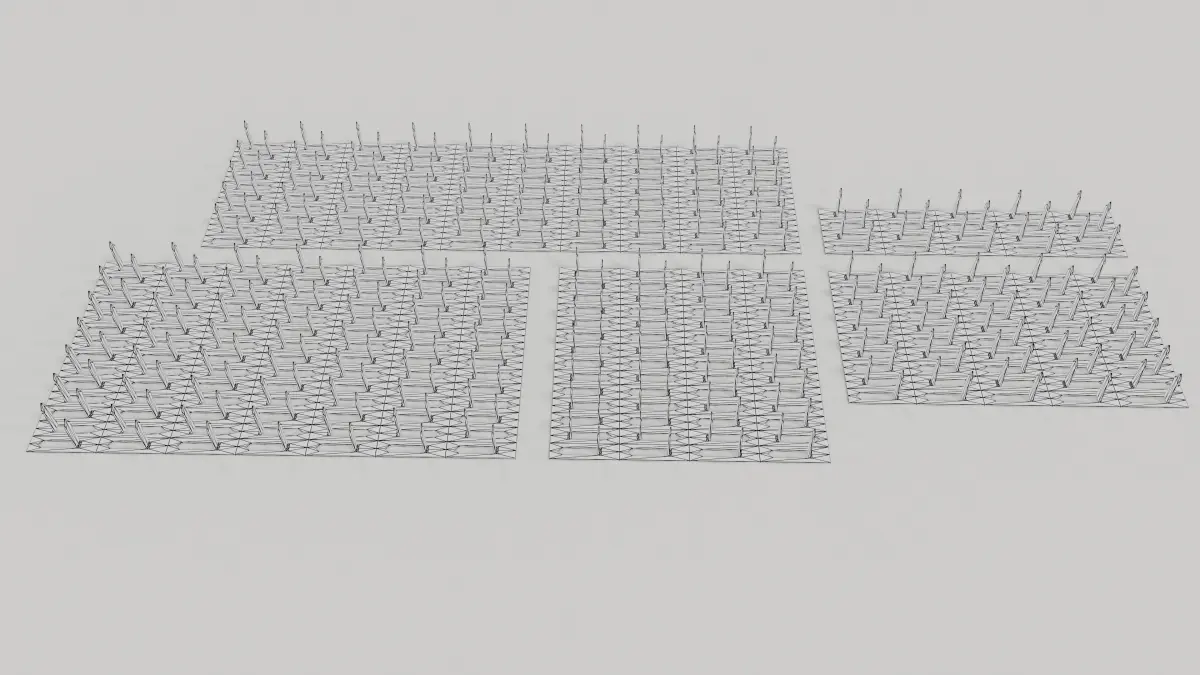

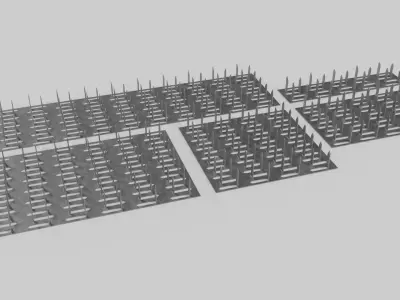

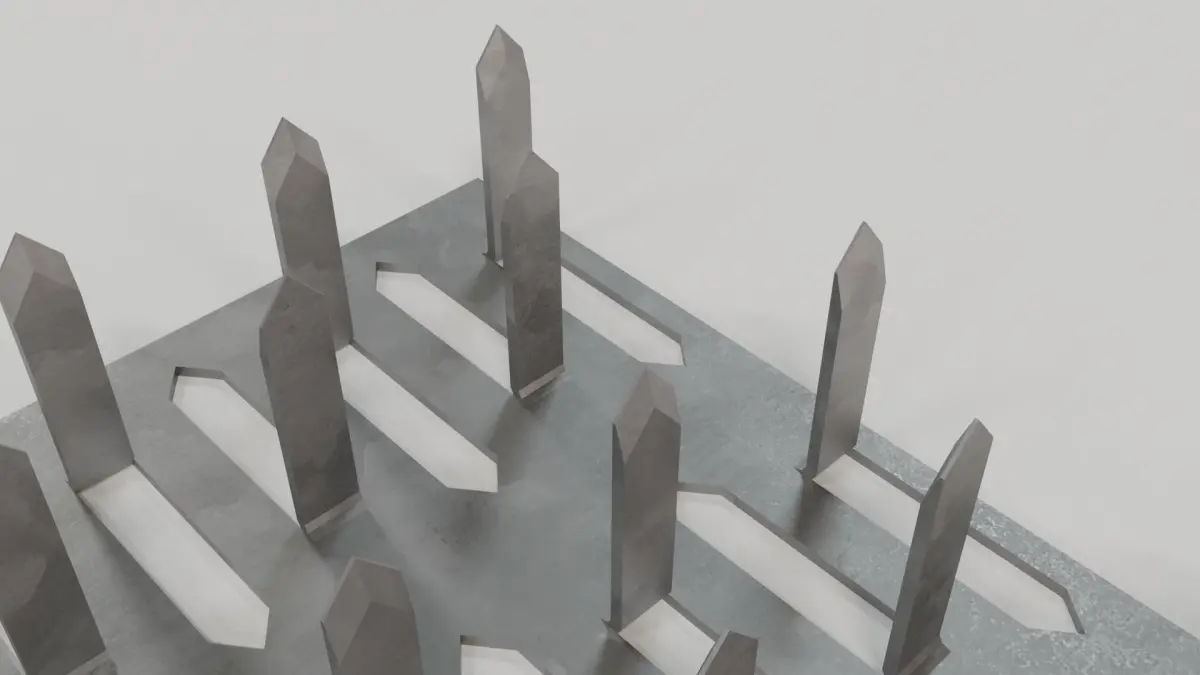

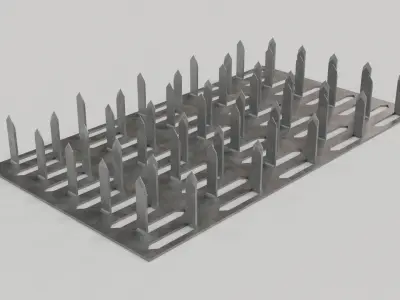

Gusset plates for timber framing. Also known as a gang nail plate. Used in wood trusses to connect members together.

  • 5 different sizes included, smallest is 154*34mm, two largest are 308*85 and 215*119.
  • Modelled to real-world scale, units used: metres.
  • Each type is a separate object with a separate mesh
  • PBR galvanized metal material included, 1024px resolution textures. Color, specular, roughness, and normal provided. jpg format.
  • Created in Blender. .blend file has textures packed (embedded in the file).

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 14600
  • Vertices: 13200
  • Geometry: Unknown

Tags

Nail Gusset Timber Wood Framing Metal Steel Truss Gang House Structural Hammer Architectural Engineering Wood house
