Download Gym equipment Pull-up bar and Dip construction Free 3D model

Name: Gym equipment Pull-up bar and Dip construction Free 3D model
Brand: mcluka
SKU: 450756
Availability: InStock

free

License: Editorial No Ai

author:

mcluka

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mcluka». CGhub does not claim copyright ownership over the content used.

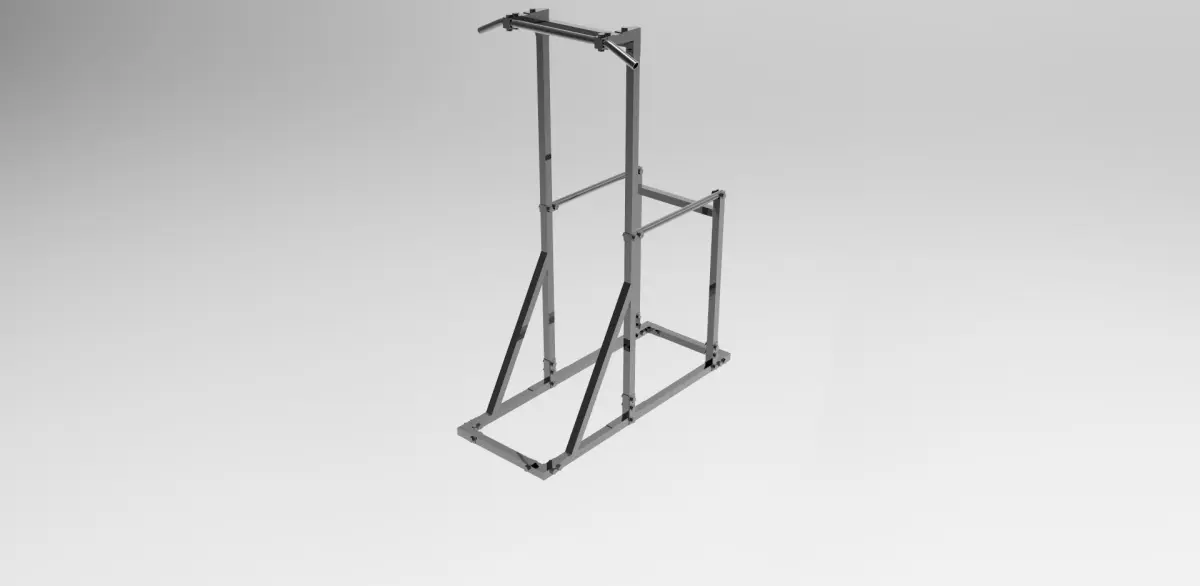

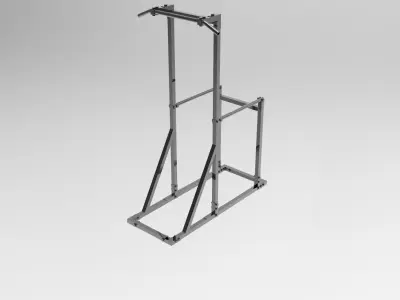

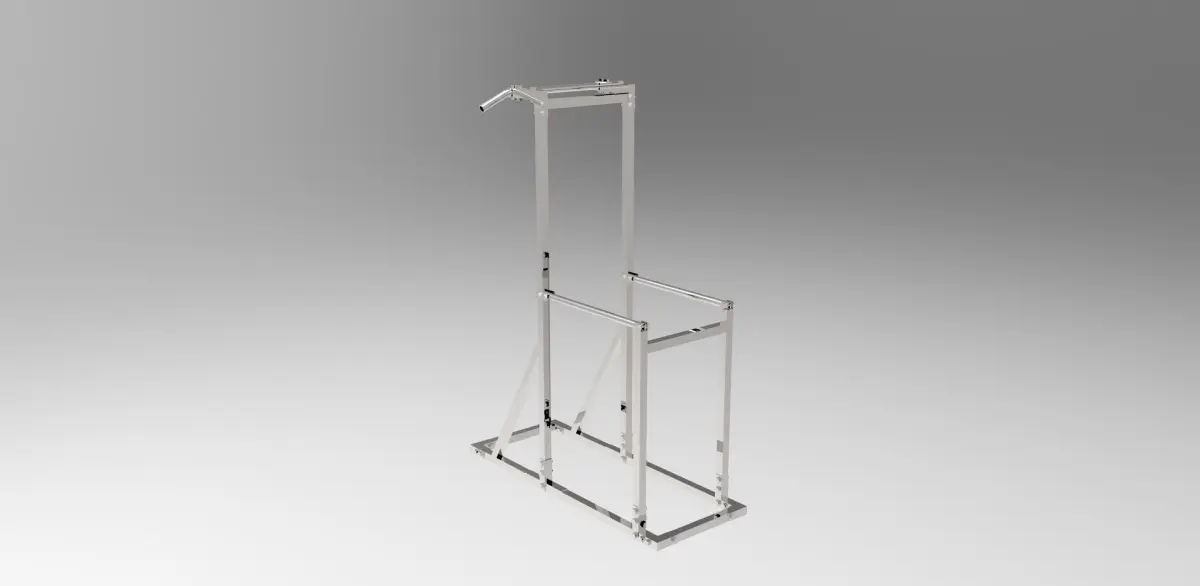

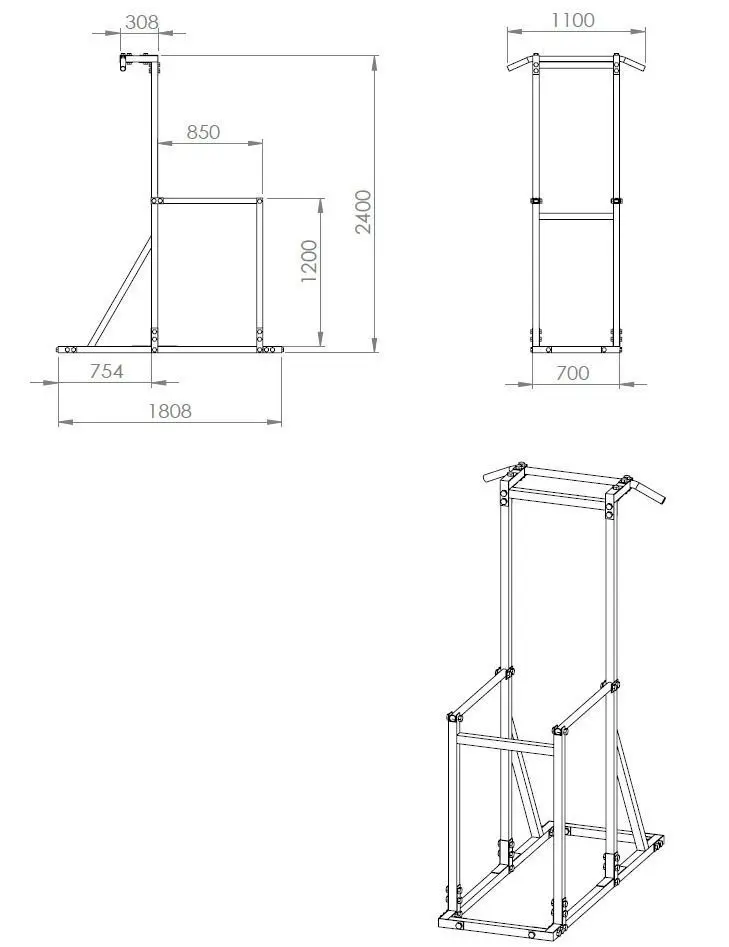

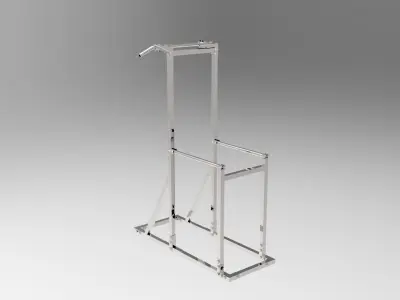

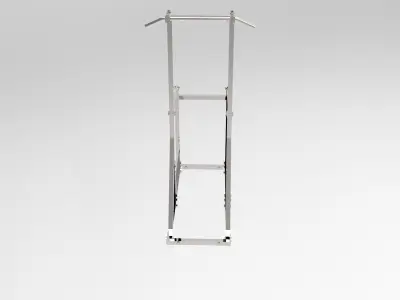

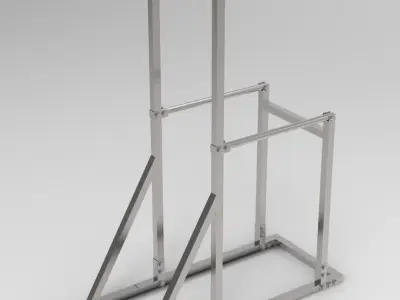

This is a simple design of a construction used for pull ups, dips and other abdominal exercises. Because I made this for personal use, most of the joints would be made with screws and not by welding. The main reason for this is because I don't thrust my welding completely but if you can weld good enough, you wouldn't need a single screw here. The total weight of the construction would be around 115kg, the profile I have used for this is 50x50 with a 4mm thickness.

Feedback is welcome!

Regards
