HAND OPERATED TUMBLER MIXER 3D CAD MODEL 3D model

$10

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

yashar20

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «yashar20». CGhub does not claim copyright ownership over the content used.

Input: Pink Shaft

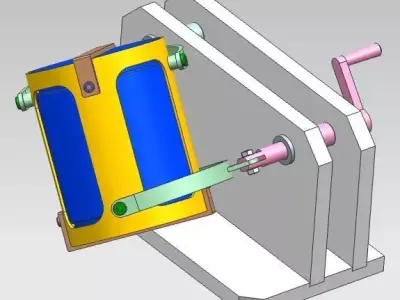

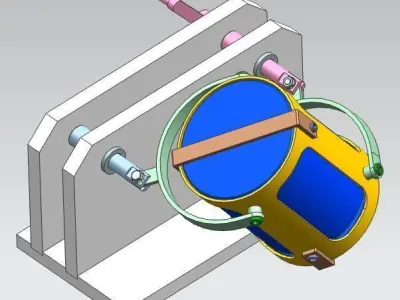

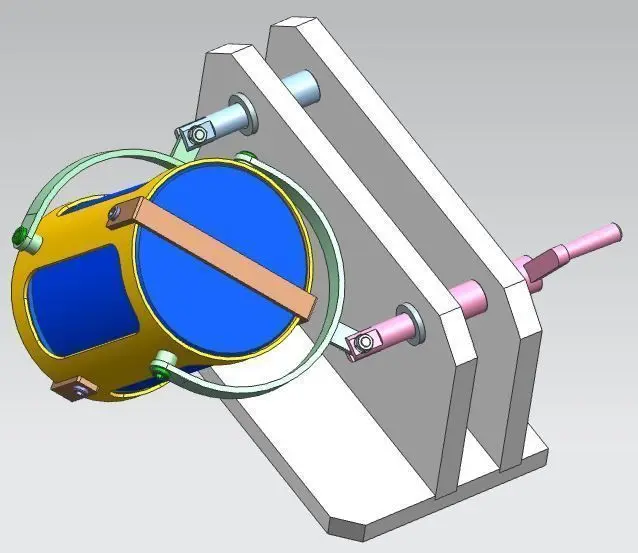

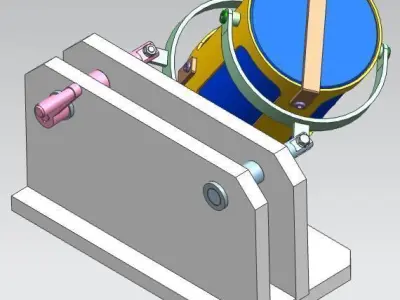

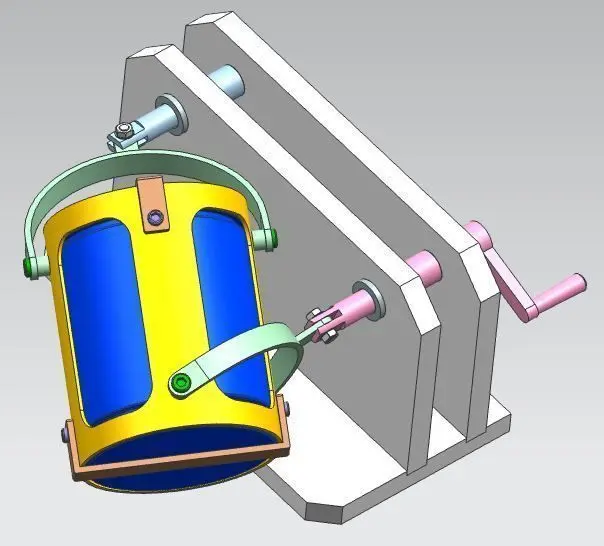

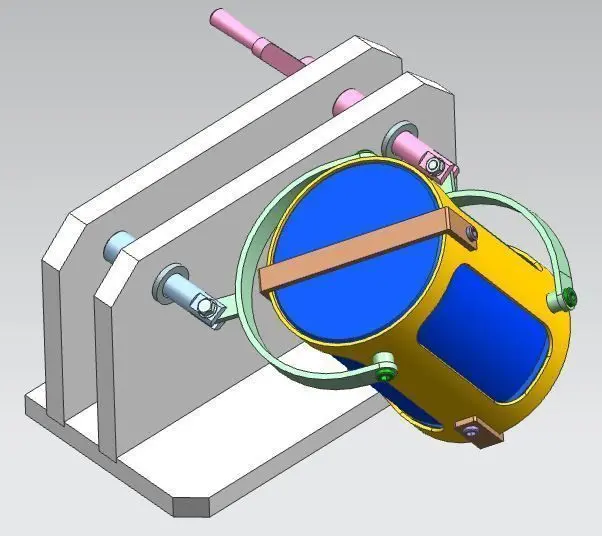

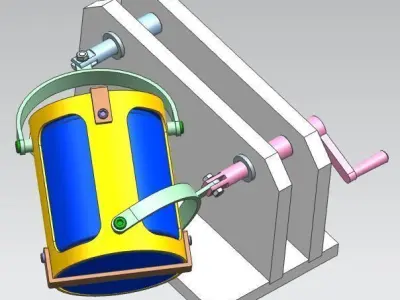

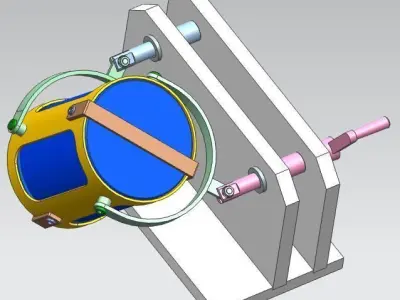

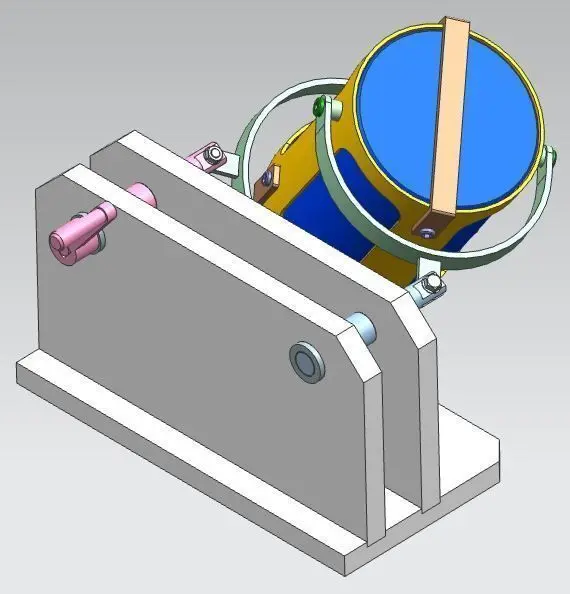

This is an application of the Schatz linkage which consists of 5 movable links. Center distance of revolute joints of two green grippers and the yellow cage are equal (= a). Center distance between pink and blue shafts = a*sqrt(3) = 1.732aThe materials to be mixed are in the blue container with 3D complex motion.

See a real machine:https://www.youtube.com/watch?v=wDnzgJTs5Ikhttps://www.youtube.com/watch?v=iXAlw7MjAfI
