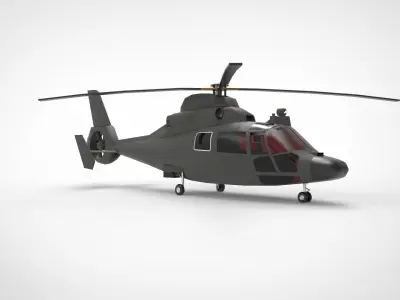

Harbin Z 9 Helicopter 3D model

$10

License: royalty_free

author:

Iskhafel

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Iskhafel». CGhub does not claim copyright ownership over the content used.

The first Z-9 flew in 1981, and was built in China from components supplied by Aérospatiale as part of a production patent bought on 15 October 1980.[2] On 16 January 1992, the indigenous variant Z-9B, constructed with 70% Chinese-made parts, flew successfully. The flight test was completed in November 1992 and the design was finalized a month later. Z-9B production began in 1993 and entered PLA service in 1994.[3]

The Z-9B features an 11-blade Fenestron faired-in tail rotor with wider-chord, all-composite blades replacing the 13-blade used in the original AS365N. As a light tactical troop transport, the Z-9 has the capacity to transport 10 fully armed soldiers. Generally the Z-9 is identical to the AS365N Dauphin, though later variants of the Z-9 incorporate more composite materials to increase structural strength and lower radar signature.

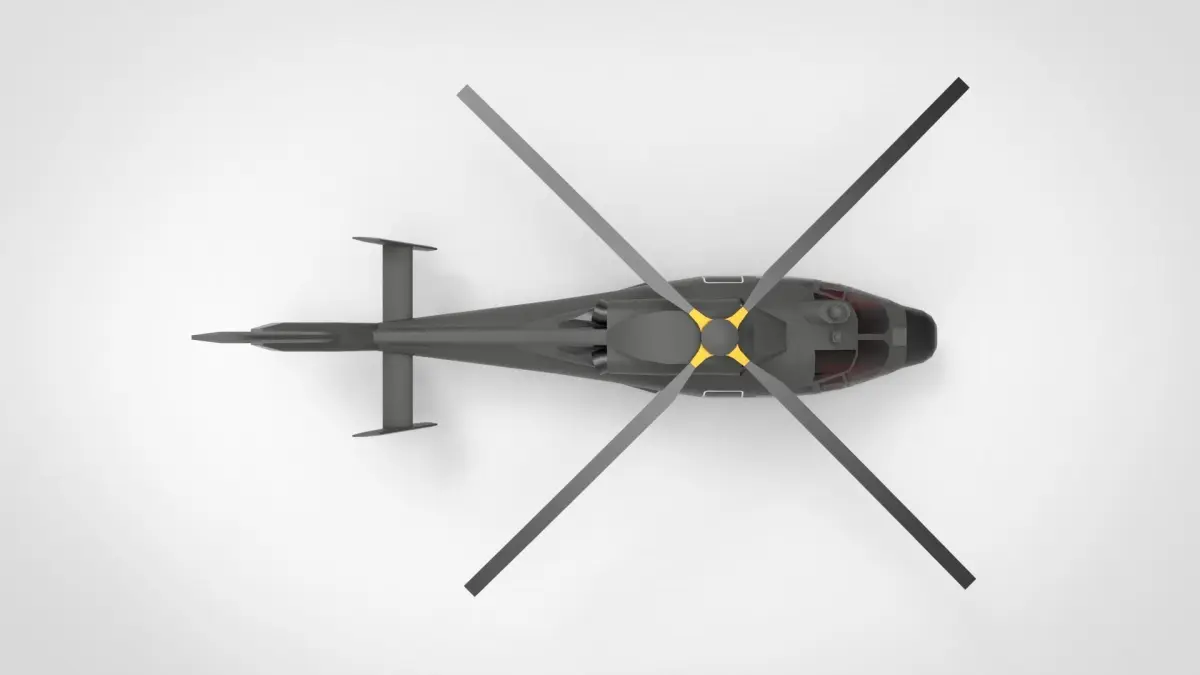

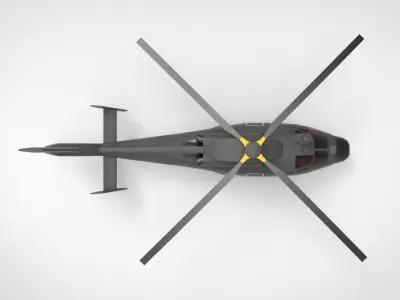

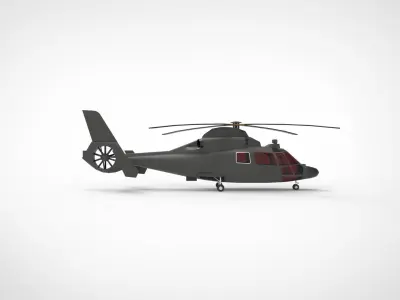

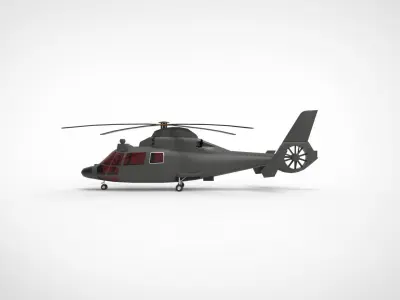

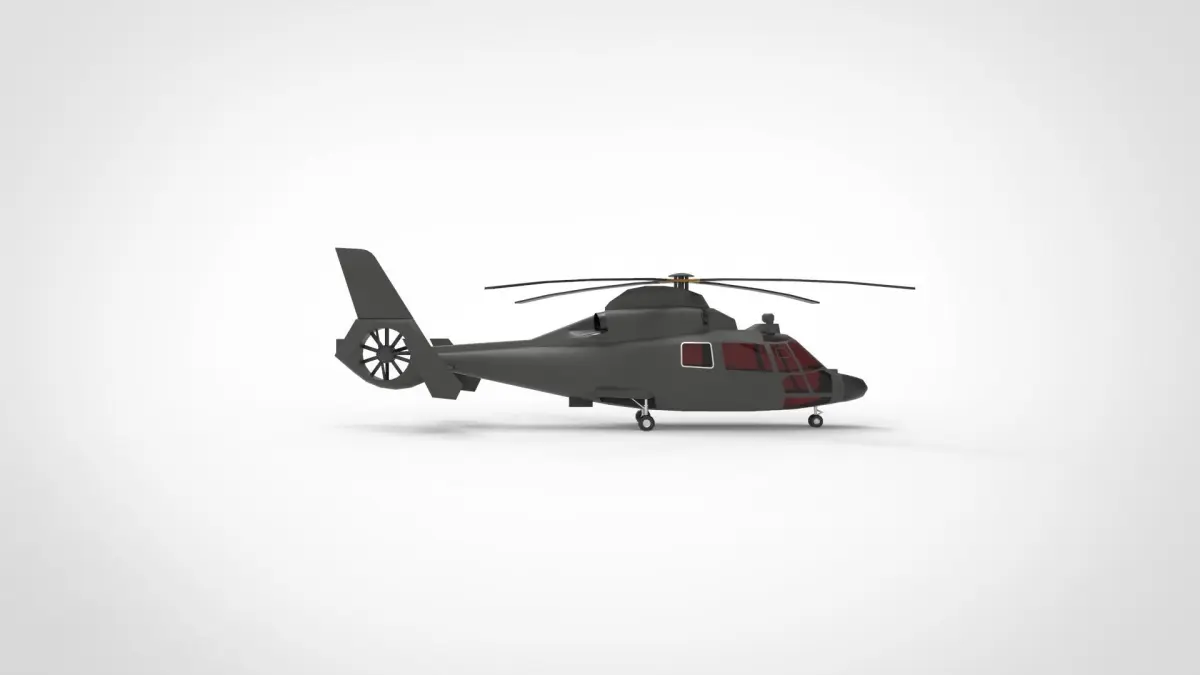

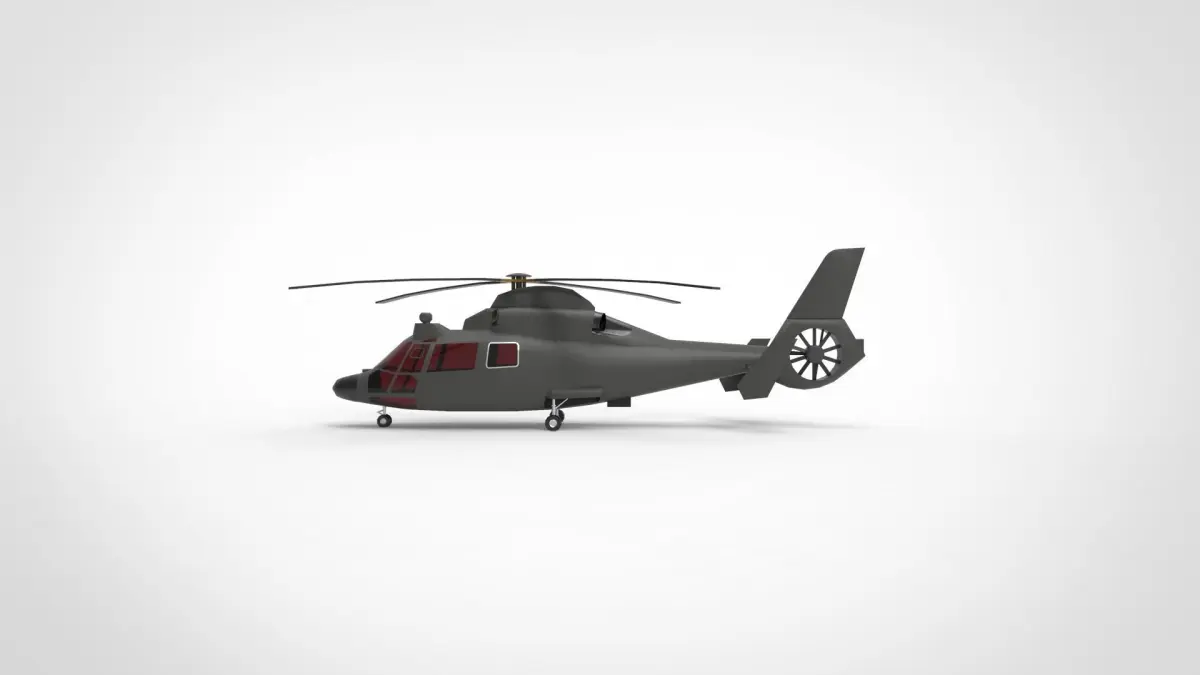

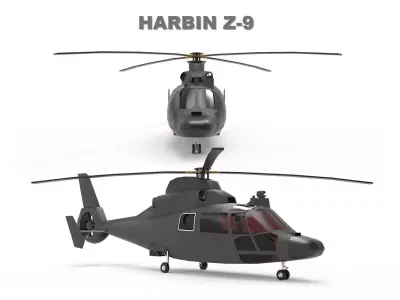

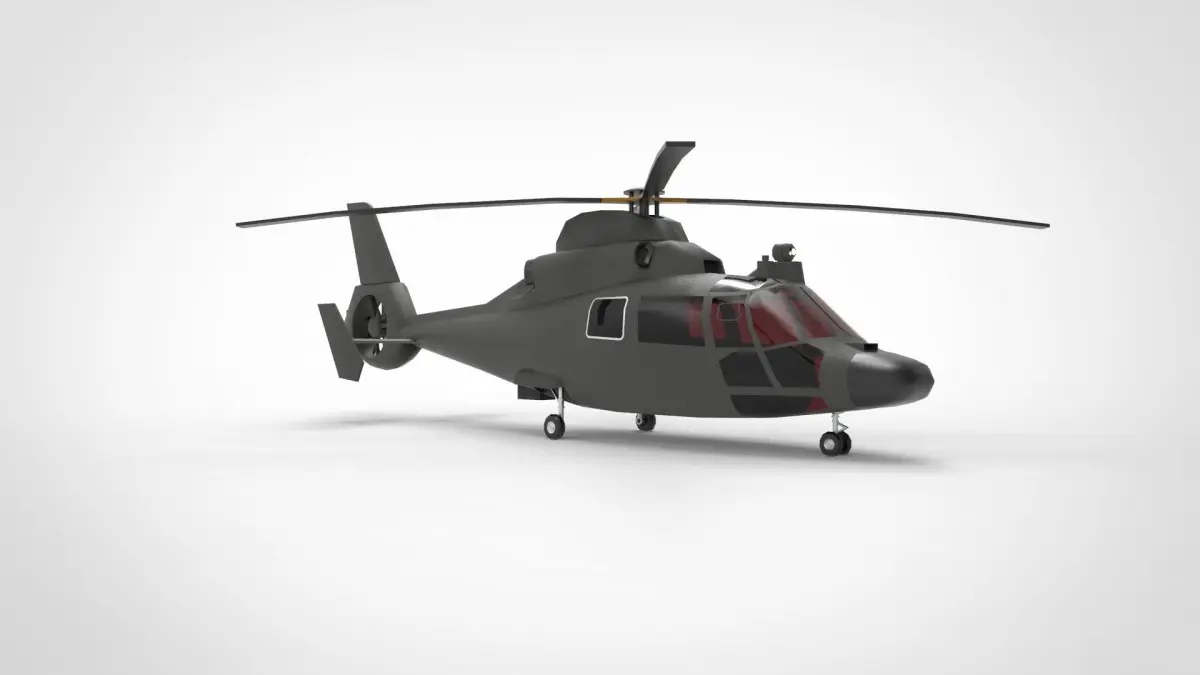

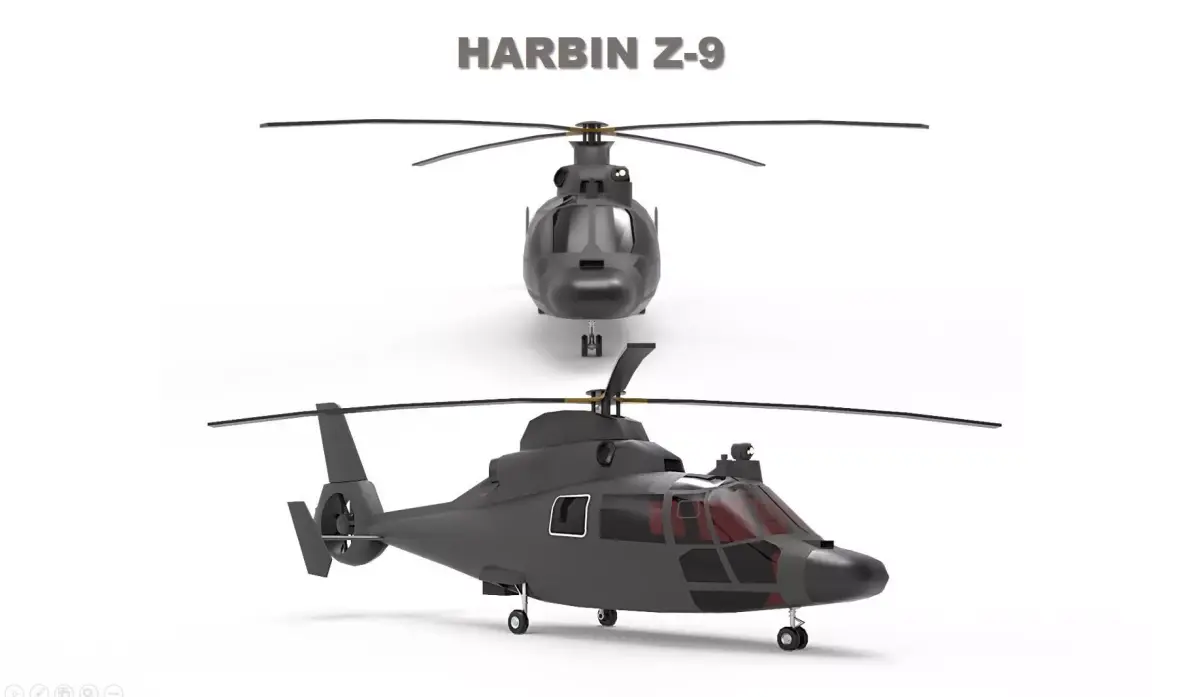

The helicopter has a four-blade main rotor, with two turboshaft engines mounted side by side on top of the cabin with engine layout identical to the AS365N. The Z-9 teardrop-shaped body features a tapered boom to the tail fin, with rounded nose and stepped-up cockpit, retractable gear, and all flat bottom.

In 2002, Harbin obtained Chinese certification for the new H410A variant of the Z-9, which features more powerful Turbomeca Arriel 2C turboshaft engines; Eurocopter issued official objections to Harbin's decision to continue production in spite of the license-production agreement having expired, leading to a period of highly sensitive international negotiations to resolve the dispute
