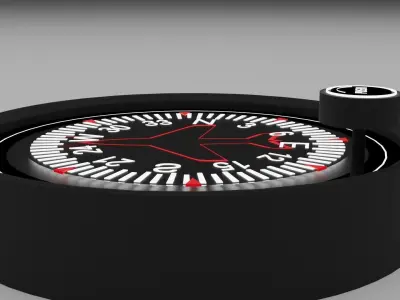

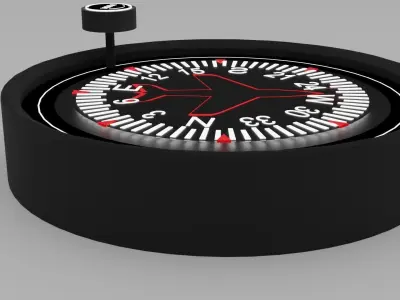

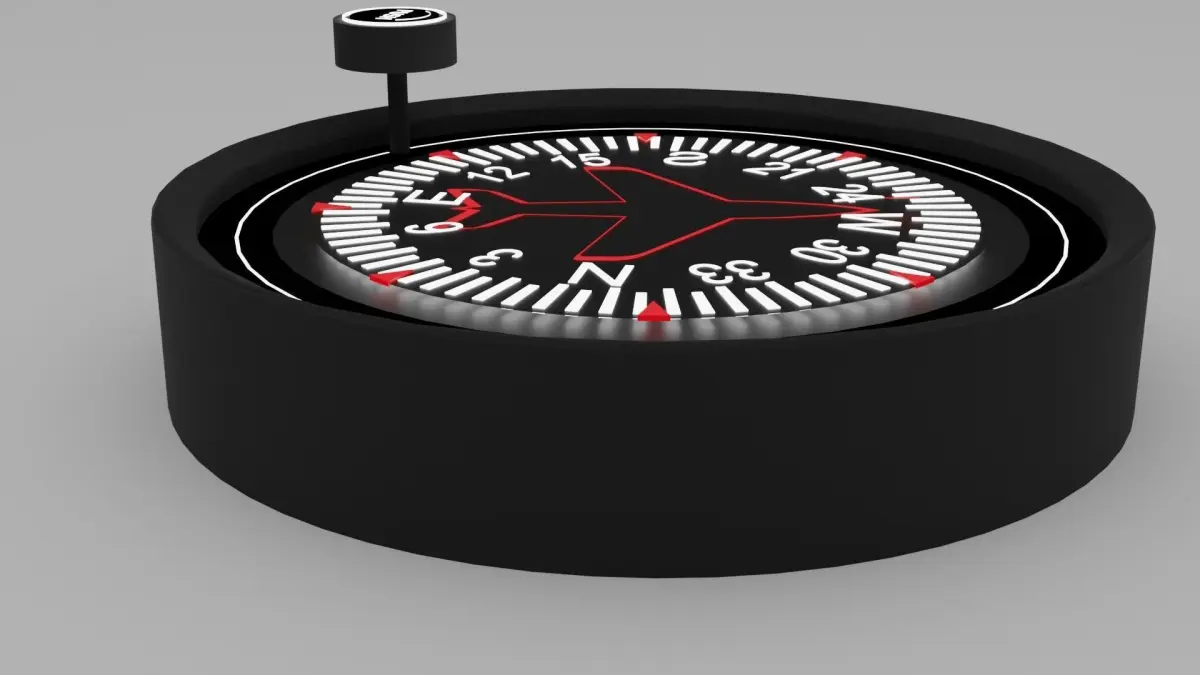

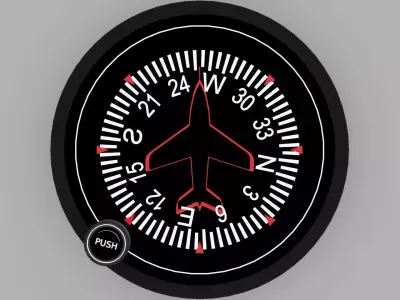

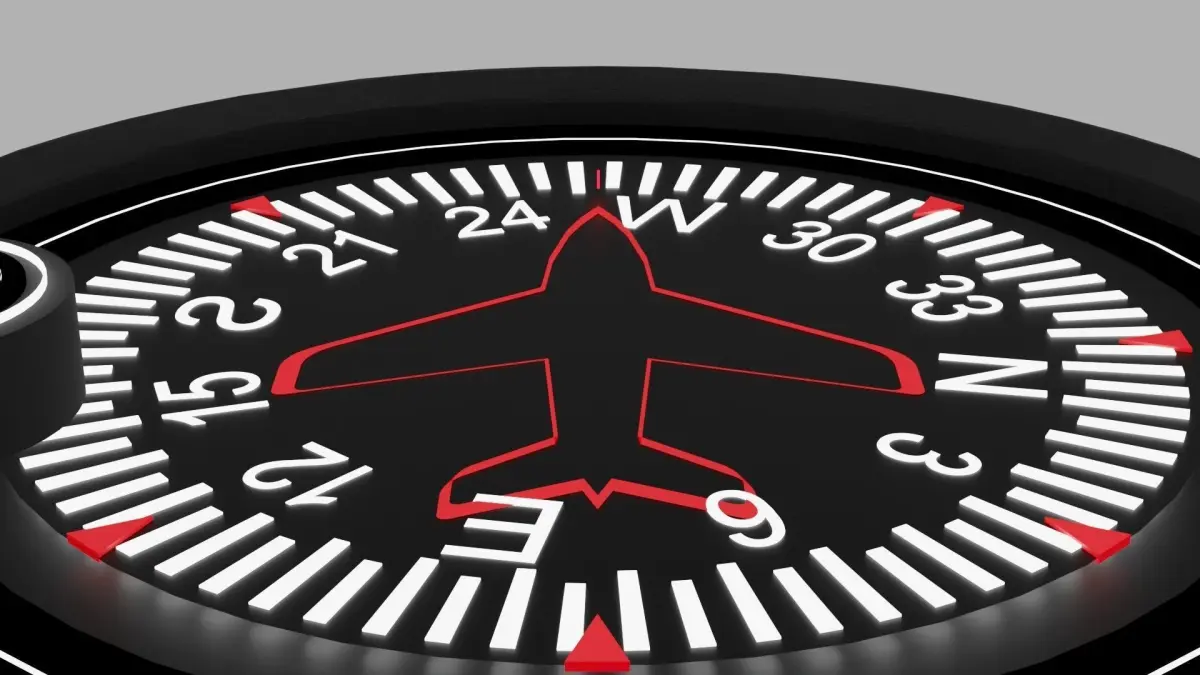

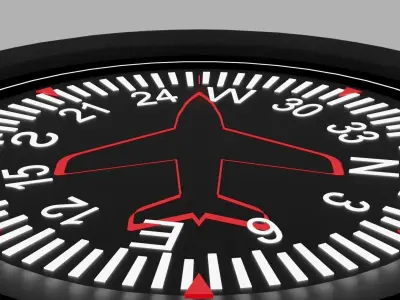

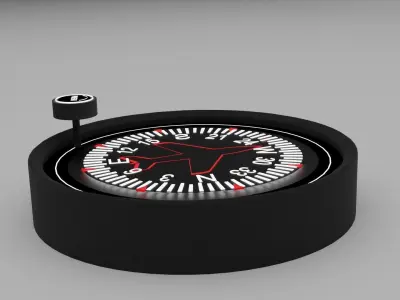

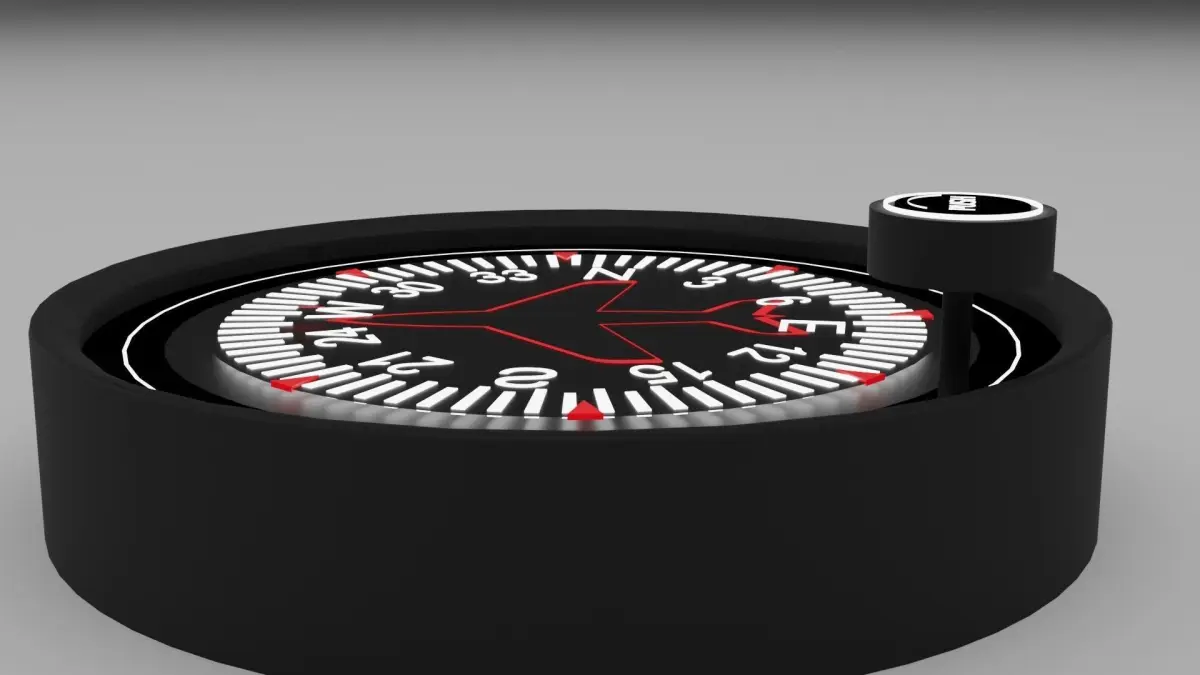

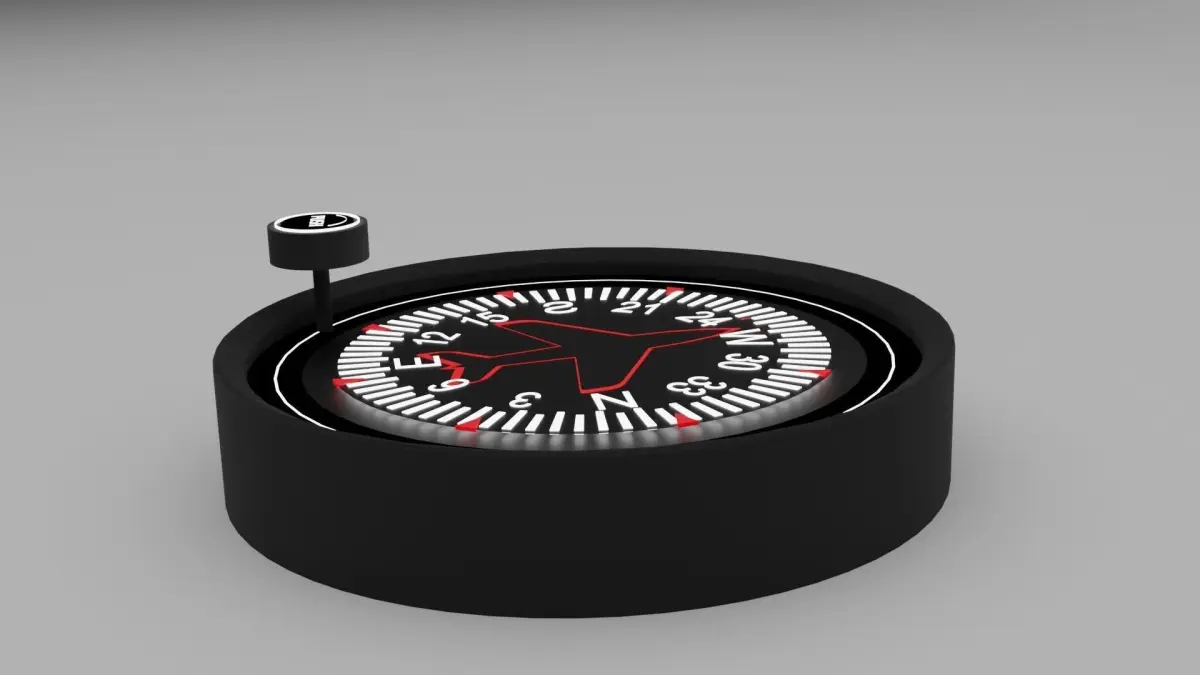

Heading indicator 3D model

License: royalty_free

author:

azizzzzz

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «azizzzzz». CGhub does not claim copyright ownership over the content used.

The heading indicator (HI), also known as a directional gyro (DG) or direction indicator (DI), is a flight instrument used in an aircraft to inform the pilot of the aircraft's heading.The primary means of establishing the heading in most small aircraft is the magnetic compass, which, however, suffers from several types of errors, including that created by the dip or downward slope of the Earth's magnetic field. Dip error causes the magnetic compass to read incorrectly whenever the aircraft is in a bank, or during acceleration or deceleration, making it difficult to use in any flight condition other than unaccelerated, perfectly straight and level. To remedy this, the pilot will typically maneuver the airplane with reference to the heading indicator, as the gyroscopic heading indicator is unaffected by dip and acceleration errors. The pilot will periodically reset the heading indicator to the heading shown on the magnetic compass.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: {"subdivisionReady":"Subdivision ready","polygonMesh":"Polygon mesh","nurbs":"Nurbs","other":"Other"}
Polygons: Unknown
Vertices: 6181
