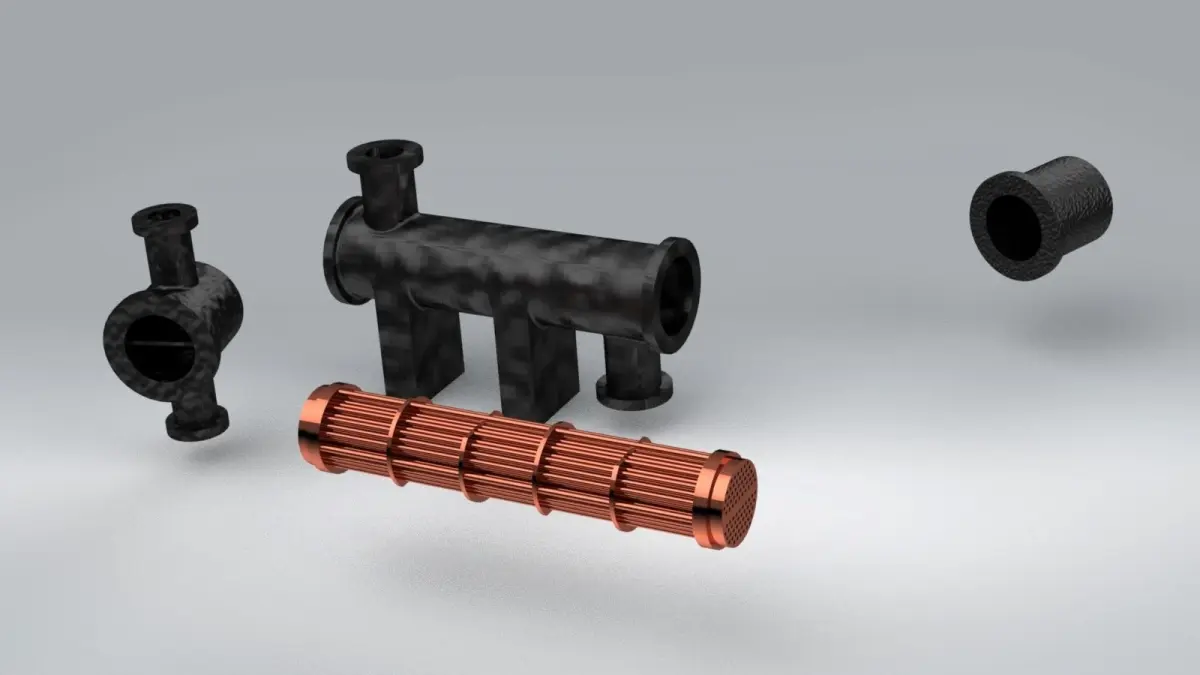

Please read the description before purchasing the modelA simple model of Heat exchanger consists of:

  • 1 main part (shell)
  • 1 tube holder (2 stationary tube sheets, 4 rods)

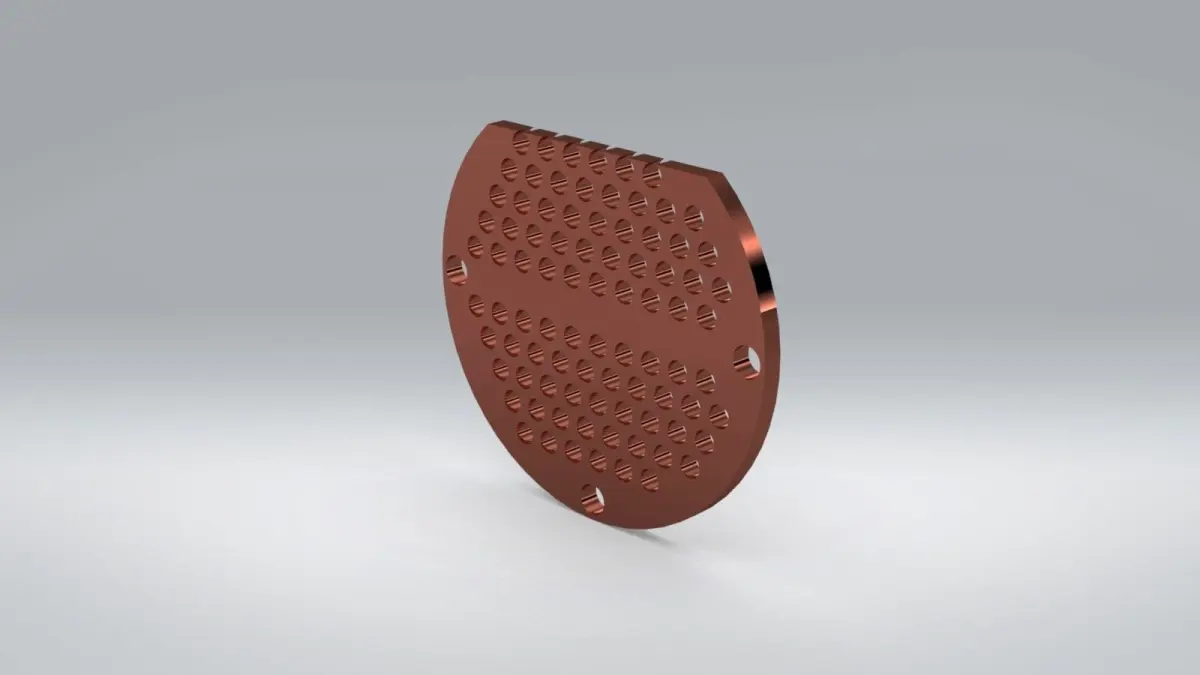

  • 4 baffles
  • 86 tubes

.....the tubes, baffles and its holder are made up of copper due to its high heat conducivity.the rest of the parts are made up of cast iron.this model can be used for education and industrial purposes.the dimensions of model can easily edited by eqaution tree item from the feature tree at .solidpart extention file of the assembly..........File format:

  1. Assembly as .SLDPRT extention
  2. Assembly as .3MF extention (Exploded and collapsed)
  3. Assembly as WRL extenstion (Exploded and collapsed)
  4. Assembly as OBJ extenstion (Exploded and collapsed)
  5. Assembly as .STL extention
  6. Assembly as .SLDASM extention
  7. Each part is in .SLDPRT extention and .STL extention
