Heavy-Duty Pipeline Expansion Bellows 3D model
Home Catalog Heavy-Duty Pipeline Expansion Bellows 3D model
Heavy-Duty Pipeline Expansion Bellows 3D model
Heavy-Duty Pipeline Expansion Bellows 3D model
Heavy-Duty Pipeline Expansion Bellows 3D model
Heavy-Duty Pipeline Expansion Bellows 3D model
Heavy-Duty Pipeline Expansion Bellows 3D model

Publication date: 2025-12-20

Buy Heavy-Duty Pipeline Expansion Bellows 3D model

$5

License: Royalty Free

author:

arslanarif

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «arslanarif». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description
  • Formats

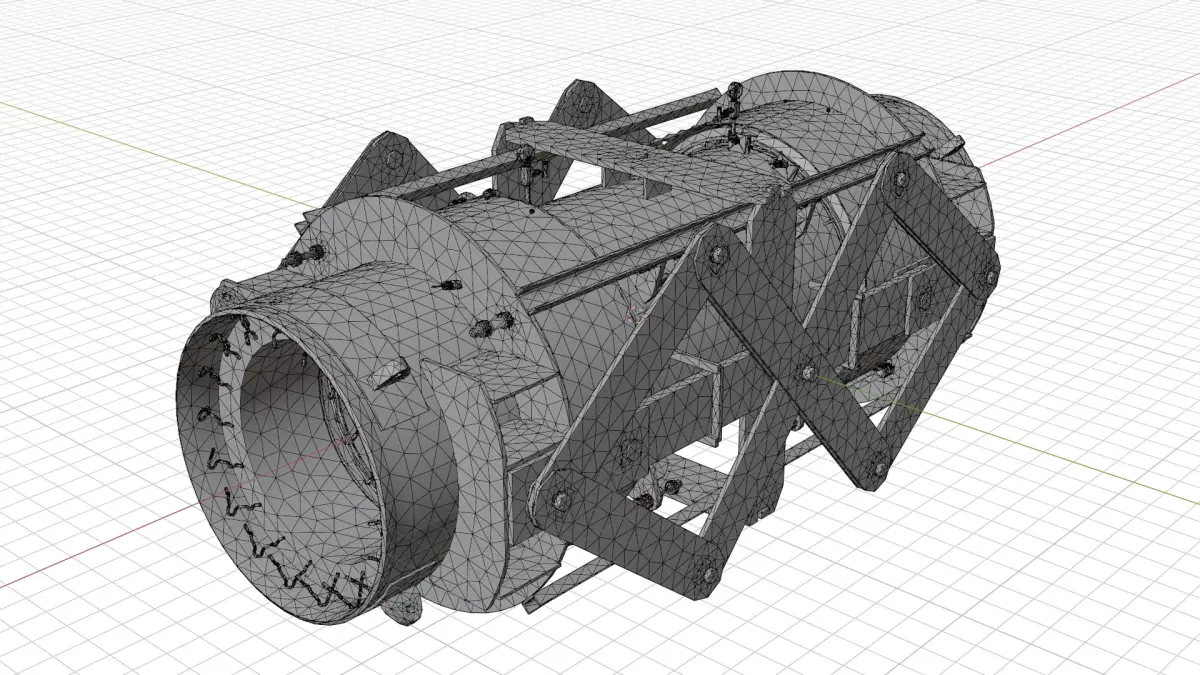

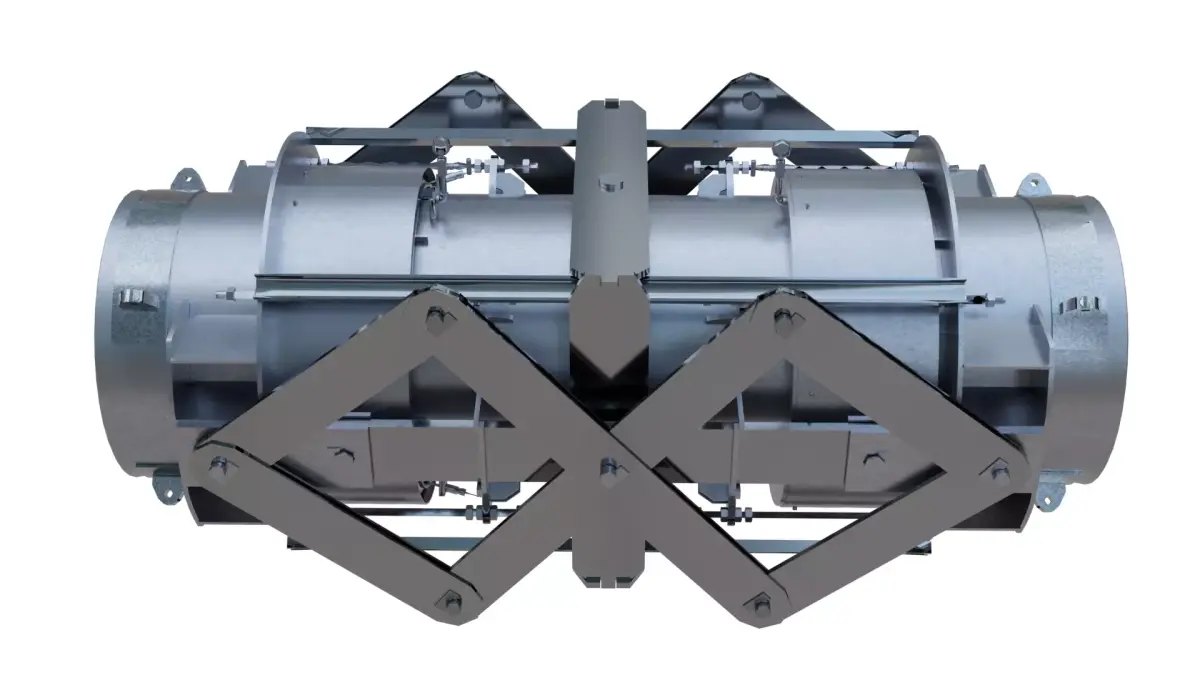

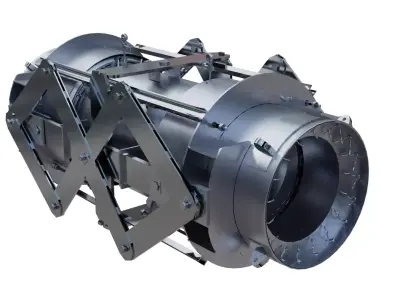

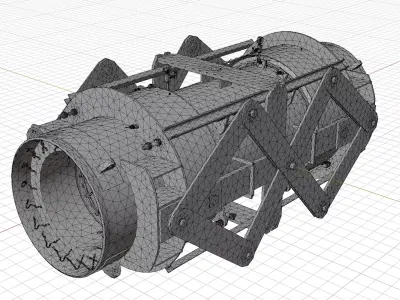

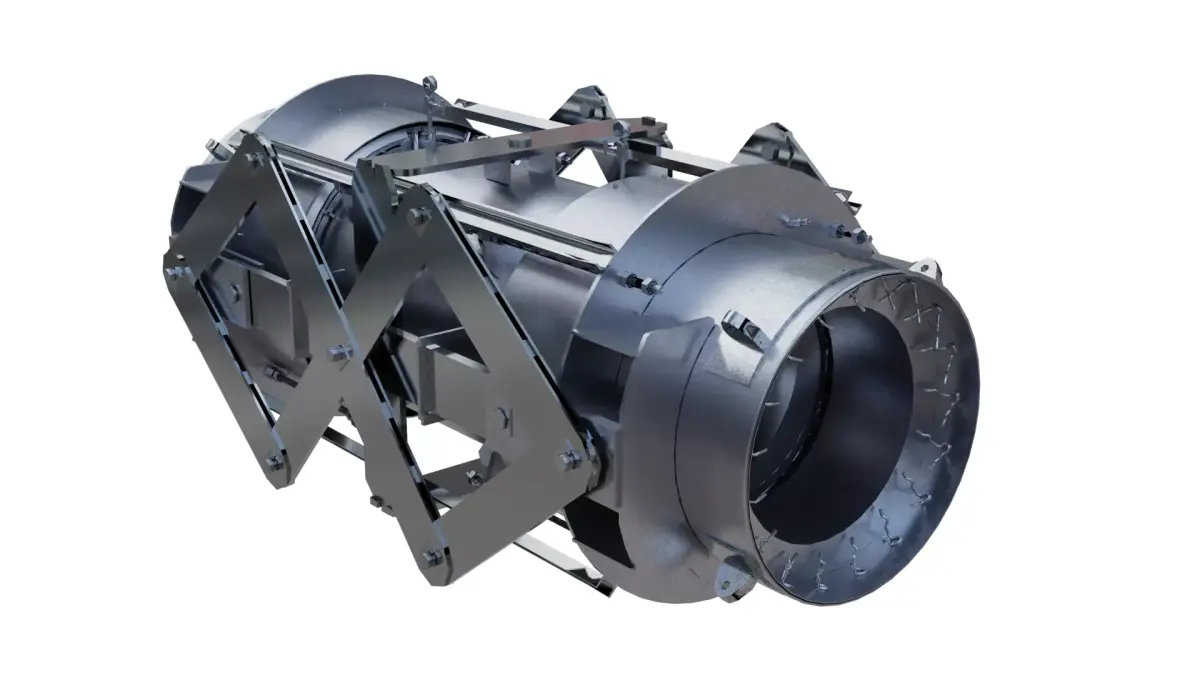

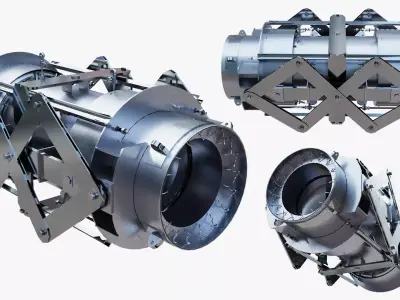

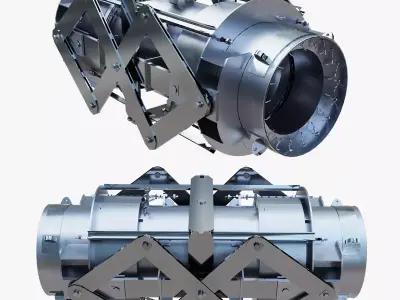

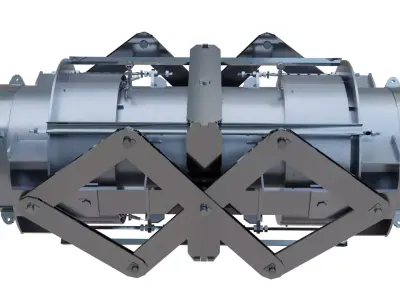

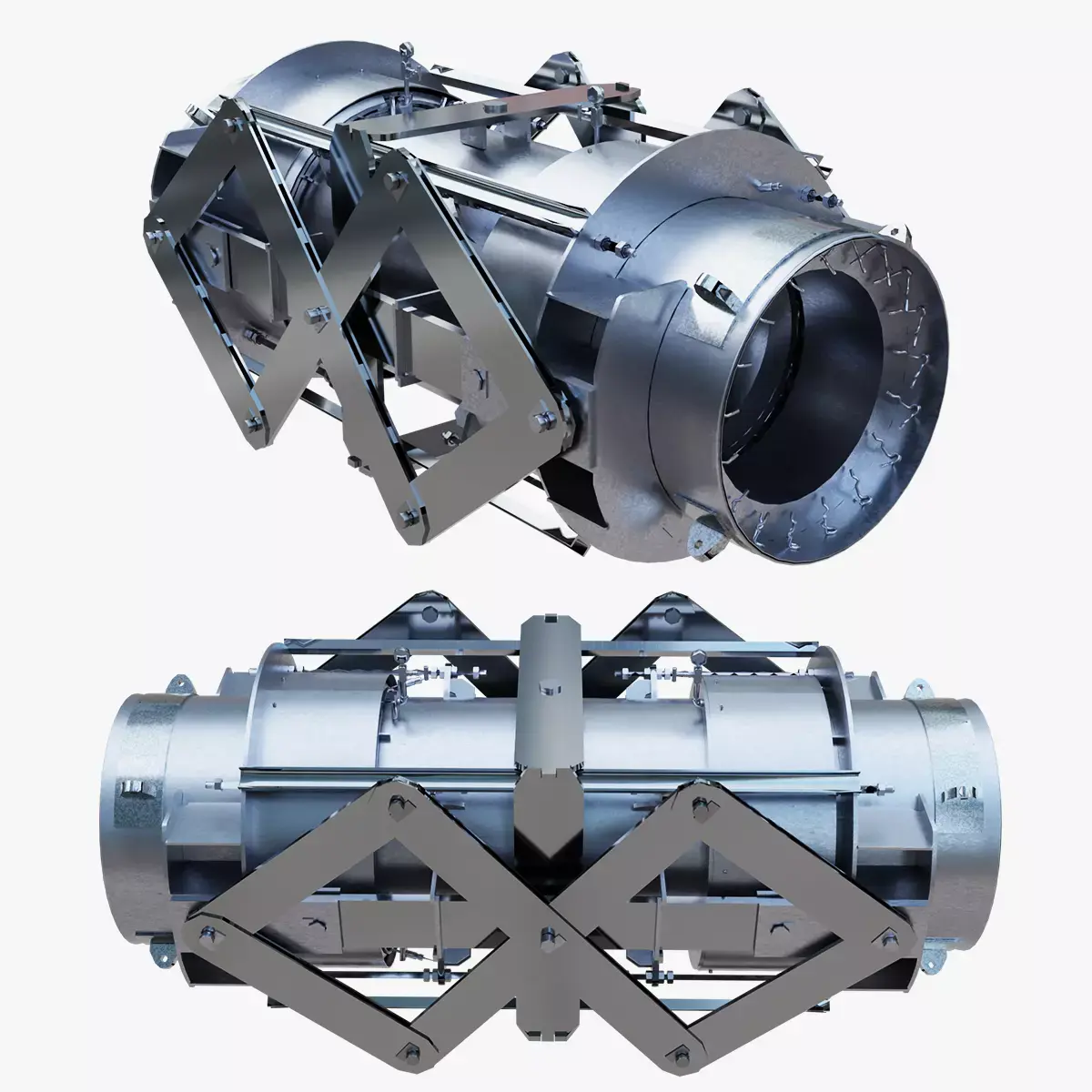

Heavy-Duty Expansion Bellows for Oil & Gas – Pipeline Integrity 3D Model

This project features a expansion joint equipped with six restraints, specifically engineered for oil and gas pipeline applications. Throughout the design process, both mechanical integrity and buoyancy principles have been carefully applied to ensure reliability and performance.

Product Specifications

  • Dimensions: Diameter = 12.5 m, Length = 35 m
  • Polygon Count: 302,897
  • Vertices: 152,545
  • Units: Meters
  • Software Used: SolidWorks 2021 & Blender 5.0
  • Available Formats: .glb / .stp / .stl / .blend / .obj/ .FBX

For any inquiries or support, feel free to reach out.Thank you for choosing this 3D model.

#expansionbellow #pipeline #oilandgas

BLEND (Blender, filesize: 43.3 MB), OBJ (OBJ, filesize: 26.1 MB), FBX (Autodesk FBX, filesize: 9.03 MB), GLTF (glTF, filesize: 24.1 MB), PLY (Ply, filesize: 9.22 MB), STL (Stereolithography, filesize: 14.4 MB), SLDPRT (SolidWorks, filesize: 7.66 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 302897
  • Vertices: 152545
  • Plugins used
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Bellows Expansion Pipeline Industrial Heavy Duty Pipe Joint Metal Stainless Design Fitting Flexible Pressurized High Temperature Part Industrial part
