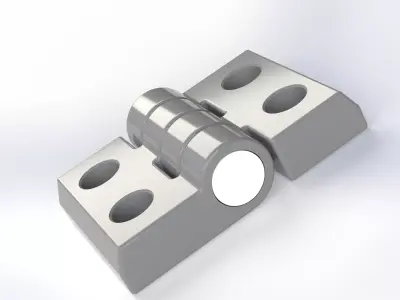

Heavy Duty Plastic Hinge
Introducing the Heavy-Duty All-Plastic Hinge, a robust, fully functional hinge designed for real-life applications. Unlike traditional hinges that require metal pins, this hinge is engineered with an integrated pin and clip mechanism that snaps securely in place, making it 100% plastic and extremely reliable.
Designed for strength, the hinge can handle high-weight applications — including heavy doors, access covers, and even armored doors — while maintaining smooth motion with a 270° rotation range.
Key Features:
- All-Plastic, Pin-Free Design — Includes two hinge halves, a central pin, and a snap clip. No metal parts required.
- High Load Capacity — Engineered for heavy doors, lids, and covers, including high-duty and armored applications.
- Wide Rotation — Allows rotation beyond 270°, offering maximum flexibility in installation.
- Optimized for Manufacturing — Works for both 3D printing (FDM, SLA, SLS, etc.) and injection molding.
- Compact Dimensions — Overall size: 70 × 50 × 20.5 mm, suitable for a wide variety of projects.
- Easy Printing — Prints flat on the bed, with strong hinge geometry designed for durability under repeated use.
- Complete File Package — Includes native SolidWorks files (SLDPRT, SLDASM), STL (high & low poly), AMF, IGS, PLY, SAT, X_T, WRL, GLTF, GLB, Pack & Go, and more.

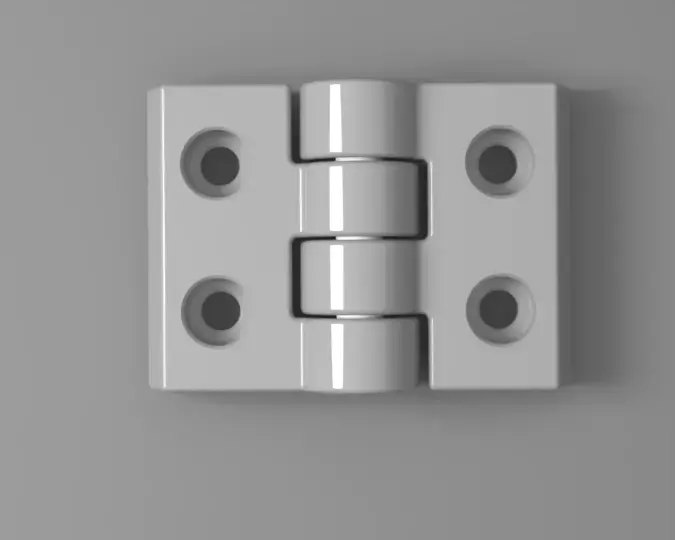

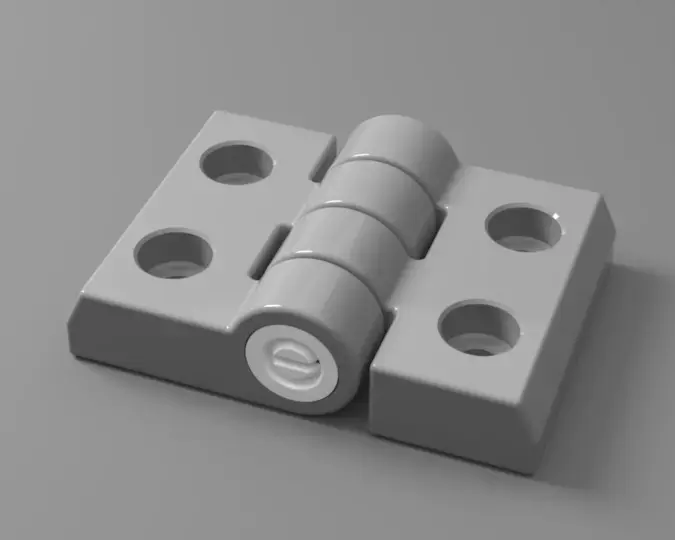

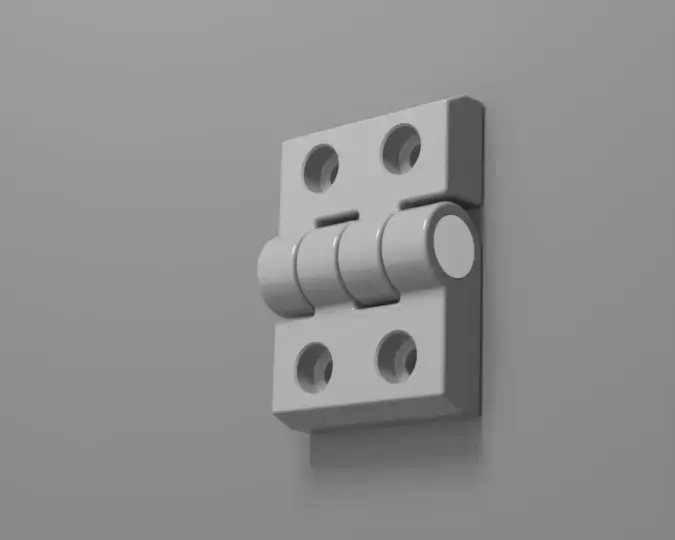

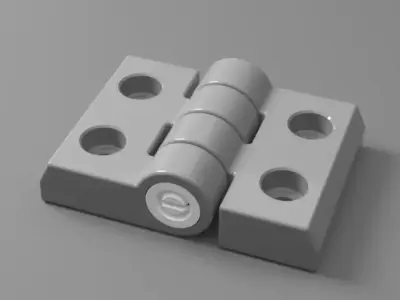

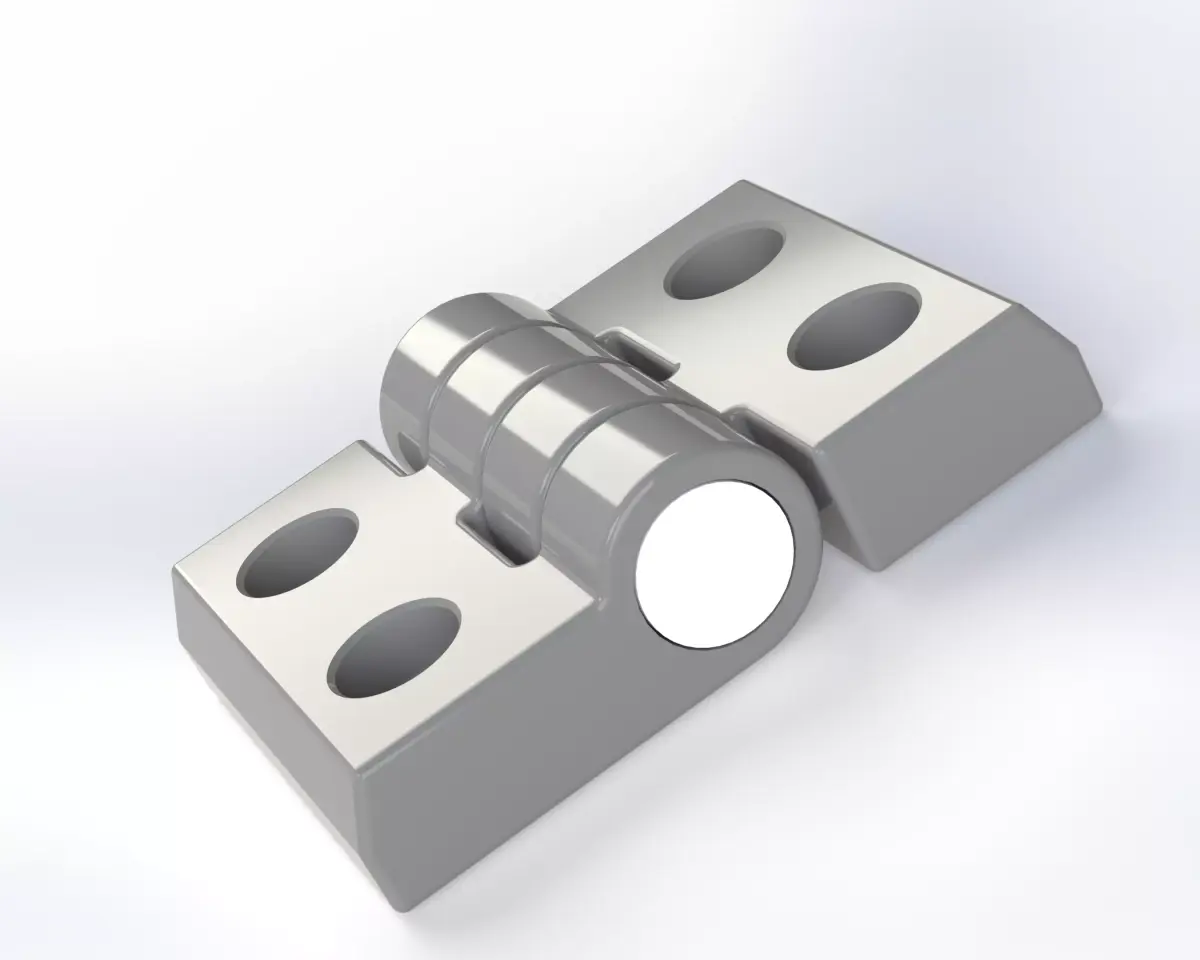

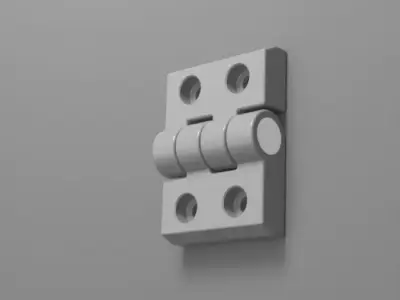

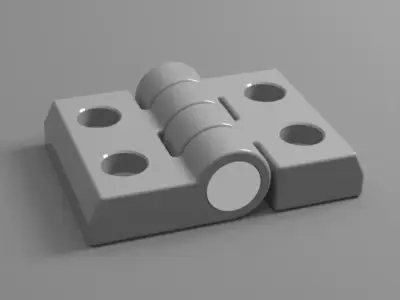

- Professional Renders Provided — Includes 8 preview renders (solid body, wireframe, meshed bodies, exploded view).
- Royalty-Free License — Use in commercial or personal projects with full modification rights.
Applications:
- Heavy-duty doors (including security and armored doors)
- Enclosures and access covers
- Industrial machinery housings
- Cabinets, furniture, hobby projects
- Prototype and end-use assemblies
What You Get:
- Full hinge assembly (hinge halves + clip + pin)
- Editable CAD source files
- 3D-print ready meshes in high and low resolution
- Exploded view renders for easy assembly reference
This hinge combines durability, printability, and versatility — making it the ultimate choice for designers, engineers, and makers.
SLDPRT (SolidWorks, filesize: 9.98 MB), OBJ (OBJ, filesize: 40.4 MB), GLTF (glTF, filesize: 7.6 MB), STP (STEP, filesize: 978 KB), OTHER (Other, filesize: 978 KB), STL (Stereolithography, filesize: 5.7 MB), AMF (amf, filesize: 1010 KB), IGE (IGES, filesize: 1.94 MB), PLY (Ply, filesize: 37.2 MB), PSD (Adobe Photoshop, filesize: 8.07 MB), SAT (3D ACIS, filesize: 684 KB), X_T (Parasolid, filesize: 461 KB), PNG (PNG, filesize: 8.5 MB), WRL (VRML, filesize: 862 KB), USDZ (USDZ, filesize: 24.1 MB)
