Heavy Duty Welded Support Structure - Industrial Frame 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

Lucasbox

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lucasbox». CGhub does not claim copyright ownership over the content used.

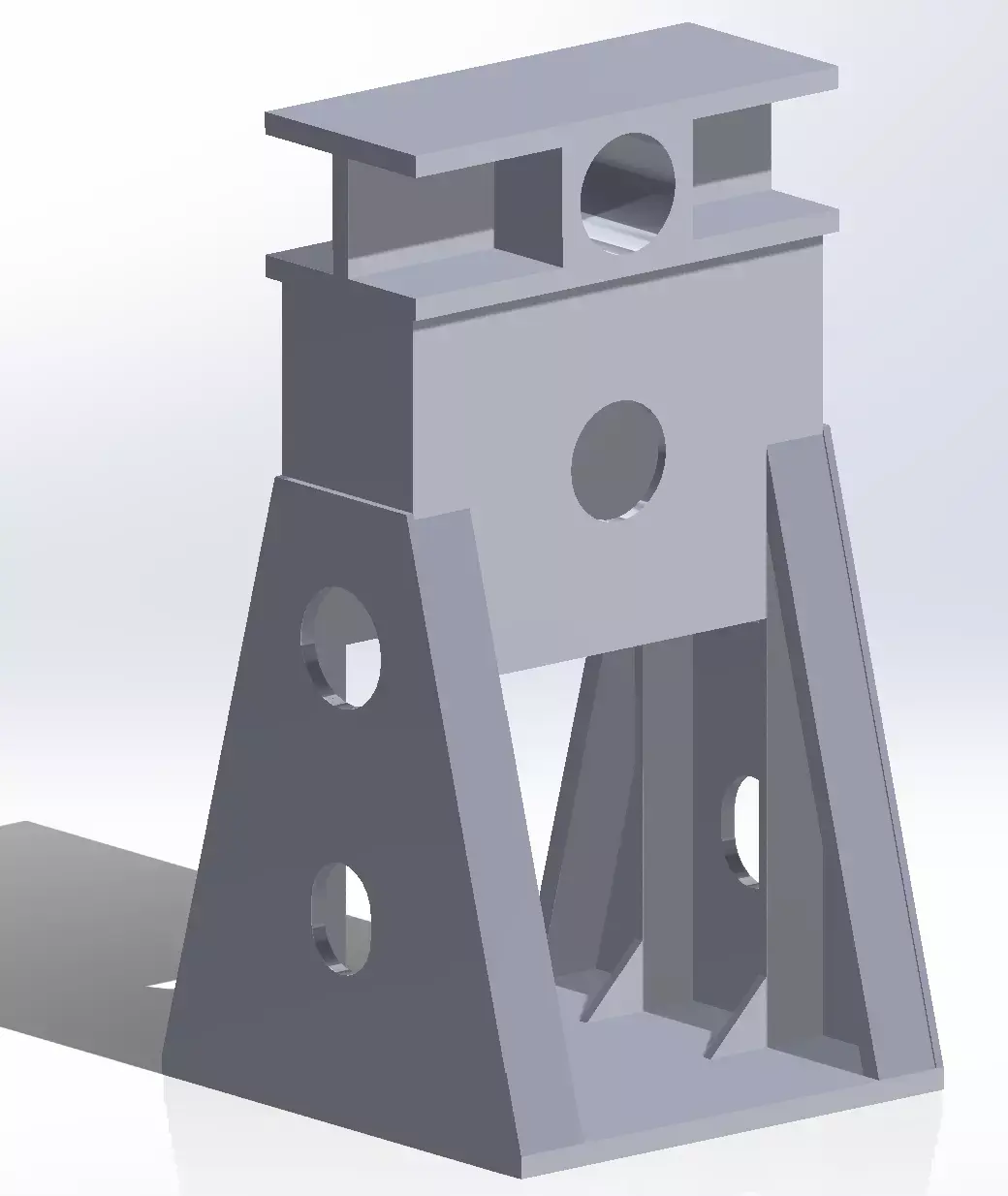

3D CAD model of a welded industrial support structure, designed with plates, reinforcements, and through-holes.This model includes the full 3D CAD geometry.

Features:

Clean and optimized geometry.
Real-world scale in millimeters.
Includes hole details (M10, Ø135 mm, etc.).
Suitable for CNC, laser cutting, fabrication, or finite element analysis (FEA).
Can be easily imported into SolidWorks, Fusion 360, Inventor, CATIA, and other CAD software.

Applications:

Structural design and mechanical engineering projects.
Prototyping and industrial equipment design.
Technical visualization and assembly documentation.
Manufacturing reference for welding and fabrication.
