Helical Gear Collection 02 3D print model

Publication date: 2017-03-01

Helical Gear Collection 02 3D print model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

cbspicer

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «cbspicer». CGhub does not claim copyright ownership over the content used.

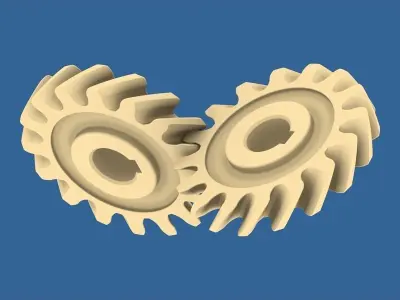

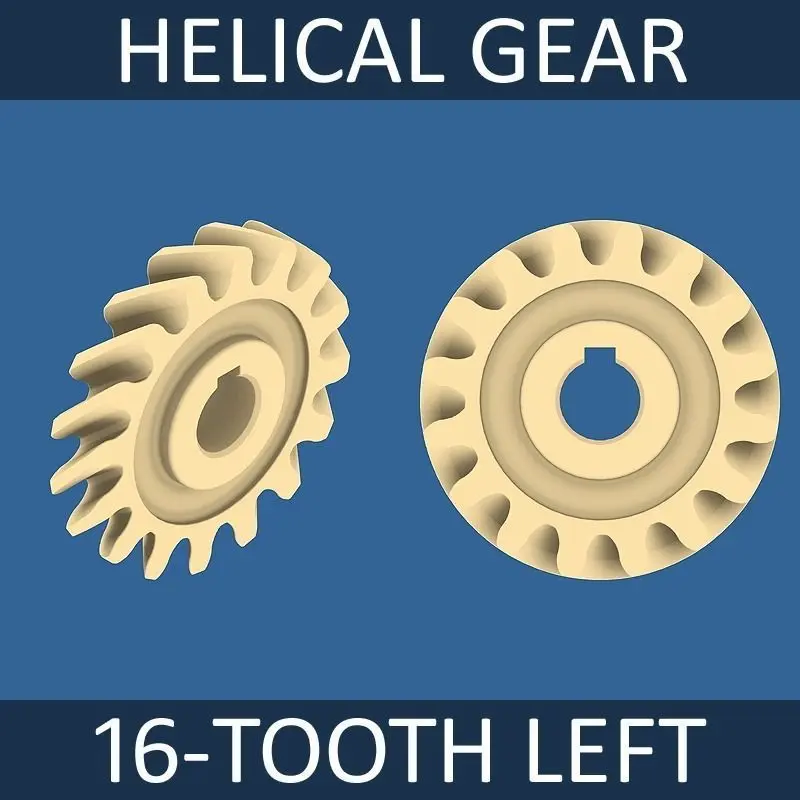

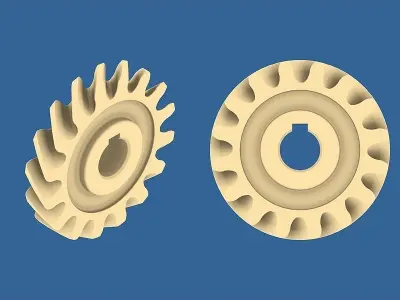

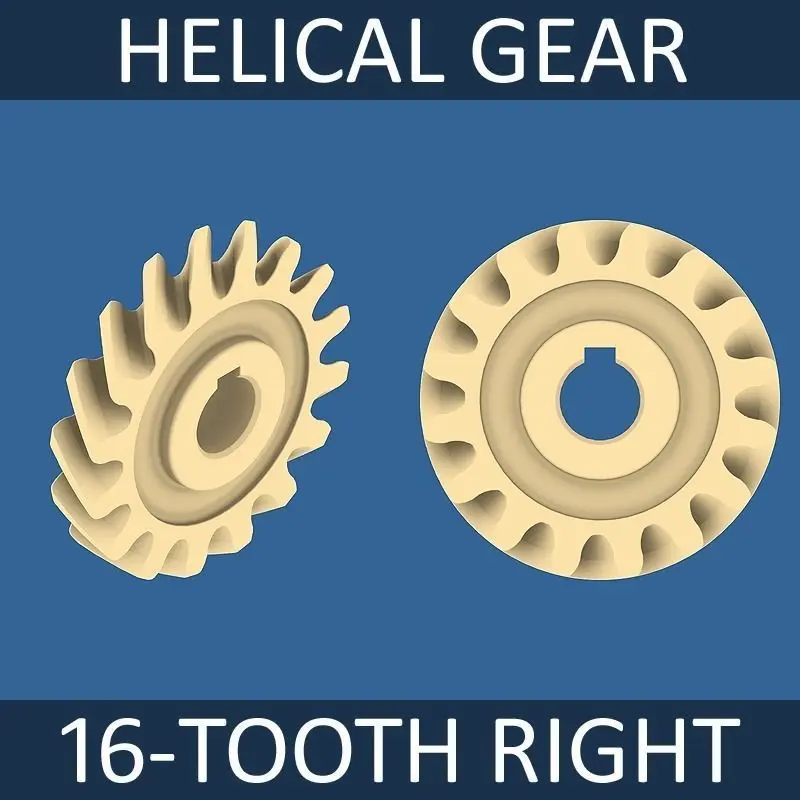

Helical gear collection modeled in Inventor 2010 and provided in multiple file formats (.IPT, .STP, .STL, .3DS, .OBJ). Collection includes 3 helical gear sizes (16-tooth, 24-tooth, and 32-tooth), provided in right and left-hand orientations, all fully ready for 3D printing.

The gears are modeled with a 45-degree helix, allowing them to mate with both parallel and perpendicular shaft configurations.

The native Inventor files are fully parametric and can be opened and manipulated in any version of the software that is 2010 or newer. The feature trees and parameter tables are logically arranged and clearly labeled, making edits extremely simple.

All gears have been exported as STP files, allowing them to be opened in any 3D CAD software. They have also been exported as 3DS and OBJ files, for use in 3D graphics packages. Finally, they are provided as STL files, making them ready for 3D printing.

Strategic recesses have been engineered into the larger gears to minimize their volume for the purpose of reducing the cost of 3D printing.

No textures or materials included.

Gear specifications:

Approximate involute gear tooth profile
Minimal backlash between gears
1/4 inch face width
1/4 inch shaft bore
16 Pitch (P) gear size
Pitch Diameter (PD) = Gear Teeth (T) / Pitch (P)
Outside Diameter (OD) = Pitch Diameter (PD) + 0.125 inch
Helical gears provided with bore for 1/4 inch round shaft with standard ANSI 3/32 inch keyway
Polygon counts range from 49,298 (16-tooth helix gear) to 53,476 (32-tooth helix gear)

Product includes:

Helical gear set Inventor 2010 files (.IPT)
Helical gear set STP files (for other 3D CAD packages)
Helical gear set STL files (for 3D printing)
Helical gear set 3DS files (for 3D graphics packages)
Helical gear set OBJ files (for 3D graphics packages)
Helical gear sample animations (.AVI)
