Description

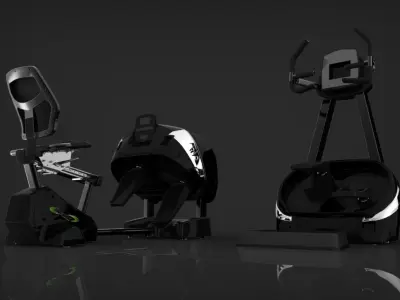

Helix Casing
Designed by Ridwan S ( https://www.instagram.com/ridwan.sept/ )
Modeled with SolidWorks 2014
Rendered & Animated with KeyShot 5
File Types : .SLDPRT, .SLDASM, .IGS.
My design concept is Automotive, Futuristic, Marketable, Simple, Smooth, Aesthetic, Elegant, Good Looking & Matching The Trainers

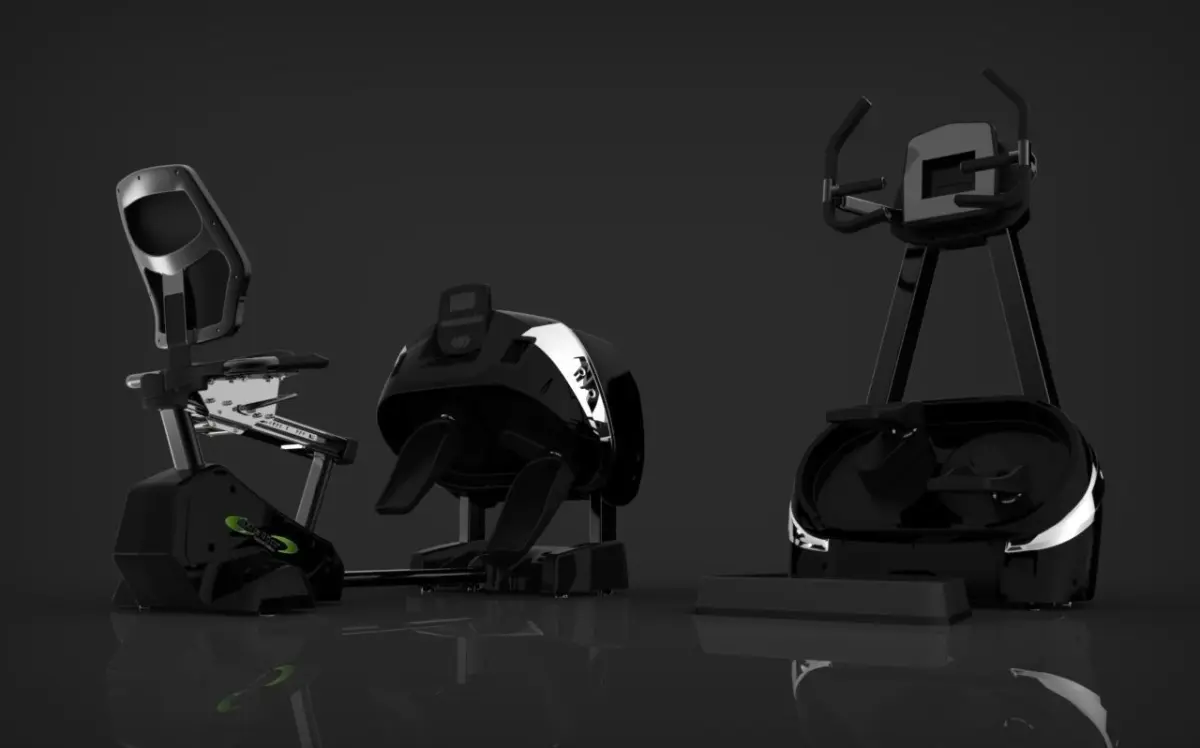

The model has two mode

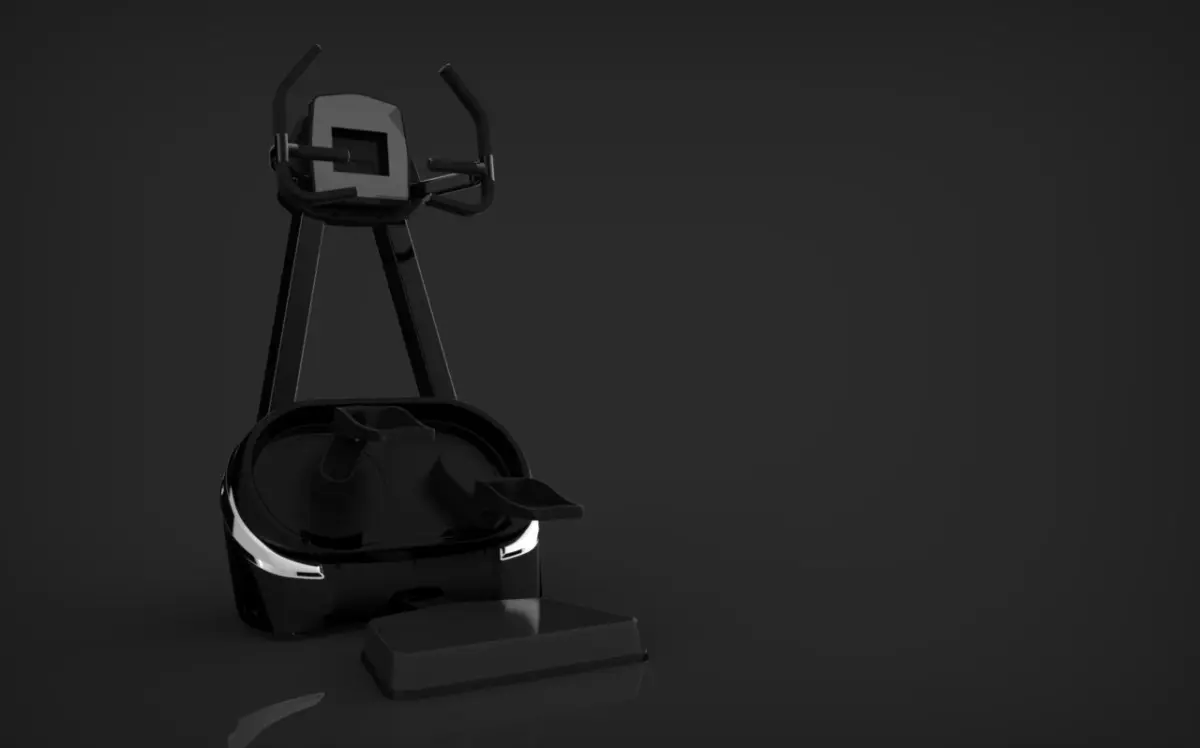

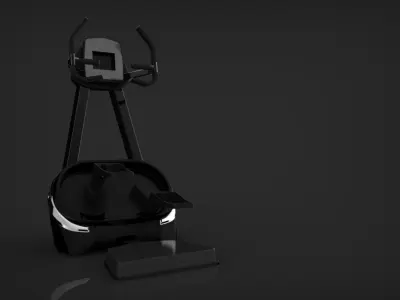

for stand mode TILTED
for sit mode RECUMBANT

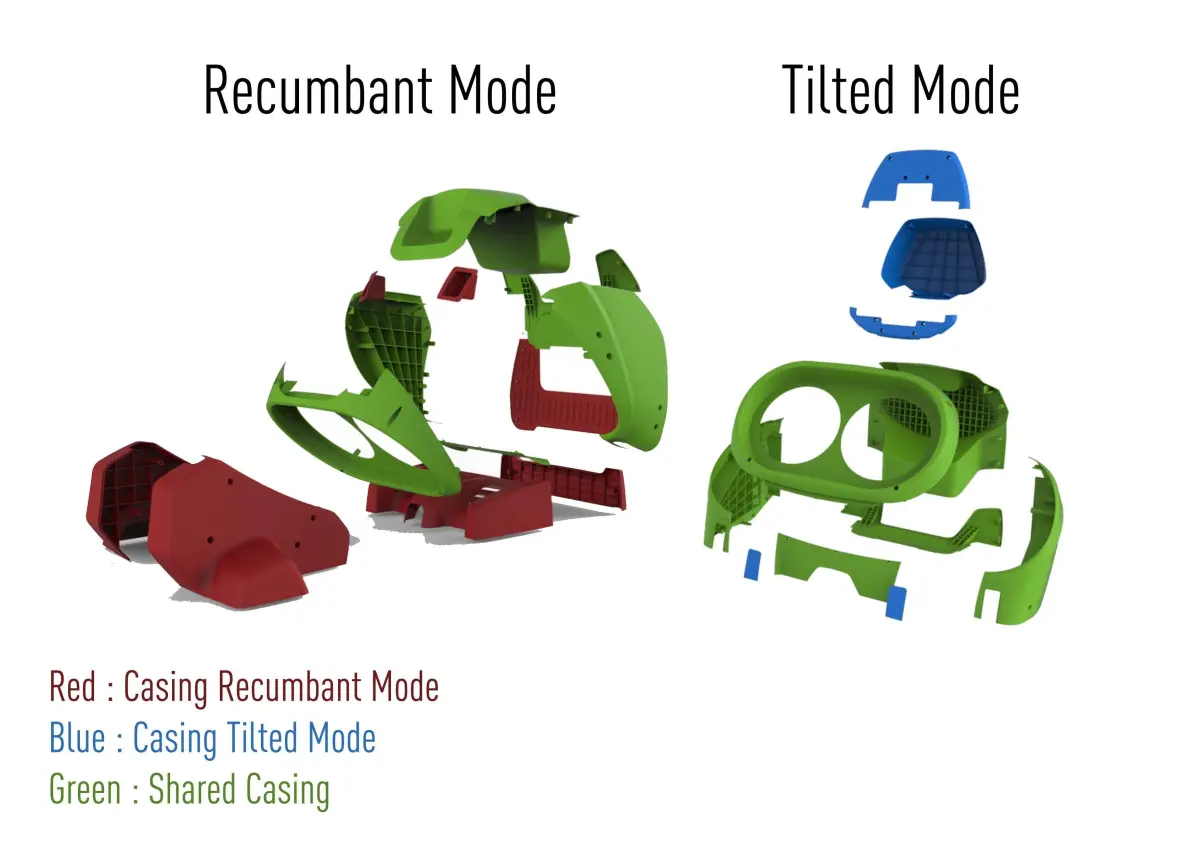

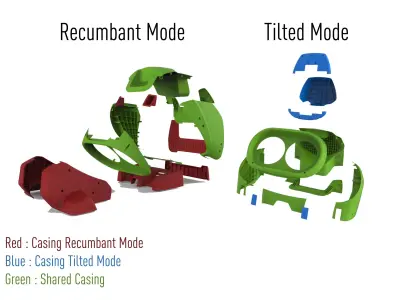

I just try to make same Main Casing for two Mode to decrease production process & reduce casing part numbers (easy cost).
I try to follow the requirements Specific parts of the casing will be easily removable for repair or service access. I use fastener (bolt and screw) locking system, I think that's make easy to release and attach parts to the construction but make it strong enough too.
I choose plastic material and injection for process and some parts must be finished with some glossy paint and matte texture.
And there is one parts of casing called CFR & CFL (Main Casing) must be chrome.
At the chormium surface of the CFR & CFL parts, if the mold maker recommend to split the chromium surface become a single parts to help mold maker create their mold. I think that's no problem.
You can download this model for Free, but you should to hit ♥ button as the payment :).
