High-pressure industrial valves with measurement devices 3D model

Publication date: 2020-07-17

High-pressure industrial valves with measurement devices 3D model

$50

License: Royalty Free License

author:

industrial3d

Description

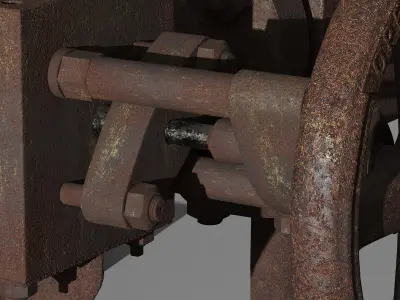

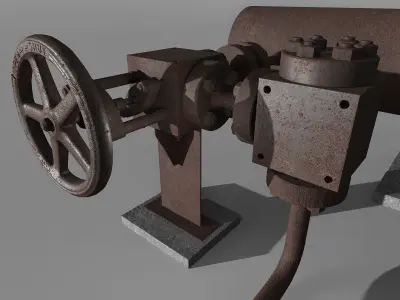

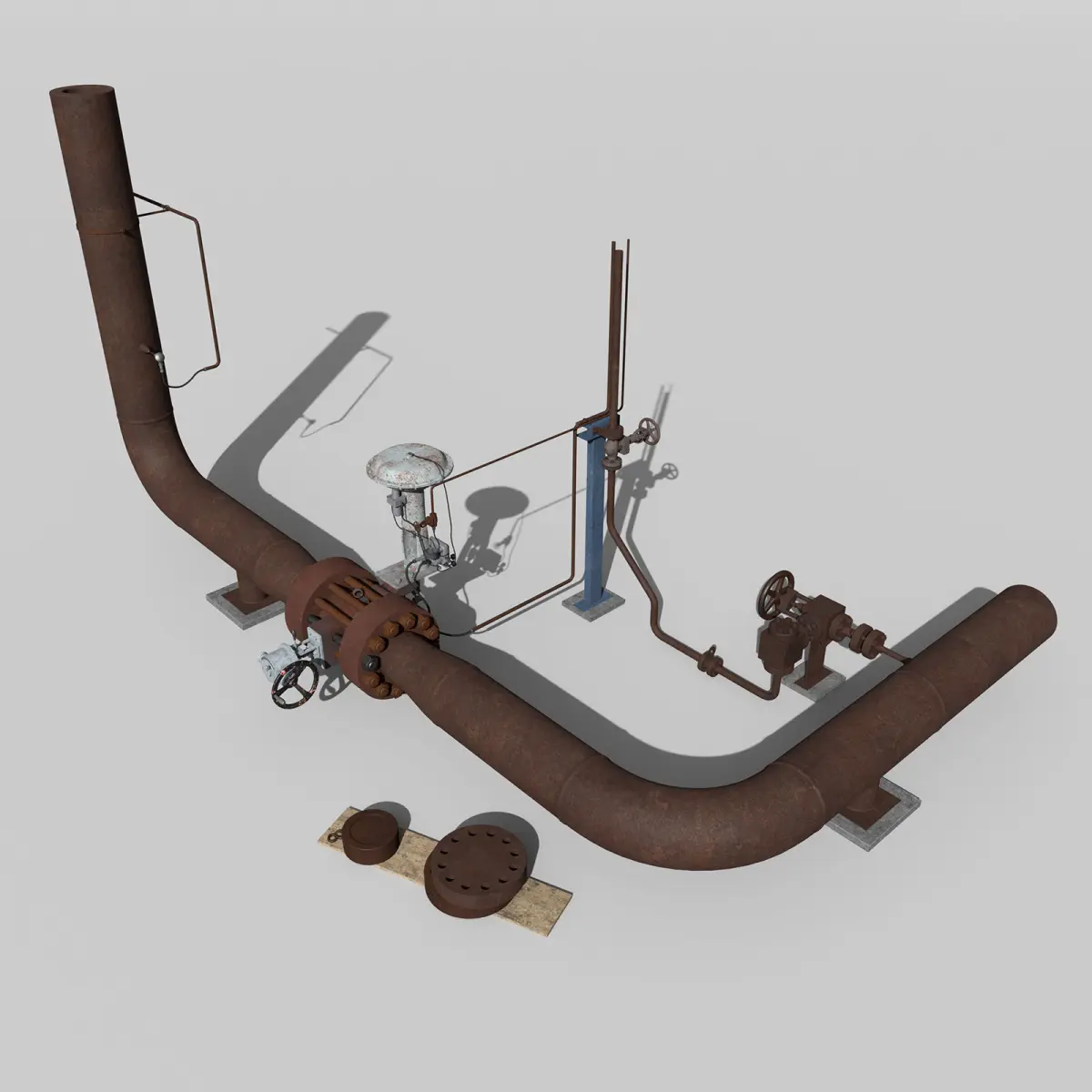

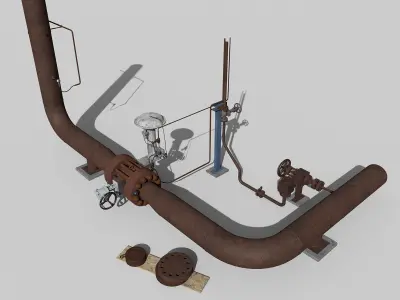

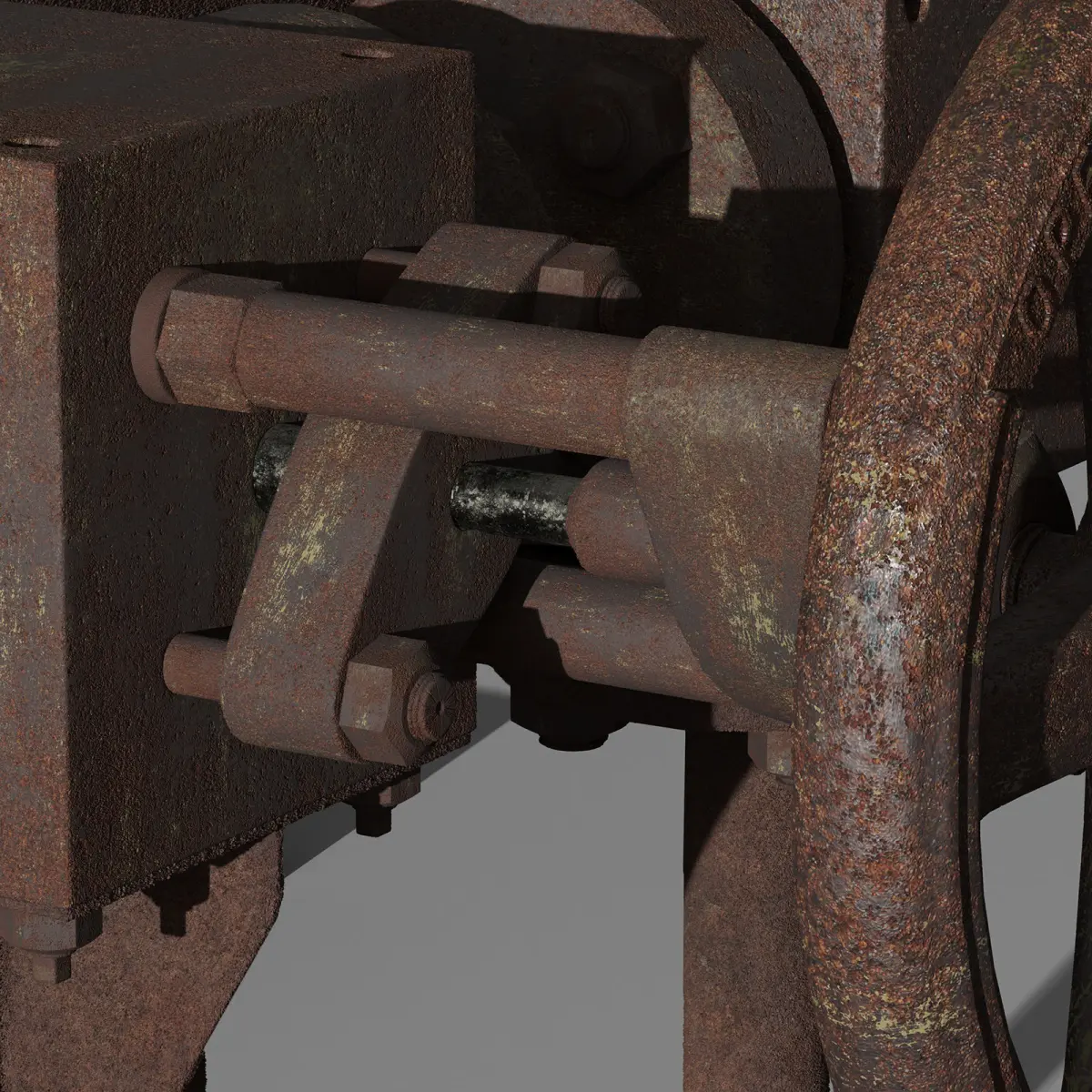

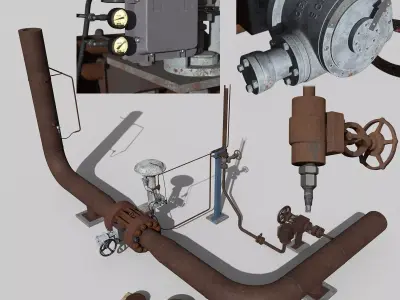

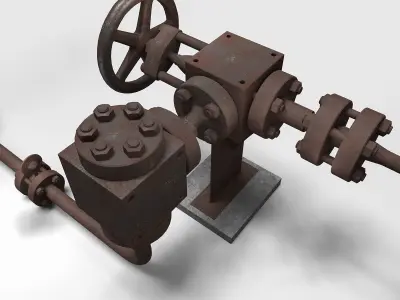

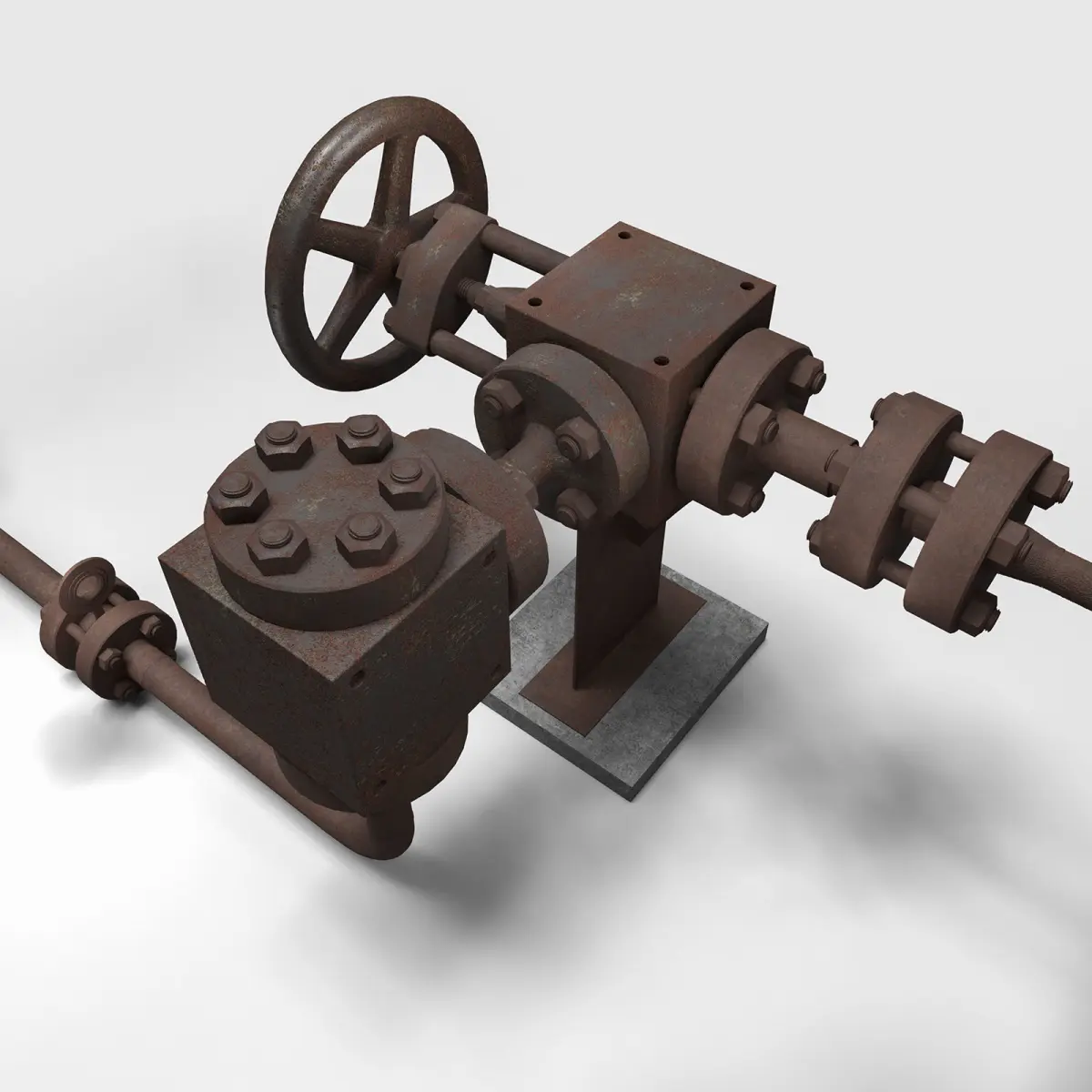

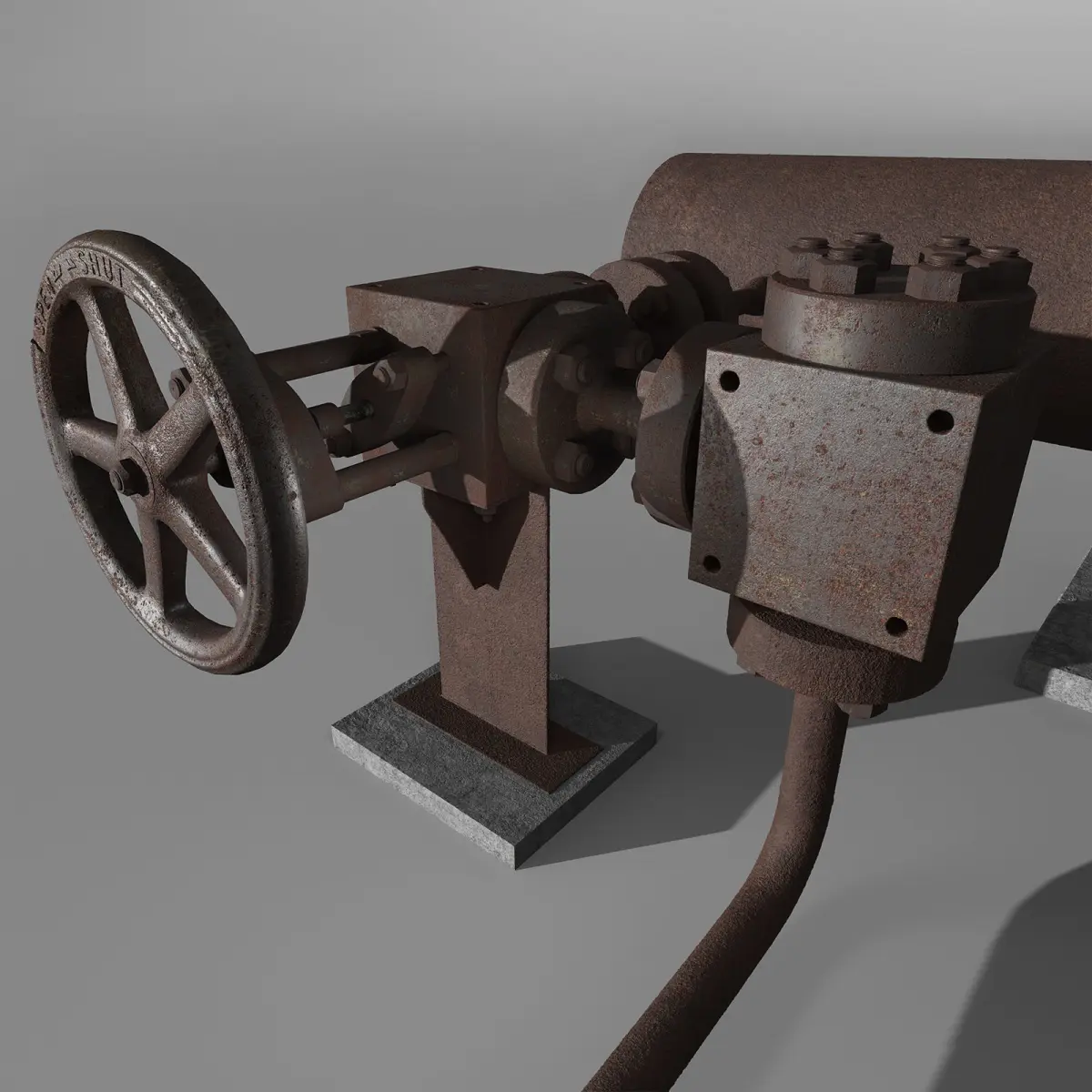

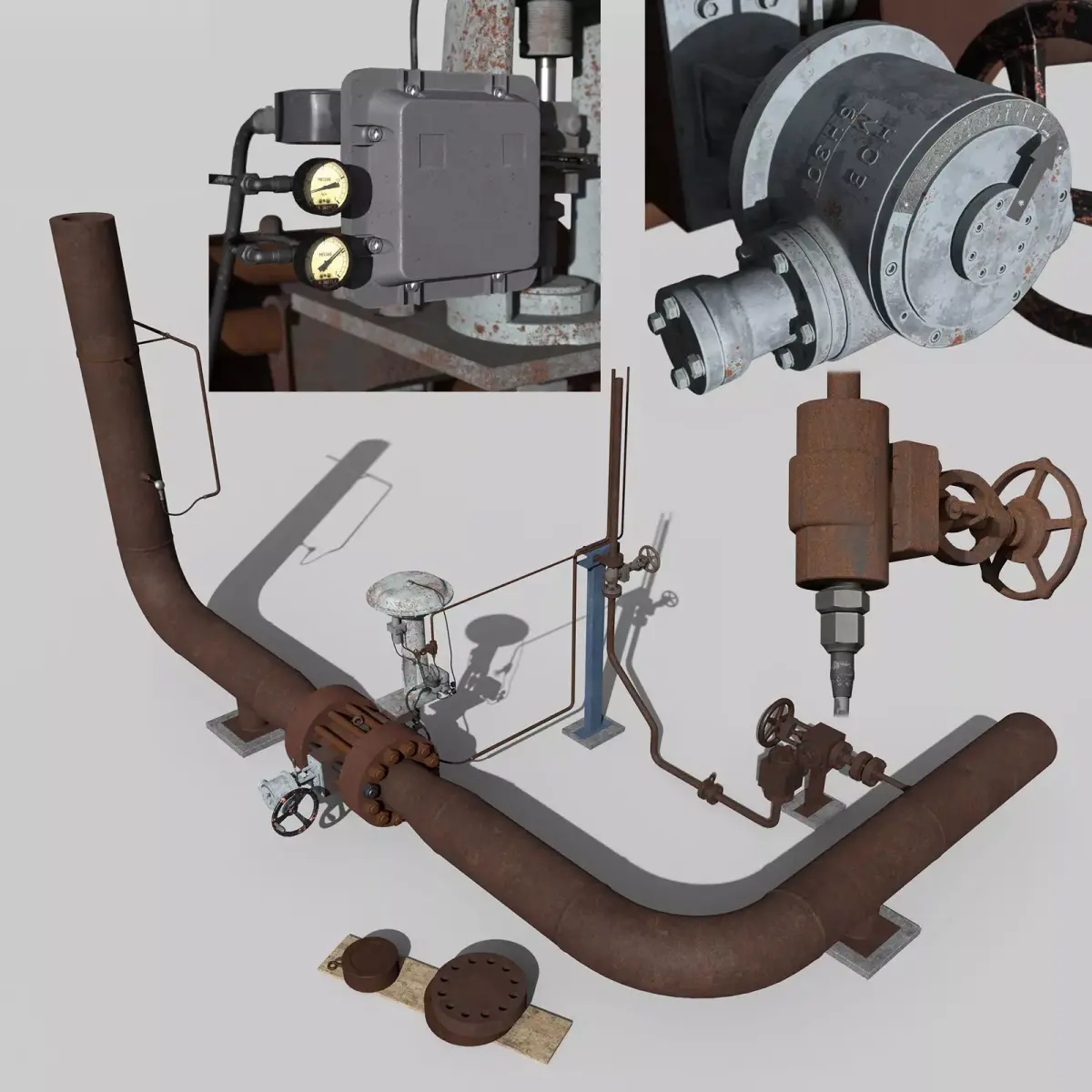

A highly detailed, scene of the small part of technological scheme in ammonia-producing plant.The scene was created on real base.This is the high-pressure unit,located at the synthesis stage.It inciudes the following types of valves:

globe valve(Yokohama)
high-pressure globe valve(Yokohama)
high-pressure check valve(Yokohama)
butterfly valve with handwheel driven gear(Masoneilan)
air supply valve

The scene also contains the measurement and control devices:

thermocouple
pneumatic diaphragm actuator(Masoneilan)
transducer

For understanding a scale-the diameter of main pipe is 436 mm.Polys:1484988 Verts:753269

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1,484,988
Vertices: 753,269
Plugins used

Tags

Pipe Industry Steel Equipment Industrial Rusty Valve Gauge Manometer Chemical Part Actuator Measurement Control Yokohama Industrial part
