Hinge locating mechanism 3D model

$18

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

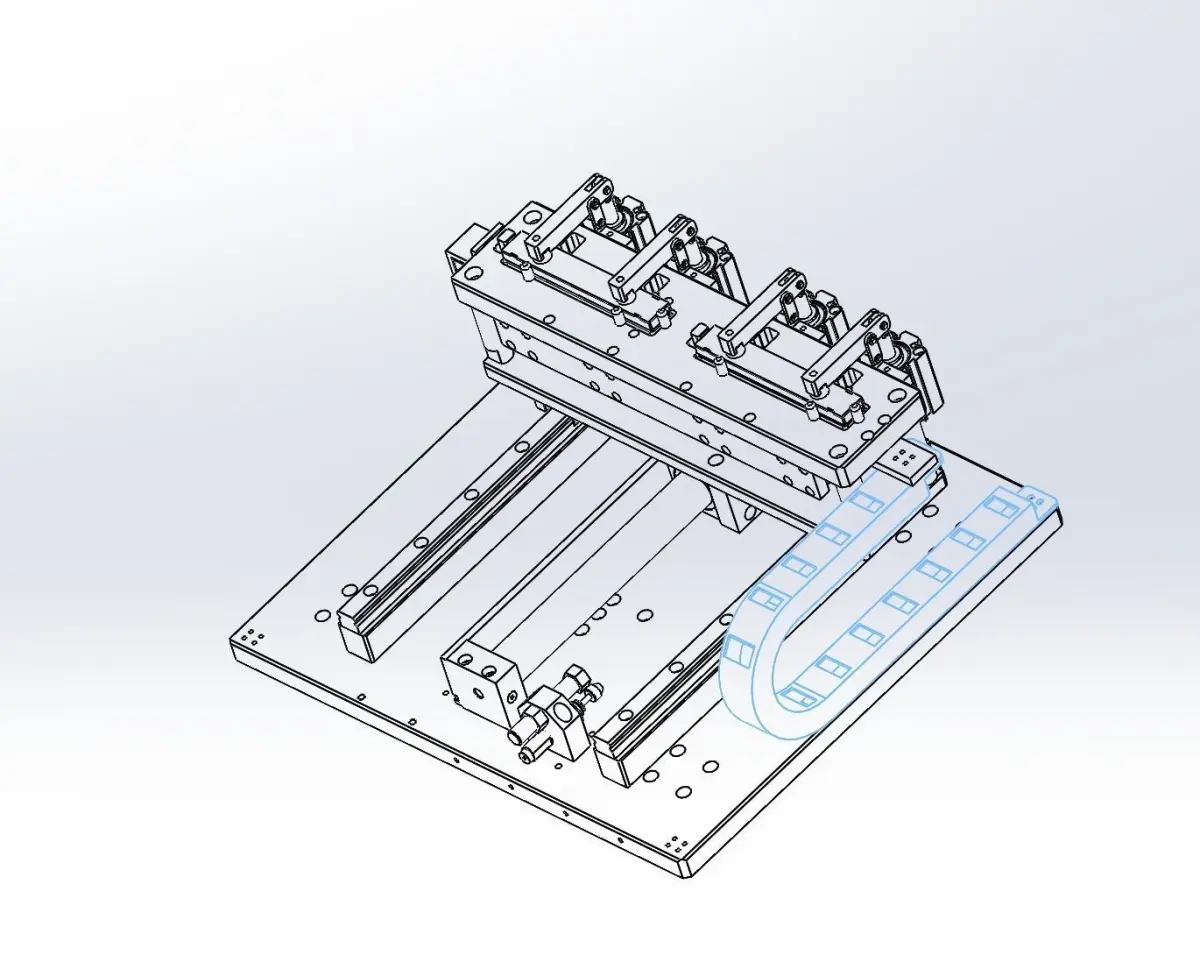

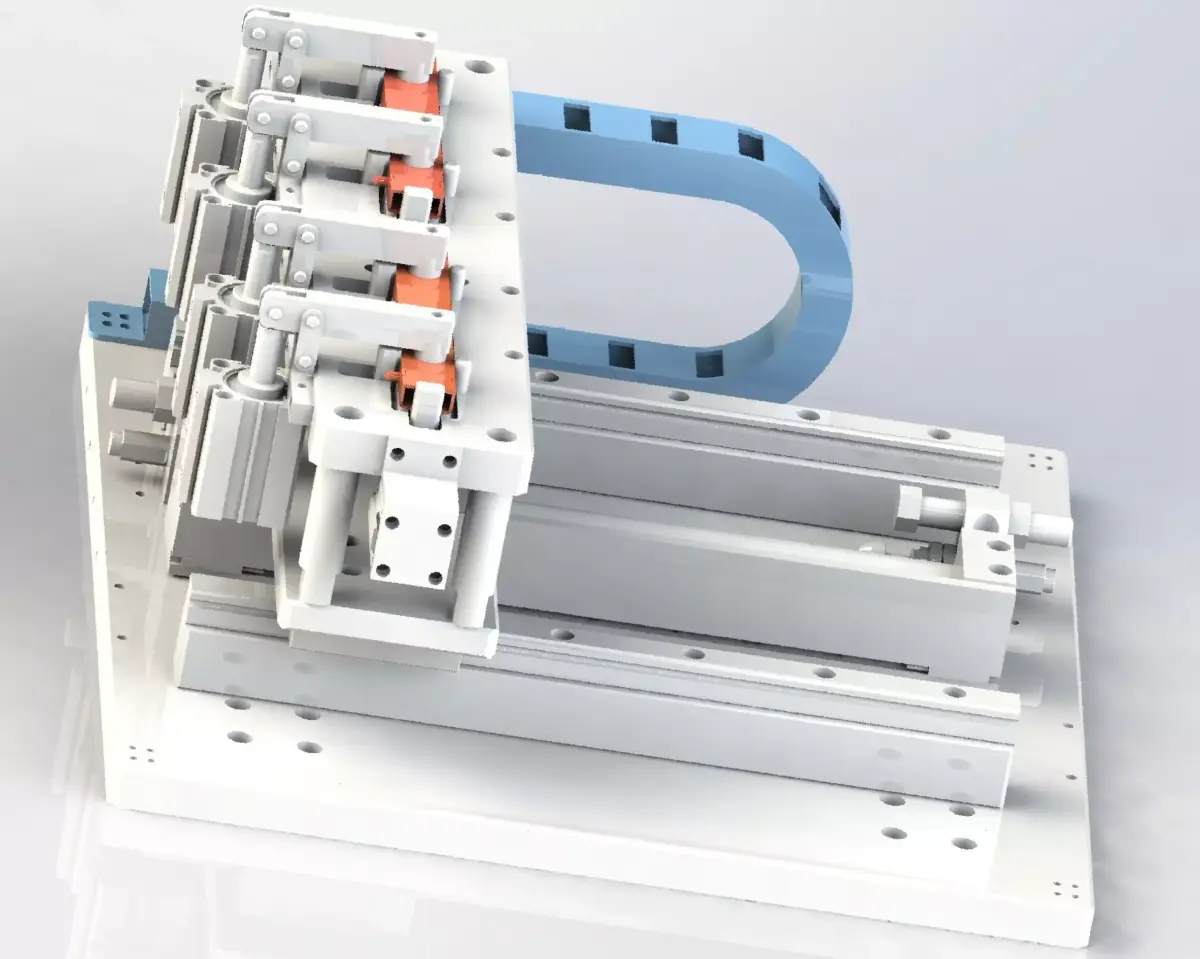

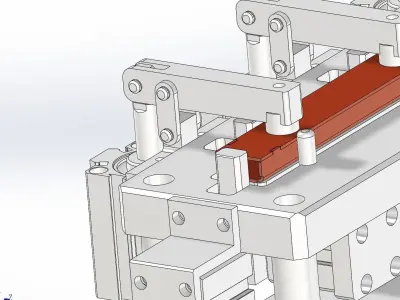

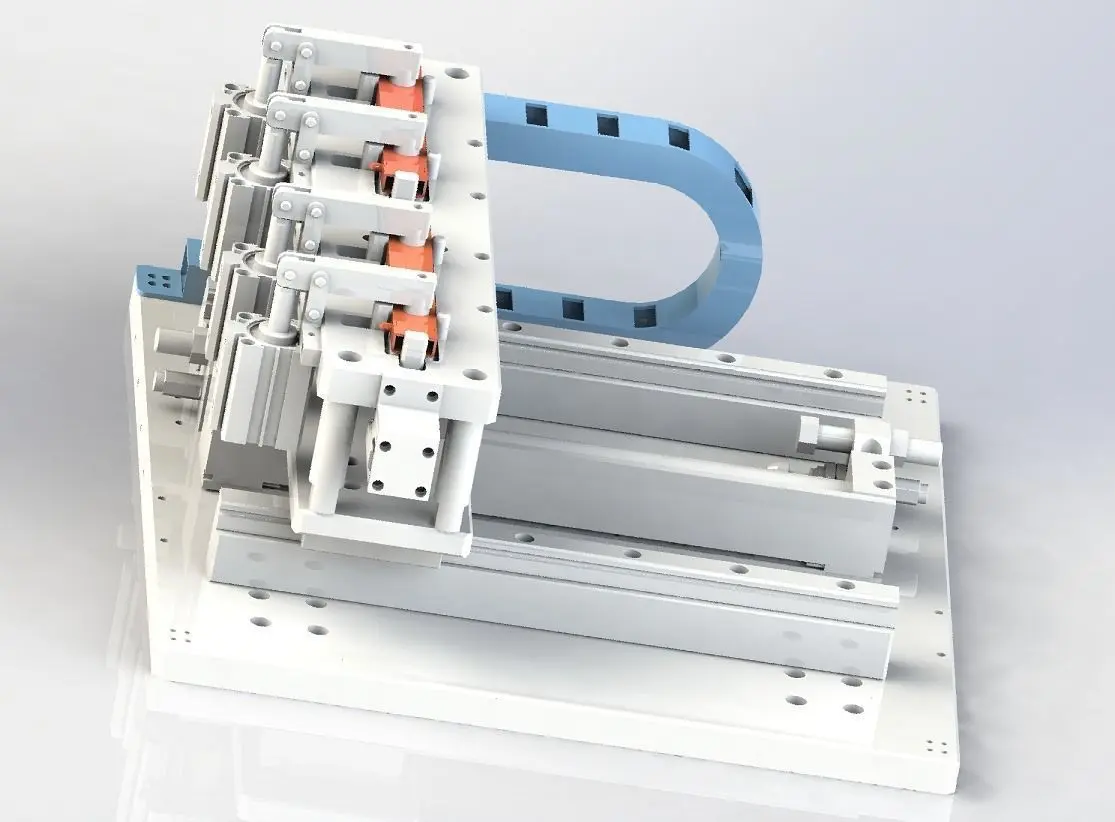

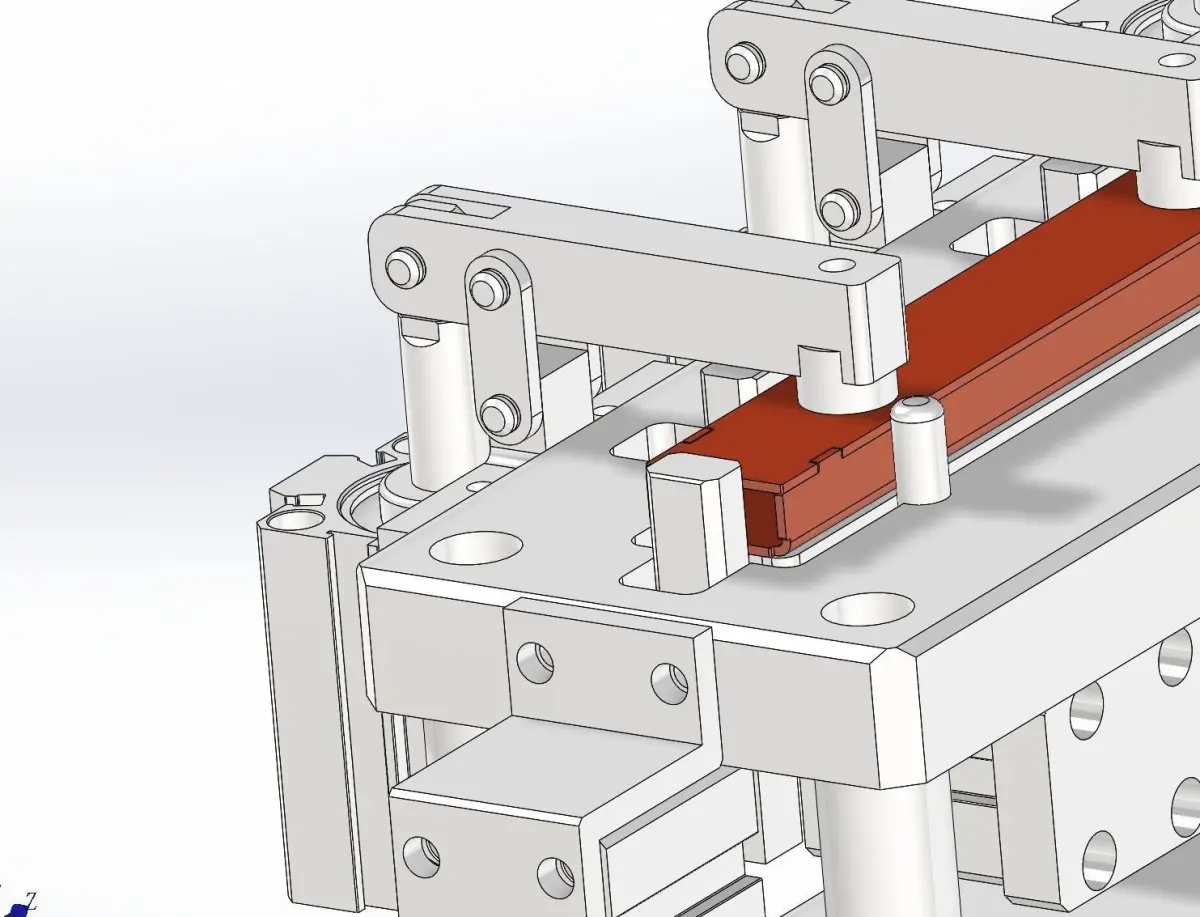

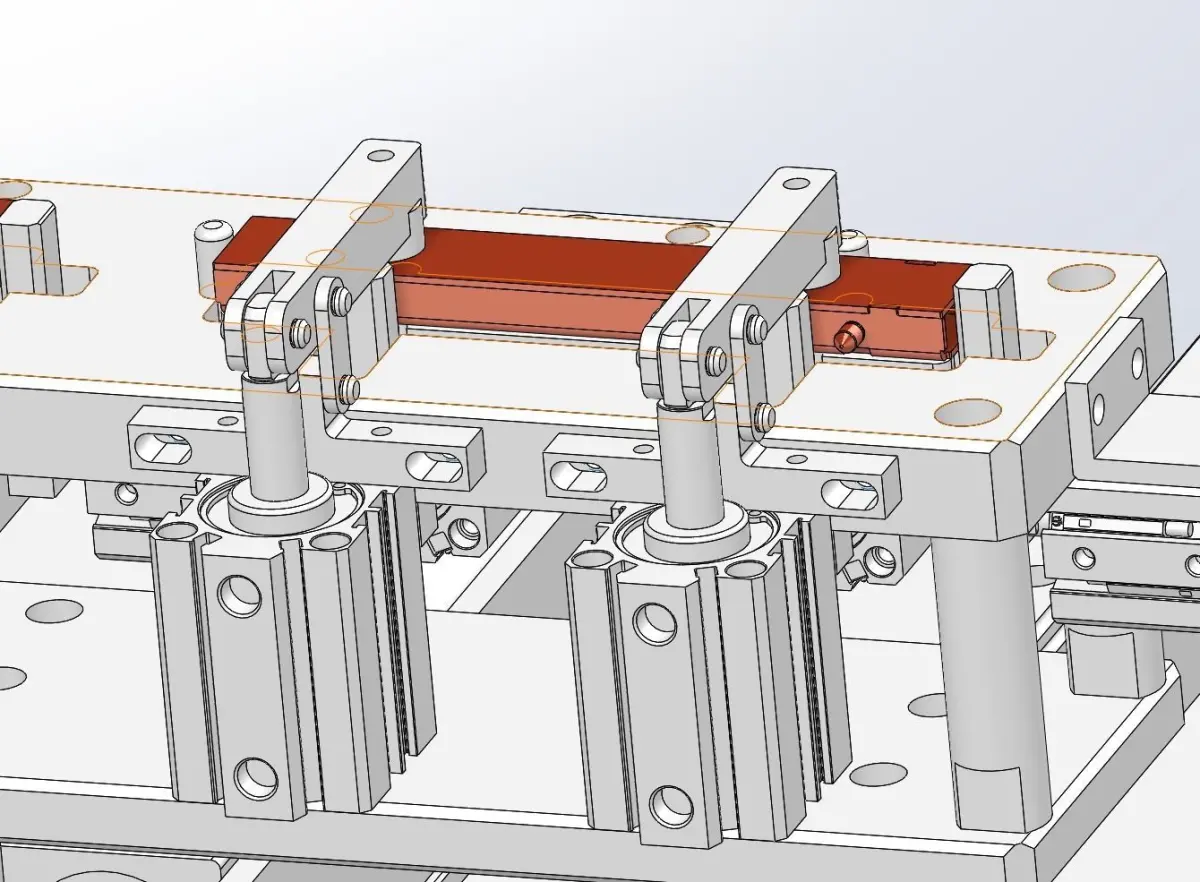

Hinge locating mechanism, the mechanism through a set of pneumatic cylinders double slide form the slider mechanism, at the same time on the sliding table is group of hinge point, through the cylinder and rotating hinge connecting form, it can be used in loading module, the product into the positioning fixture, cylinder push hinge press and hold the productmechanism include

Hinge mechanism
Sliding table mechanism
Compression mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-max-Fbx
and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 163630
Vertices: 327110

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Hinged Slider Table Industrial machine Industrial part Industrial factory
