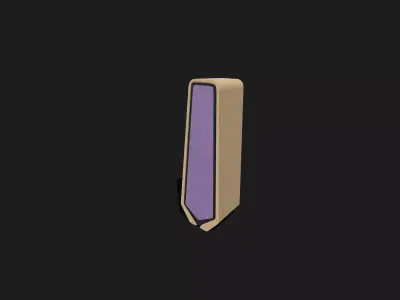

Home Floor Speaker 3D model

License: Royalty Free No Ai

author:

Olario3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Olario3D». CGhub does not claim copyright ownership over the content used.

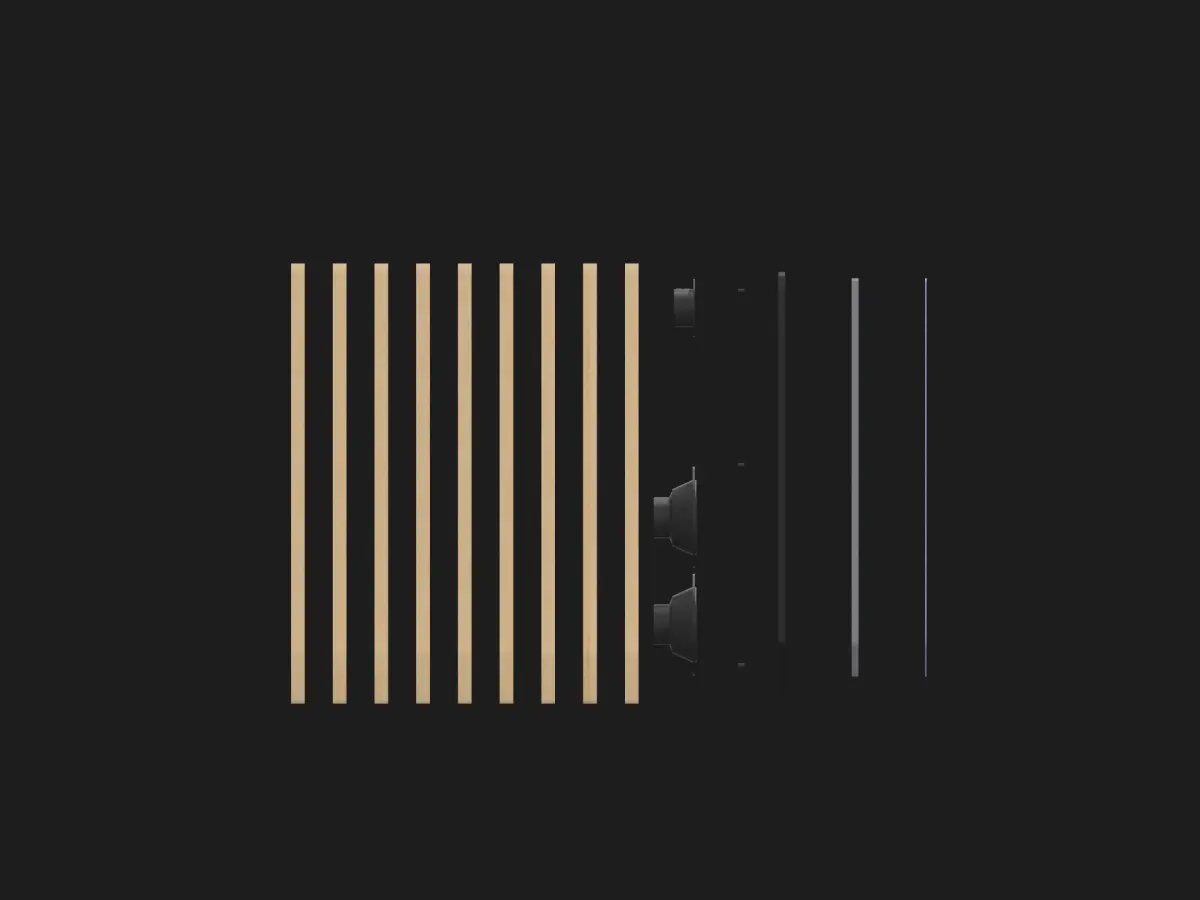

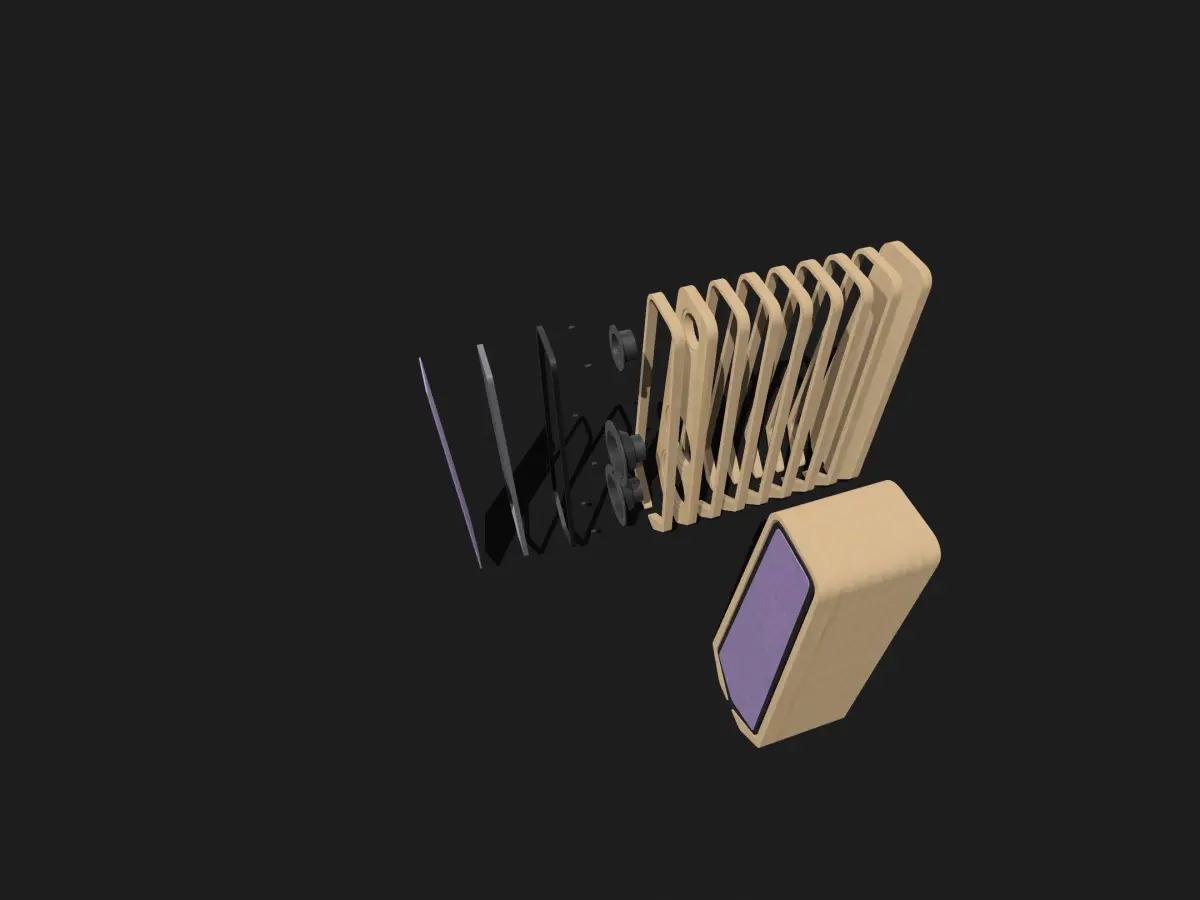

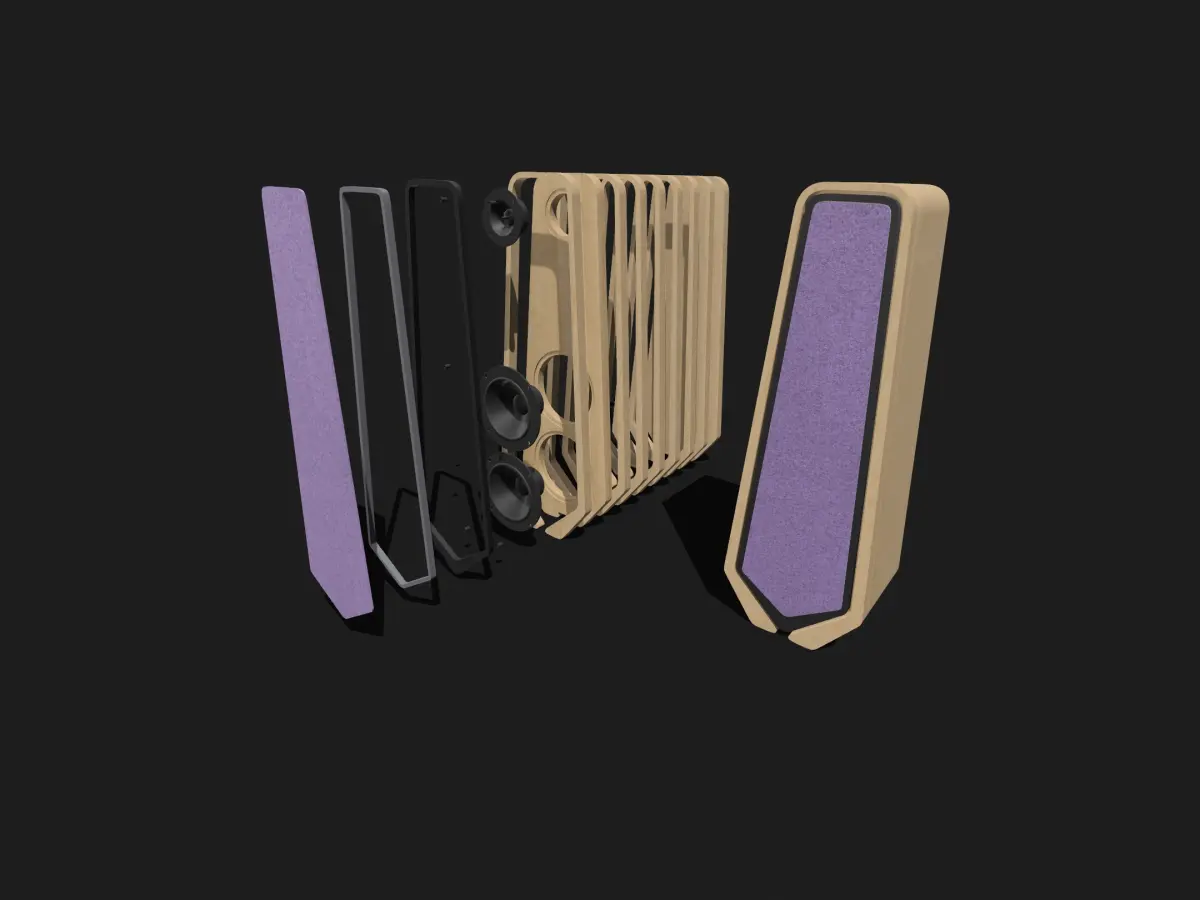

A 2D drawing for CNC, for 3D model self assembly kit.

An easy to assemble home floore decorative speaker, made of birch wood and purple fabric or any color you choose.

A 3 way speaker desing, 2 (18cm Drivers) and 1 (10cm twitter).
Under and hidden air vent.
Magnetic front pannel.
Assembly instruction and parts quantity Is included under Instructions.pdf filew
Parts quantity is included in the zip file under every .DXF folder

NOTICE! - There is no speaker holes and wiring connector (+&-) part sketch or drawing because of the big veraiety of sizes, the builder should place them on his own.

Recommended materials:
Birch wood, the desing made of 24mm and 12mm birch.The birch wood is fit for layering build, giving a nice texture and flow.
Any kind of fabric and color.
Magnets 5 X 2.8mm.
