HVAC Air Conditioner Heat Exchanger Coil 3D model
Home Catalog HVAC Air Conditioner Heat Exchanger Coil 3D model
HVAC Air Conditioner Heat Exchanger Coil 3D model
HVAC Air Conditioner Heat Exchanger Coil 3D model
HVAC Air Conditioner Heat Exchanger Coil 3D model
HVAC Air Conditioner Heat Exchanger Coil 3D model
HVAC Air Conditioner Heat Exchanger Coil 3D model

Publication date: 2026-04-09

Buy HVAC Air Conditioner Heat Exchanger Coil 3D model

$2

License: Royalty Free

author:

isithummihiran2001

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «isithummihiran2001». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats

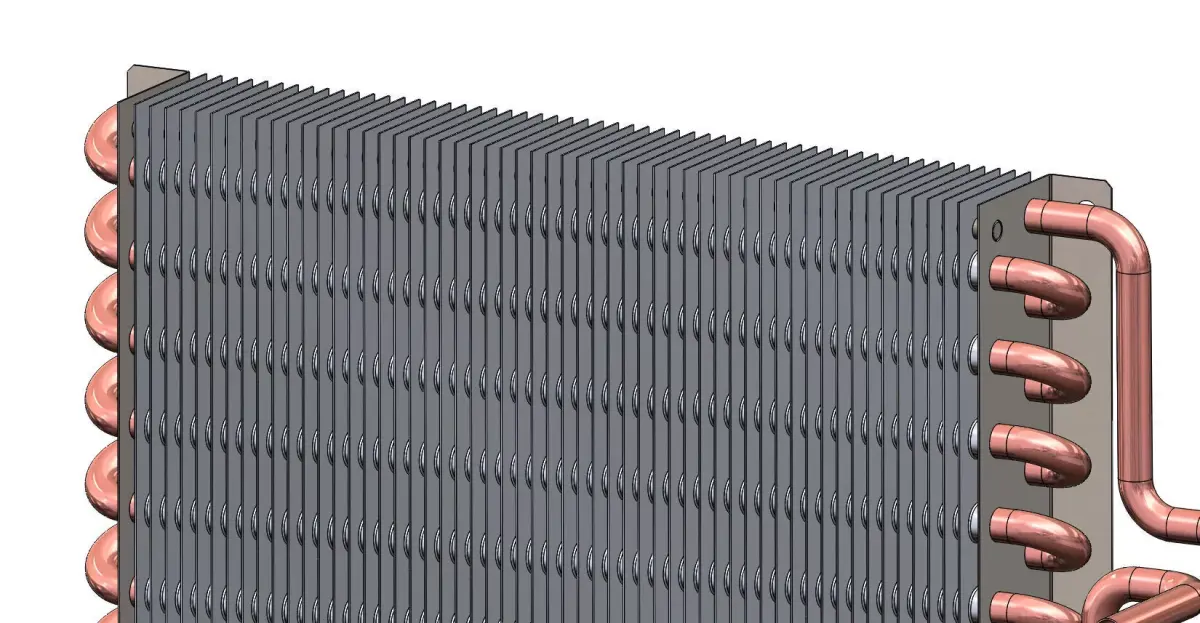

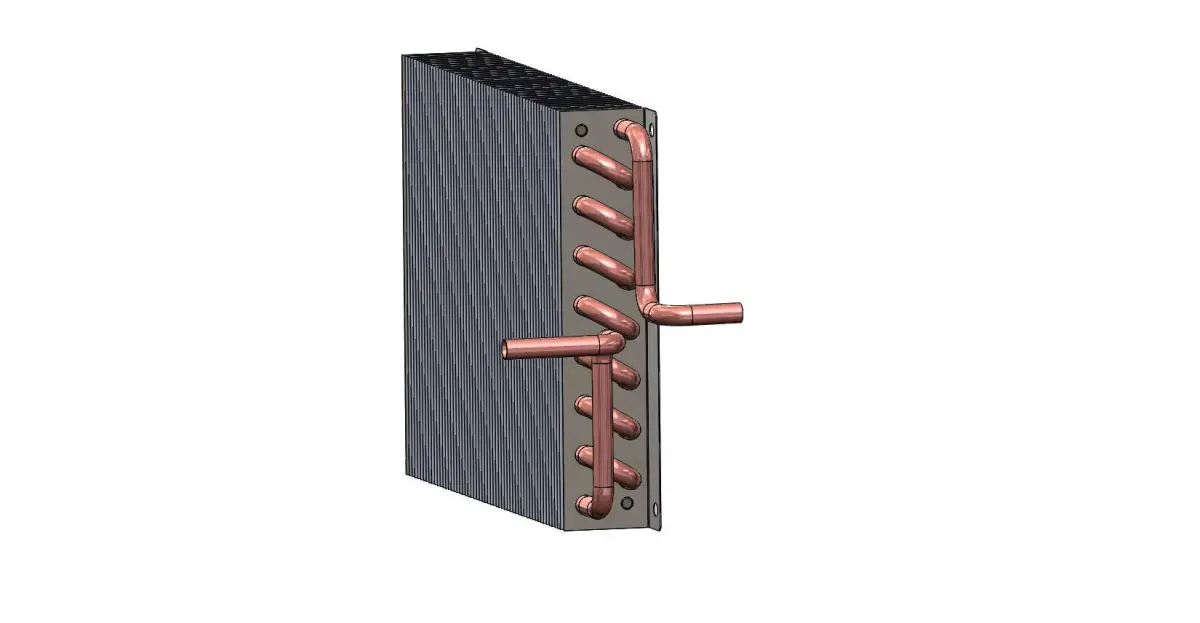

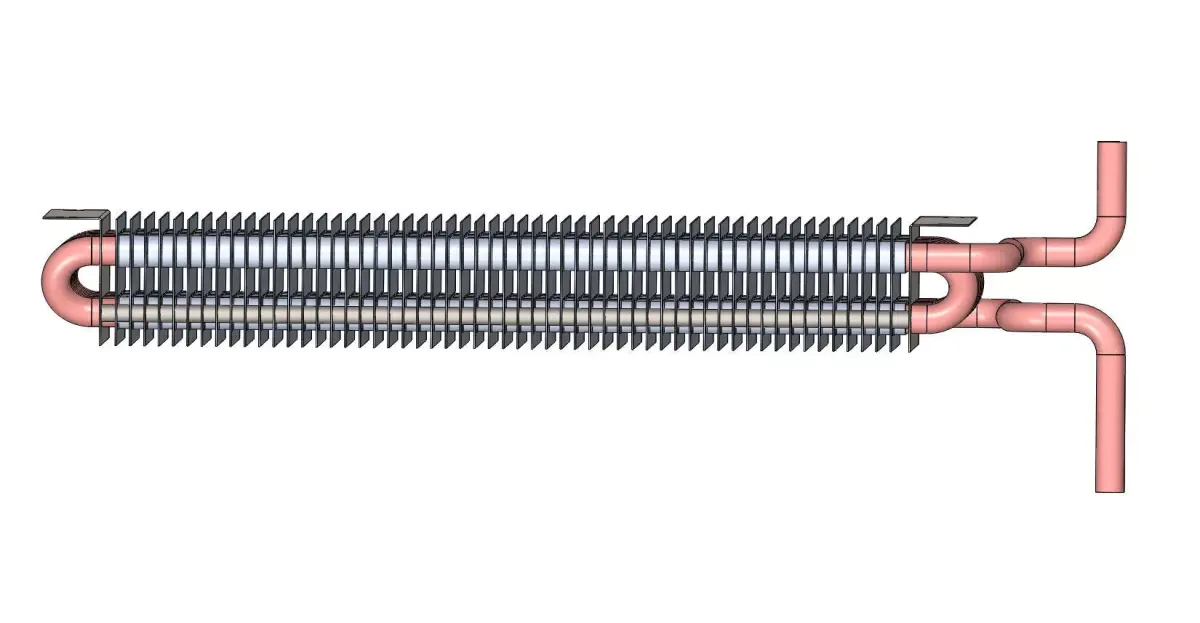

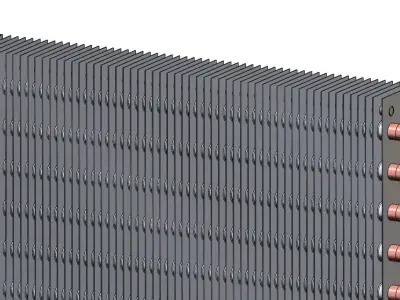

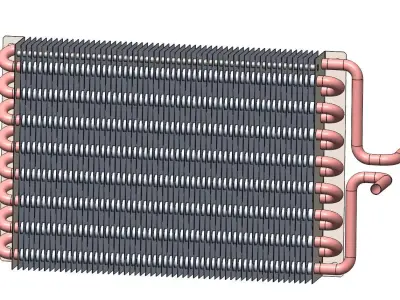

High-quality 3D model of an air conditioner heat exchanger coil designed in SolidWorks.This model represents a realistic HVAC finned-tube heat exchanger, commonly used as a condenser or evaporator in air conditioning and refrigeration systems.

The design includes detailed fins, copper tubing, and fluid inlet/outlet connections, making it suitable for engineering visualization, simulation, and rendering purposes.

Features

  • Realistic finned structure for heat transfer

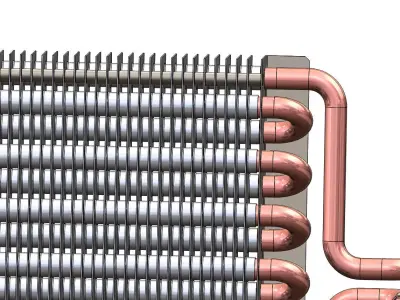

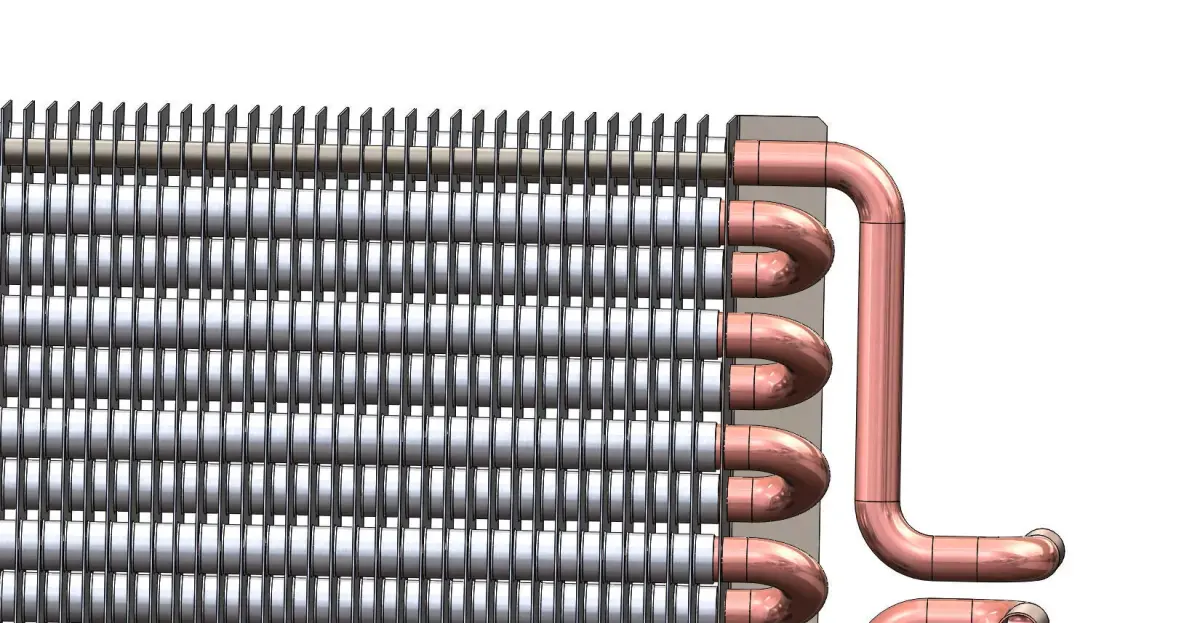

  • Copper tube layout with U-bends
  • Accurate HVAC component representation
  • Clean and organized geometry
  • Suitable for mechanical engineering, HVAC projects and product visualization

Applications

  • Air conditioning system design
  • Refrigeration system modeling
  • Engineering simulations (CFD/thermal)
  • Educational and presentation purposes
STL (Stereolithography, filesize: 51.3 MB), SLDPRT (SolidWorks, filesize: 1.56 MB), IGE (IGES, filesize: 4.78 MB), OTHER (Other, filesize: 727 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Other

Tags

Hvac Aircondition Heat Cooling 3dmodel Solidworks
