Hydraulic Floor Jack Trolley Jack SolidWorks 3D model

License: Royalty Free

author:

mohsenrastgoo2

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mohsenrastgoo2». CGhub does not claim copyright ownership over the content used.

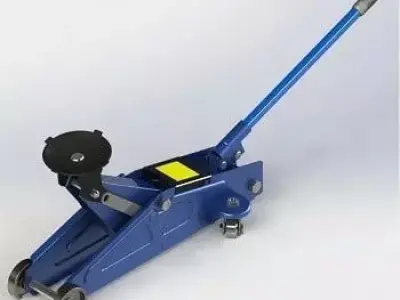

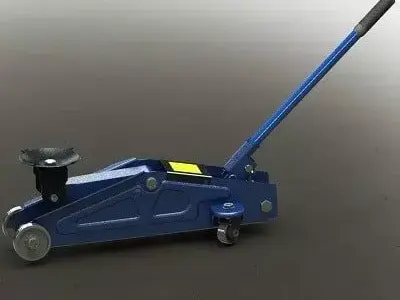

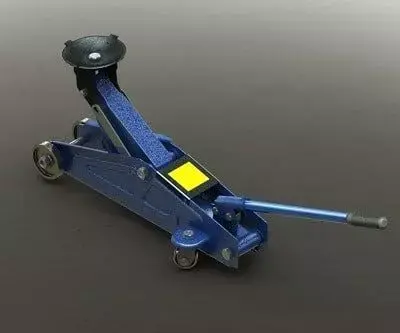

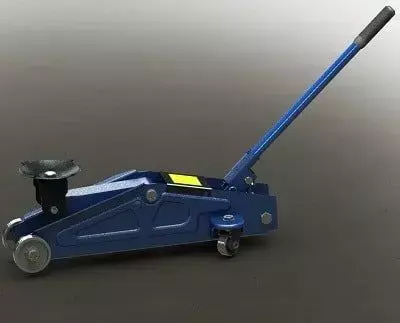

This project includes a 3D model of a Hydraulic Floor Jack (Trolley Jack) fully designed and modeled in SolidWorks.A floor jack is used for lifting cars and other vehicles for maintenance and wheel replacement.Unlike a simple bottle jack that lifts only one side of a vehicle, a trolley jack can lift the entire car with ease.It operates using a hydraulic piston and cylinder mechanism, and can even be used as a small winch or hoist with an attached chain.

The model consists of:

21 Part files (SLDPRT)

1 Assembly file (SLDASM)

All components of the jack are modeled with precision and include mechanical and motion constraints, allowing realistic movement simulation — the jack arm moves upward when the lever is pushed down, and vice versa.

This is a great model for engineering projects, mechanical design training, and animation setupFile Formats: SLDPRT, SLDASM, STEP, STL
