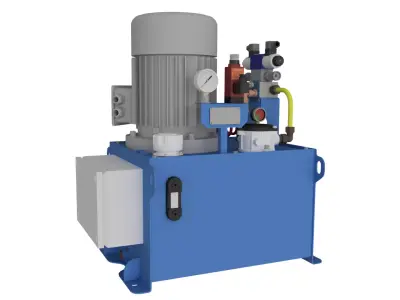

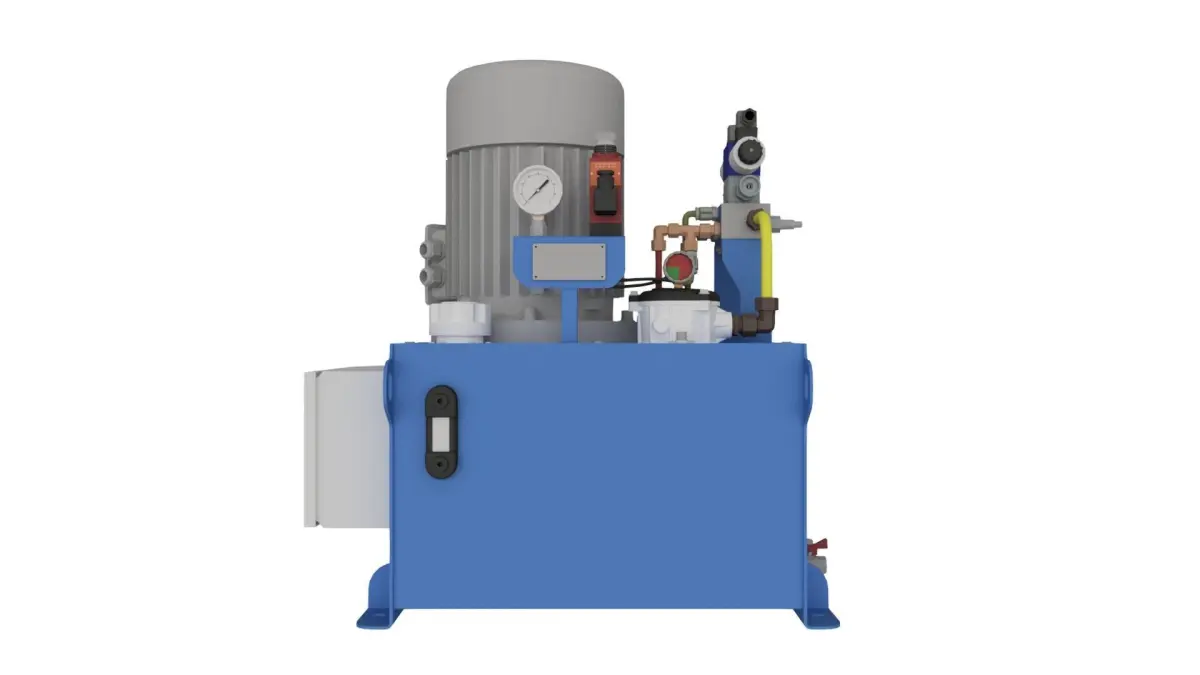

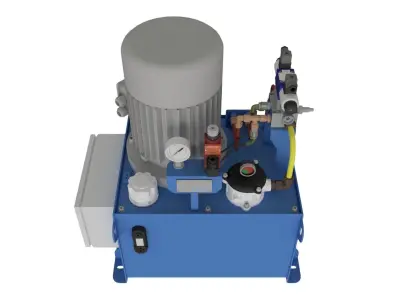

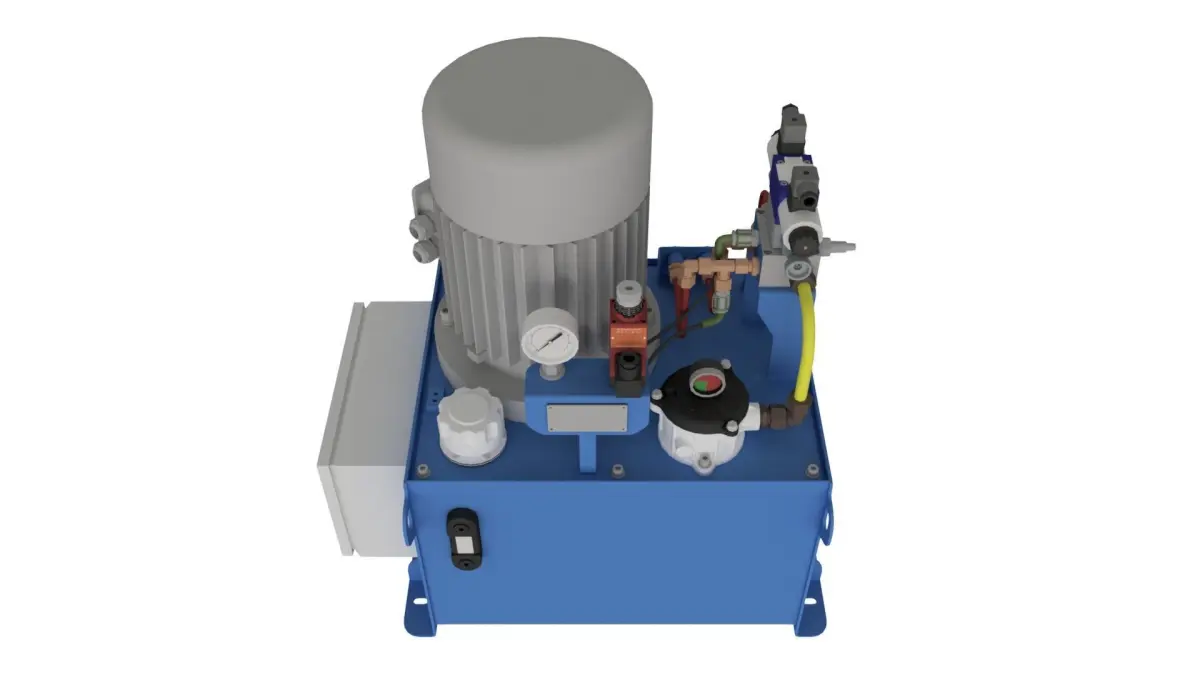

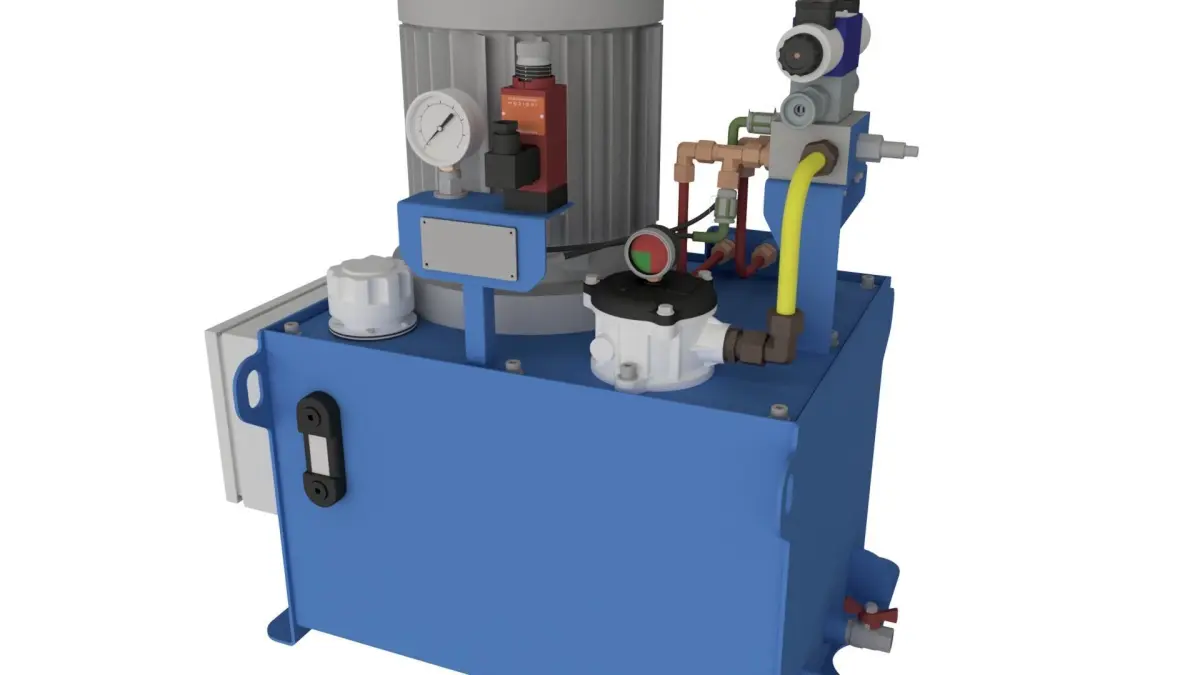

Hydraulic Power System Self-Contained 3D model
Home Catalog Hydraulic Power System Self-Contained 3D model
Hydraulic Power System Self-Contained 3D model
Hydraulic Power System Self-Contained 3D model
Hydraulic Power System Self-Contained 3D model
Hydraulic Power System Self-Contained 3D model
Hydraulic Power System Self-Contained 3D model

Publication date: 2023-04-26

Buy Hydraulic Power System Self-Contained 3D model

$13

License: Royalty Free

author:

oleksii27

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «oleksii27». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $13 Add to Wishlist
  • Description
  • Formats

This model is a high quality real model that will enhance detail and realism to any of your rendering projects.

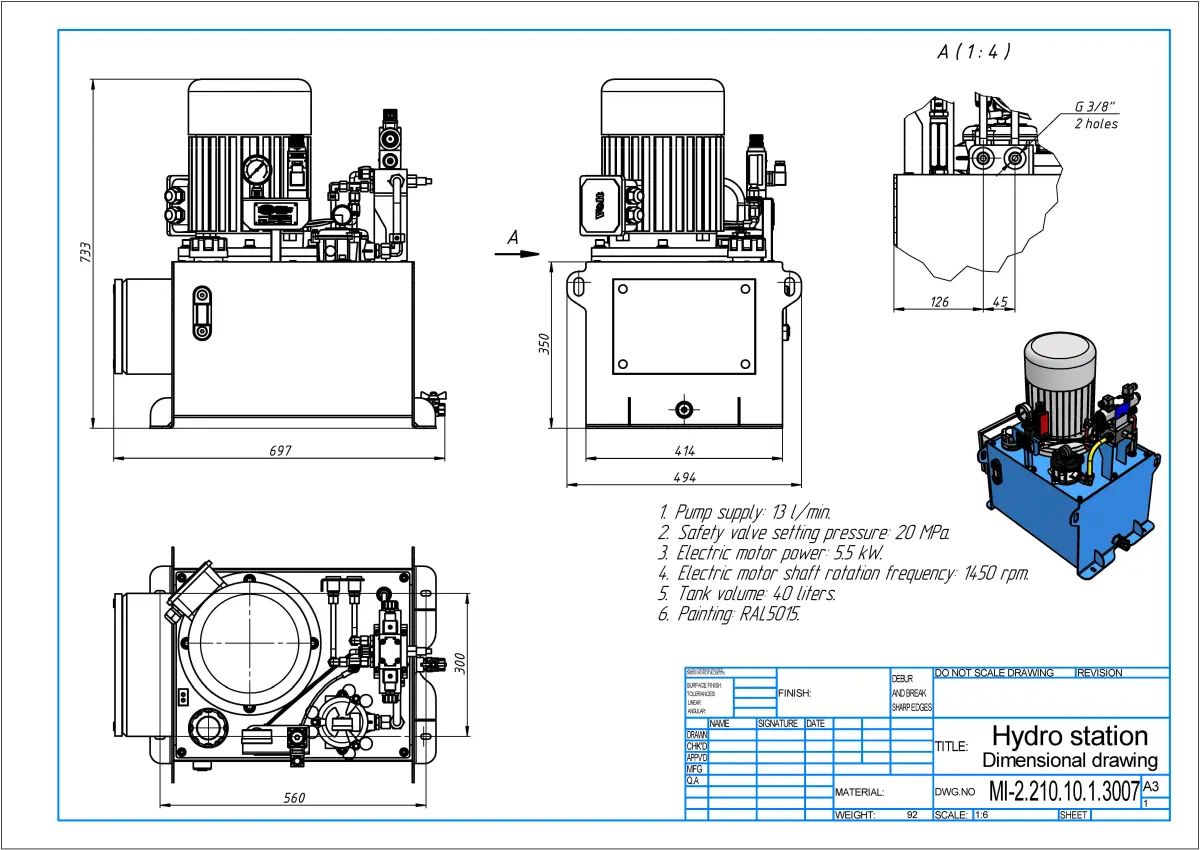

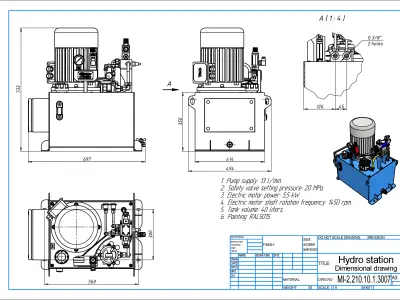

Technical data:

  • Mass of hydraulic stations: 92 kg;
  • Volume of hydraulic tank: 40 l;
  • Working volume of the pump: 8.4 cm3/rev;
  • Volume pump flow: 13 l/hv;
  • Nominal displacement of the pump: 20 MPa;
  • Motor power: 5.5 kW;
  • Electric motor voltage: M 380 V (AC) 50 Hz;
  • Class zakhistu electric motor: IP 55;
  • Working environment: Mineral oil HLP according to DIN 51524;
  • Viscosity class PP: VG 46;
  • Nominal temperature PP: +40…+55 °C;
  • Maximum allowable temperature PP: +70 °C;
  • Viscosity range PP: 12 - 200 cSt
  • Recommended viscosity PP: 30 - 50 cSt.

Also check out my other models, just click on my user name to see complete gallery.

IAM (Autodesk Inventor, filesize: 18.5 MB), IGE (IGES, filesize: 39.1 MB), STP (STEP, filesize: 29.8 MB), DWG (AutoCAD, filesize: 13.1 MB), SAT (3D ACIS, filesize: 36.3 MB), FBX (Autodesk FBX, filesize: 100 MB), MAX (Autodesk 3ds Max, filesize: 373 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Pump Tool Machine Hydraulic Power System Self Concentric Unit Operation Industrial Motor Factory Water Other Water pump cad Pump cad Hydraulic cad
