Industrial Gate Valve 3D model
Home Catalog Industrial Gate Valve 3D model
Industrial Gate Valve 3D model
Industrial Gate Valve 3D model
Industrial Gate Valve 3D model
Industrial Gate Valve 3D model
Industrial Gate Valve 3D model

Publication date: 2026-01-02

Buy Industrial Gate Valve 3D model

$2

License: Royalty Free

author:

isithummihiran2001

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «isithummihiran2001». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2 Add to Wishlist
  • Description
  • Formats

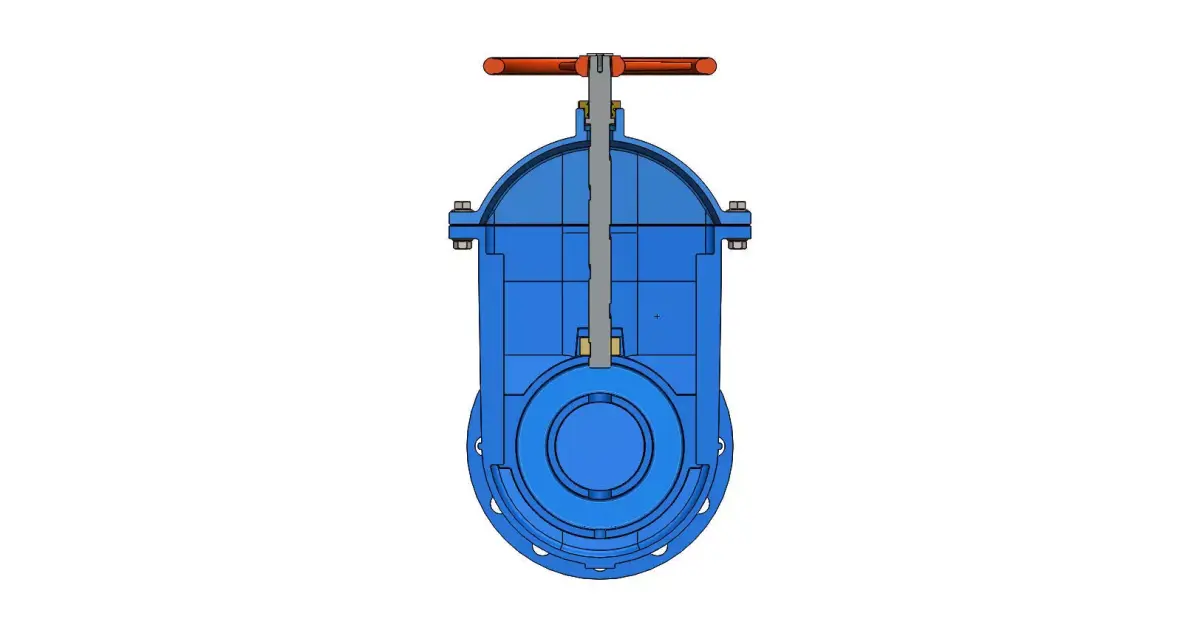

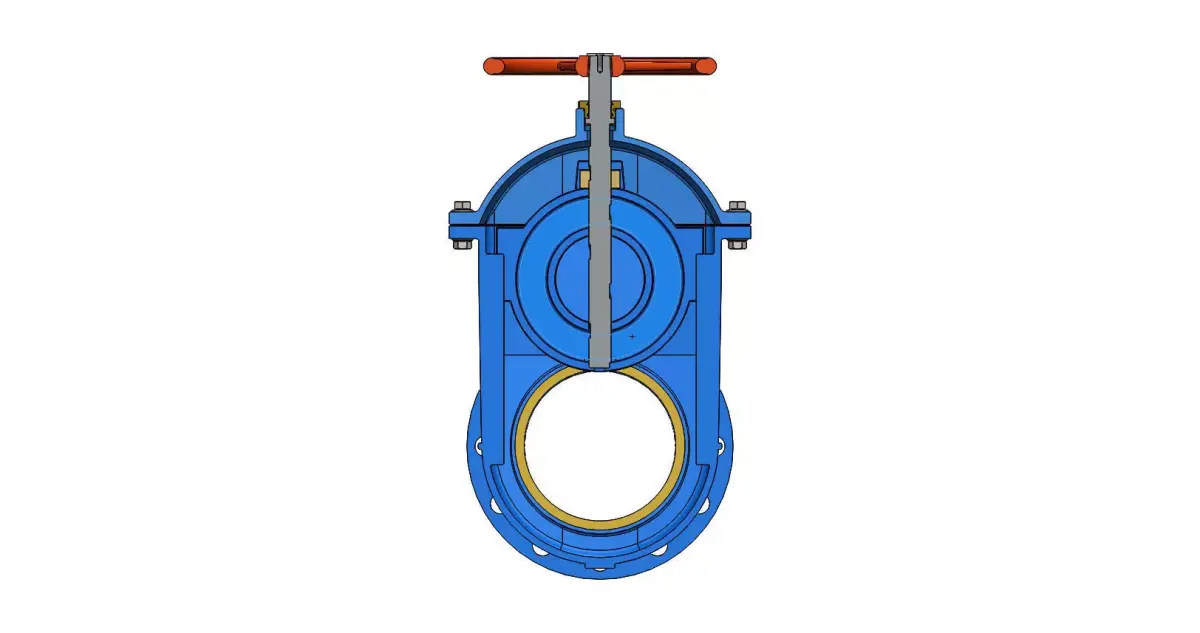

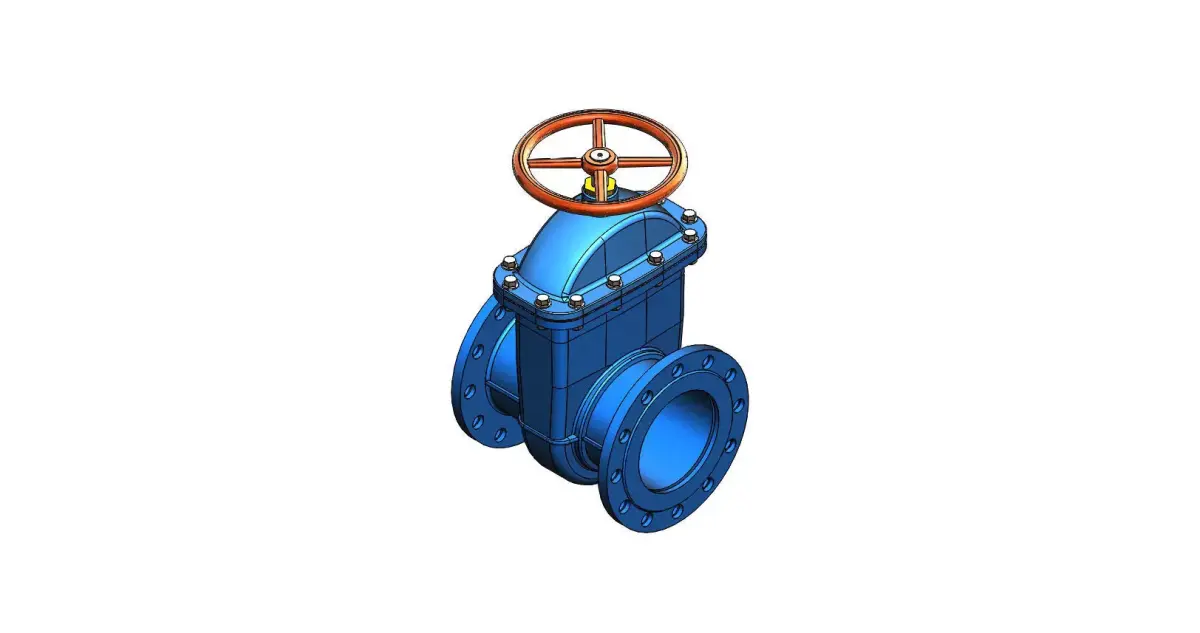

This is a detailed gate valve 3D model designed using SolidWorks. The model represents a typical industrial flanged gate valve commonly used in piping systems for flow isolation. It features a handwheel-operated rising stem, bolted bonnet, and flanged inlet and outlet connections.The model is suitable for mechanical design projects, industrial plant layouts, piping system visualization, HVAC and fluid system simulations, and educational purposes. Clean geometry and proper part separation make it easy to modify, assemble, or render.

Key Features

  • Realistic industrial gate valve design
  • Flanged inlet and outlet connections
  • Handwheel-operated stem mechanism
  • Bolted bonnet and body details
  • Accurate proportions and clean topology

File Details

  • Created in SolidWorks
  • Native SolidWorks part/assembly included
  • Export-friendly for STEP / IGES / STL formats
  • Ready for rendering, simulation, or manufacturing reference
STL (Stereolithography, filesize: 6.45 MB), IGE (IGES, filesize: 23.3 MB), OTHER (Other, filesize: 11.8 MB), SLDPRT (SolidWorks, filesize: 7.25 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Valve Hvac Solidworks Design Pipe Technology Piping Mechanical Industrial Part Industrial part – Download & Buy
