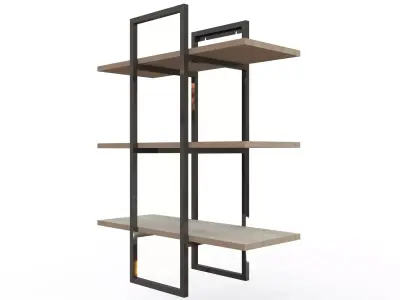

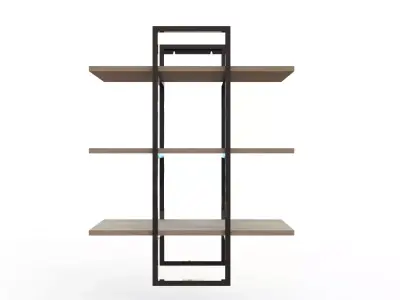

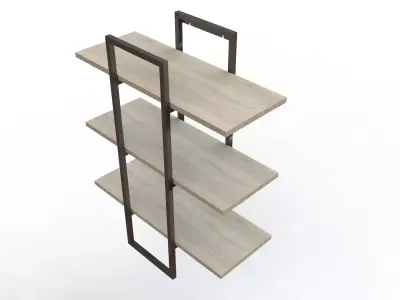

Product DescriptionThis 3D model represents a premium industrial-style modular shelf, engineered for real-world manufacturing and optimized for both strength and production efficiency. The structure is built from 15×15×2 mm rectangular steel tubing, welded into an asymmetric geometry that increases rigidity while minimizing material usage. The design integrates wooden shelves mounted through a hidden fastening system, ensuring a clean, high-end appearance and significantly reducing assembly time. The model is designed as a fully demountable assembly, with a minimal number of components, making it easy to pack, transport, and assemble. All tolerances and geometries are intentionally simple, avoiding complex angles or special machining operations. This allows for fast, cost-effective production using standard workshop equipment.
Dimensions of the assembled unit: 1000 × 300 × 350 mm.
Key FeaturesWelded steel frame using 15×15×2 mm tubing for optimal strength-to-weight ratio.Asymmetric structural layout engineered for rigidity and visual impact.Hidden mounting system for wooden shelves, providing a seamless premium look.Calculated support points ensuring proper load distribution.Simple manufacturing tolerances, no special tools or complex cuts required.Modular, demountable construction for easy transport and reduced packaging volume.Minimal component count, lowering assembly time and production errors.Fully compatible with standard fabrication processes.Customizable dimensions, colors, and wood types without redesigning the structure.

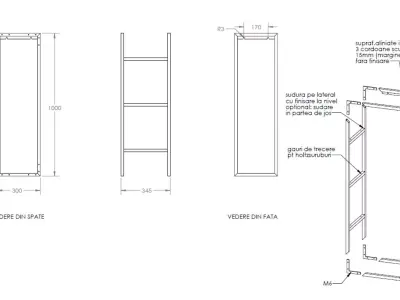

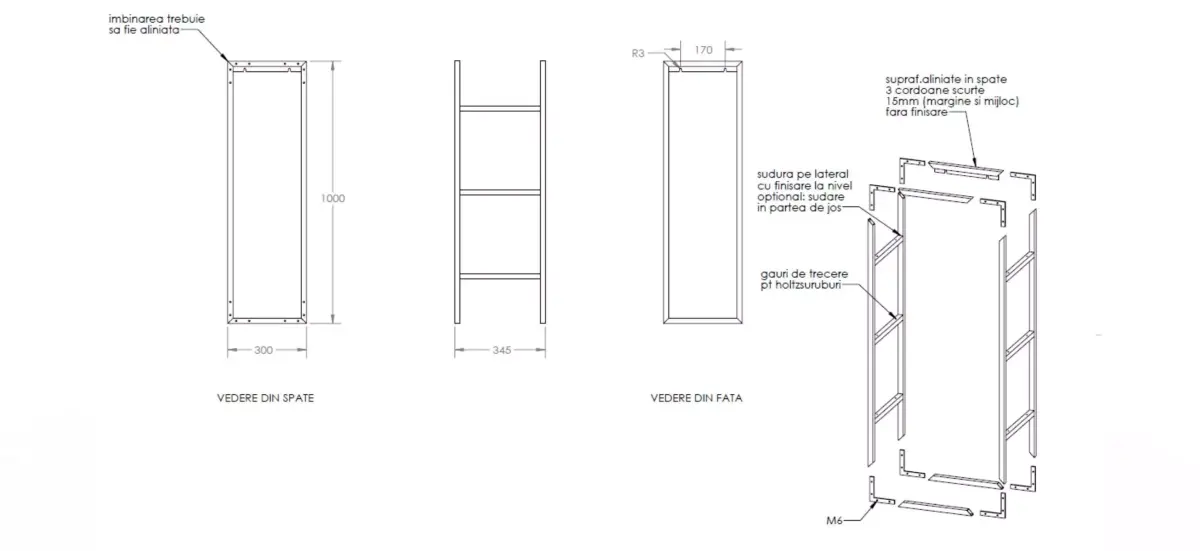

Included FilesDXF files for laser cuttingPDF technical drawings for workshop useSTEP and IGES files for CAD/CAM workflows and further customization
SLDPRT (SolidWorks, filesize: 2.47 MB), DXF (DXF, filesize: 8.77 KB), PDF (PDF, filesize: 723 KB), IGE (IGES, filesize: 82.5 KB), OTHER (Other, filesize: 49.4 KB)
