Buy Industrial pipe 3D model - CATIA V6 3D print model

Name: Industrial pipe 3D model - CATIA V6 3D print model
Brand: prithwijit2000
SKU: 876762
Price: 4.00 USD
Availability: InStock

License: Royalty Free No Ai

author:

prithwijit2000

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «prithwijit2000». CGhub does not claim copyright ownership over the content used.

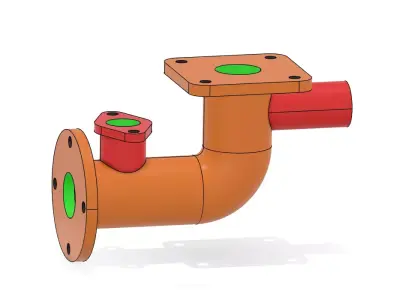

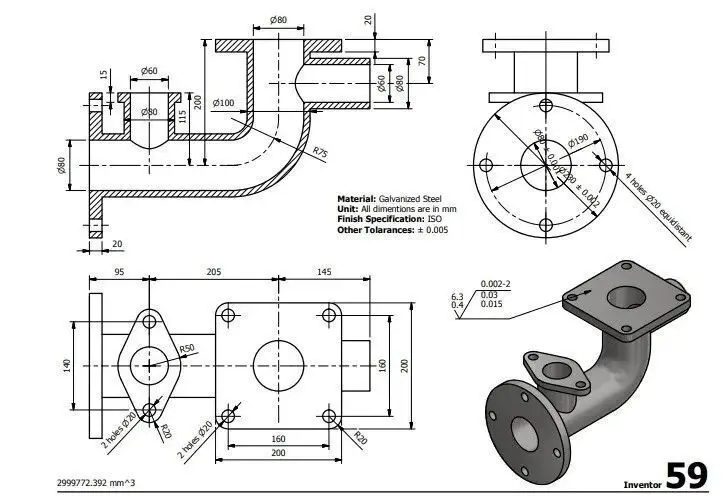

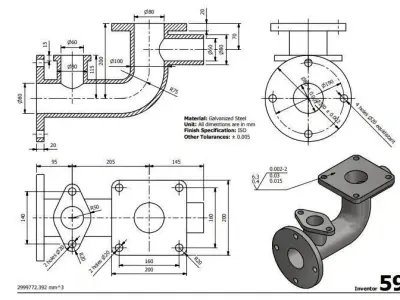

Enhance your industrial piping projects with this meticulously designed 3D Pipe Assembly Model, crafted using CATIA V5/V6. The model represents a high-precision galvanized steel pipe system featuring standard flanges, bolt patterns, and optimized flow geometry.

File Format: CATIA V5 (.CATPart, .CATProduct) / V6Units: Millimeters (mm)Finish Specification: ISO standardTolerances: ±0.005 mmKey Features:Fully parametric and editable modelISO standard dimensioning and tolerancesSuitable for mechanical, industrial, and piping layout projectsReady for simulation, stress analysis, or manufacturing documentation

Perfect for engineers, students, and product developers seeking a professional-grade piping component for academic, industrial, or prototyping use.
