Industrial Shed 3D model

$20

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

tyronet3d

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «tyronet3d». CGhub does not claim copyright ownership over the content used.

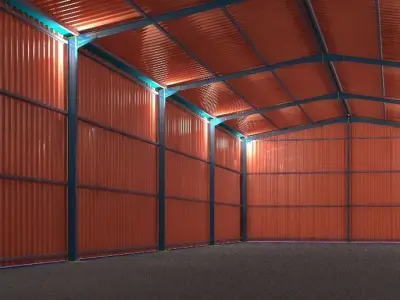

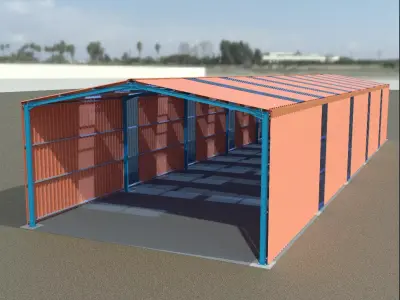

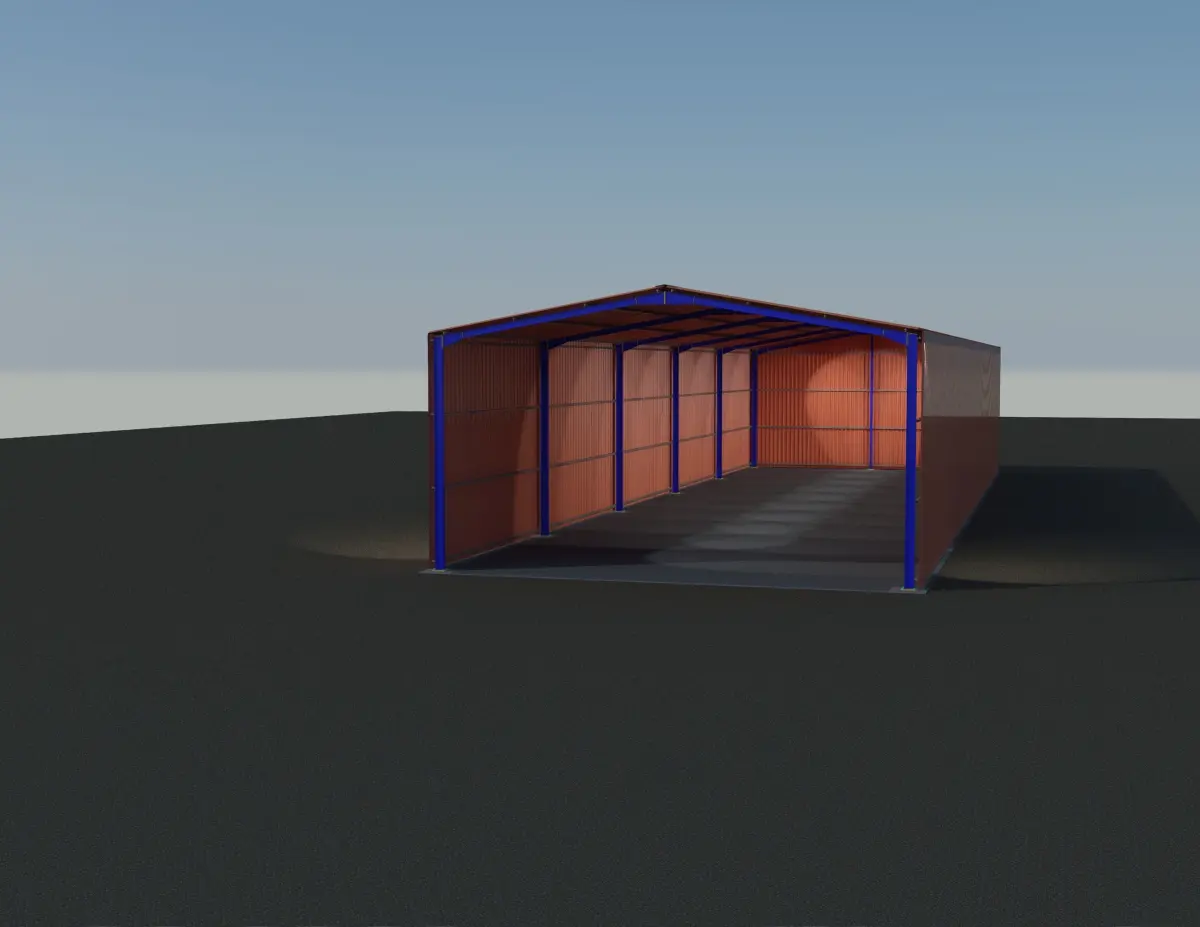

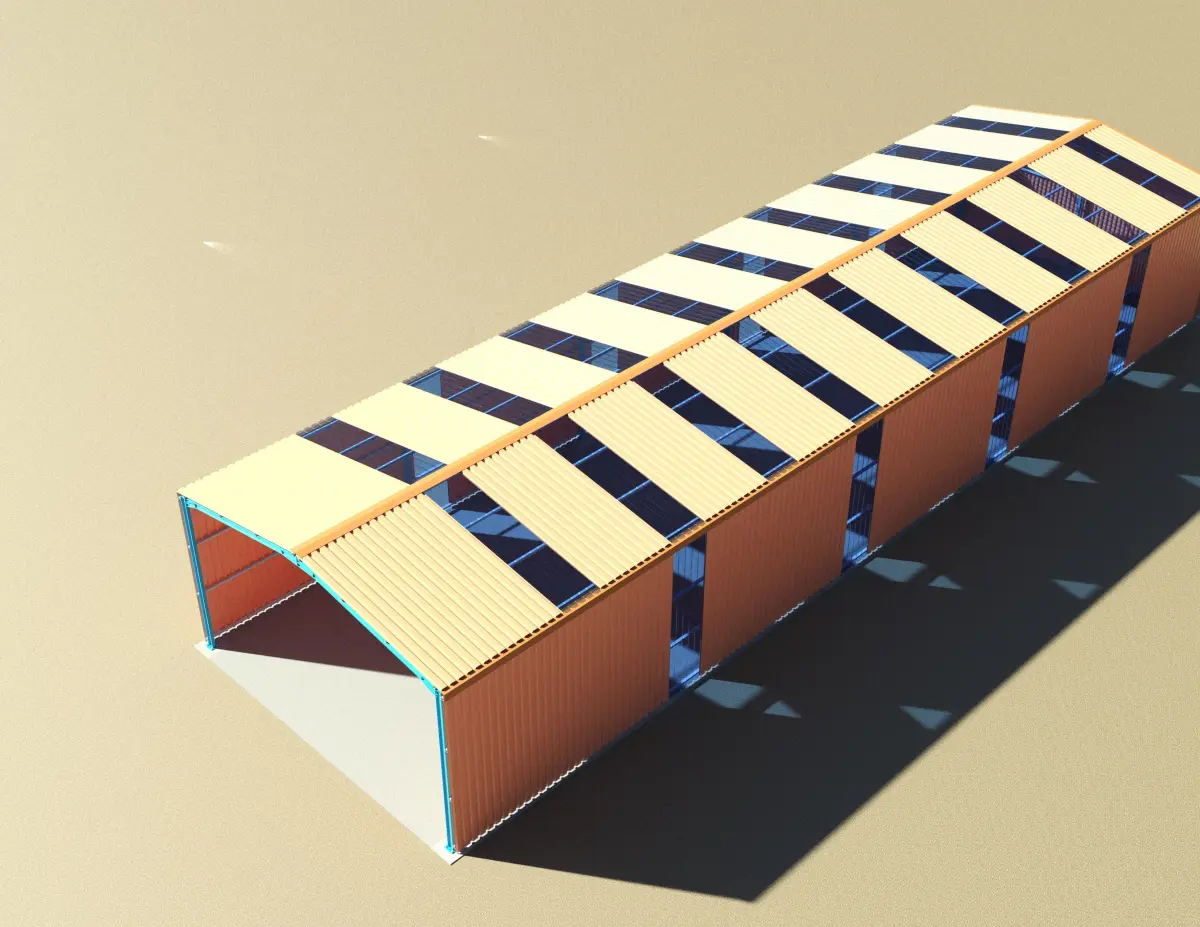

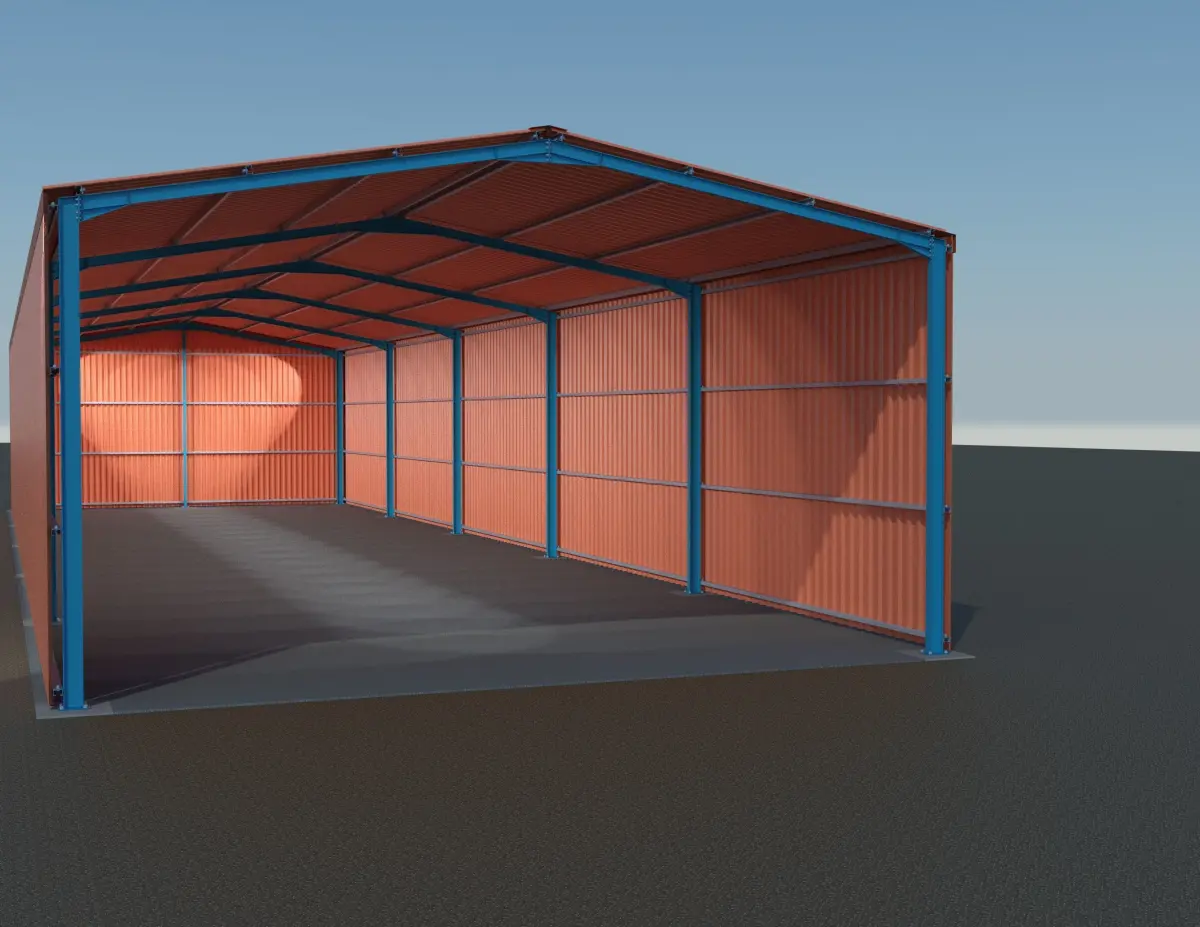

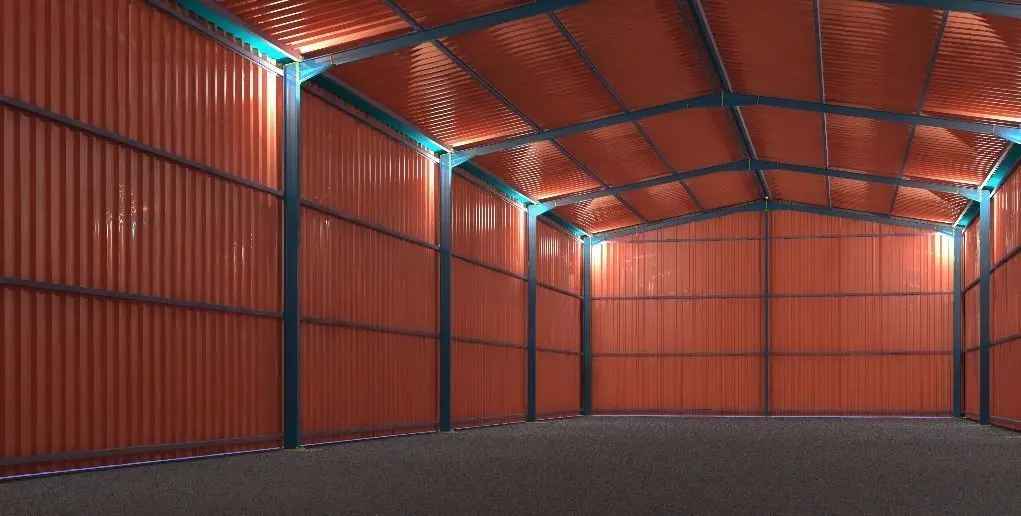

Industrial Shed no.1

Complete CAD designSize: L30m*W8.5m*H5mArea: 255m²Weight 3.2 tons**

Cost efficiency and simplicity are key aspects in this design package that could be constructed anywhere.The building is Ideal for farms, bulk storage, light industry, equipment stores or warehouse.

Accurately detailed drawings are easily understood with only 13 different assemblies using standard steel sections leaves little room for error. Keeping things simple to manufacture, cheap to transport and quick to install.

A generic shed design gives you freedom to remove the side cladding or reduce the overall length to suit your requirements.

DIY or have a contractor handle the project with all information already available. Easily get multiple quotes to calculate project cost and plan your budget.

Included in this package: Workshop assembly drawingsSingle part detail drawingsGeneral arrangement3D modelPlate dxf filesMaterial listBeam cut listAssembly listBolt list

** Weight of steel sections and cold rolled purlins excluding cladding.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Structure Warehouse Bulker Storage Construction Steel Metal Detailed Plans Detail Drawings Building Light Industry Structural Architectural Engineering
