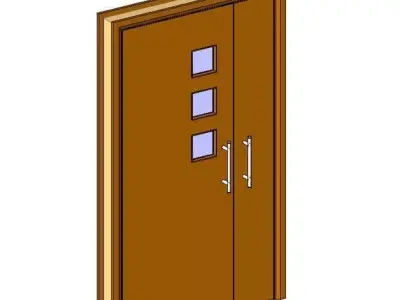

Type 1210 x 2110mm Opp Swing 1510 x 2110mm Sgl Swing 1510 x 2110mm Dbl Swing Architrave Setback 5.0 5.0 5.0 Door Panel Height 2060.0 2060.0 2060.0 Door Panel Offset 0.0 0.0 0.0 Door Panel Thickness 32.0 32.0 32.0 Frame Thickness 32.0 32.0 32.0 Function 0 0 0 Handle Length 350.0 350.0 350.0 Handle Style Handle (4) Handle (4) Handle (4) Handle X Distance 75.0 75.0 75.0 Handle Z Distance 1000.0 1000.0 1000.0 Height 2110.0 2110.0 2110.0 Keynote L20 L20 L20 Main Panel Width 826.0 926.0 926.0 Material Architrave Door - Architrave Door - Architrave Door - Architrave Material Door Door - Panel Door - Panel Door - Panel Material Frame Door - Frame/Mullion Door - Frame/Mullion Door - Frame/Mullion Material Glass Glass Glass Glass Material Ironmongery Door - Handle Door - Handle Door - Handle Operation DoubleDoorSingleSwingOppositeRight DoubleDoorSingleSwing DoubleDoorDoubleSwing Rough Height 2110.0 2110.0 2110.0 Rough Width 1210.0 1510.0 1510.0 Secondary Panel Width 295.0 495.0 495.0 Stile Intermediate/Frieze 100.0 100.0 100.0 Stile Shutting 125.0 125.0 125.0 Stile Top Rail 250.0 250.0 250.0 Stop Depth 32.0 32.0 32.0 Stop Thickness 19.0 19.0 19.0 Structural Tolerance 8.0 8.0 8.0 Thickness 32.0 32.0 32.0 Tolerance 3.0 3.0 3.0 UnderCut 7.0 7.0 7.0 Vis - Ironmongery True True True Vis - Stops False True False Vis - Swing Double False False True Vis - Swing Opposing True False False Vis - Swing Single False True True VisionPanel Depth 185.0 185.0 185.0 VisionPanel Width 185.0 185.0 185.0 Wall Closure 0 0 0 Width 1210.0 1510.0 1510.0 Type 1210 x 2110mm Sgl Swing 1210 x 2110mm Dbl Swing 1510 x 2110mm Opp Swing Architrave Setback 5.0 5.0 5.0 Door Panel Height 2060.0 2060.0 2060.0 Door Panel Offset 0.0 0.0 0.0 Door Panel Thickness 32.0 32.0 32.0 Frame Thickness 32.0 32.0 32.0 Function 0 0 0 Handle Length 350.0 350.0 350.0 Handle Style Handle (4) Handle (4) Handle (4) Handle X Distance 75.0 75.0 75.0 Handle Z Distance 1000.0 1000.0 1000.0 Height 2110.0 2110.0 2110.0 Keynote L20 L20 L20 Main Panel Width 826.0 826.0 926.0 Material Architrave Door - Architrave Door - Architrave Door - Architrave Material Door Door - Panel Door - Panel Door - Panel Material Frame Door - Frame/Mullion Door - Frame/Mullion Door - Frame/Mullion Material Glass Glass Glass Glass Material Ironmongery Door - Handle Door - Handle Door - Handle Operation DoubleDoorSingleSwing DoubleDoorDoubleSwing DoubleDoorSingleSwingOppositeRight Rough Height 2110.0 2110.0 2110.0 Rough Width 1210.0 1210.0 1510.0 Secondary Panel Width 295.0 295.0 495.0 Stile Intermediate/Frieze 100.0 100.0 100.0 Stile Shutting 125.0 125.0 125.0 Stile Top Rail 250.0 250.0 250.0 Stop Depth 32.0 32.0 32.0 Stop Thickness 19.0 19.0 19.0 Structural Tolerance 8.0 8.0 8.0 Thickness 32.0 32.0 32.0 Tolerance 3.0 3.0 3.0 UnderCut 7.0 7.0 7.0 Vis - Ironmongery True True True Vis - Stops True False False Vis - Swing Double False True False Vis - Swing Opposing False False True Vis - Swing Single True True False VisionPanel Depth 185.0 185.0 185.0 VisionPanel Width 185.0 185.0 185.0 Wall Closure 0 0 0 Width 1210.0 1210.0 1510.0
.
OTHER (Other, filesize: 532 KB), RFA (Autodesk Revit, filesize: 379 KB)
