Download Intermediate Lifting Conveyor Free 3D model

Name: Intermediate Lifting Conveyor Free 3D model
Brand: Lovano
SKU: 2265
Availability: InStock

free

License: Royalty Free No Ai

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

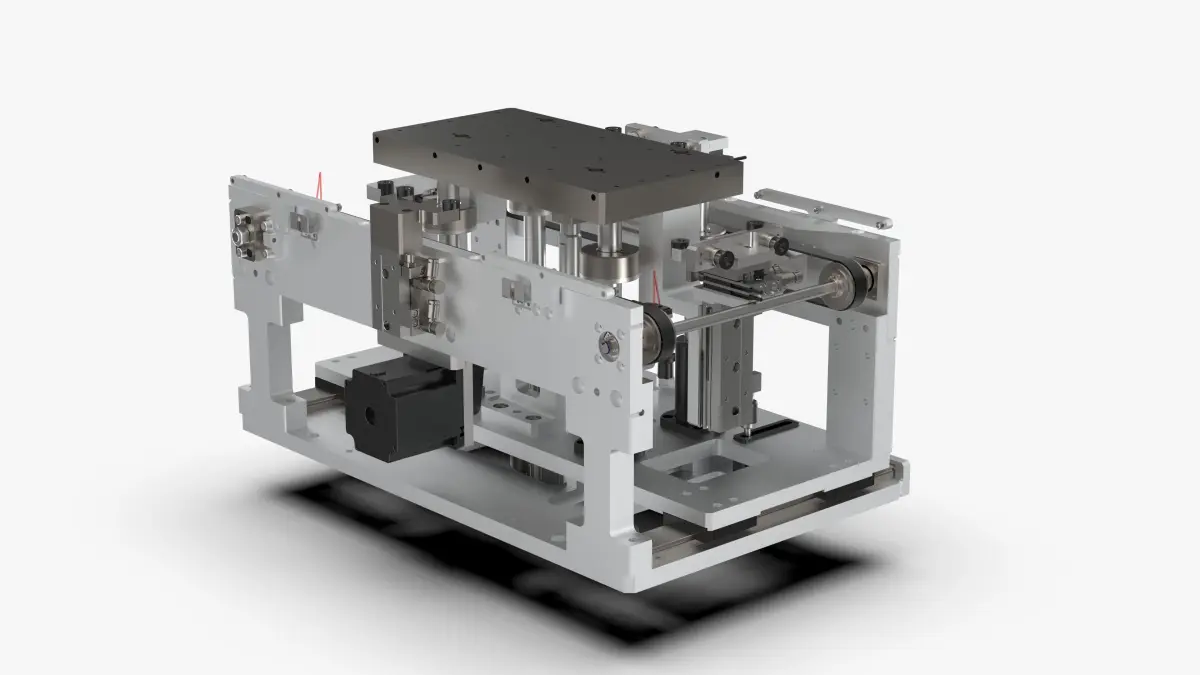

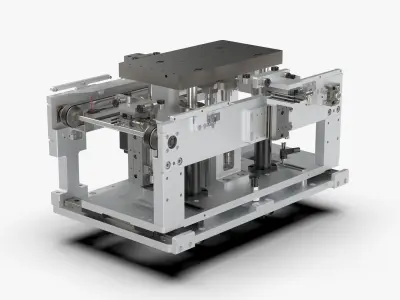

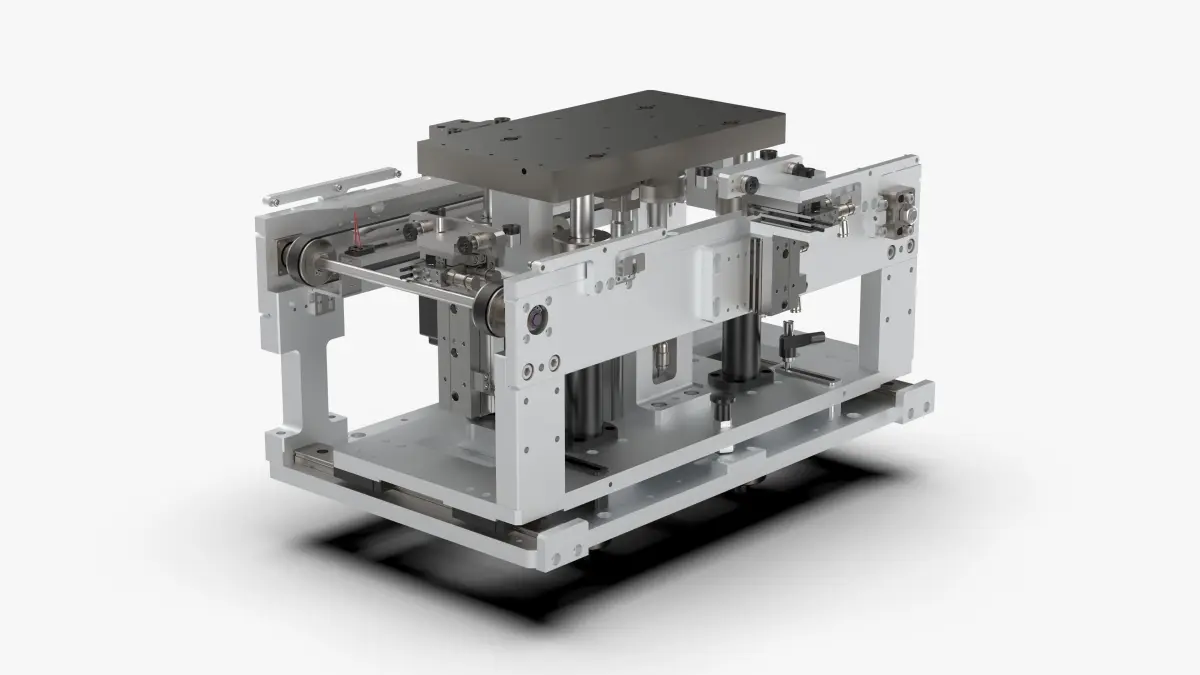

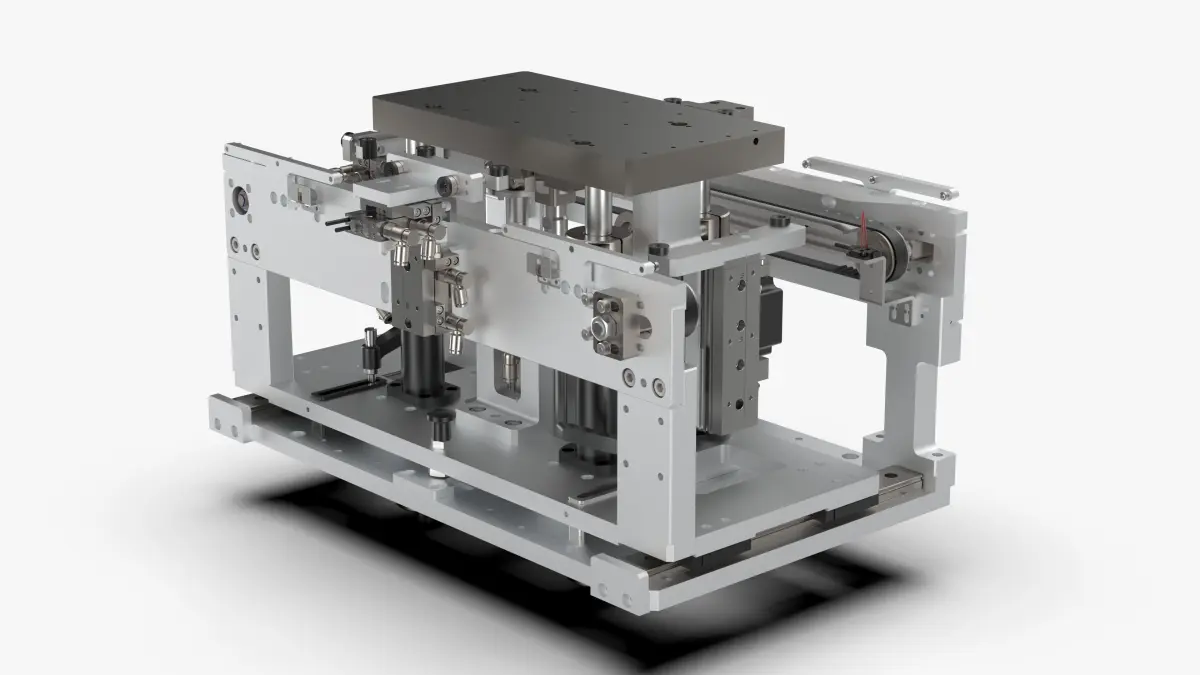

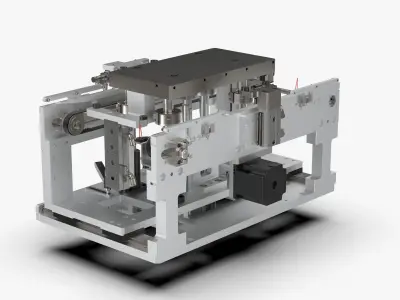

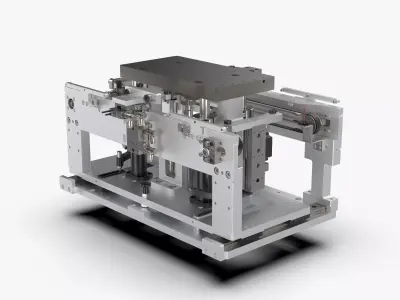

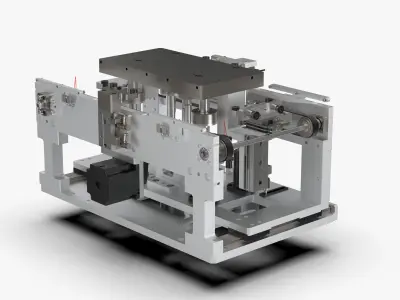

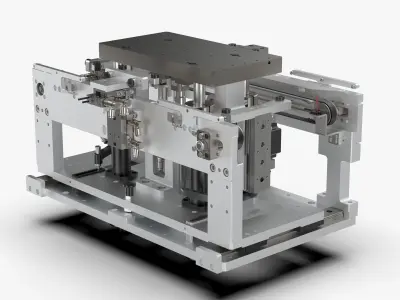

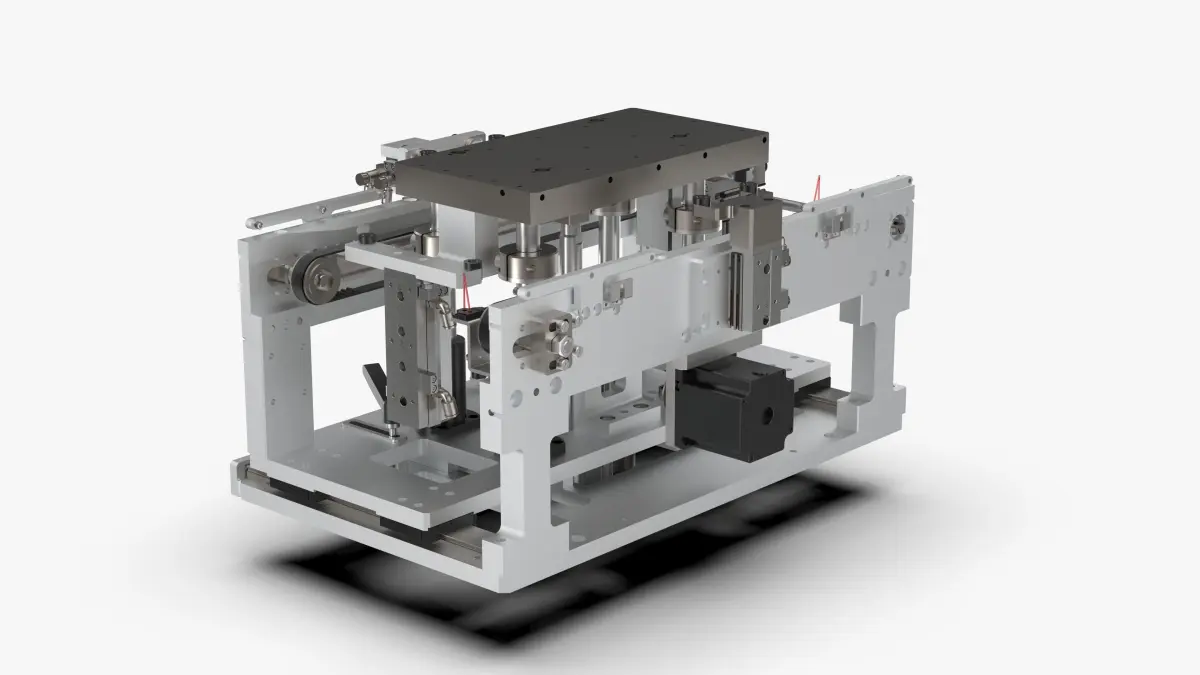

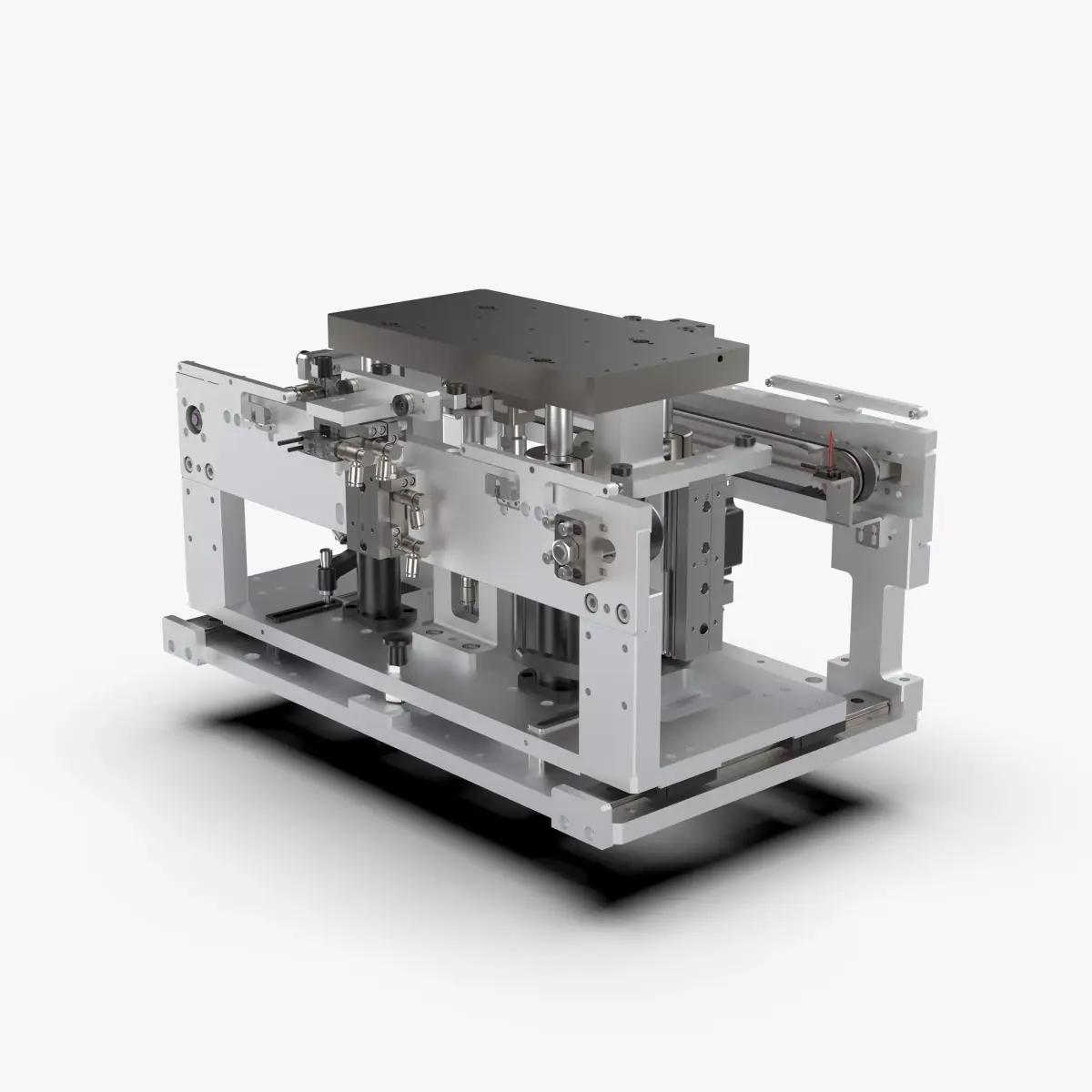

Intermediate Lifting Conveyor

Introduction

The jacking conveying equipment adopts cylinder jacking machine and speed regulating motor to convey, and the conveying method is synchronous belt. This device is lifted by a cylinder and guided by linear bearings to control the intermittent delivery of products, and is used to change the direction of product delivery or transfer. The DSSS-00 Elevator Conveyor drawing contains 3D drawings as well as engineering drawings, and features can be edited.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)
x_t (Parasolic Model Part File)

Geometry

Polygons: 639,640
Vertice: 1,918,920

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 639640
Vertices: 1918920
Plugins used
Geometry: Polygon mesh

Tags

Conveyor Industrial Machine Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial machine – Download & Buy
