Inverted Coanda Aero Foil - Concept 3D model

License: editorial_no_ai

author:

Raqia-Design

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Raqia-Design». CGhub does not claim copyright ownership over the content used.

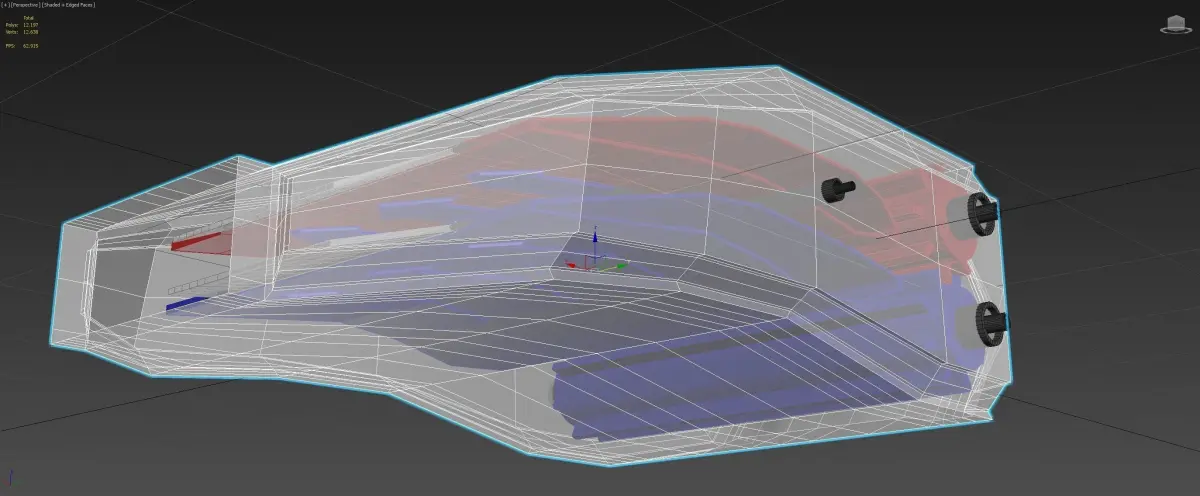

Inverted Coanda Aero Foil - Concept.

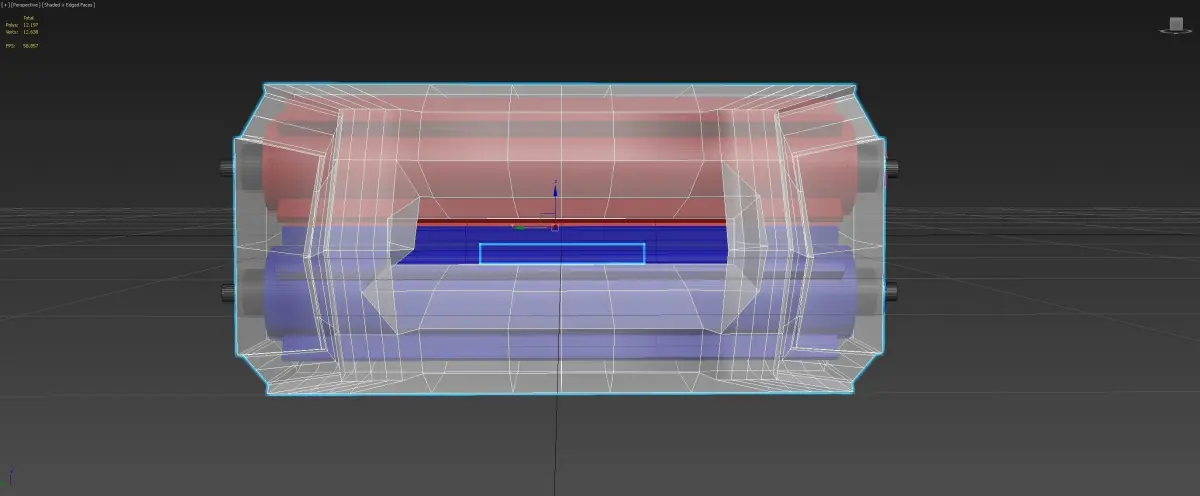

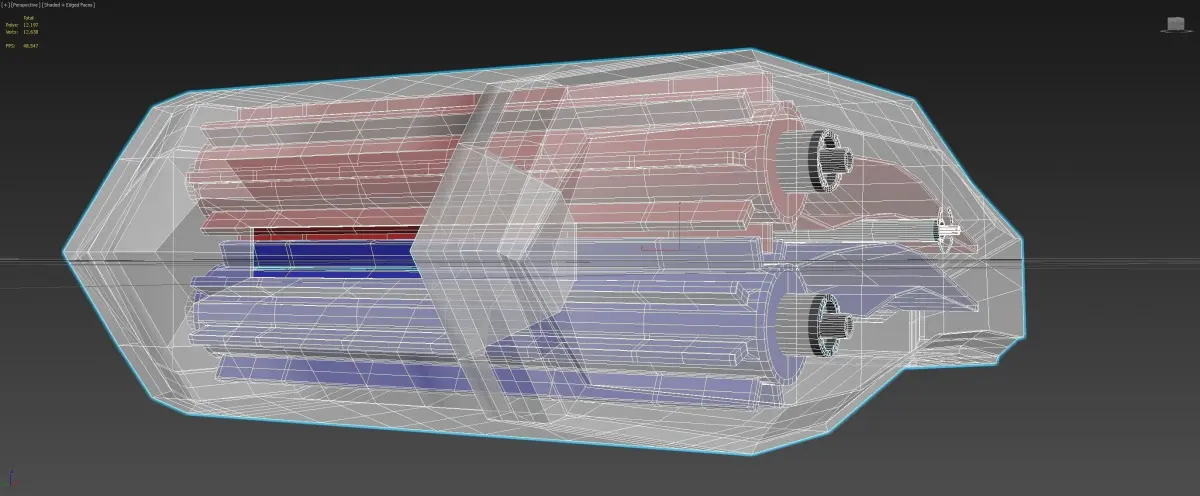

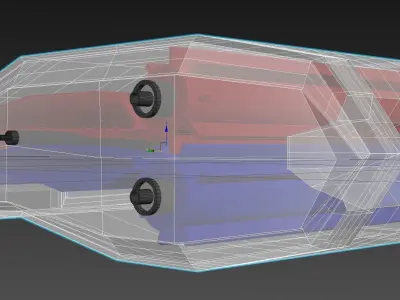

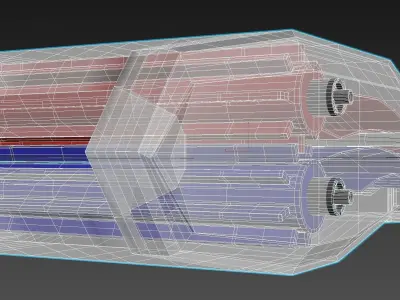

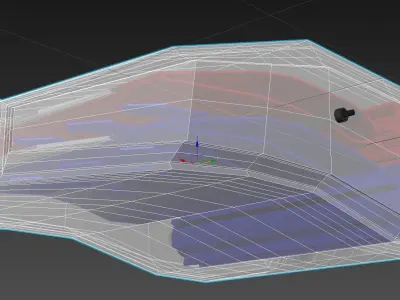

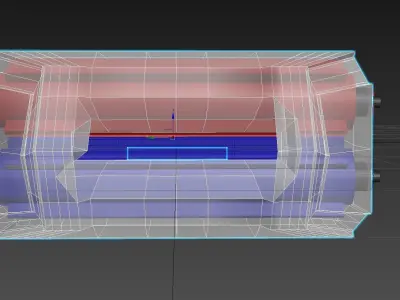

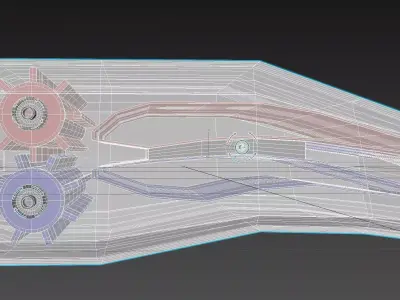

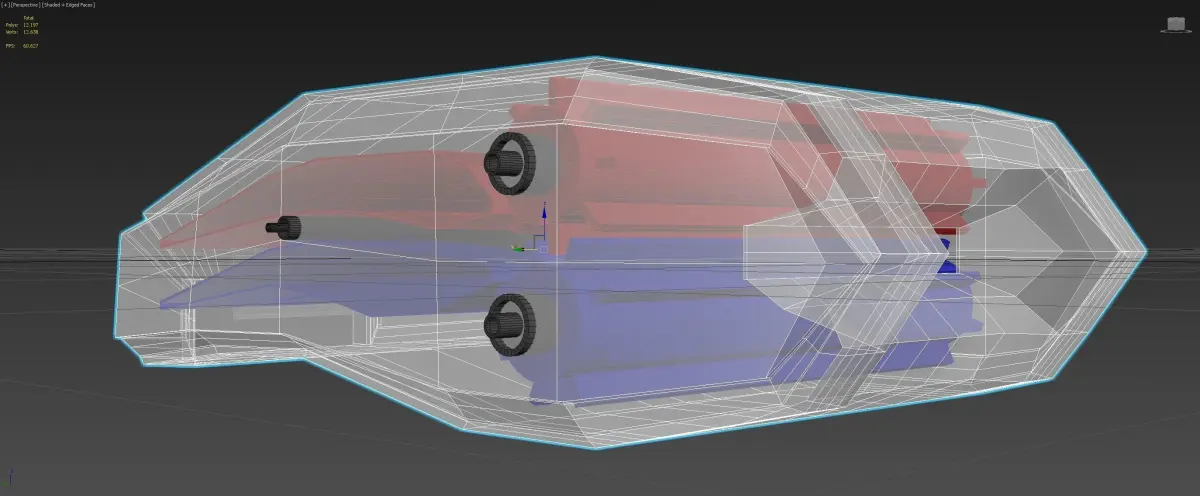

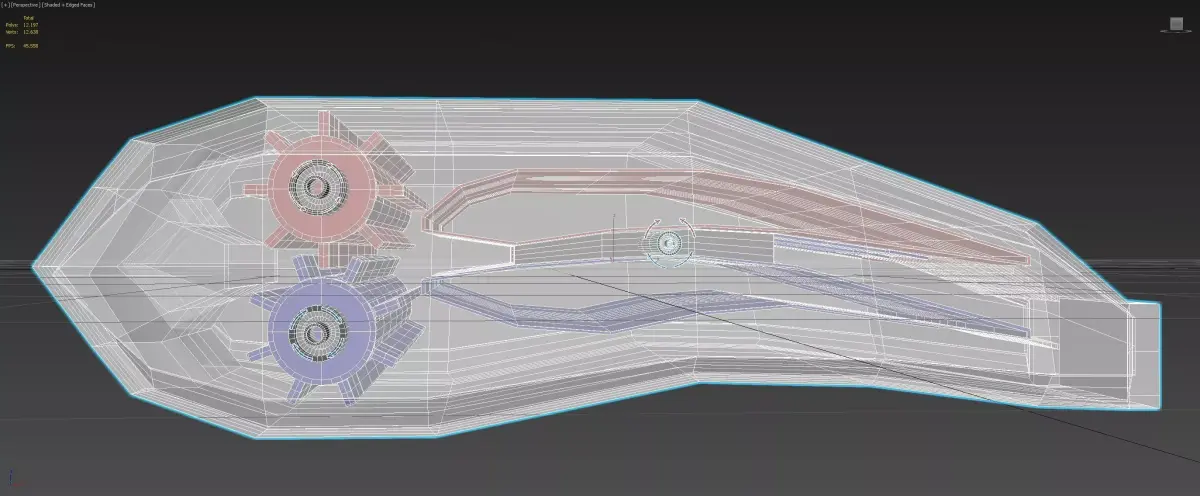

Two counter spinning rotors, sucking in air in the front/side pushing it along the hollowed ultra light inner wing structure. creating 4 actual airflow streams, one over the top inner wing, one under the top inner wing, one over the lower inner wing, one under the lower inner wing.the entire inner wing can tilt slightly, changing flight charesteristics during flight. both foils have their own flaps as well, changing drag etc.the setup is shaped so that the upper wheel feeds the upper and lower wing at the same turn. the lower wheel feeds the top and bottom inner wing as well as they are closely related to their inner wing sections.

i live off of comments, your likes and your tips. thank you for watching and reading.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: {"subdivisionReady":"Subdivision ready","polygonMesh":"Polygon mesh","nurbs":"Nurbs","other":"Other"}
Polygons: Unknown
Vertices: 0
