Iris mechanism for 3d printing-3DP3BLROD10A Free 3D print model

free

License: Royalty Free No Ai

author:

monk3947

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «monk3947». CGhub does not claim copyright ownership over the content used.

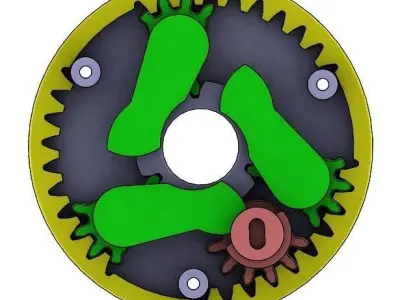

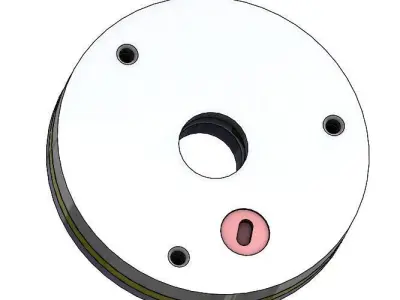

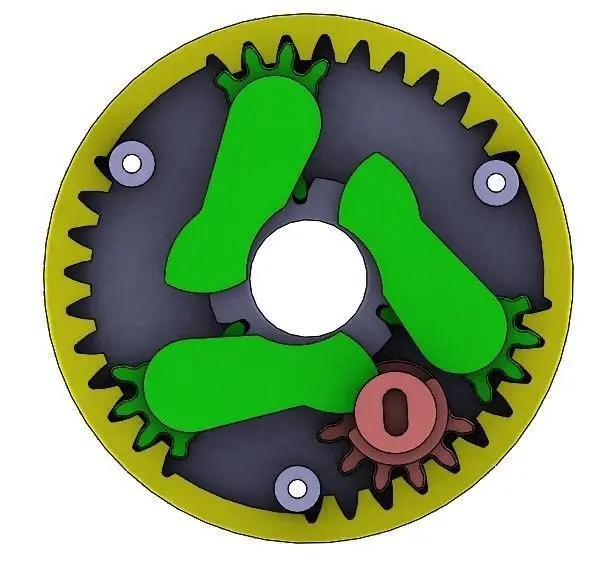

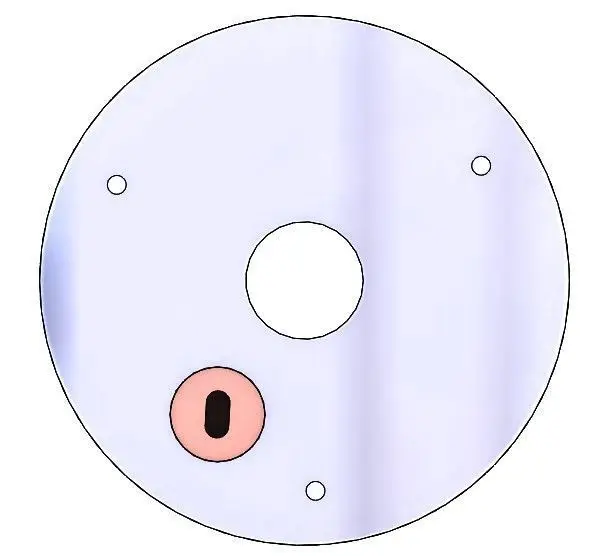

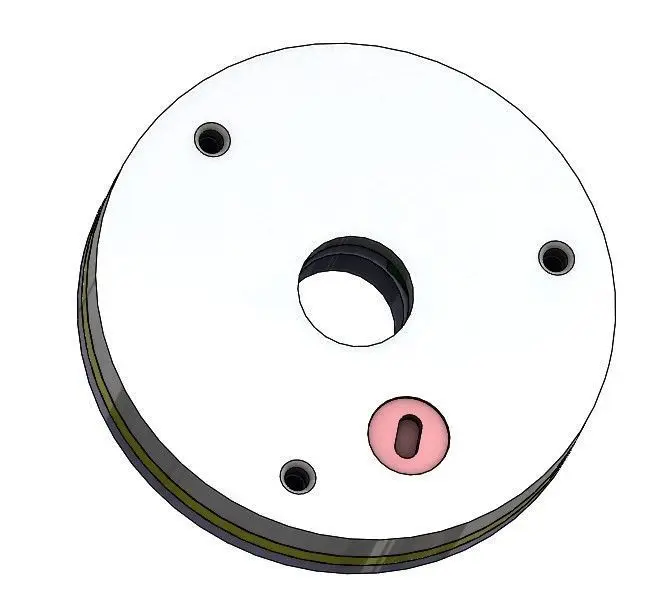

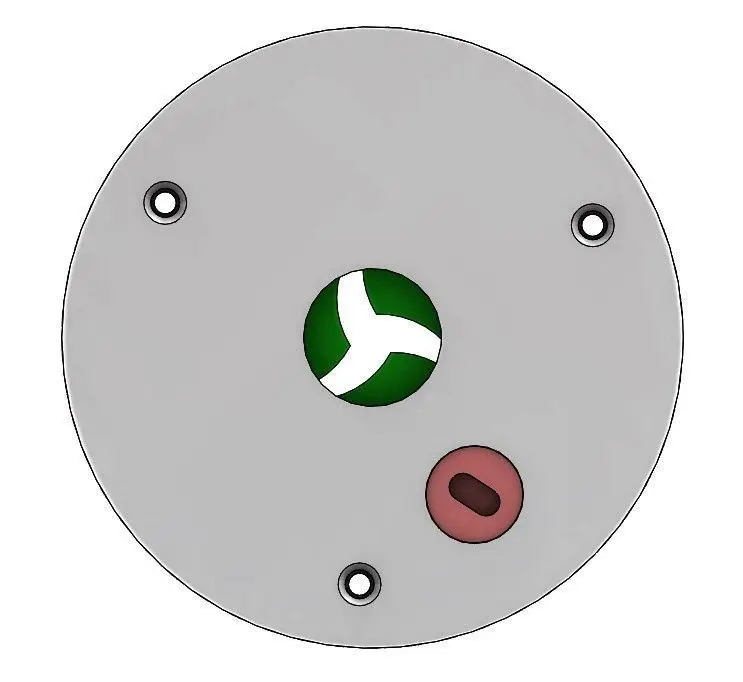

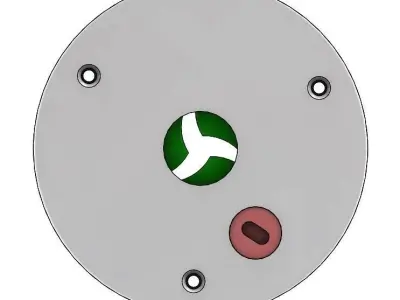

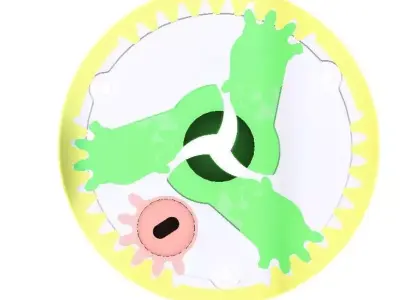

Iris mechanism designed for 3d printing. There are 3 blades. When you rotate the Drive Partor the middle plate, the center hole can open or close gradually. The center hole is diameter 10mm, the outer size is diameter 45mm and thickness is 8.3mm. To assemble the parts togther,you need to prepare some M2 screws.It is best to use resin material when 3d printing. And you may need to sand some parts due to the 3d printing quality.Parts should be printed separately and then assembled together.

The FBX and OBJ format files can be deleted,they are only for cgtrader's requirement.Download free 3d pdf file: https://www.twothreed.com/
