Buy ISO 15552 Pneumatic Cylinder Bore 40mm Complete Stroke Series 3D Model Pack

Name: ISO 15552 Pneumatic Cylinder Bore 40mm Complete Stroke Series 3D Model Pack
Brand: rudolf-nu
SKU: 907404
Price: 40.00 USD
Availability: InStock

$40

License: Royalty Free

author:

rudolf-nu

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rudolf-nu». CGhub does not claim copyright ownership over the content used.

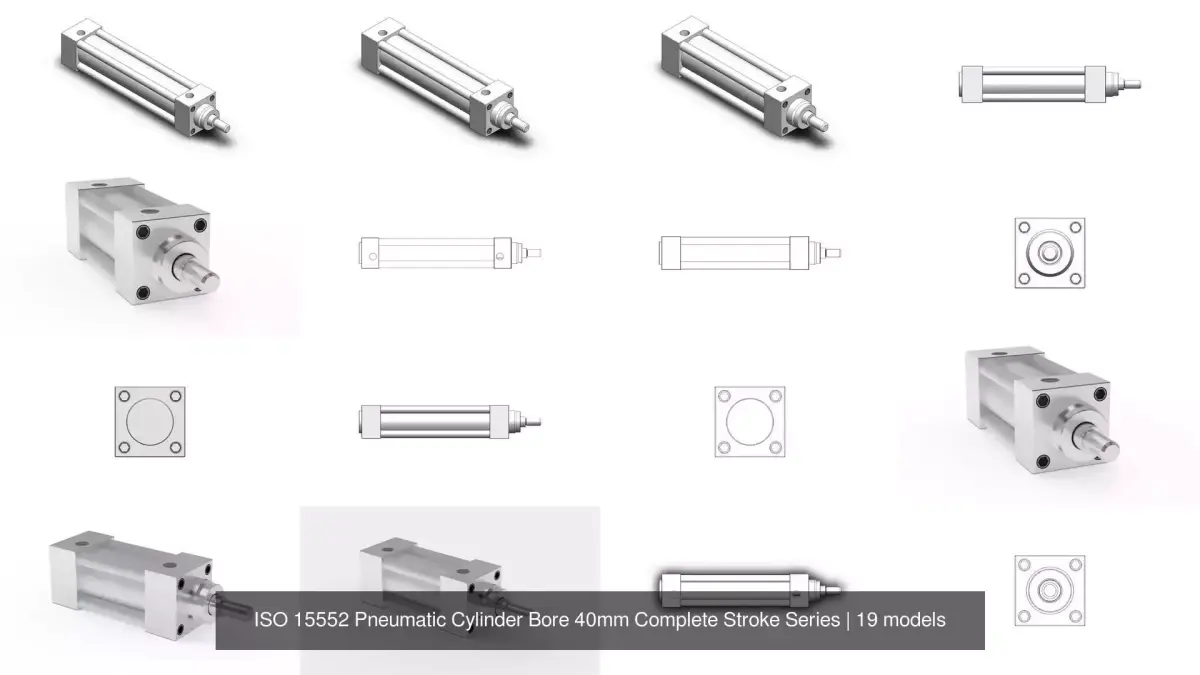

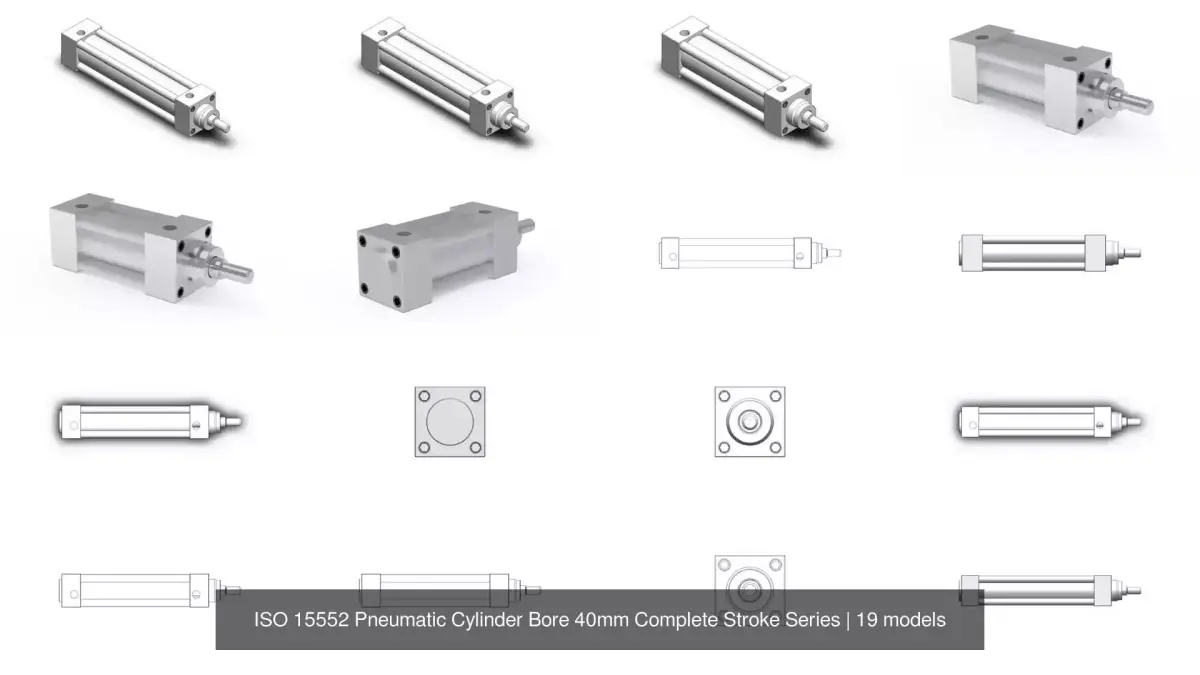

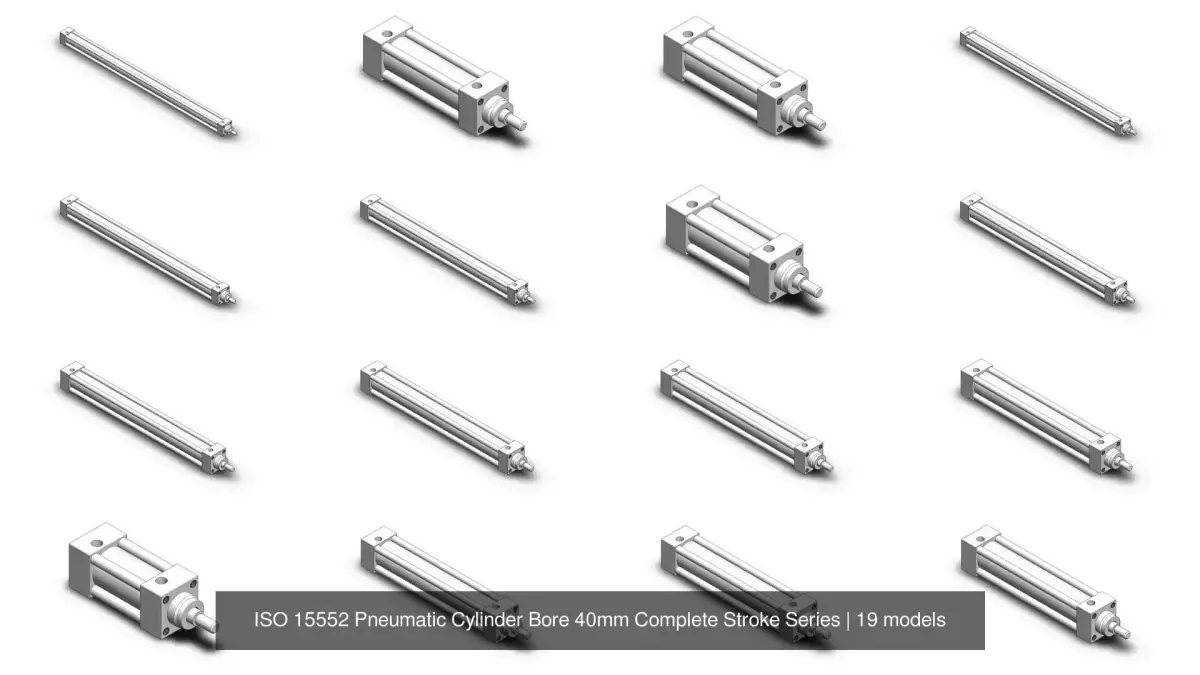

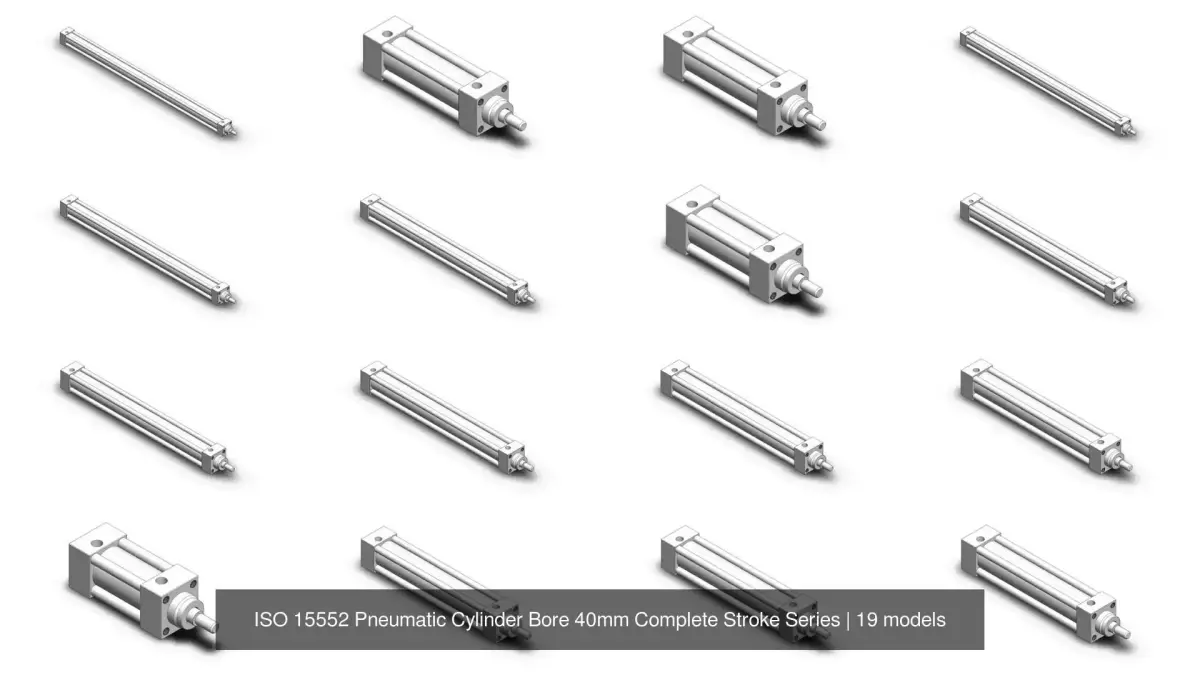

Complete series of ISO 15552 standard pneumatic cylinders with 40mm bore diameter.

This pack includes all standard stroke lengths for bore 40mm according to ISO 15552:25 / 50 / 75 / 80 / 100 / 125 / 150 / 160 / 175 / 200 / 250 / 300 / 350 / 400 / 450 / 500 / 600 / 700 / 800mm

All models are dimensionally accurate per ISO 15552 standard tables.

Each model includes:— Front cap— Rear cap— Barrel / tube— Tie rods— Nuts— Piston rod

Included formats (per model):— STEP (.stp)— IGES (.igs)— STL (.stl)— Parasolid (.x_t)— SolidWorks part (.sldprt)

Clean solid bodies only — no feature tree, no design table, no internal geometry.Ready for direct insertion into assemblies.Suitable for mechanical design, automation layouts, technical documentation and visualization.

Compatible with: SolidWorks, CATIA, Inventor, Fusion 360, NX, Creo, FreeCAD and any CAD software supporting STEP or IGES format.
